Key Features
- Fits 8" Speakers
- For Torsion Grille
- 1.5" Acoustical Batting
- Welded Steel Construction
- Made in the USA
Description

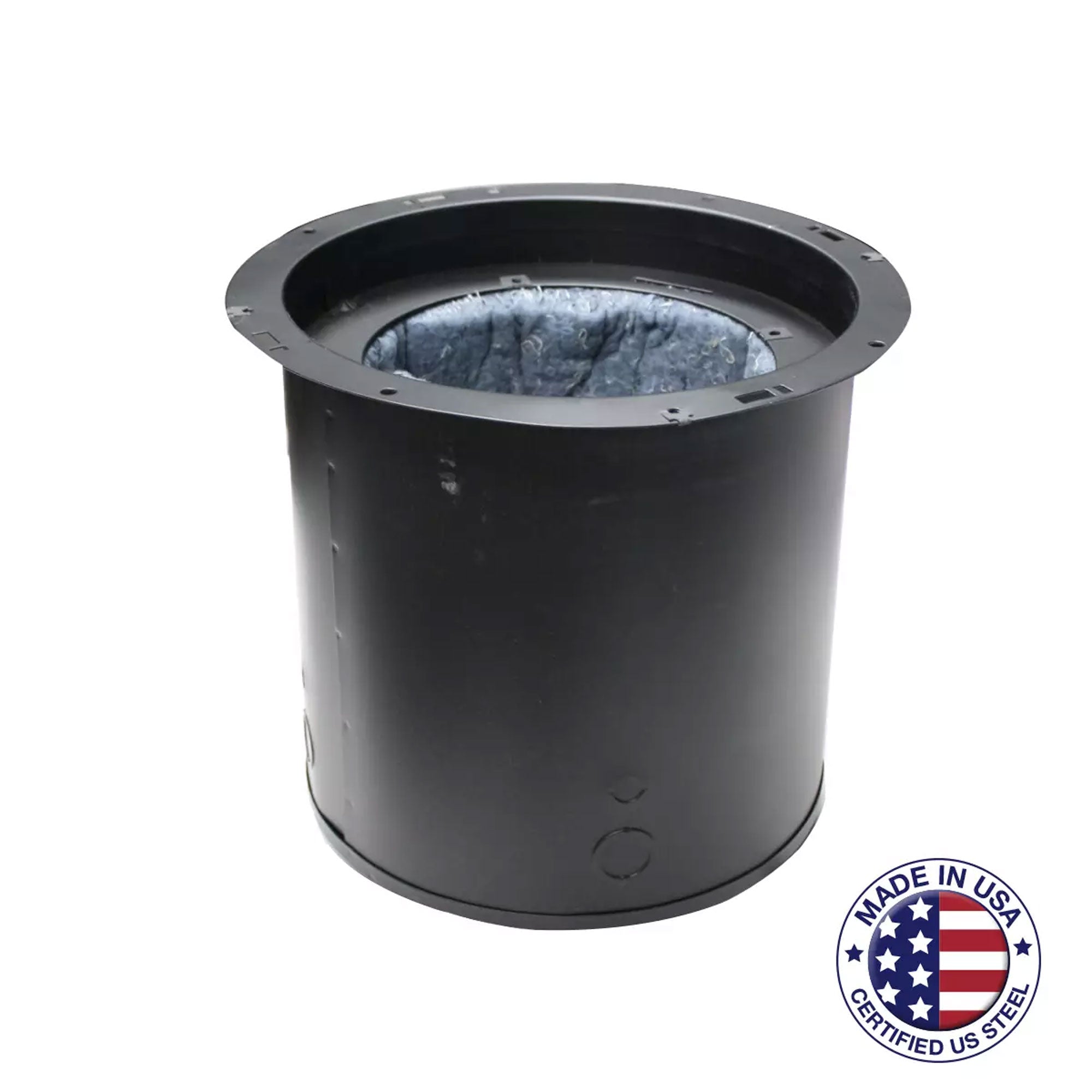

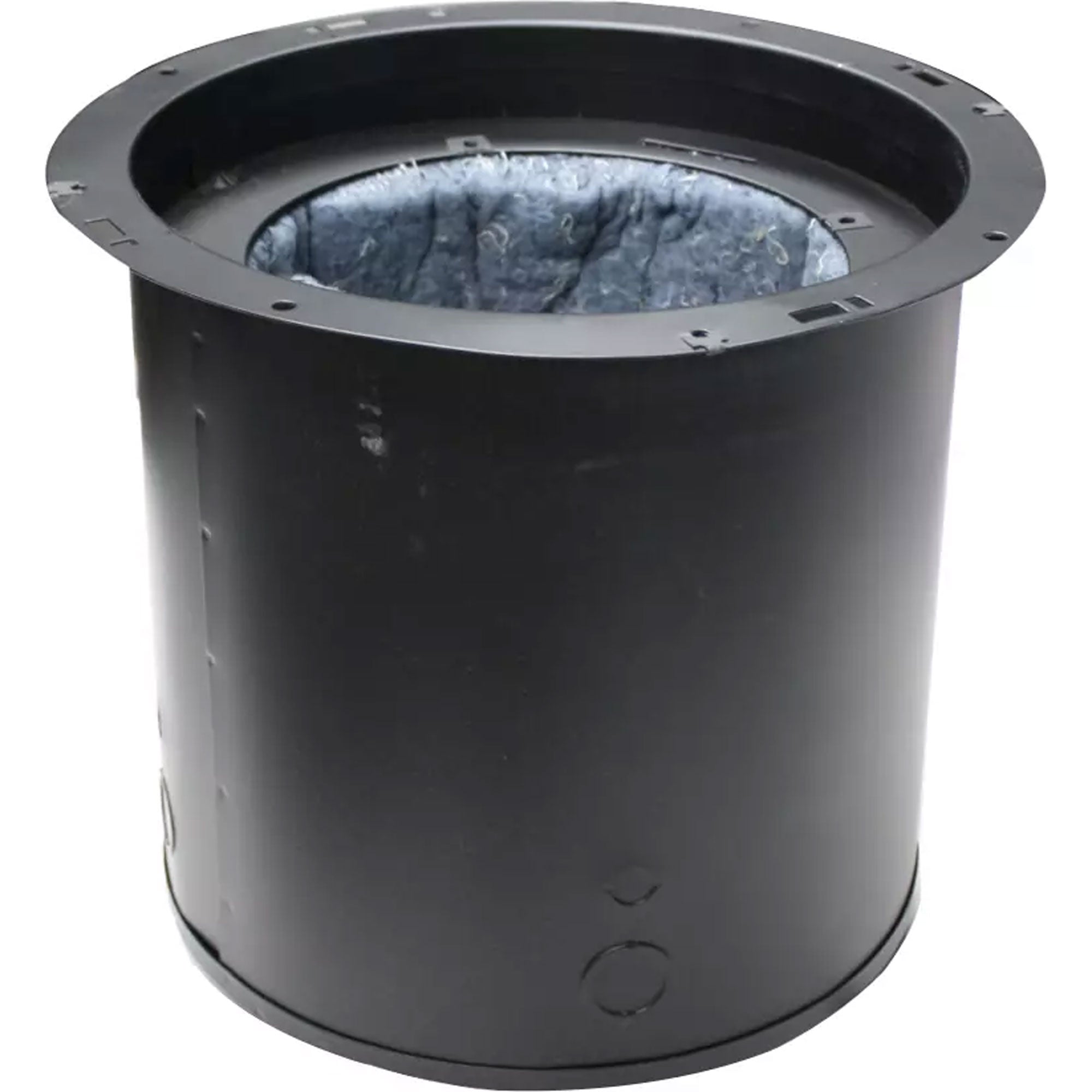

Direct-Mount Backbox for 8" Speaker
Acoustic enclosure made to direct-mount an 8 in. speaker, which allows a heavier speaker to be used with a non-loadbearing torsion grille. The larger-than-average volume and acoustic treatment allow an 8 in. speaker to operate at optimum levels for improved low frequency response. Ideal for new construction projects in commercial, institutional, or residential applications.
Lowell model IX810 is an acoustic backbox with torsion receptacles, flat grille mounting flange and a recessed speaker flange that allows an 8" speaker to be mounted directly to the backbox (order speaker separately). The IX810 backbox is ideal for tile ceiling applications. The recessed speaker flange is engineered to screw-mount and support Lowell's heavier, more powerful coaxial speakers, while the torsion receptacles mount a non-loadbearing torsion grille for a finished "no hardware" appearance. The generous 10" backbox depth with acoustic treatment accepts EIA 8" speakers (typically coaxial) and is ideal for new construction projects in upscale commercial, institutional, retail, house of worship or residential applications. The IX810 backbox has two unique features: (1) recessed flange to direct-mount the speaker, (2) internal bracket to field-mount a transformer, accessible through a rear-mounted plate with a separate 1-gang wire access panel and metal cable clamp. The speaker flange is recessed 1.25" allowing an 8" speaker to screw-mount directly to the flange. This direct mount (speaker-to-backbox) method removes the 3.5 lb. weight limit for a torsion grille allowing a heavier, more powerful speaker to be used.
Features:
- Welded, unitized heavy gauge steel undercoated and lined with 1.5" thick premium acoustic lining.The larger than average volume and acoustic treatment allow an 8" speaker to operate at optimum levels for improved low frequency response.
- Recessed speaker flange allows an 8" speaker (ordered separately) to screw-mount directly to the flange.
- Knockouts: 0.5"-0.75" and 0.5" on four sides for wire and conduit access.

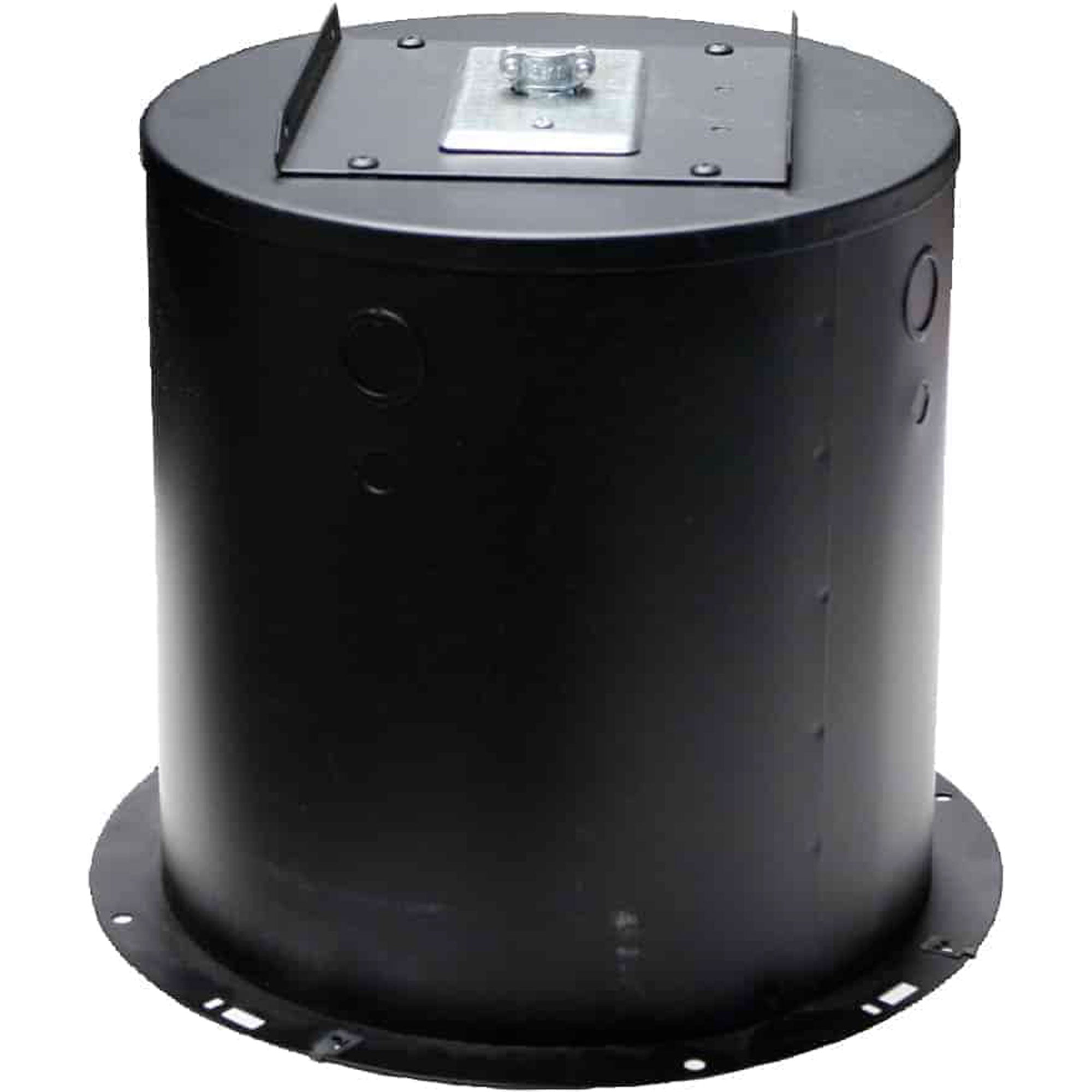

- Internal transformer bracket accessible through rear-mounted plate with separate 1-gang wire access panel and metal cable clamp.
- Recessed speaker flange has two integral torsion receptacles to accept torsion-mount grille.
- Black powder epoxy finish.
Specifications:
- Material: Welded unitized heavy gauge steel
- Finish: Black
- Diameter: 10.06 in. (can)
- Depth: 10.06 in.
- Volume: 0.405 cu.ft.
- Acoustical Treatment: Undercoated, 1.5 in. batting
- Flange Type: Flat
- Mounting & Installation Aids: Internal bracket to field-mount optional transformer, knockouts
- For Grille Type: Torsion
- COMPLIANCE & CERTIFICATION
- Made in U.S.A.
- Certified U.S. steel
