Lowell IM8A-TS32-2SW iMount Speaker System

iMount 50W Speaker System, 8", 70V

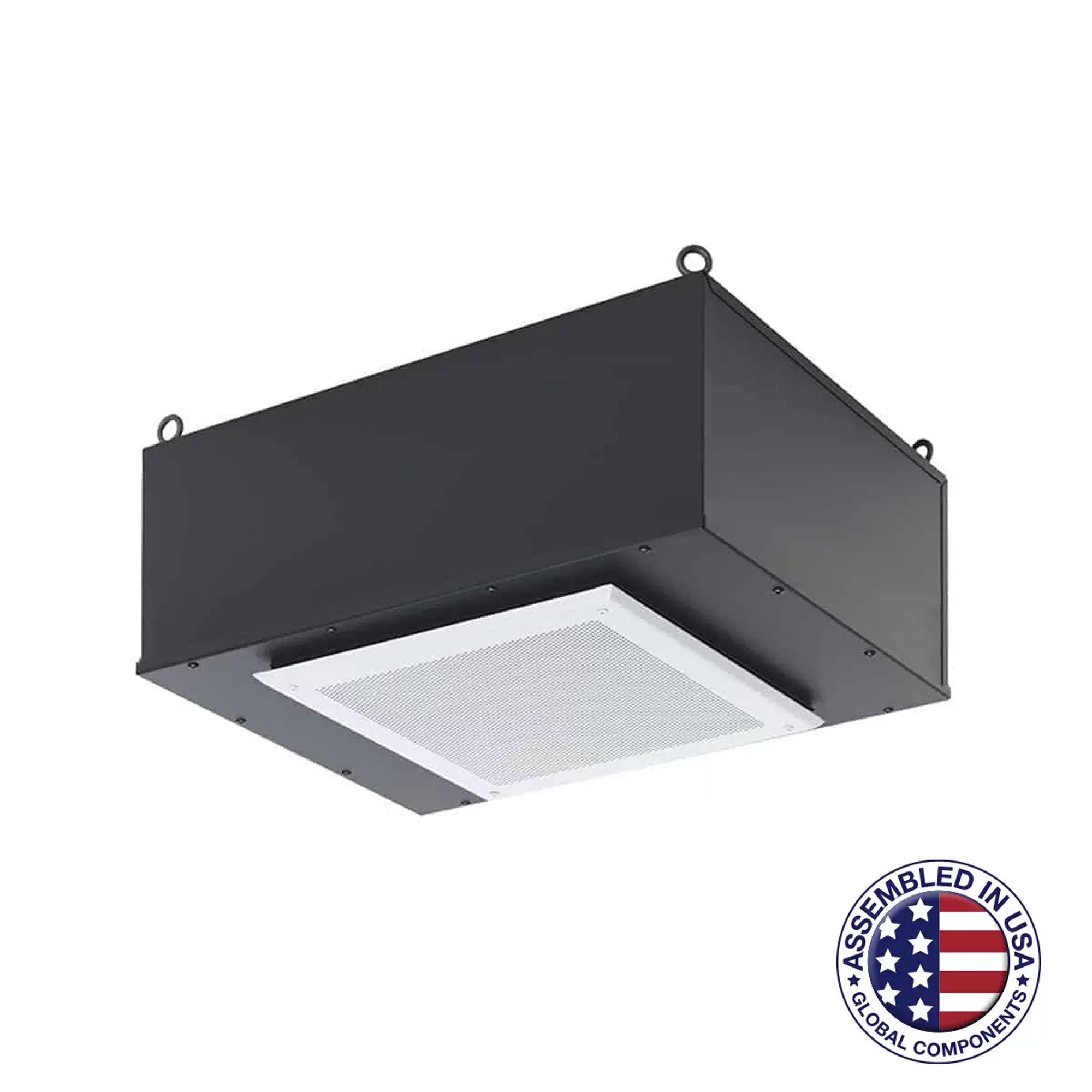

iMount Speaker systems provide specifiers and systems integrators with versatile packaged solutions for high performance suspended speaker installations. Model Group IM8A features Lowell's 8" speaker Model 8A50 (50W) mounted in a rectangular 2 cu.ft. acoustic enclosure with installed 1/4" - 20 forged eyebolts and square architectural grille in white. Ready-to-install systems feature externally accessible speaker connections and 20/20 AudioVision transformer (noted model only) for superior music fidelity in distributed applications. Systems are ideal for upscale restaurants, lounges, hotel lobbies, department stores, and boutiques where a positive consumer listening experience is key to customer satisfaction. Systems are shipped one per carton with a steel plate mounted over the speaker to protect it during shipping and installation.

Features:

• Packaged solution for high performance suspended speaker installations.
• 50W system reproduces music with exceptional quality for improved customer satisfaction.
• Installation is fast and easy with premounted eyebolts and externally accessible connections.
• Optional 20/20 AudioVision transformer for distributed applications.
• Each assembly includes:
• 2cu.ft. acoustic enclosure
• 50W speaker Model 8A50 (8-ohm)
• 70V-32W transformer Model TLS3270 (noted model only)
• White architectural grille
• 1/4 x 20 forged eyebolts
• Wiring terminated through a 4" x 4" flush cover plate

Includes:

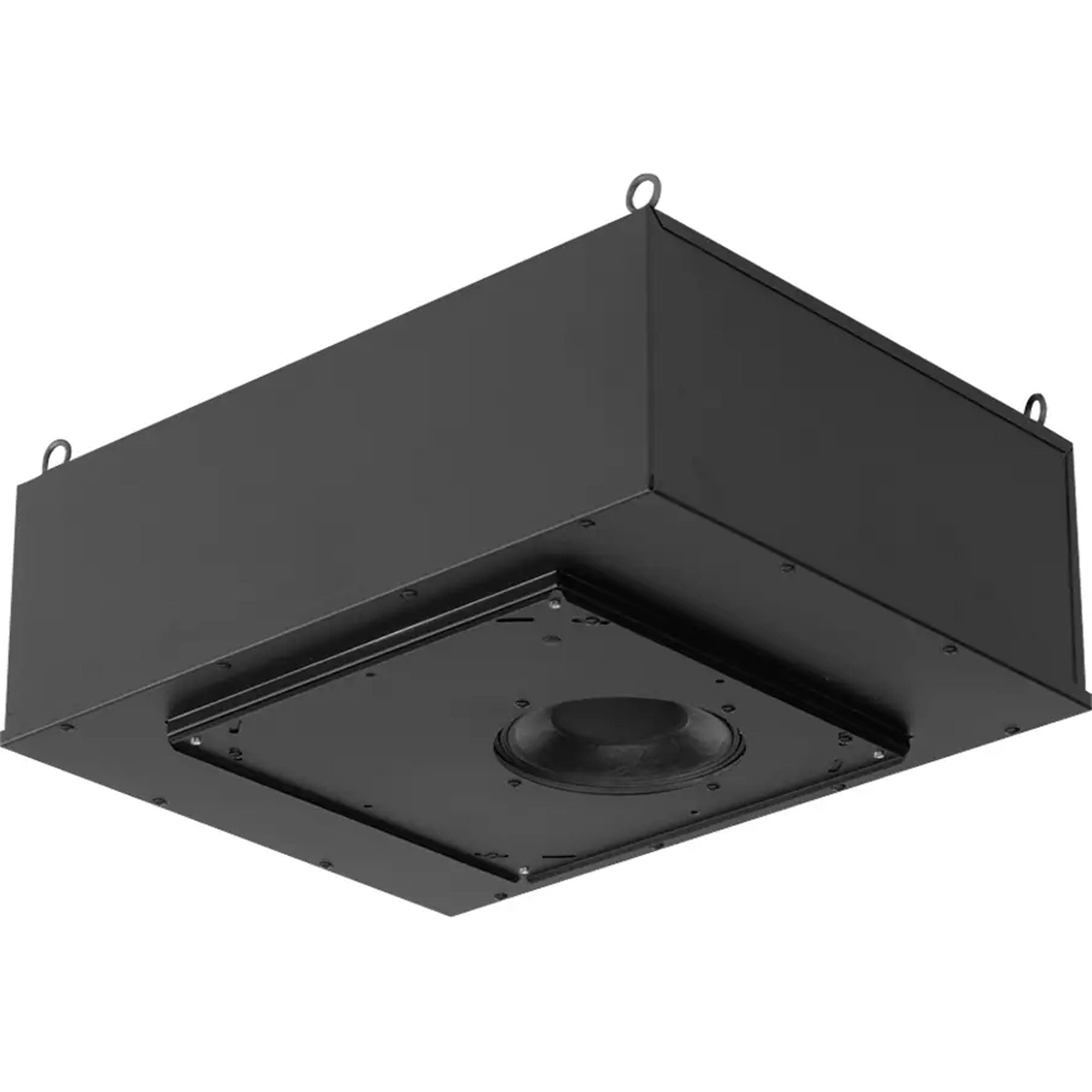

• Driver (8A50): 8 in. 50W driver features 20 oz. LF magnet with 1.4 inch copper voice coil to drive a polypropylene cone with half-roll rubber surround for long cone travel and good edge damping. Post-mounted tweeter is a 1 inch balanced-drive dome protected by Ferrofluid and a first-order high-pass filter. A steel plate is mounted over the driver to protect it during shipping and installation. Remove it to mount the grille. See the driver spec sheet for more information.
• Transformer (TLS-3270): Includes 70V 32W transformer for superior music fidelity in 70V distributed applications. The 20/20 AudioVision transformer offers true 20Hz-20kHz performance. A screwdriver-adjustable tap selector switch is accessible through an opening in the grille. Note: Lowell 20/20 AudioVision transformers have full frequency response and high power handling which allows the speaker to operate at full potential while providing a stable load to the amplifier. The transformer allows a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system but with easier wiring, reduced labor and less expense.

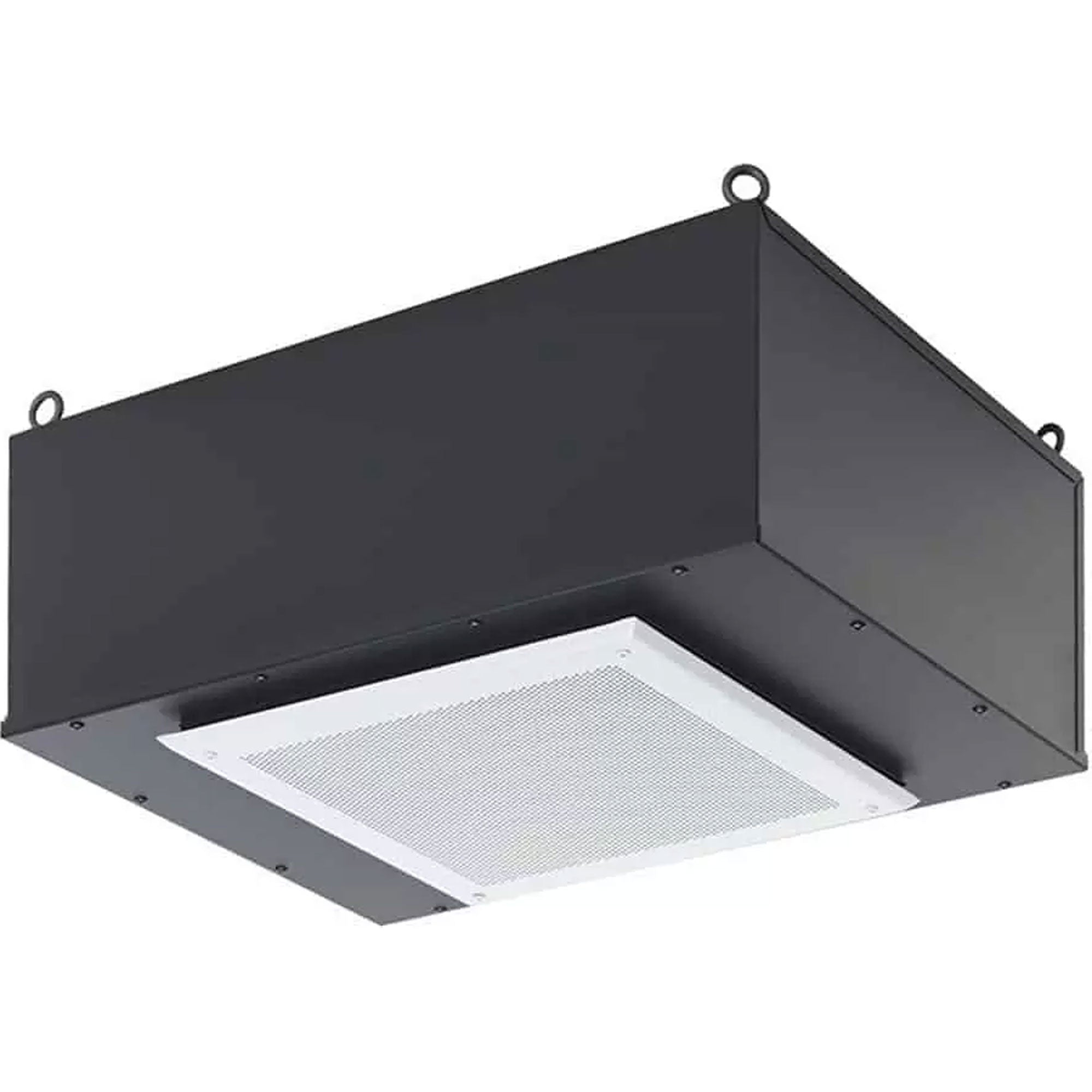

• Grille: Square perforated steel grille with white powder epoxy finish is ideal for applications where the speaker is suspended in a tile, sheetrock or plaster ceiling. 15.25 in. square x 0.375 in.

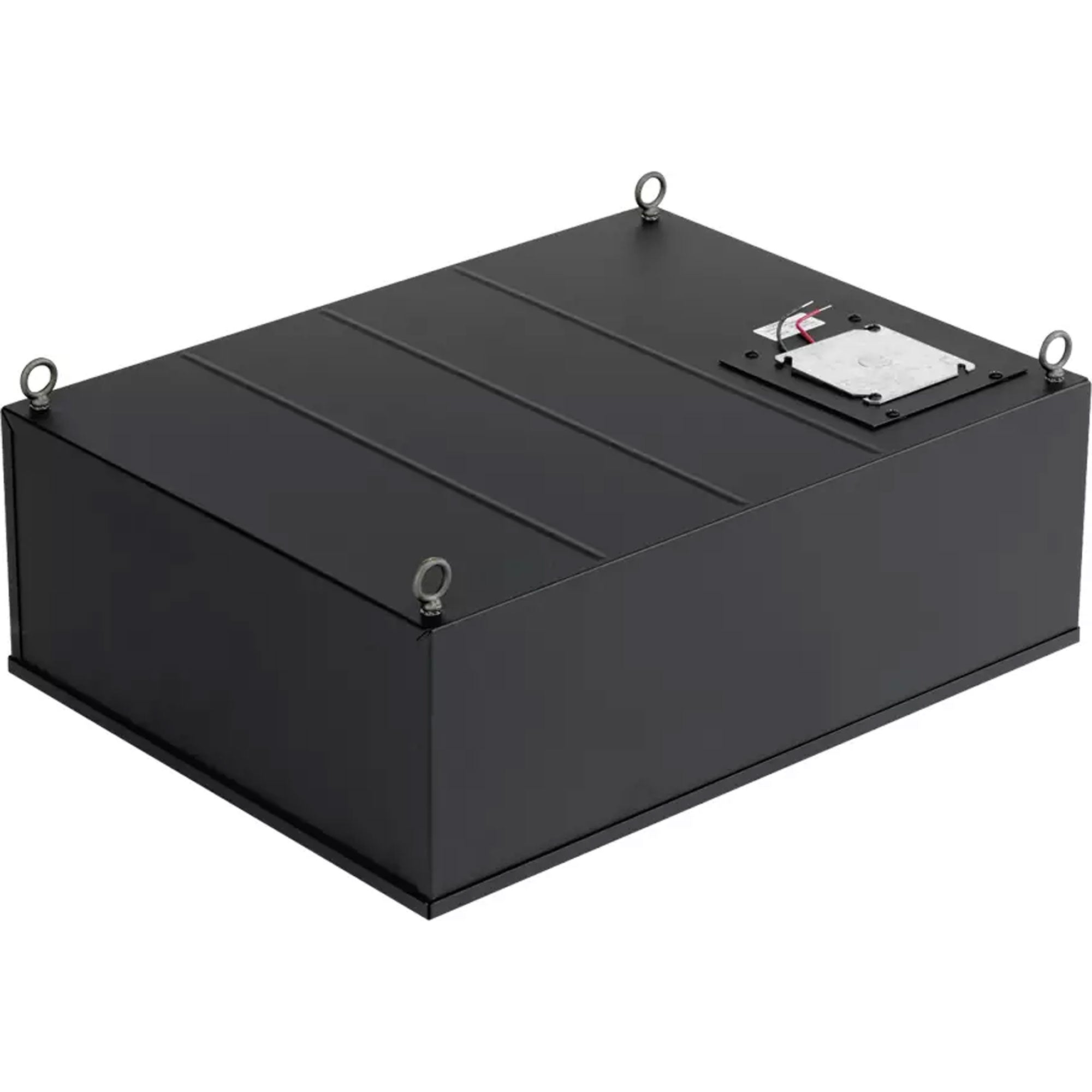

• Enclosure: 2 cu.ft. precision-formed steel enclosure (23.94 in. x 18.19 in. x 8.19 in.) features anti-vibration ribs, sound-stop board, 1-1/2 in. thick premium acoustic lining and forged 1/4 in.-20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Externally accessible connections are terminated through a 4 in. x 4 in. flush cover plate. Black powder epoxy finish.
