Lowell IM12P-TS100-3SW iMount Speaker System

iMount 150W Speaker System, 12", 70V

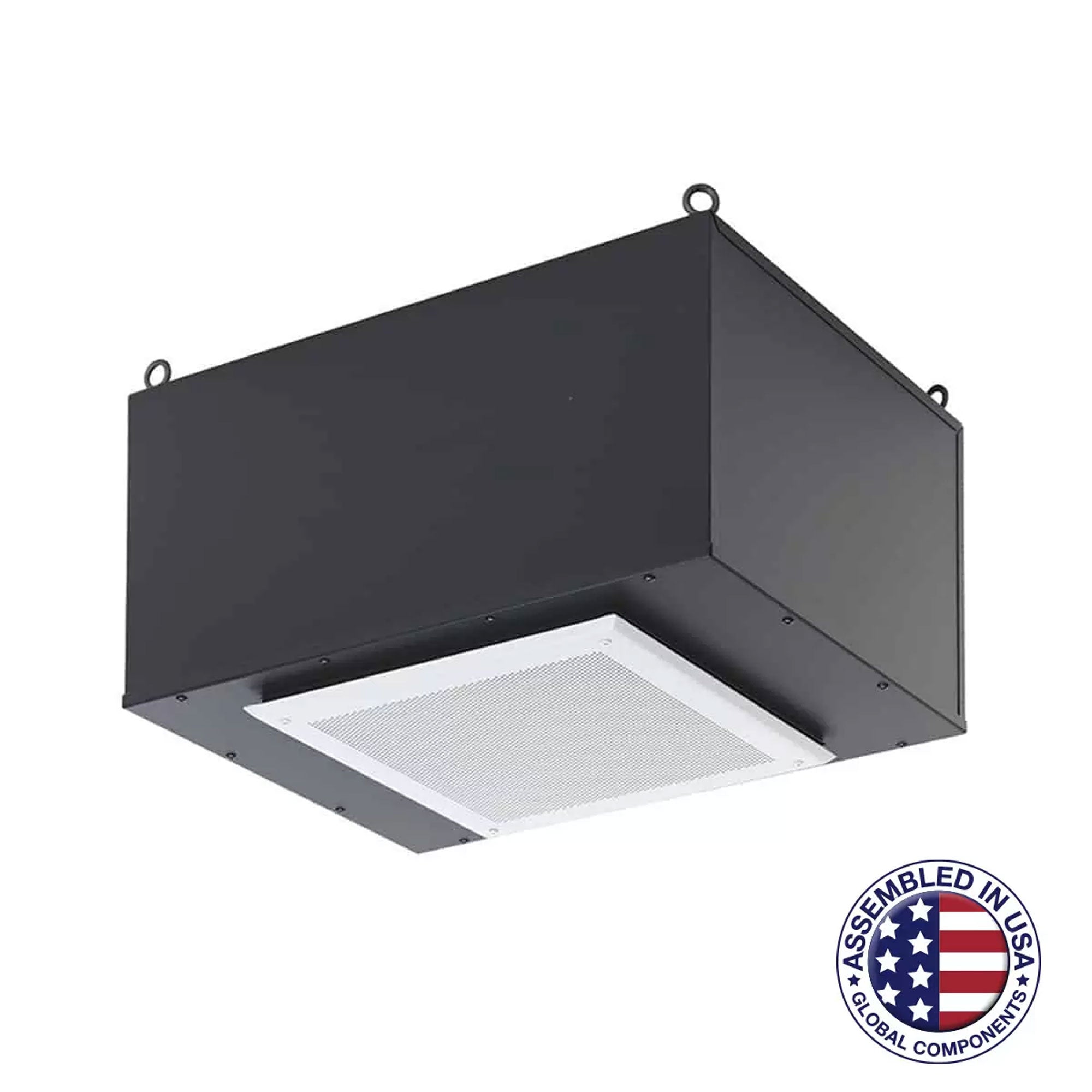

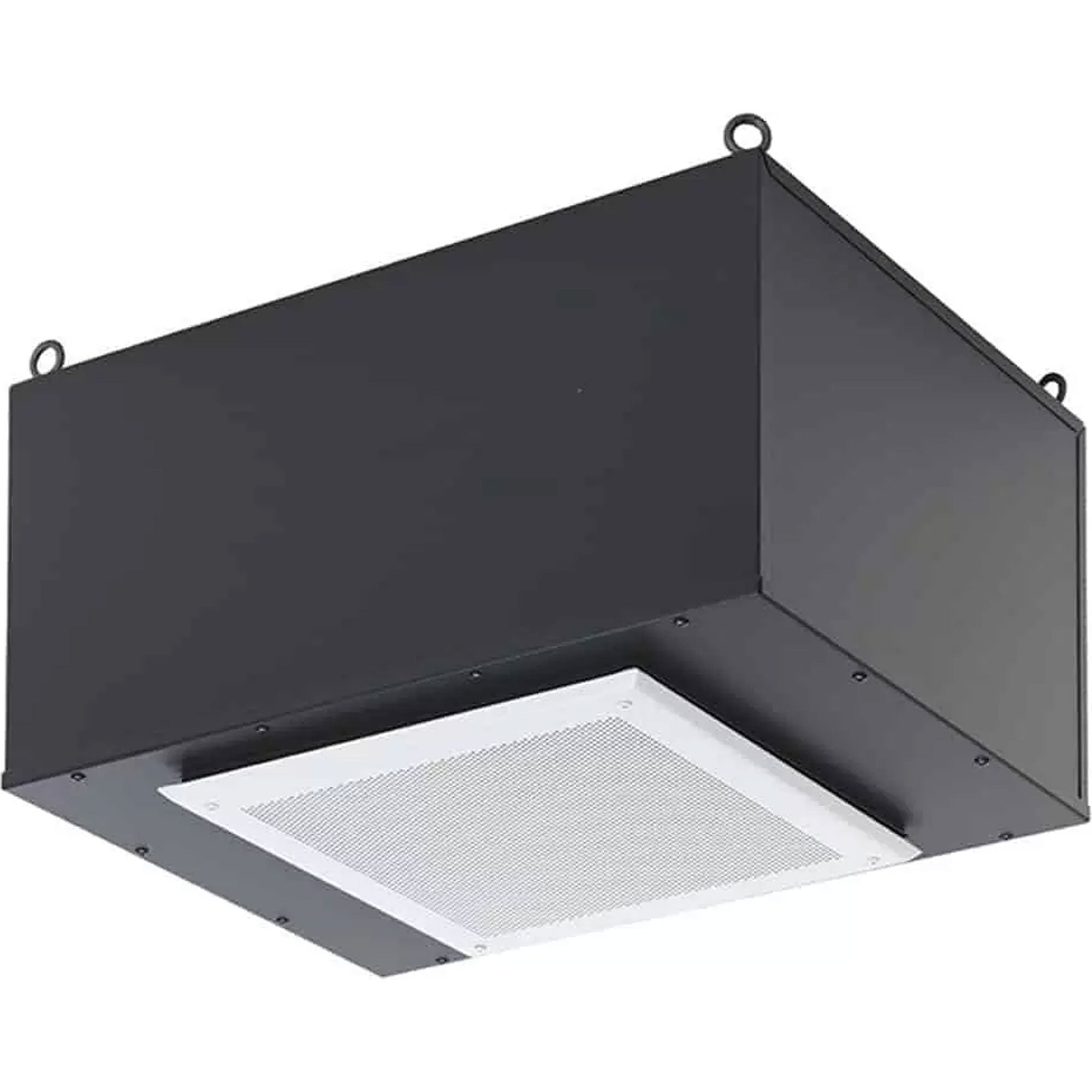

iMount Speaker systems provide specifiers and systems integrators with versatile packaged solutions for high performance suspended speaker installations. Model Group IM12P features Lowell's 12" speaker Model 12P150 (150W) mounted in to a rectangular 3 cu.ft. acoustic enclosure with installed 1/4" - 20 forged eyebolts and square architectural grille in white. Ready-to-install systems feature externally accessible speaker connections and optional 20/20 AudioVisionTM transformer for superior music fidelity in distributed applications. Systems are ideal for high energy, high ceiling applications such as clubs and sports bars, sporting facilities, airport terminals and concourses, hotel ballrooms, convention centers, and exhibit halls. Systems are shipped one per carton with a steel plate mounted over the speaker to protect it during shipping and installation.

Features:

• Packaged solution for high performance suspended speaker installations.
• 150W system reproduces music with exceptional quality.
• Installation is fast and easy with premounted eyebolts and externally accessible connections.
• 20/20 AudioVision transformer (100W)
• Each assembly includes:
• 3 cu.ft. acoustic enclosure
• 150W speaker Model 12P150 (8-ohm)
• Optional transformer
• White grille
• 1/4" - 20 forged eyebolts
• Wiring terminated through a 4" x 4" flush cover plate

Includes:

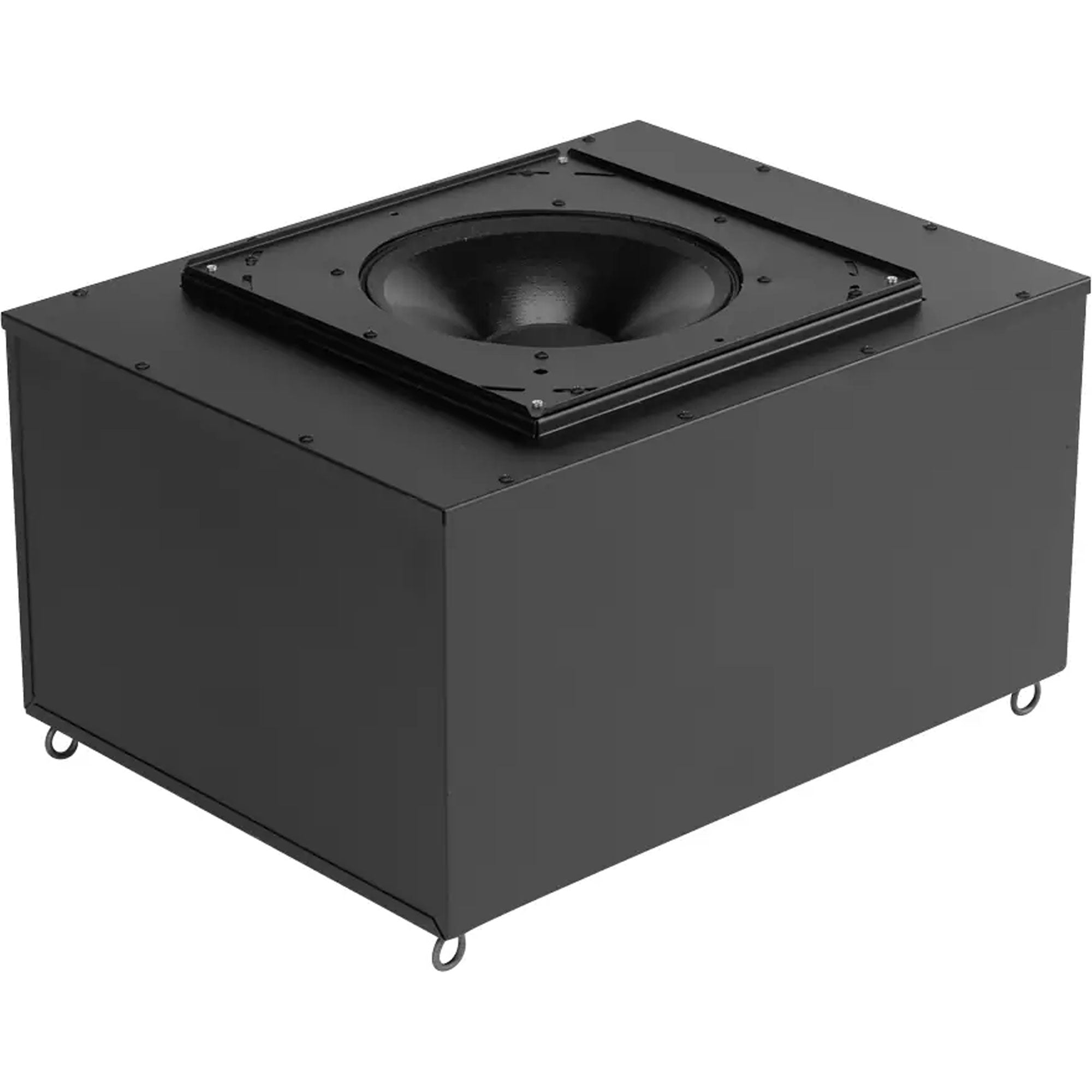

• Driver (12P150): 12 in. (8 ohm) 150W driver with robust motor structure, 38 oz. magnet, 2 in. voice coil and coaxially mounted high frequency compression driver for high power handling with excellent efficiency. A steel plate is mounted over the driver to protect it during shipping and installation. Remove it to mount the grille. See the driver spec sheet for more information.
• Transformer (TLS-10070): 70V 100W transformer for superior music fidelity in 70V distributed applications. This 20/20 AudioVisionTM transformer offers true 20Hz-20kHz performance. A screwdriver-adjustable tap selector switch is accessible behind the grille. Note: Lowell 20/20 AudioVision transformers have full frequency response and high power handling which allows the speaker to operate at full potential while providing a stable load to the amplifier. The transformer allows a distributed speaker system to sound imperceptibly the same as a transformer-less direct-to-voice-coil system but with easier wiring, reduced labor and less expense.
• Grille: Square perforated steel grille with white powder epoxy finish is ideal for applications where the speaker is suspended in a tile, sheetrock or plaster ceiling. 15.25 in. square x 0.375 in.

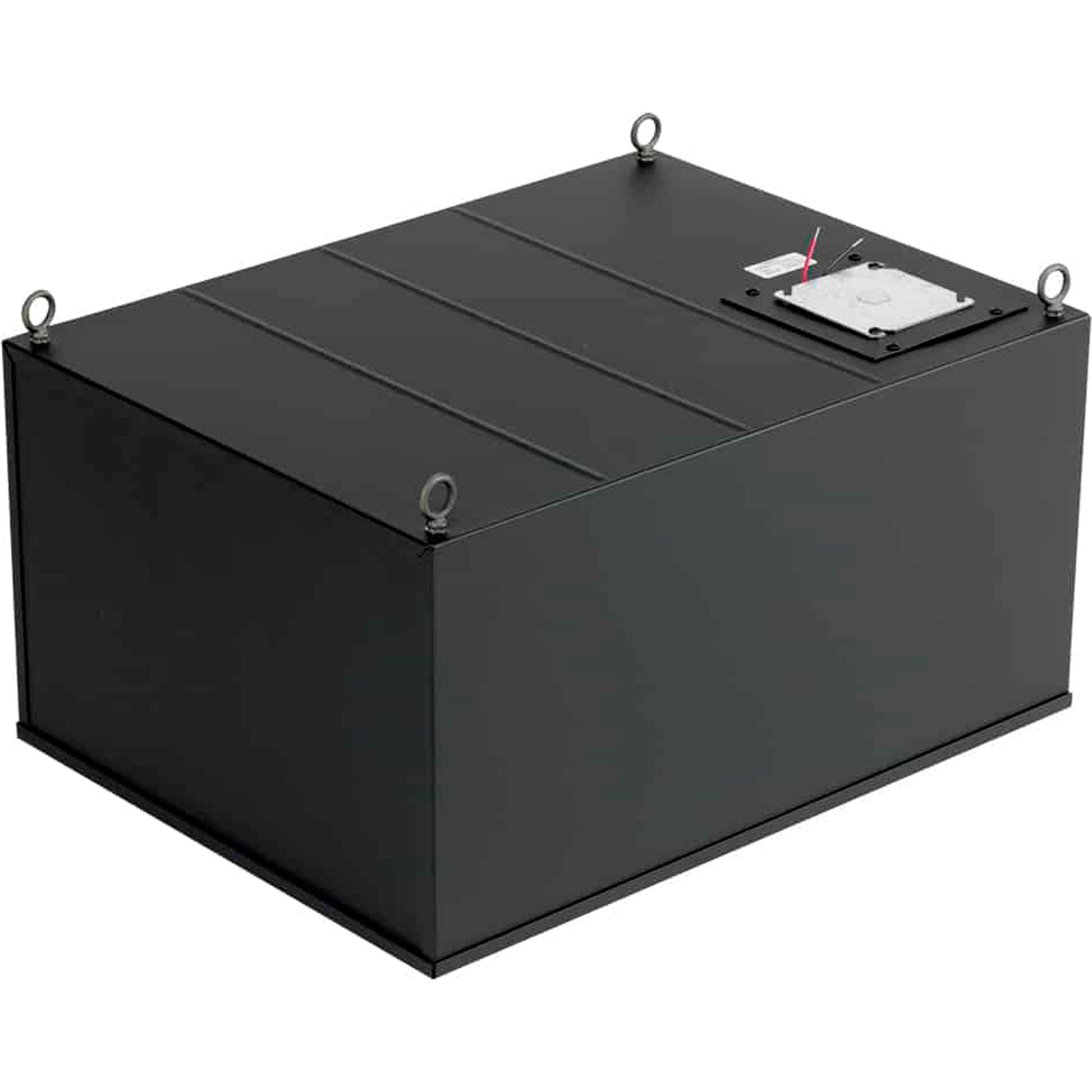

• Enclosure: 3 cu.ft. precision-formed steel enclosure (23.94 in. x 18.19 in. x 12 in.) features anti-vibration ribs, sound-stop board, 1-1/2 in. thick premium acoustic lining and forged 1/4 in.-20 eyebolts screwed into mounting nuts for secure suspended installation (using flyware by others). Externally accessible connections are terminated through a 4 in. x 4 in. flush cover plate. Black powder epoxy finish. NOTE: For plenum space with limited height, a 2 cu.ft. enclosure is also available. Call for model no. and pricing.
