Lowell CS10 Intercom Call Switch (SPST)

Intercom Call Switch (SPST)

Intercom call switch for general purpose signaling and switching applications features a single pole, single throw (SPST) momentary rocker switch with wall plate.

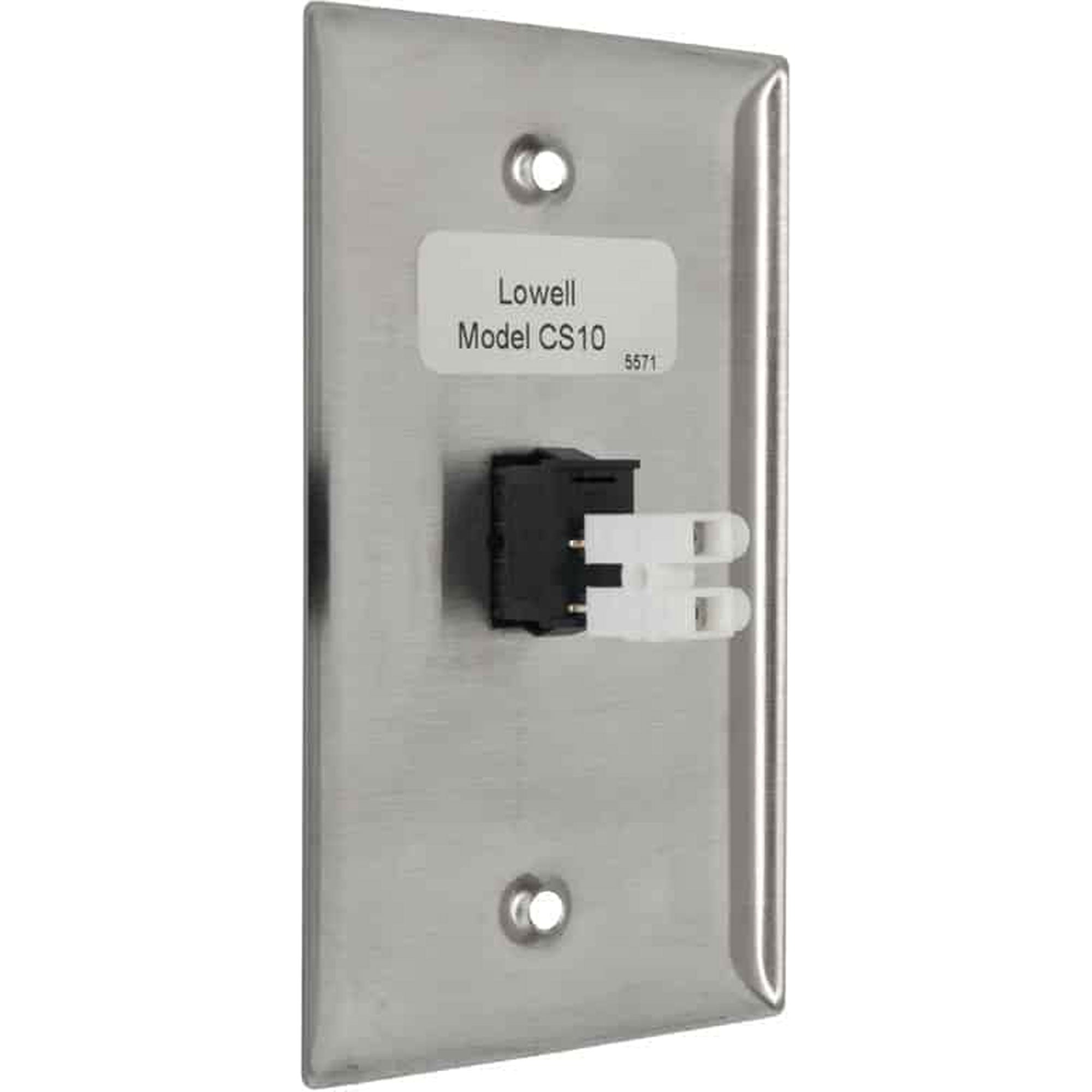

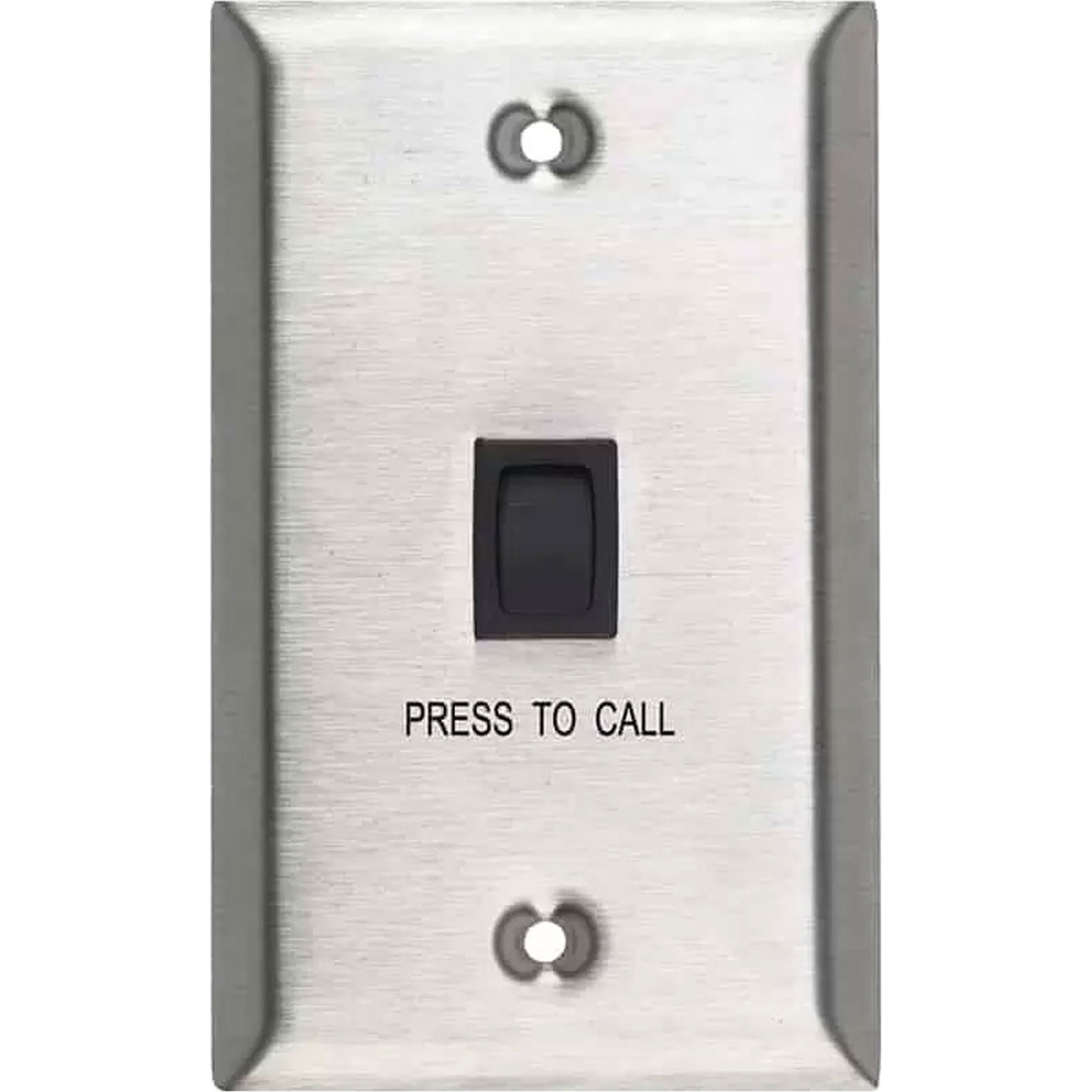

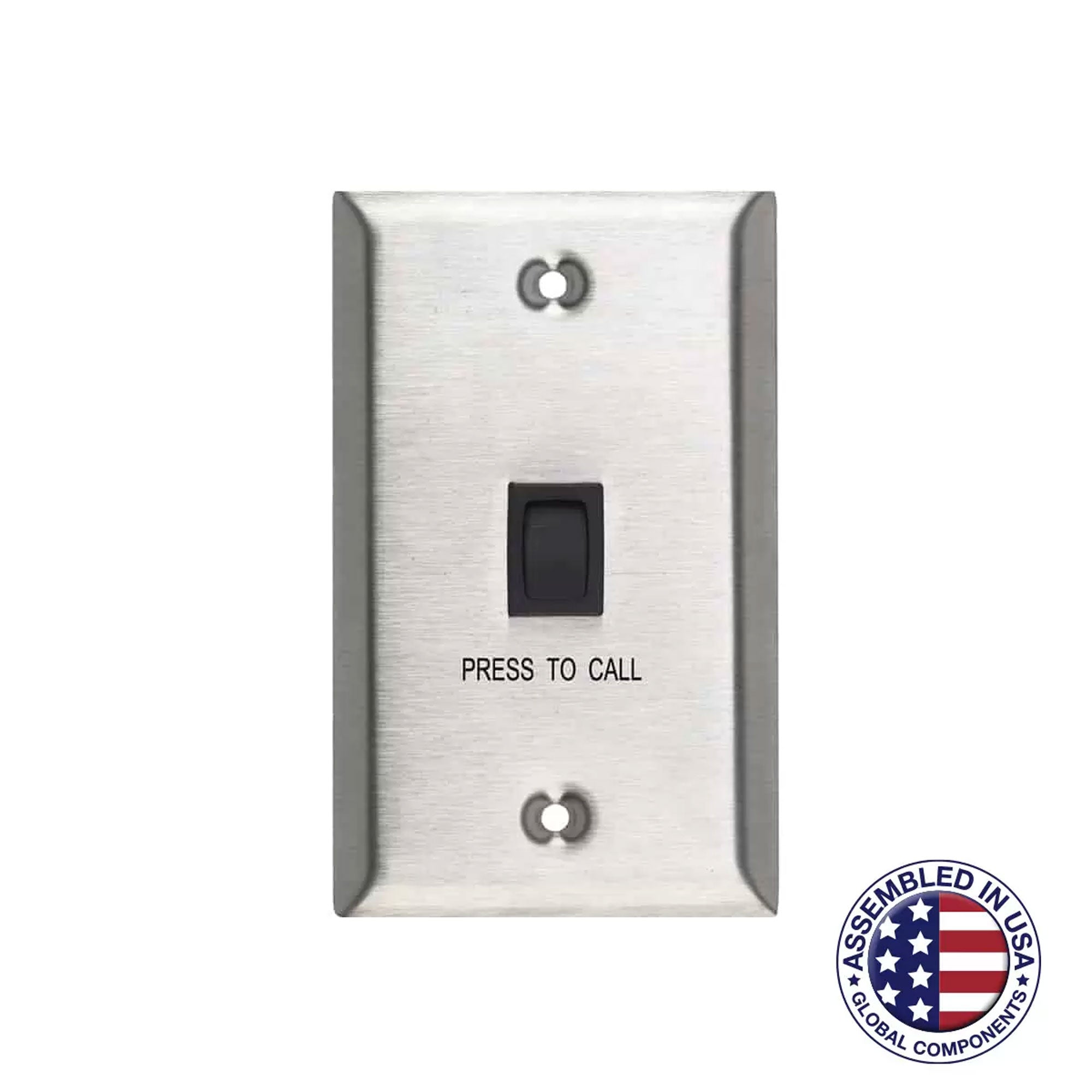

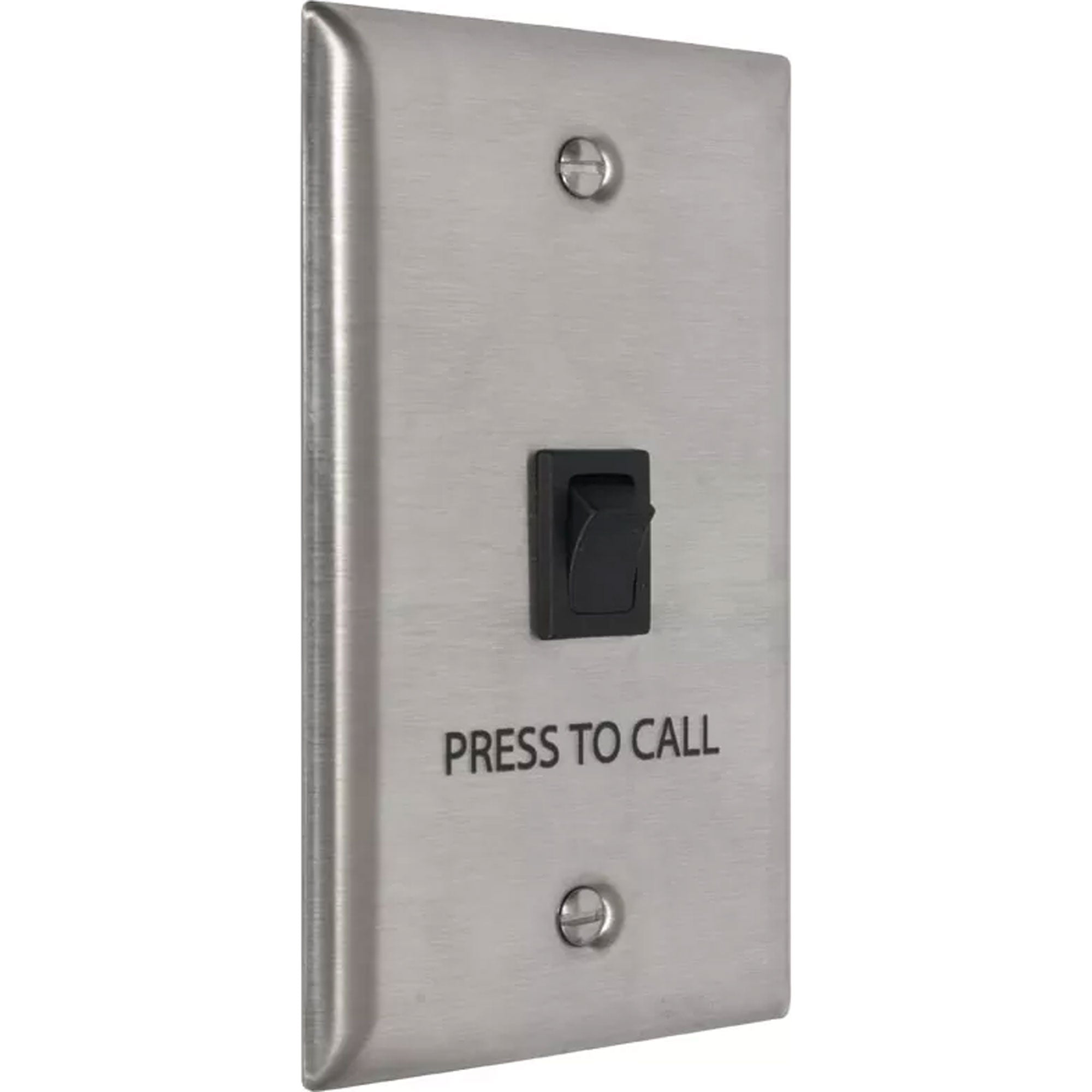

Lowell Model CS10 intercom call switch is designed for general purpose signaling and switching applications. The CS10 incorporates a single-pole, single throw (SPST) normally open momentary rocker switch with screw terminal connections. Mounted on onegang stainless steel wall plate. Includes mounting hardware. Model CS10 includes the lettering PRESS TO CALL stamped into the plate and filled black.

Features:

• One-gang switch designed for general purpose signaling and switching applications.
• Durable, easy-to-read lettering on a stainless steel face plate.
• Easy field installation with screw terminals and mounting hardware.

Specifications:

• SPST rocker switch
• Switch Rating: 24VDC 500mA
• Switch Function: Momentary (normally open)
• Screw terminal connections
• Wall Plate: 1-gang standard
• Finish: Stainless Steel
• Lettering: PRESS TO CALL
• 4.5 in. x 2.75 in. x 0.875 in.
• CERTIFICATION & COMPLIANCE
• Made in the U.S.A. with global components
