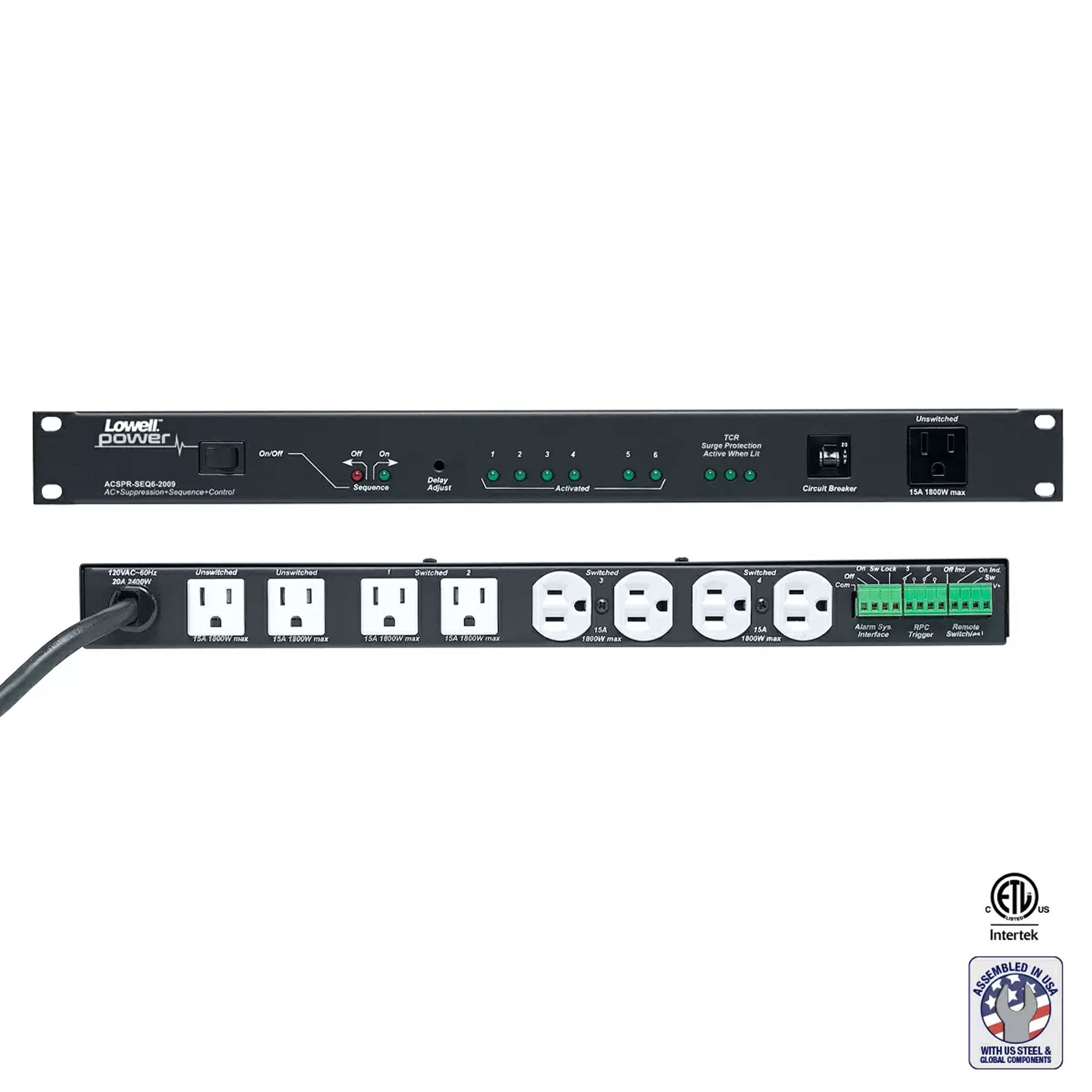

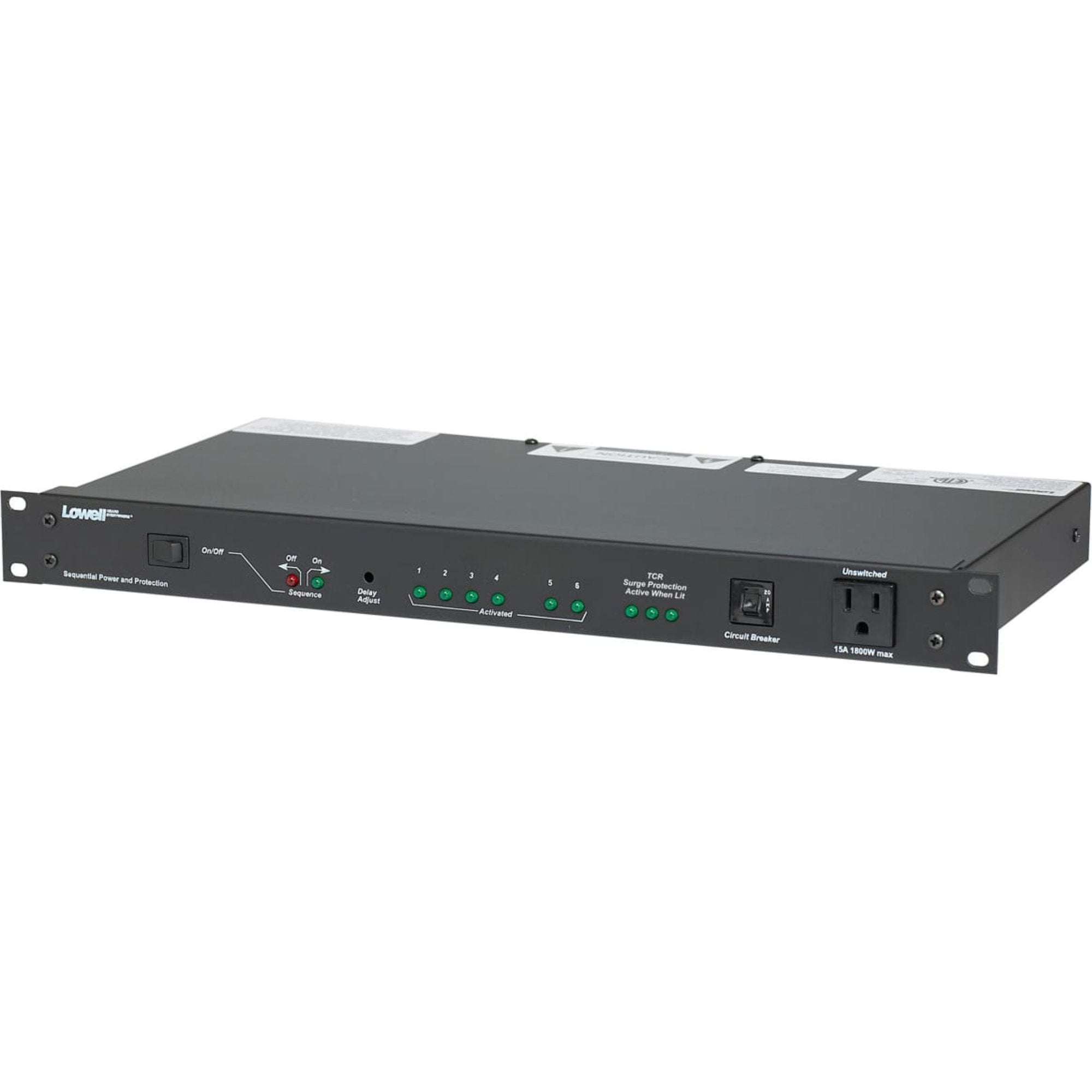

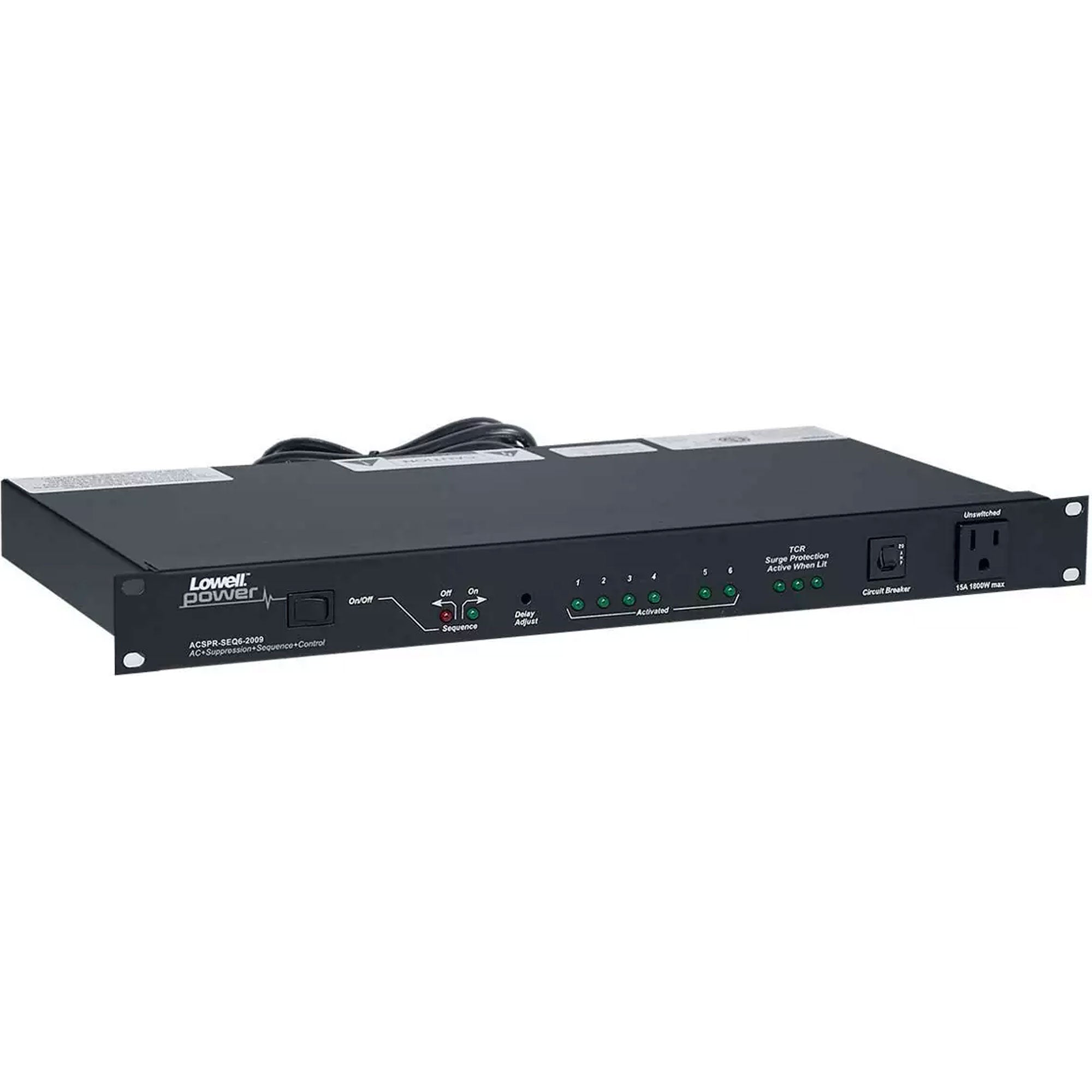

Lowell ACSPR-SEQ6-2009 Rack Mount Power Sequencer (4-Step + 2-RPC)

Power Panel-20A, 6-Switched 3-Unswitched Outlets, 1U, Sequencer/Surge Supressor

Rackmount panel with nine outlets, 4-step sequencer, alarm interface, rear terminal block for connection to optional remote switches (momentary), PLUS advanced surge suppression (to 72,000A). Three power outlets are unswitched (1 front, 2 rear) and 6 switched outlets for sequential activation of connected equipment. Adjustable delay between steps can be set 0.5 to 10 seconds. Terminates with 9 ft. cord and NEMA 5-15P plug. ETL Listed. Made in the USA with domestic and imported parts. (formerly ACSPR-SCS4-1509)

Specifications:

• Power Rating: 120VAC 60Hz, 20A

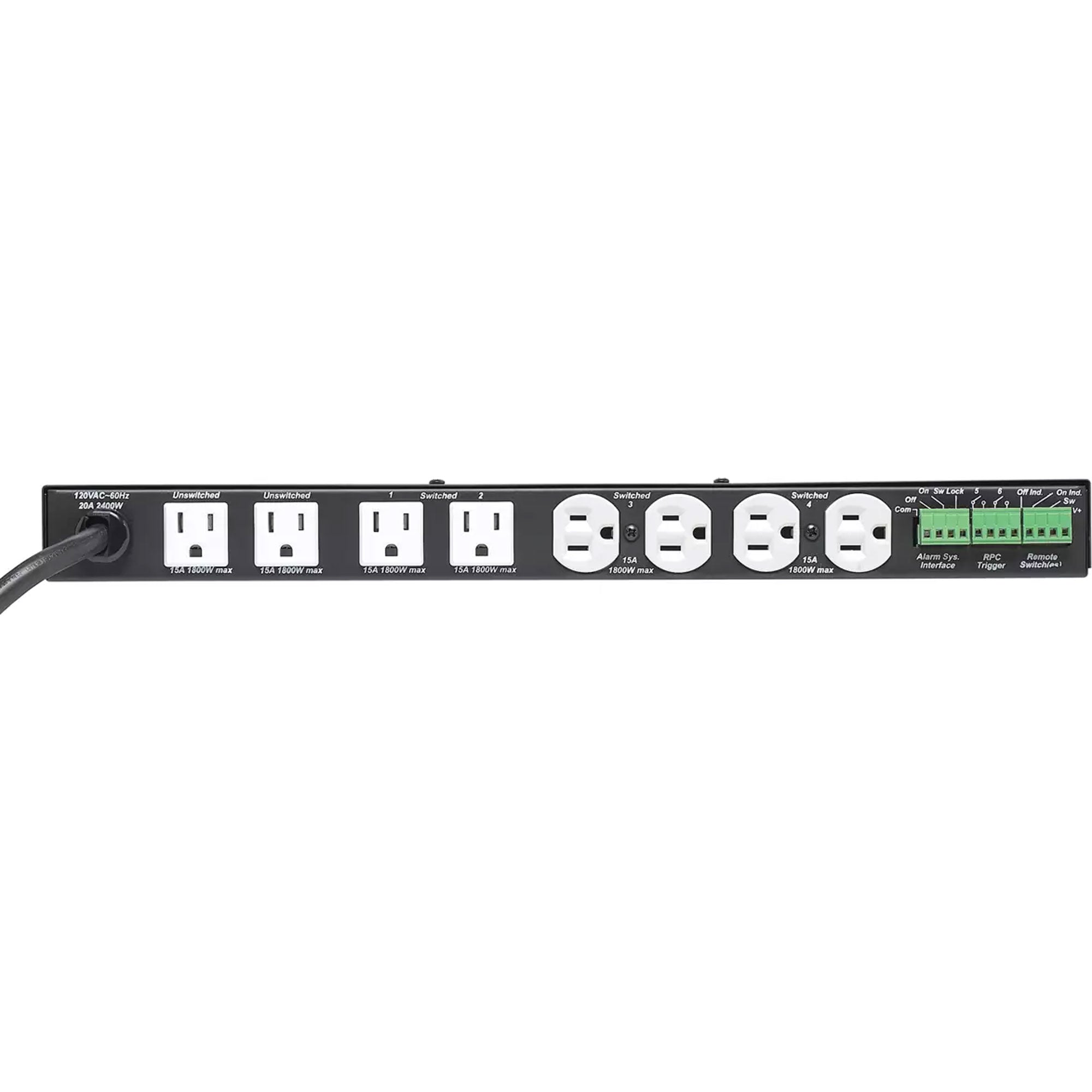

• Outlets: 9 (15A) outlets-1 front (un-switched), 2 rear (un-switched), 6 rear (switched)

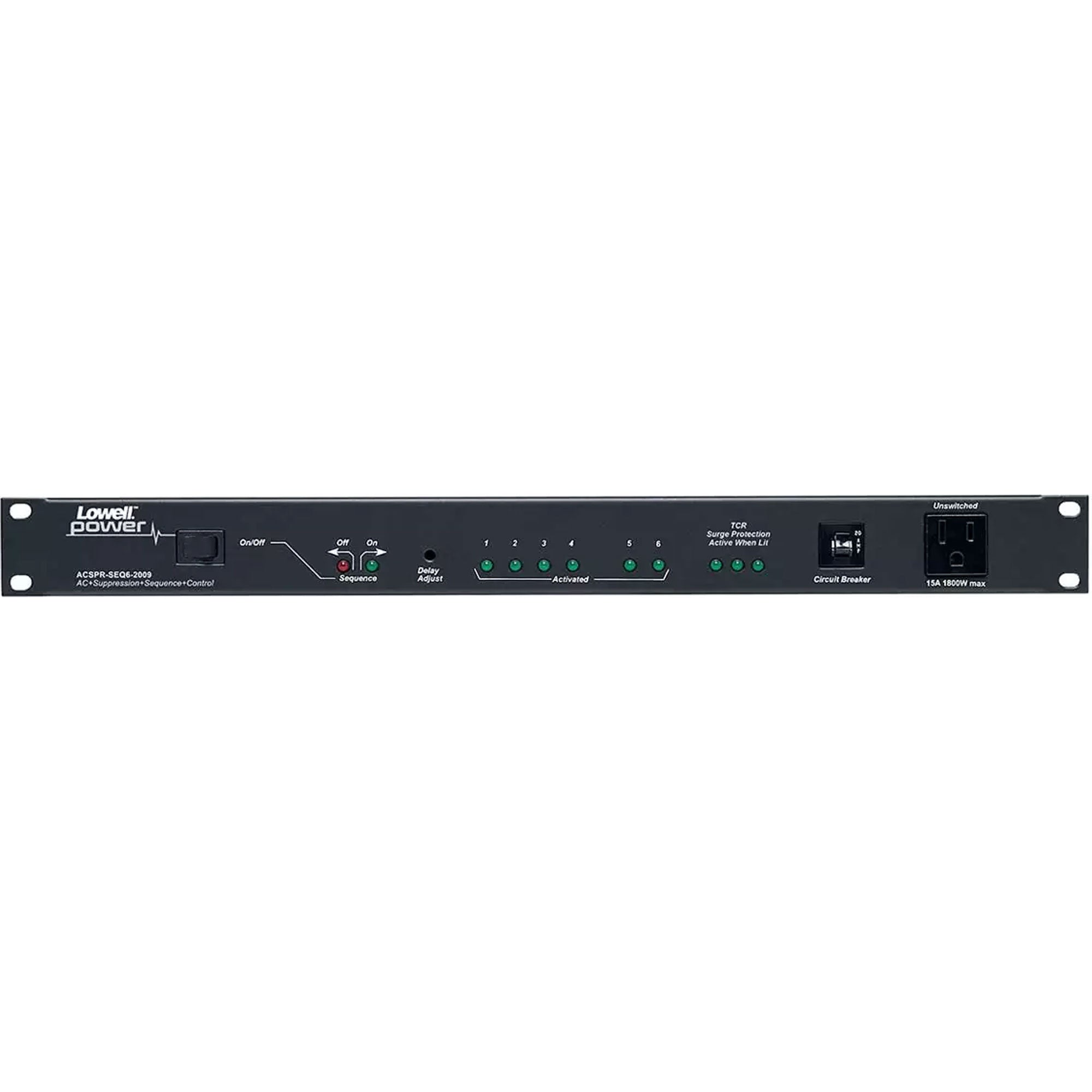

• Actuation Switch: Front panel rocker switch with momentary contacts (normally open SPST) plus rear barrier strip termination blocks for momentary (normally open) remote switches.
• Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
• Rear termination blocks accommodate remote switches, external triggers and an alarm system interface for use where mandated by fire code.
• Two dry contact closures (steps 5 and 6) trigger remote power control units (order separately).
• Alarm Interface: Lock on, lock off and switch lock functions for alarm system or master control panel applications.
• Color coded LED status indicators
• Advanced surge protection to 72,000A
• Chassis: 19 in. x 9 in. x 1.75 in. (1U)
• Termination: 9 ft. attached cord with NEMA 5-20P plug
• COMPLIANCE & CERTIFICATION
• ETL Listed (U.S., Canada)
• Made in U.S.A. with global components
• RoHS Compliant
