Key Features
- 2 Total Outlets
- Remote Power Control
- Advanced Surge Suppression
- Detachable 6' Cord
- Universal Mounting Brackets
- ETL Listed
Description

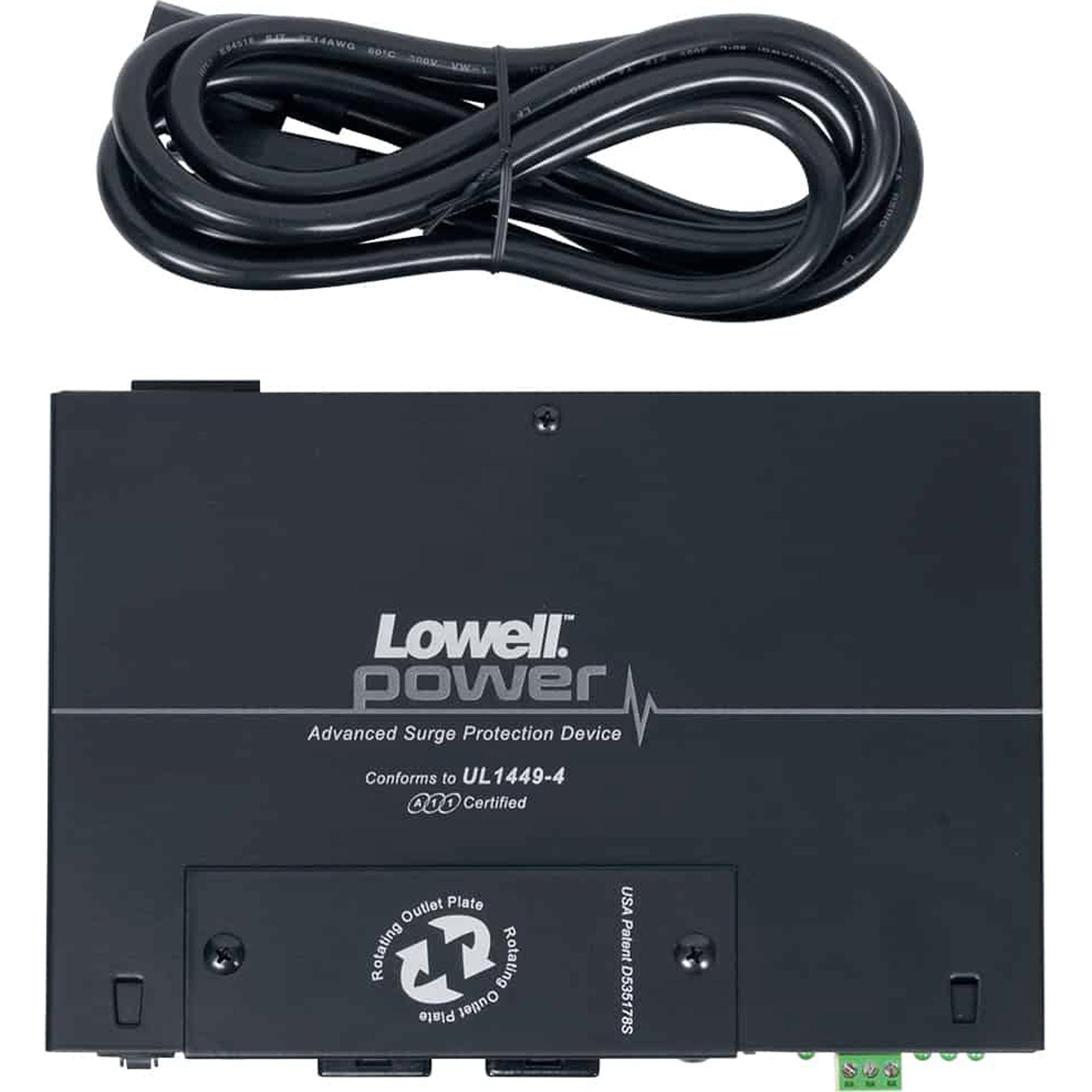

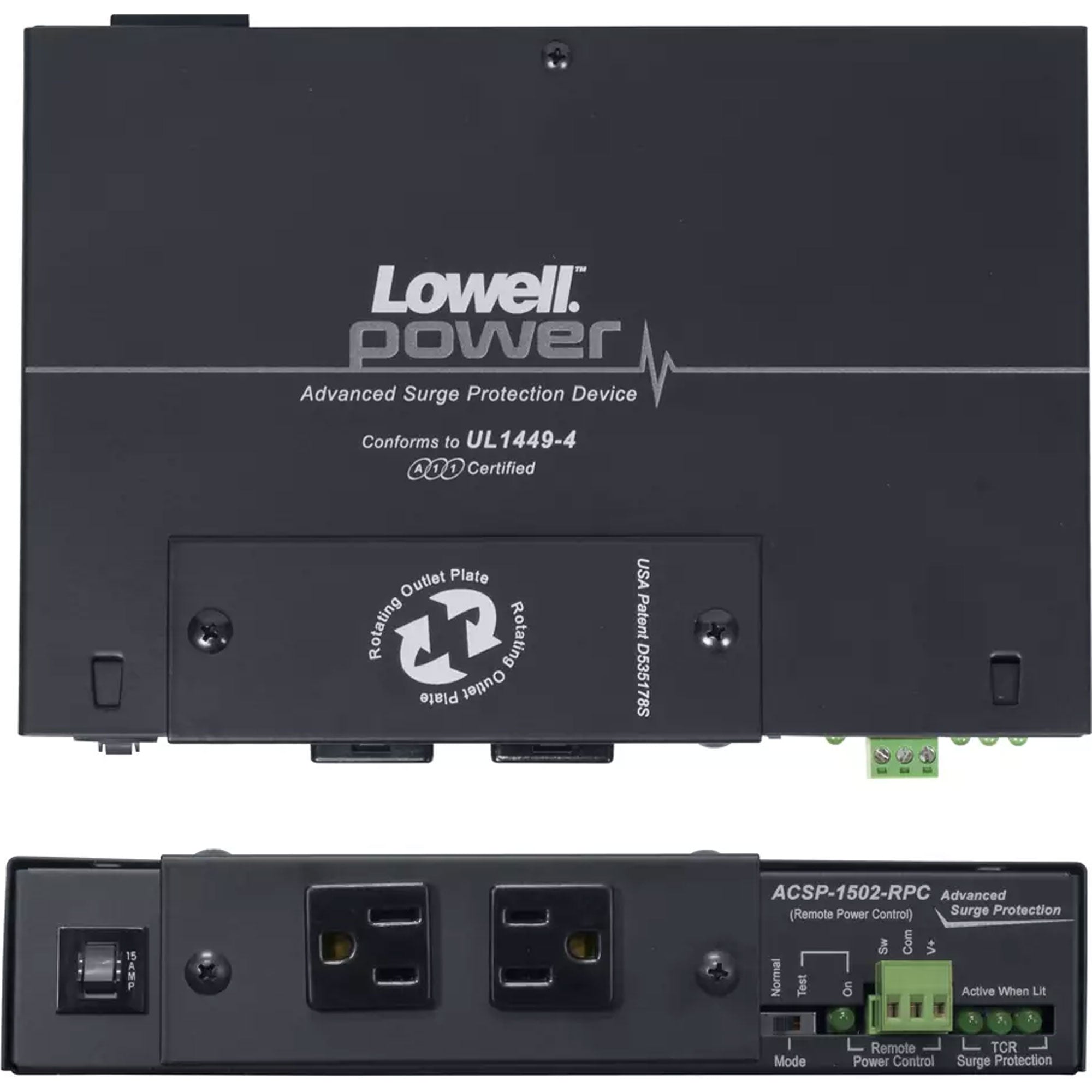

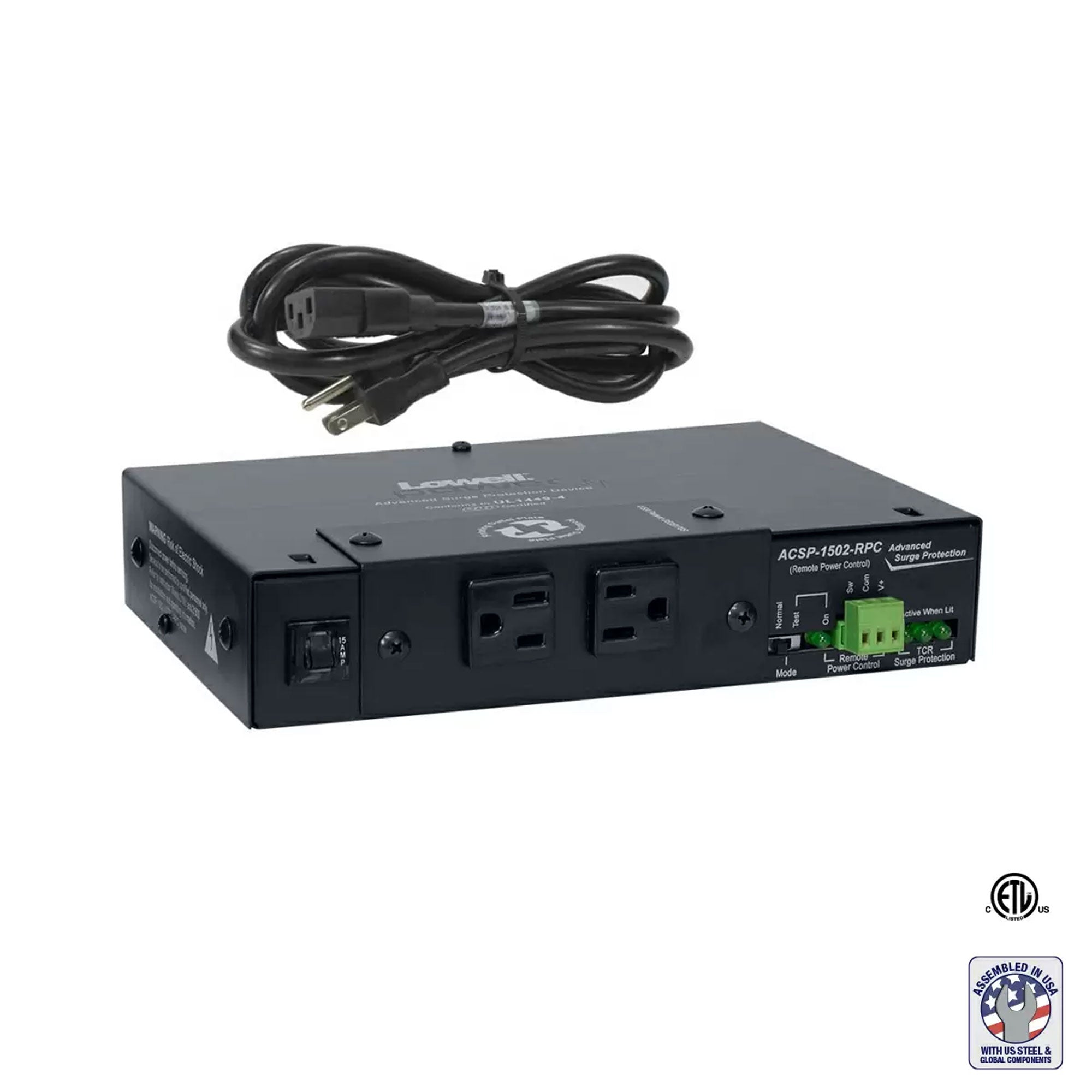

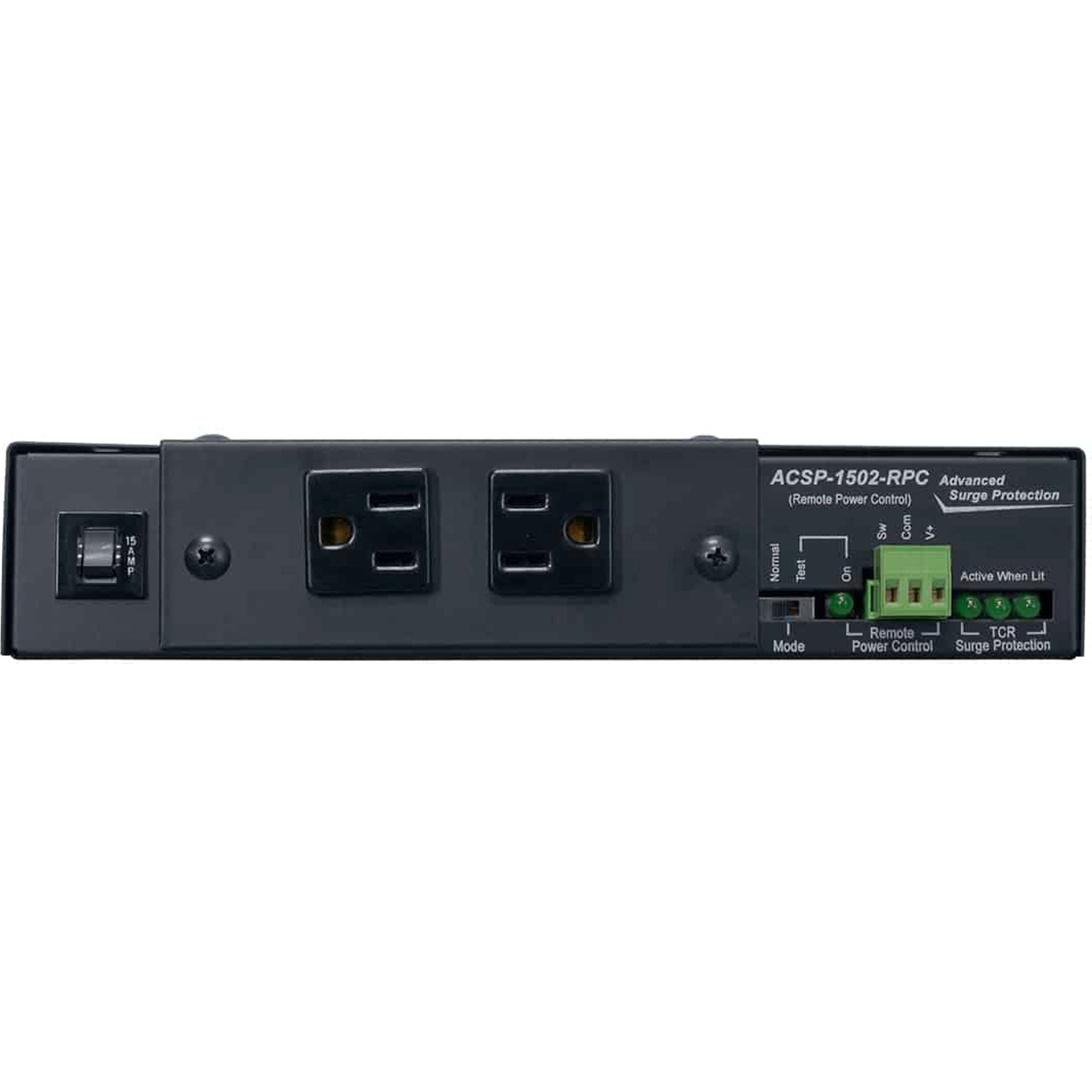

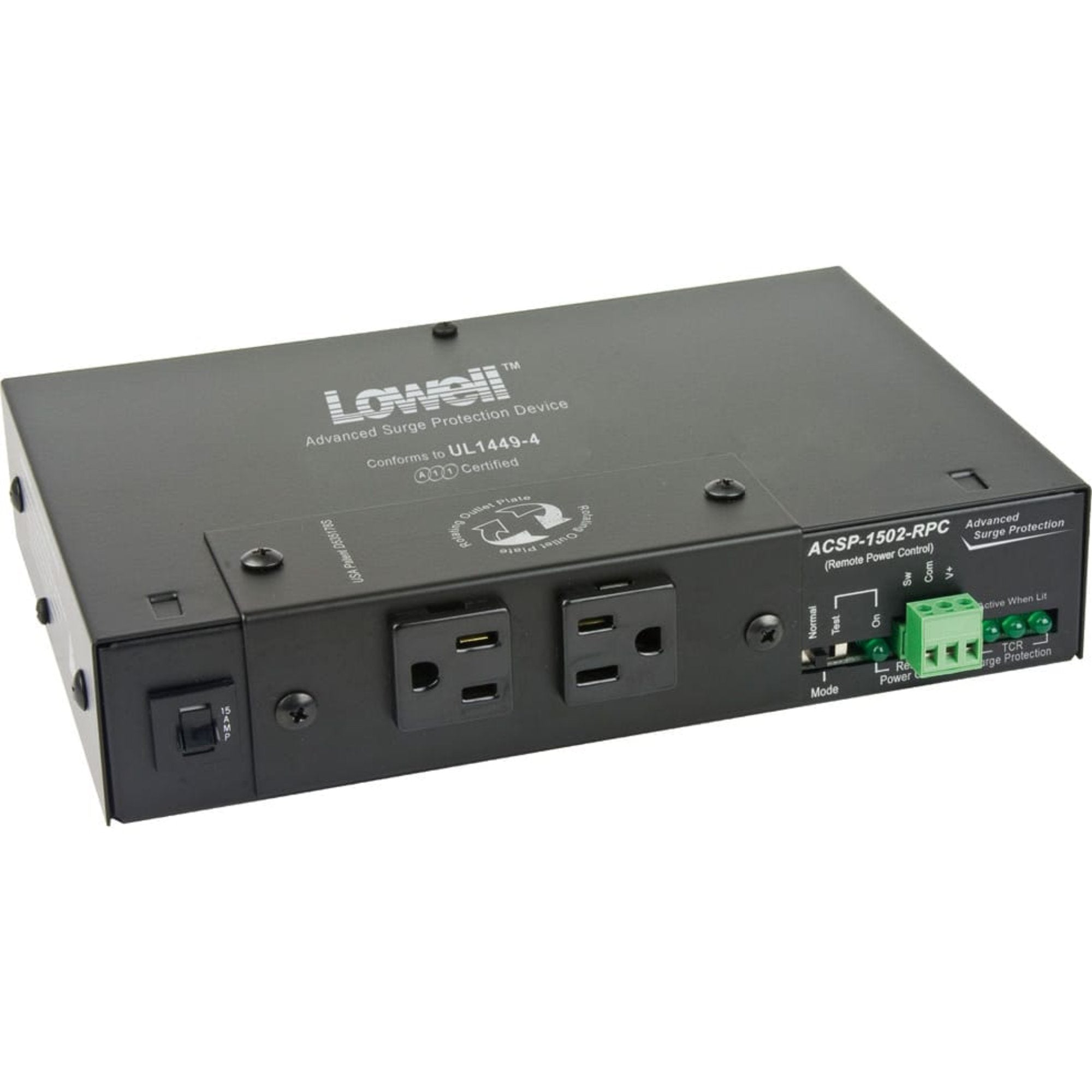

Compact Surge Suppressor with Remote Power Control, 15A, 2 Outlets
This advanced surge suppressor provides the highest current ca- pacity available in devices of its size to protect multiple pieces of sensitive electronic equipment on a single circuit. It features in- dustrial strength "zero failure" technology backed by a ten year warranty. It also includes a patented* rotating outlet plate that makes it easy to change the position of the outlets from top to side access. The compact body has a very low profile (1.75"H x 6"D x 9"W) and includes two mounting brackets made for easy installa- tion - on a wall behind a flat panel TV, under a counter, in a rack or just about anywhere. Both models have two 15A outlets and a detachable cord.
Model ACSP-1502-VTE: includes VTE over/under protec- tion (automatically turns outlets off when line voltage drops below 100V or rises above 140V).
Model ACSP-1502-RPC: includes remote power control ca- pability by a low voltage sequencer, switch or control system that provides maintained dry contact closure.
Features:
- ETL Listed, ANSI C62.41 Compliant
- Conforms to UL1449-3
- Low-profile chassis (1.75"H x 6"D x 9"W)
- Two 15A outlets spaced for power supplies
- Patented* plate rotates 90o for front or side access.
- Front LEDs provide visual system status.
- Suppresses line to neutral with no ground contamination.
- TCR technology defeats surges up to 72,000 amps with zero failures

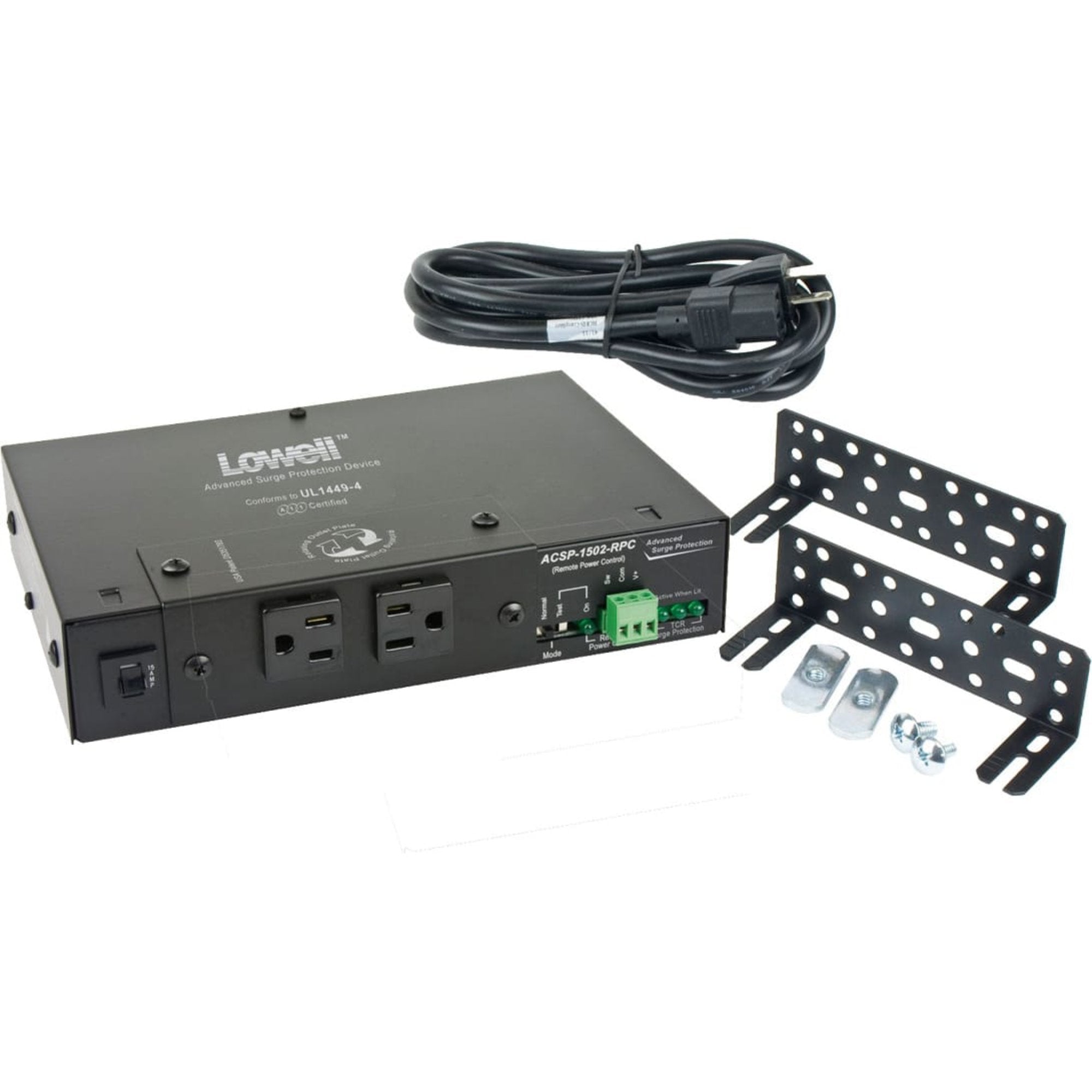

- Two mounting brackets allow versatile installation. (Optional mounting ears are available if standard 19" panel installation is preferred.)
- 6-ft. detachable IEC cord with NEMA 5-15P plug.
- 10 year warranty
Specifications:
- Suppresses line to neutral with no ground contamination.
- TCR technology defeats surges up to 72,000 amps
- Chassis: 1.75 in. x 6 in. x 9 in.
- Two (15A) NEMA outlets spaced for power supplies. Patented plate rotates 90 degrees for front or side access to outlets.
- Front LEDs provide visual system status.
- Universal mounting brackets allow versatile installation.
- 6-ft. detachable IEC cord with NEMA 5-15P plug.
- 10 year warranty
- Remote Power Control capability by a low voltage sequencer, switch or control system that provides a maintained dry contact closure.
- COMPLIANCE & CERTIFICATION
- ETL Listed
- Conforms to UL1449-4
- ANSI C62.41 Compliant
