Key Features
- 20 Total Outlets
- Isolated Ground
- Ten 20 Amp Circuits
- Hardwired 6' Cord with Pigtails
- Includes Multimount Brackets
- RoHS Compliant
- ETL Listed
- Made in the USA
Description

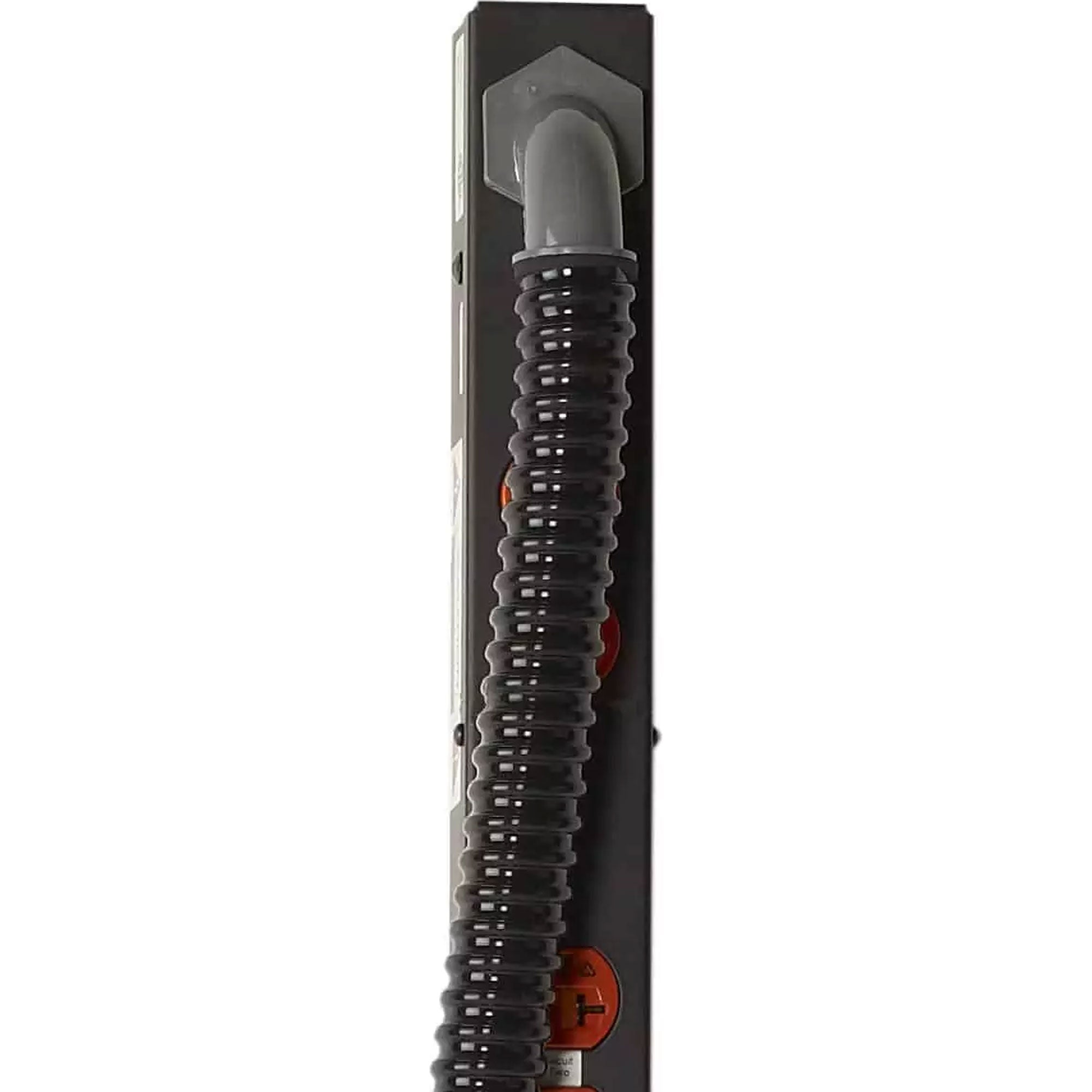

20A Hardwired Multi-Circuit Power Strip - 20 Isolated Ground Outlets
Lowell multi-circuit power strips are engineered for applications where multiple AC power circuits are required to safely power equipment mounted inside a rack or cabinet. ETL-listed devices are made in the USA and include multi-mount brackets for easy installation nearly anywhere including racks with a minimum panel space height of 61.25" (35U).
Model ACS-2020-10C-HW is a power strip with 20 outlets and 10 circuits (20A each). The hardwire assembly includes standard duplex receptacles.
Model ACS-2020-IG-10C-HW is the same with insulated ground (IG) duplex receptacles (identified by orange face).
The power strip chassis is manufactured of heavy gauge steel and finished in durable black powder epoxy paint. The chassis measures 60"L x 2"W x 2"H. Outlets are 20A NEMA 5-20R duplex receptacles. Strip terminates to flexible (non-metal) conduit with pigtail leads at the end and a rotating connector on the chassis. Pigtail leads are tagged for easy identification of circuits 1-10. Conduit length is 6-foot and may be easily trimmed in the field to meet wire looming needs. An optional 6"L x 6"W x 3"D junction box kit (model ACMJBEX-4) can be mounted on top the rack or elsewhere to facilitate hardwire connections.
Power strips are easily installed in nearly any application with versatile outlet orientation facing forward, center or rear using Lowell's Multi-mount brackets (included). Brackets are engineered with multiple mounting points and two types of hardware to facilitate easy power strip installation into cabinets with adjustable or fixed mounting rails or to wall or desk surfaces. The brackets may be mounted so they are exposed for easy access or concealed under the strip for aesthetically clean installation.
Features:
- 10 independent circuits - 20A power rating for each circuit
- Terminates to 6-ft. flexible conduit with rotating connector and pigtail leads tagged for circuits 1-10.
- 60"L x 2"W x 2"H: mounts into racks with a minimum panel space height of 61.25" (35U)
- Includes multi-mount brackets for installation in racks with fixed or adjustable mounting rails or to wall surfaces.
- Made in USA
- ETL-Listed
Specifications:
- Amperage: 20A
- Outlets: 20 I.G. NEMA
- Number of circuits: 10
- Chassis: Steel with black finish (60 in.)
- Termination: Hardwired 6 ft. non-metallic flexible conduit with pigtail leads
- Mounting Aids: Universal mounting brackets
- COMPLIANCE & CERTIFICATION
- EIA/TIA Compliant
- RoHS Compliant
- ETL Listed, U.S./Canada
- Made in U.S.A. with global components
