Lowell ACR-2009 15A/20A Rackmount Power Panel with 9 Outlets and Surge Protection

19" Rackmount 20 Amp AC Power Panel

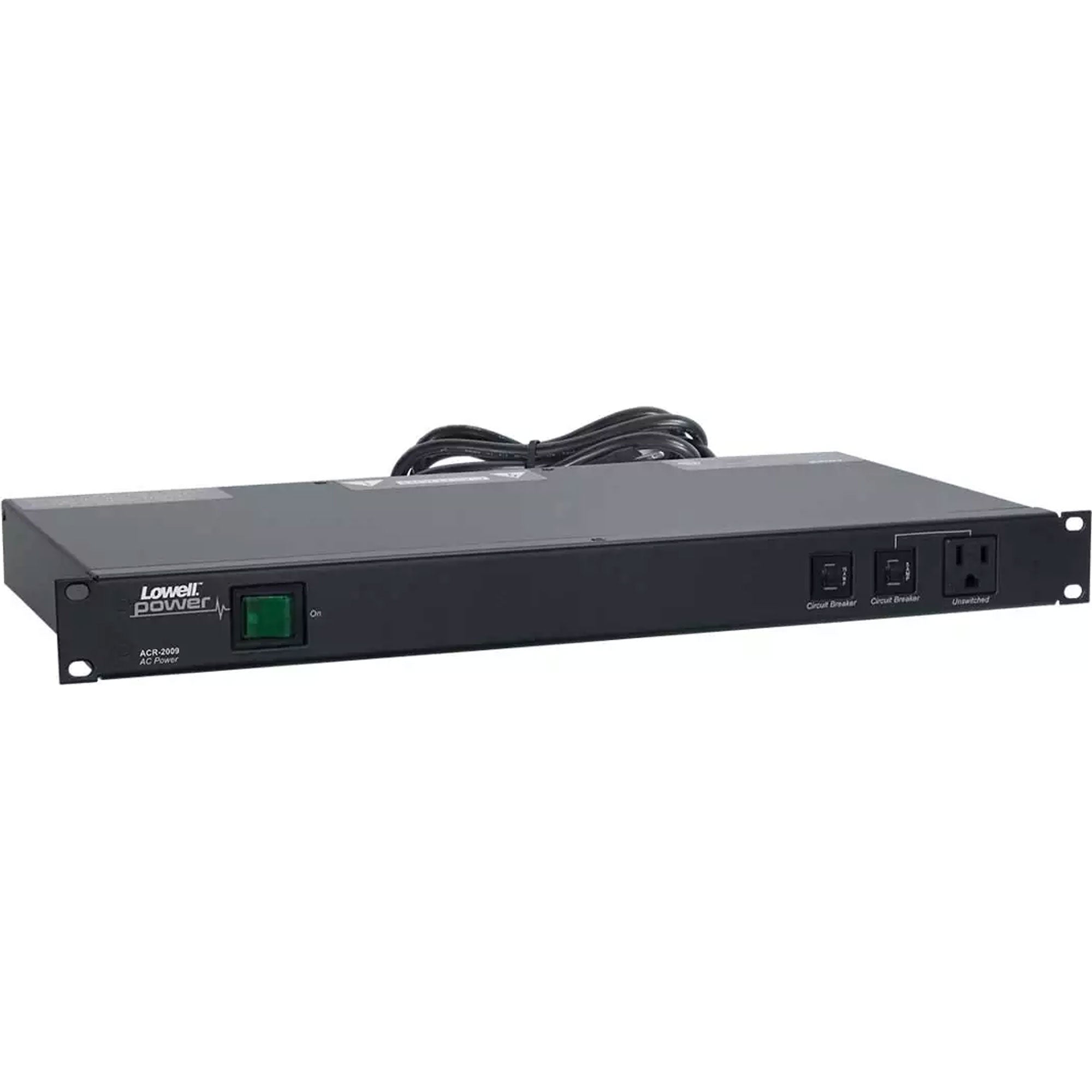

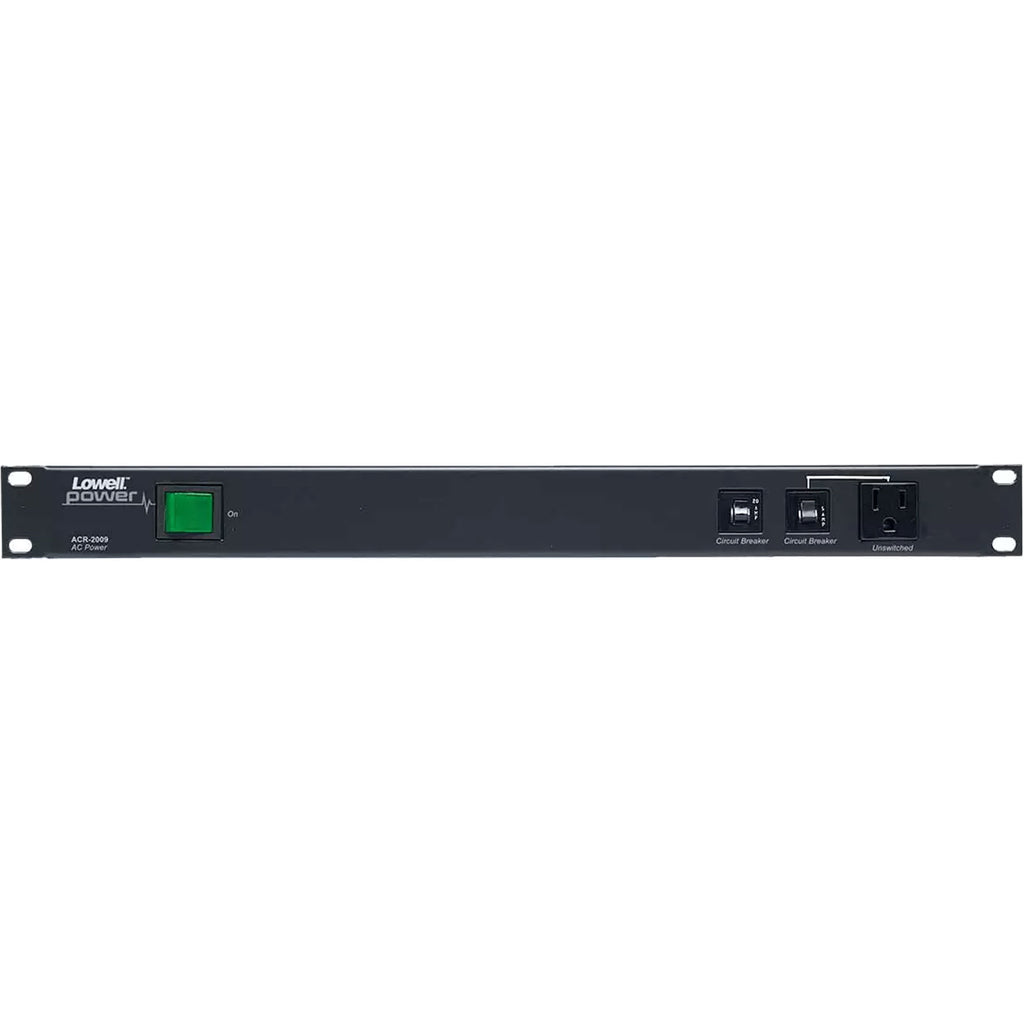

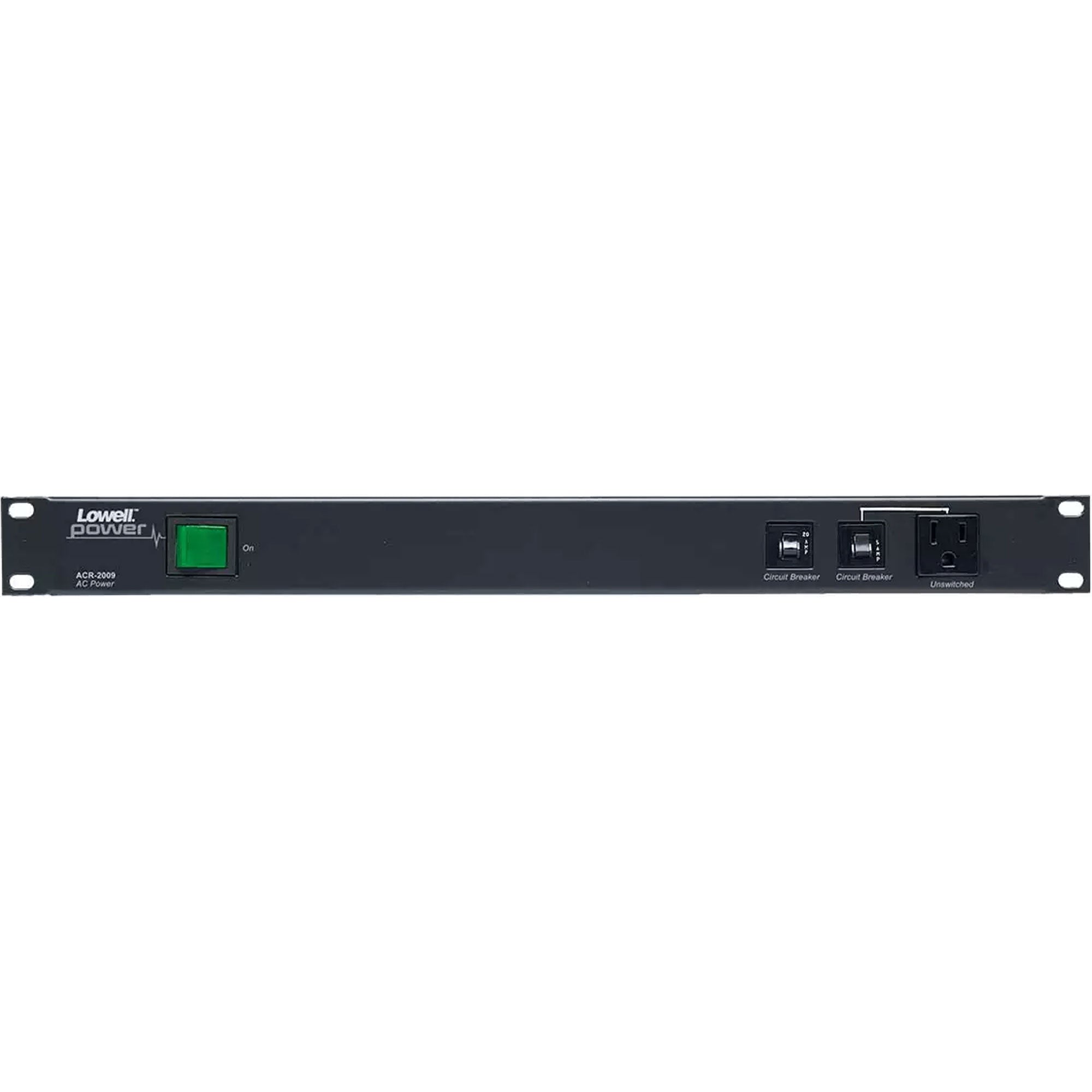

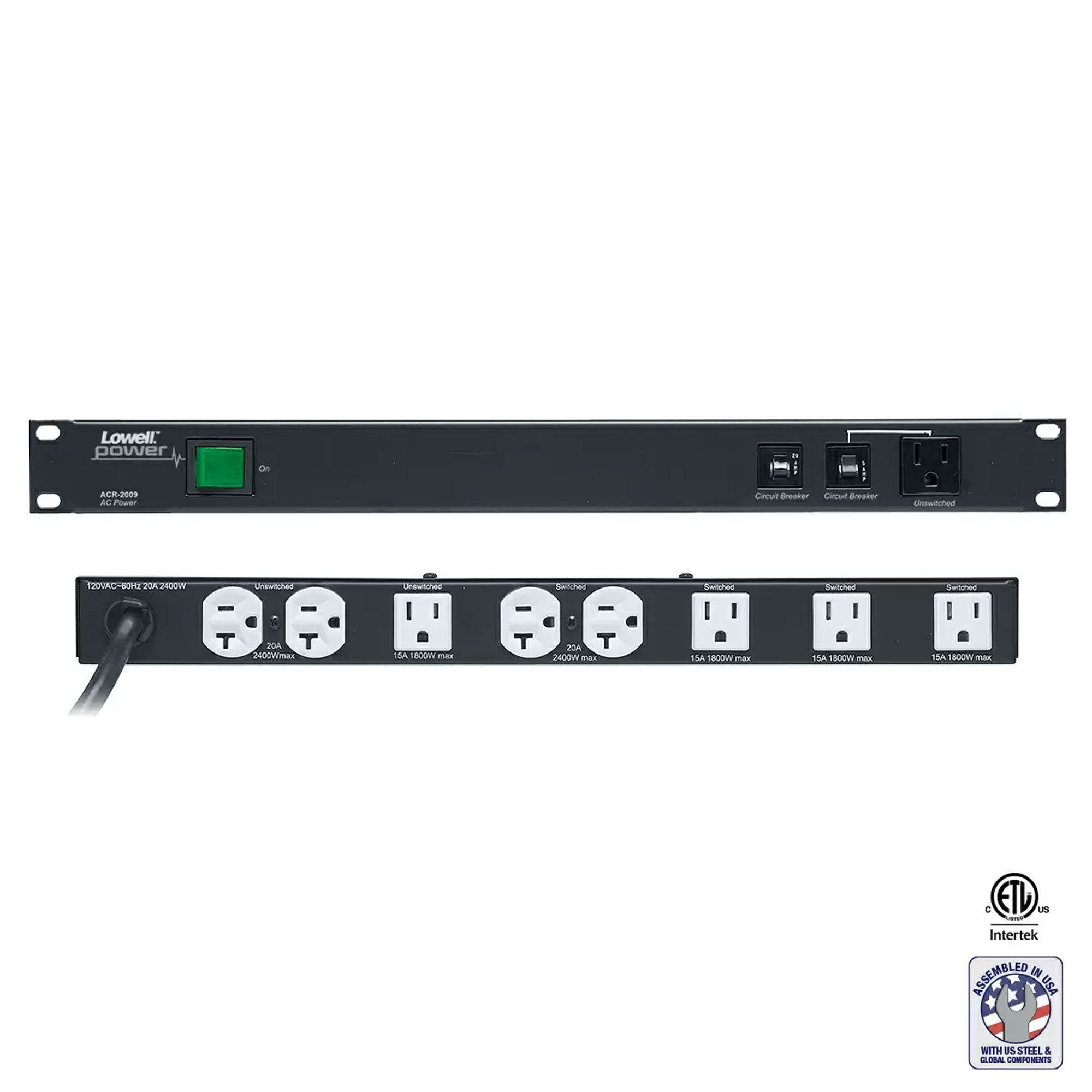

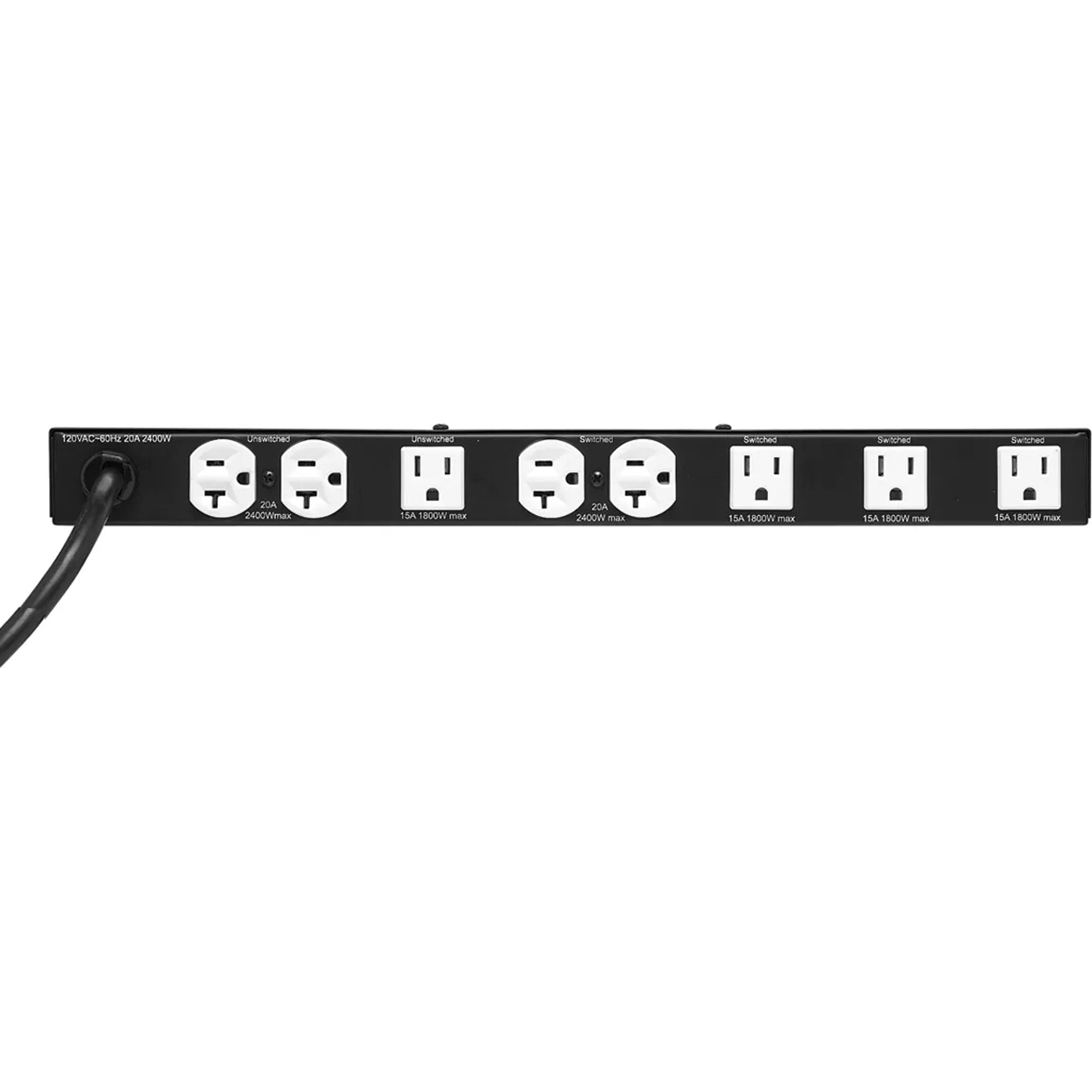

Feature strong family of AC power panels let you select the options and pro- tection criteria you need to meet specifications. All models are ETL Listed as- semblies in a slim rackmount chassis size 19"W x 9"D x 1.75"H (1U). The front panel includes a lighted on/off actuation switch, a 20A system circuit breaker and a receptacle (always on) that is independently protected by a 5A circuit breaker. The rear panel layout has one unswitched duplex outlet, one unswitched single outlet, one switched duplex, three switched single outlets and a 9 foot cord with NEMA 5-20P plug.

Model ACR-2009 is a 20A power panel with all features noted in the description paragraph.

Model ACSPR-2009 is a 20A power panel with the features noted in the de- scription paragraph plus line-to-neutral surge suppression. The surge sup- pressor is UL1449 third edition and ANSI C62.41 compliant to defeat surges up to 72,000A. The front panel includes multi-color LED's for visual identification of system status.

Model ACSPR-2009-VTE isa20Apowerpanelwiththefeaturesnotedinthe description paragraph plus line-to-neutral surge suppression plus over/under voltage protection. The surge suppressor is UL1449 third edition and ANSI C62.41 compliant to defeat surges up to 72,000A. The front panel includes multi-color LED's for visual identification of system status. Lowell's over/under Voltage Tolerance EnvelopeTM (VTE) circuitry with auto reset turns all recep- tacles off when line voltage exceeds 140V or drops below 100V for circum- stances such as extended line voltage rises or sags. Following a voltage tolerance shutdown, the unit will automatically restore power to the receptacles when the unit detects acceptable line voltage.

Features:

• Rear outlets: 3 switched, 5 unswitched
• Front outlet: 1 unswitched
• Surge Protection: basic
• (1) LED status indicator on front shows protection is active - Maximum Surge Current: 30,000A
• VPR (UL1449-3): 400V
• Endurance: 100 WCS* (unlimited low level surges)
• Response Time: 1 nanosecond
• EMI/RFI Noise Reduction: 20dB@100kHz
• Protection Mode: Line to neutral only. No ground contamination.

Specifications:

• Power Rating: 120VAC, 60Hz, 20A
• Outlets: 9 (15A/20A) NEMA outlets (1 front, 8 rear)
• Termination: 9 ft. attached cord with NEMA 5-20P plug
• Chassis: 19 in. x 9 in. x 1.75 in. (1U)
• On/off Switch: Rocker switch controls 5 rear outlets (others are un-switched)
• COMPLIANCE & CERTIFICATION
• EIA/TIA Compliant
• RoHS Compliant
• ETL Listed (U.S. and Canada)
• Made in the U.S.A. with global components
