Key Features
- 9 Total Outlets
- Surge Protection
- 15 Amp Circuit Breaker
- Attached 9' Cord
- Front Panel On/Off Switch
Description

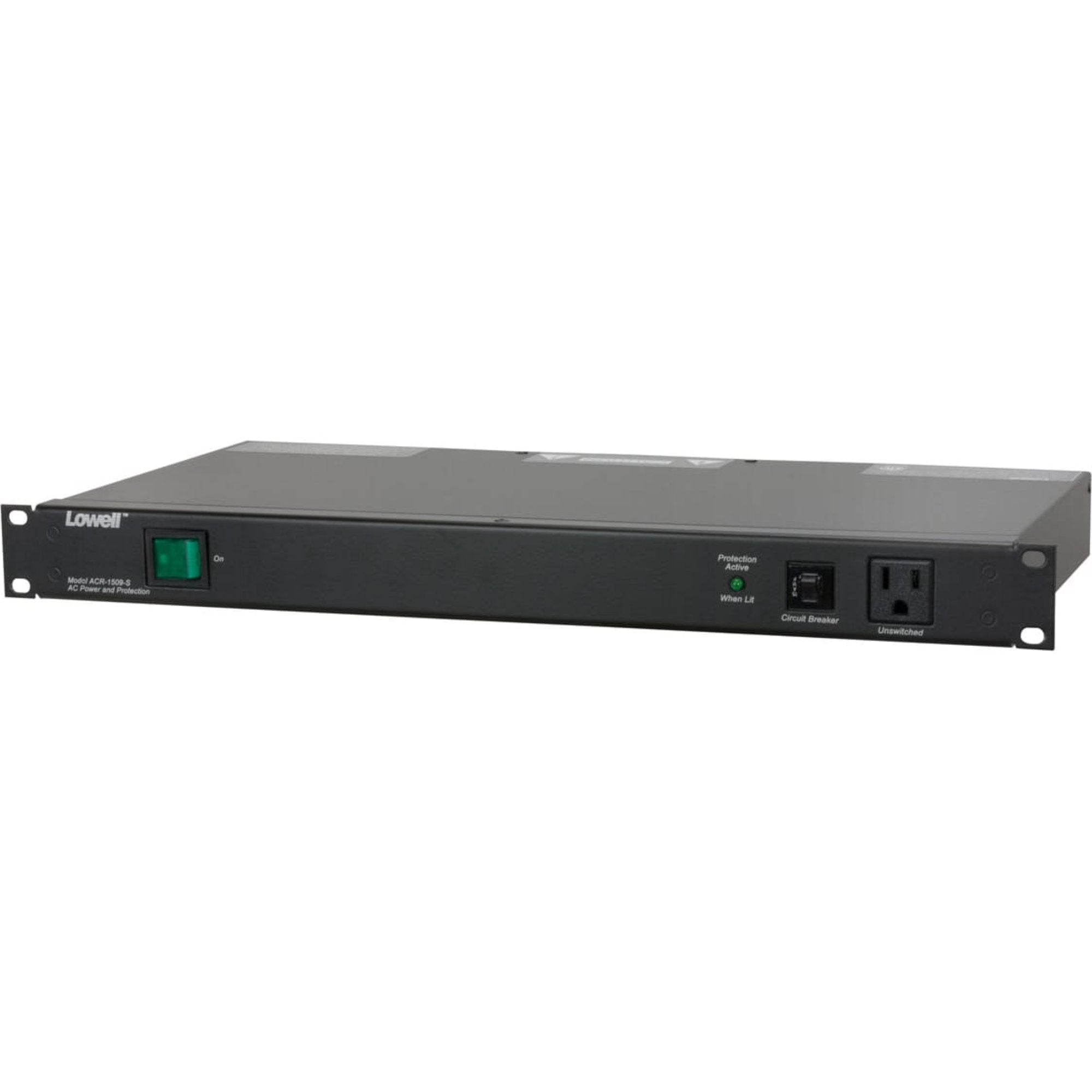

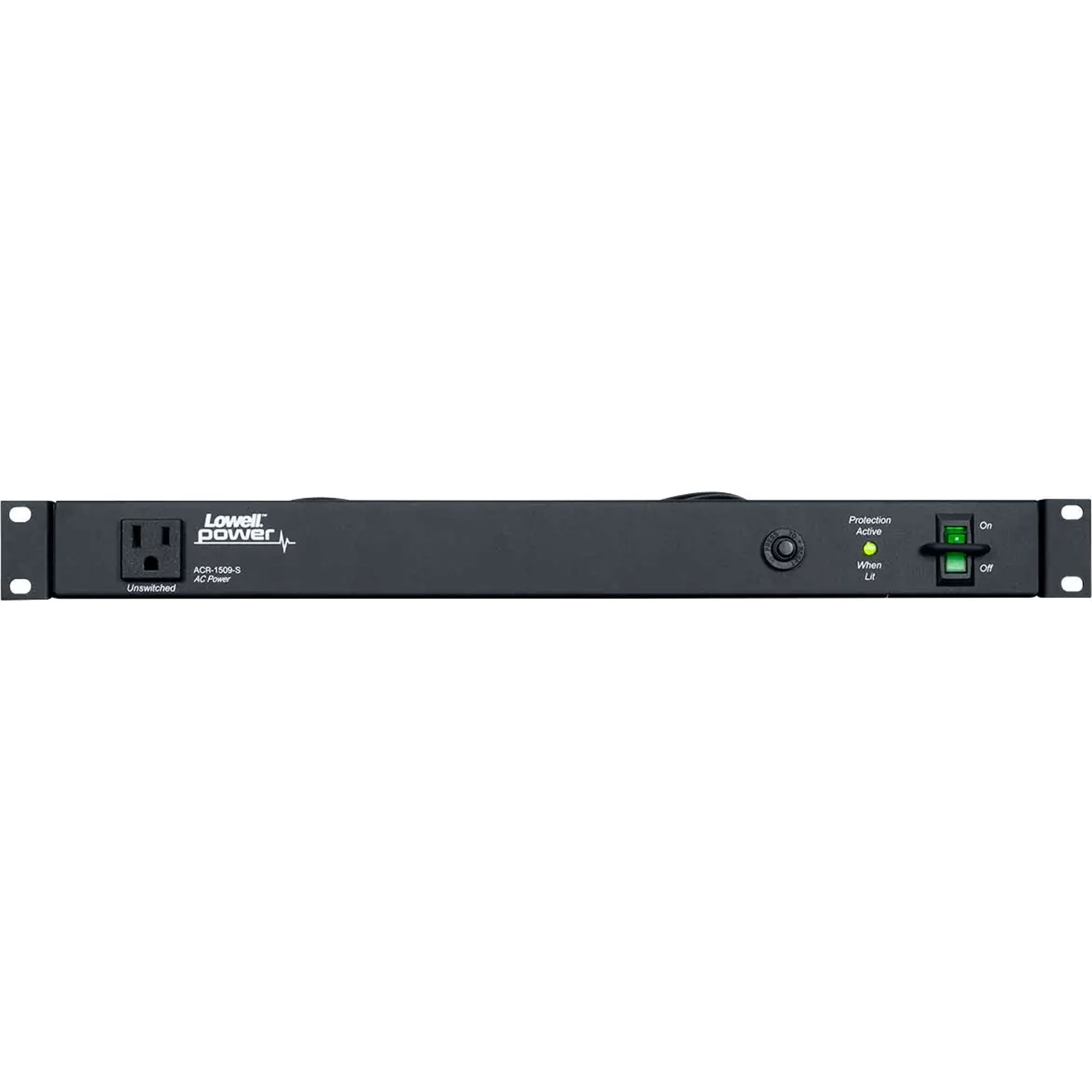

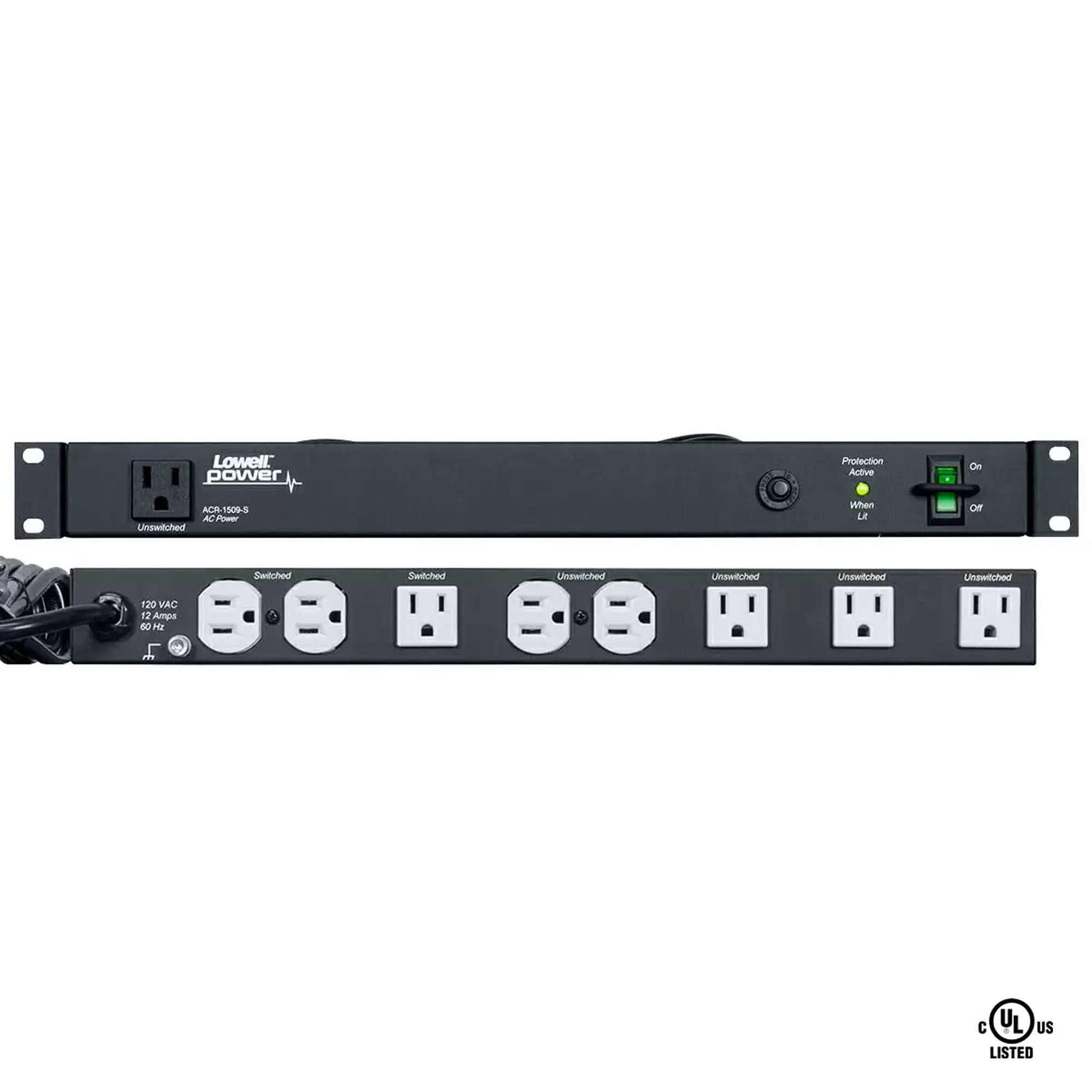

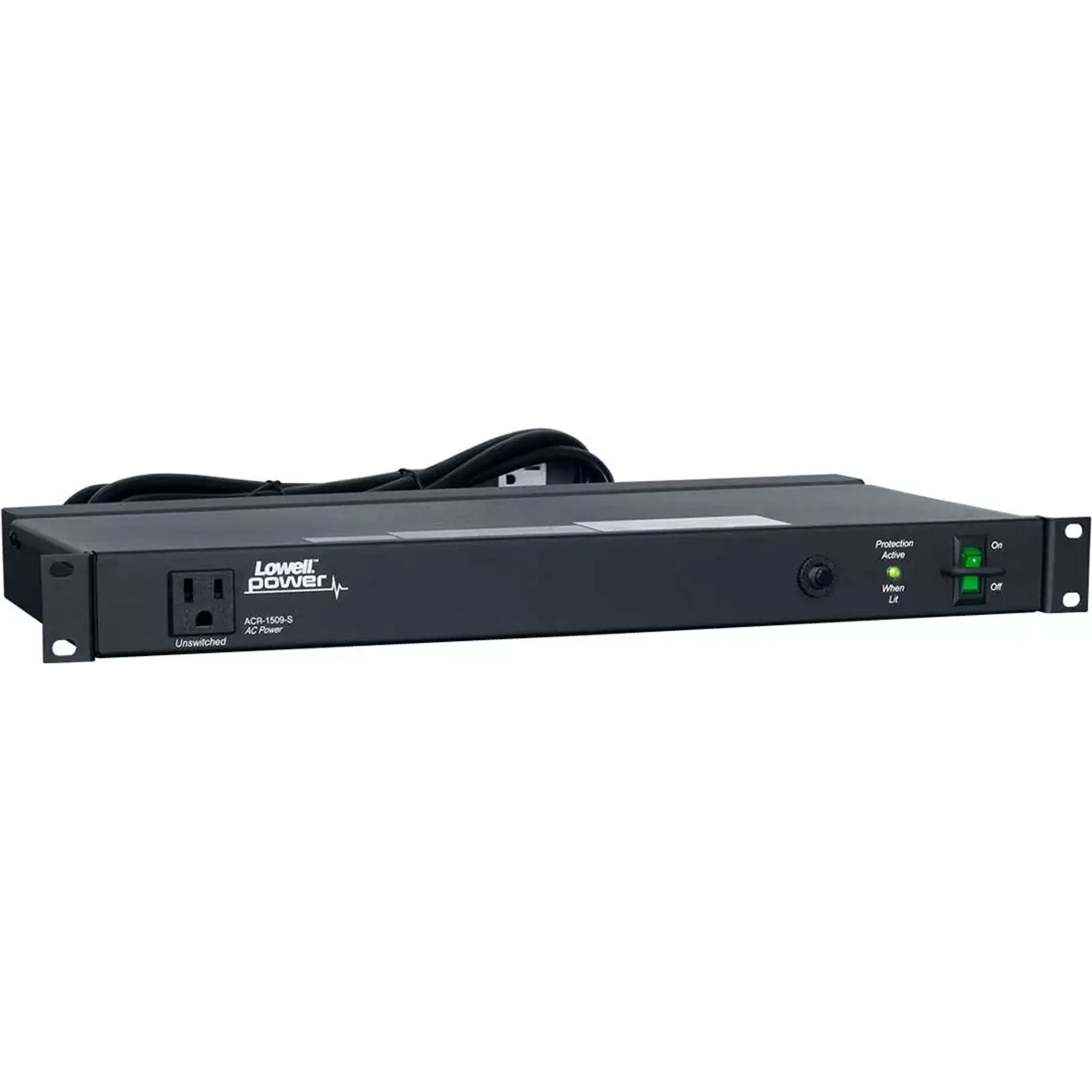

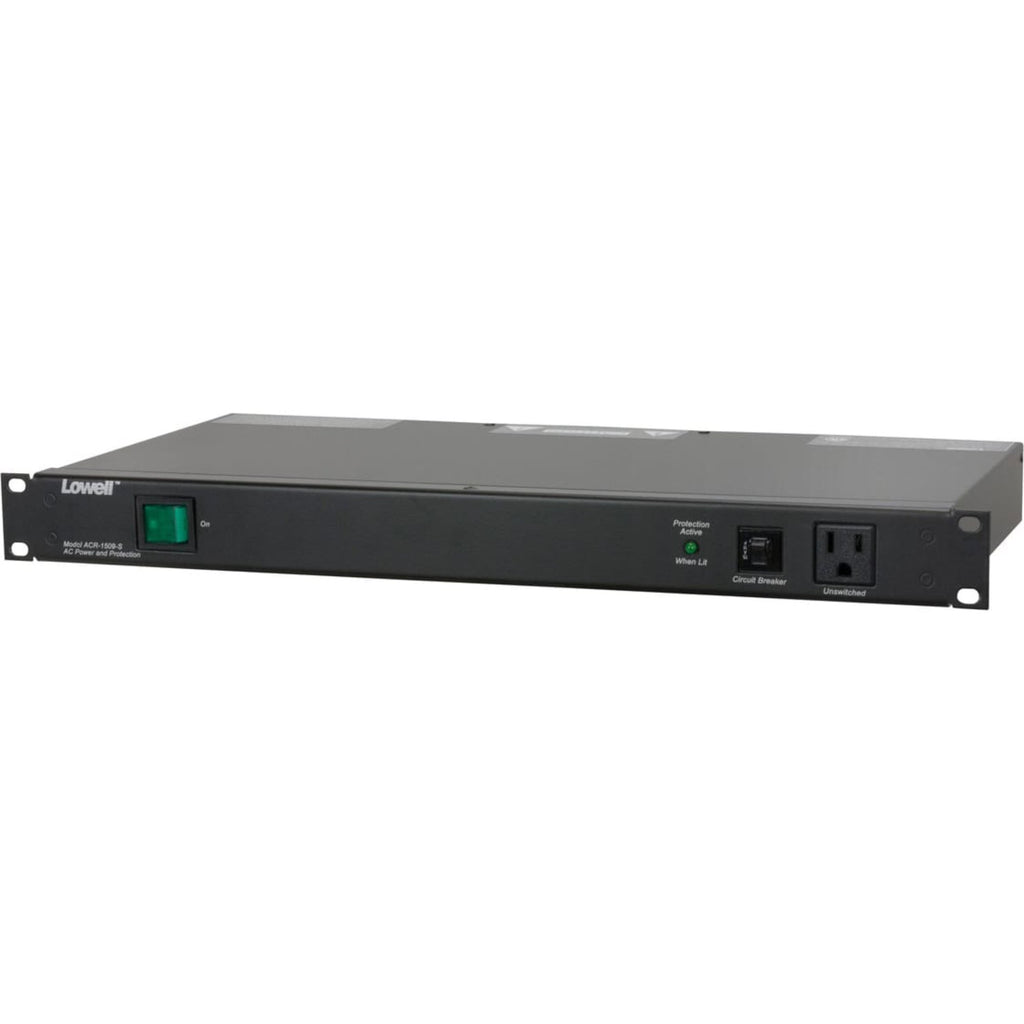

19" Rackmount Power Panel with Surge Protection
Variety of 19" rackmount panels with (15A) AC power outlets and op- tions for different levels of surge protection or over/under voltage pro- tection let you select exactly what's needed to support the equipment specified for each project, while staying within budgetary guidelines. All units are ETL Listed in the US and Canada (to UL Standard 60065) and are made in the USA with domestic and foreign parts. All models include:
Steel Chassis (black): 19"W x 9"D x 1U
Front activation rocker switch (lighted)
Attached 9-ft. cord with NEMA 5-15P plug
Power Rating: 120VAC, 60Hz, 15A (NEC Art.210.21 [B] [2] rating 12A)
15A circuit breaker
Features:

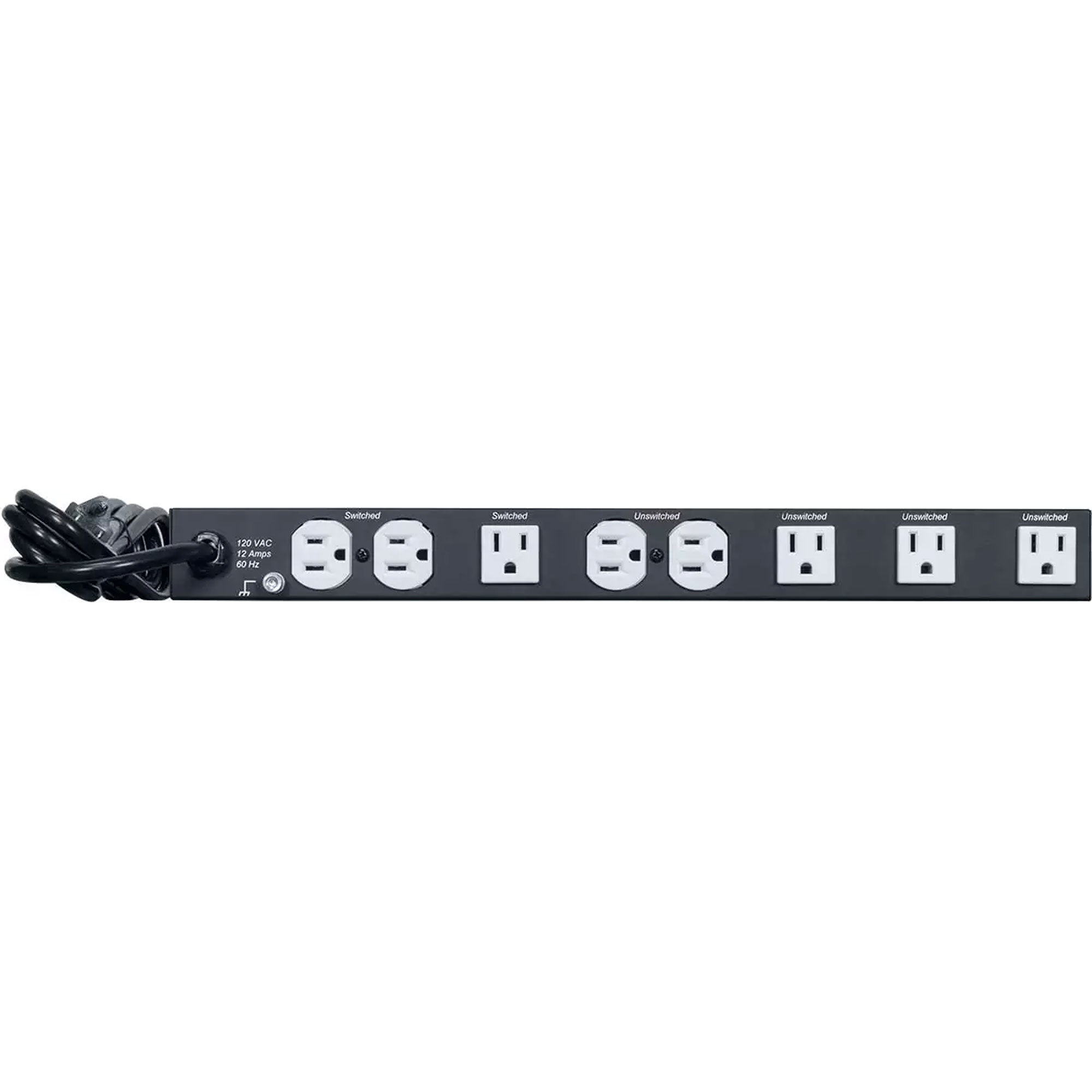

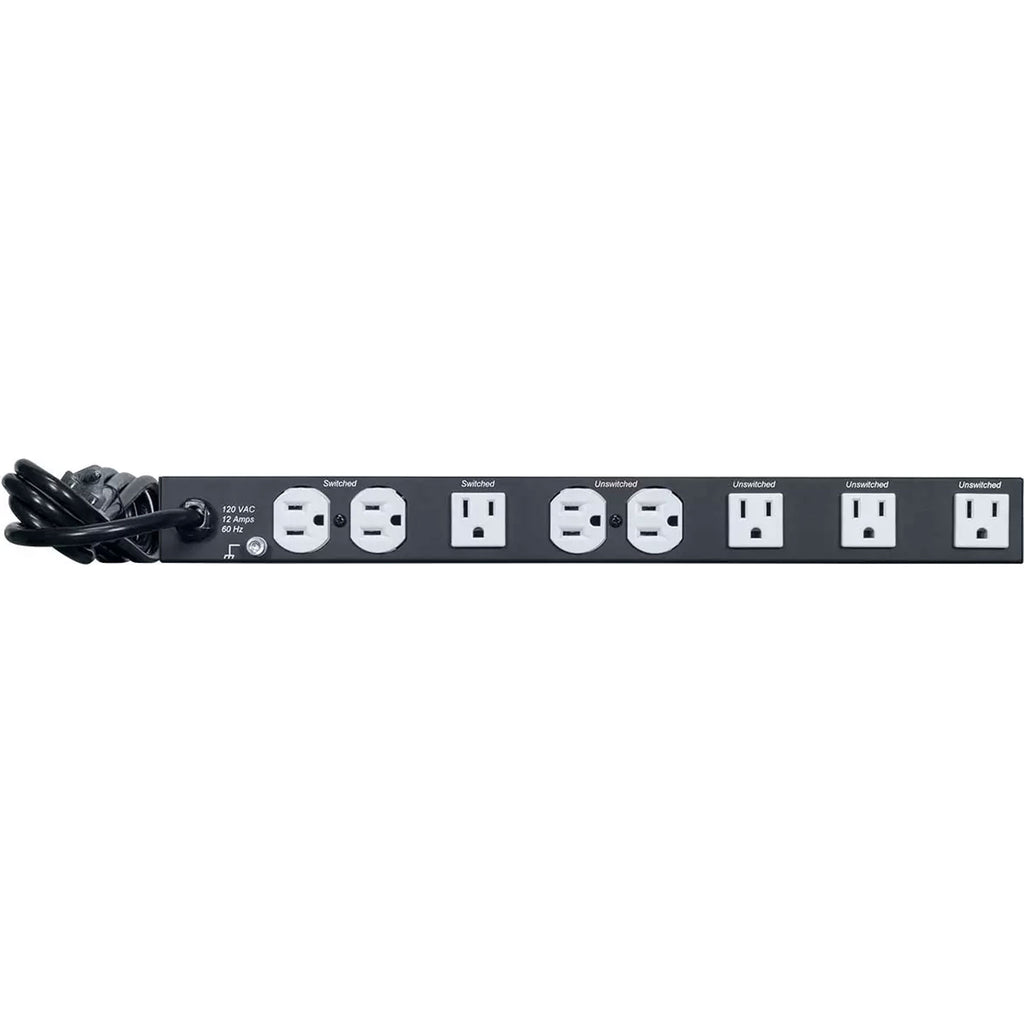

- Rear outlets: 3 switched, 5 unswitched
- Front outlet: 1 unswitched
- Surge Protection: basic
- (1) LED status indicator on front shows protection is active - Maximum Surge Current: 30,000A
- VPR (UL1449-3): 400V
- Endurance: 100 WCS* (unlimited low level surges)
- Response Time: 1 nanosecond
- EMI/RFI Noise Reduction: 20dB@100kHz
- Protection Mode: Line to neutral only. No ground contamination.
Specifications:
- Power Rating: 120VAC, 60Hz, 15A
- Outlets: 9 (15A) outlets (1 front, 8 rear)
- Termination: 9 ft. attached cord with NEMA 5-15P plug
- Chassis: 19 in. x 9 in. x 1.75 in. (1U)
- Surge protection up to 30,000A. LED status indicator.
- Switch (on/off): Lighted front rocker switch controls 3 rear outlets (other outlets are un-switched - always on when the unit has power)
- COMPLIANCE & CERTIFICATION
- EIA/TIA Compliant
- RoHS Compliant
- ETL Listed
