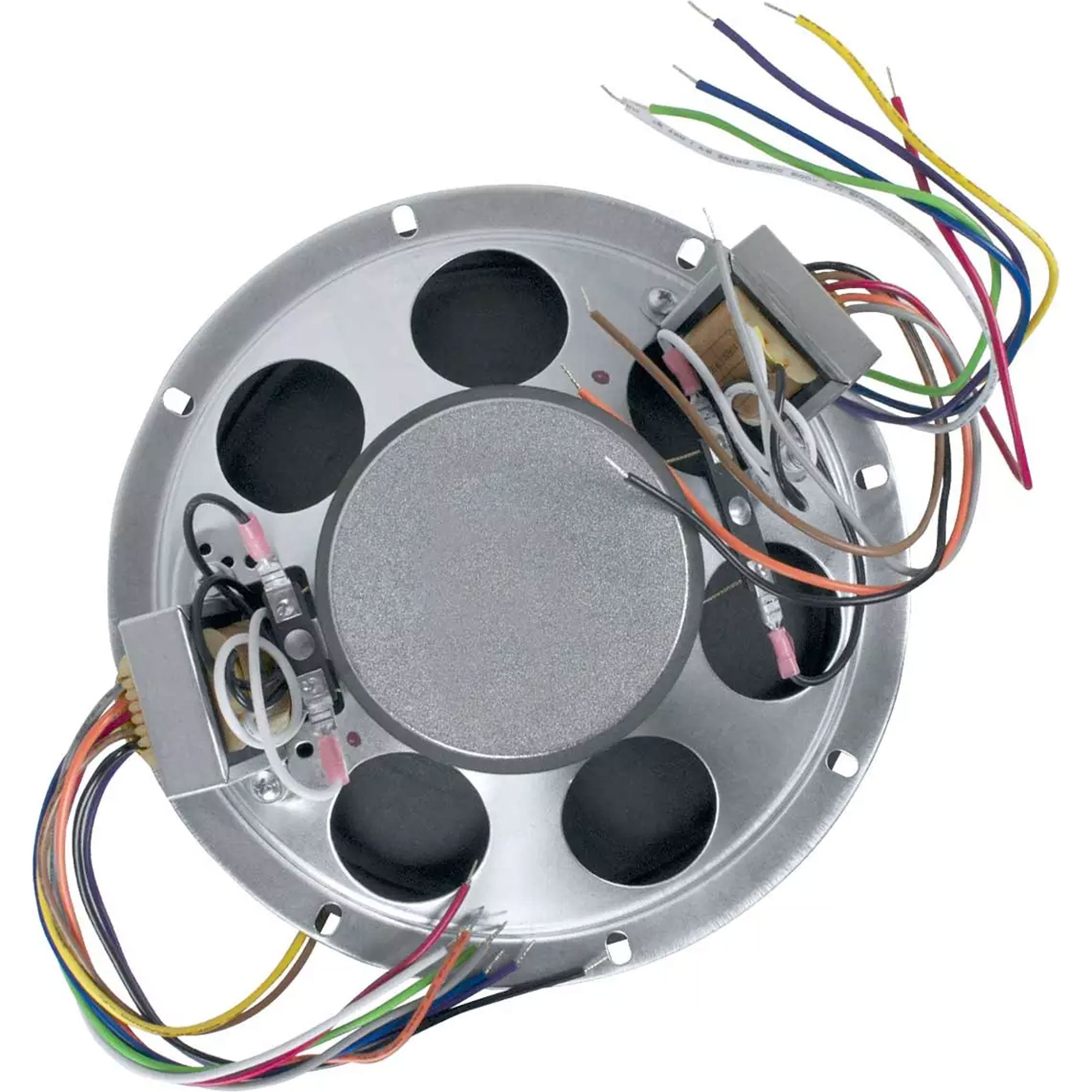

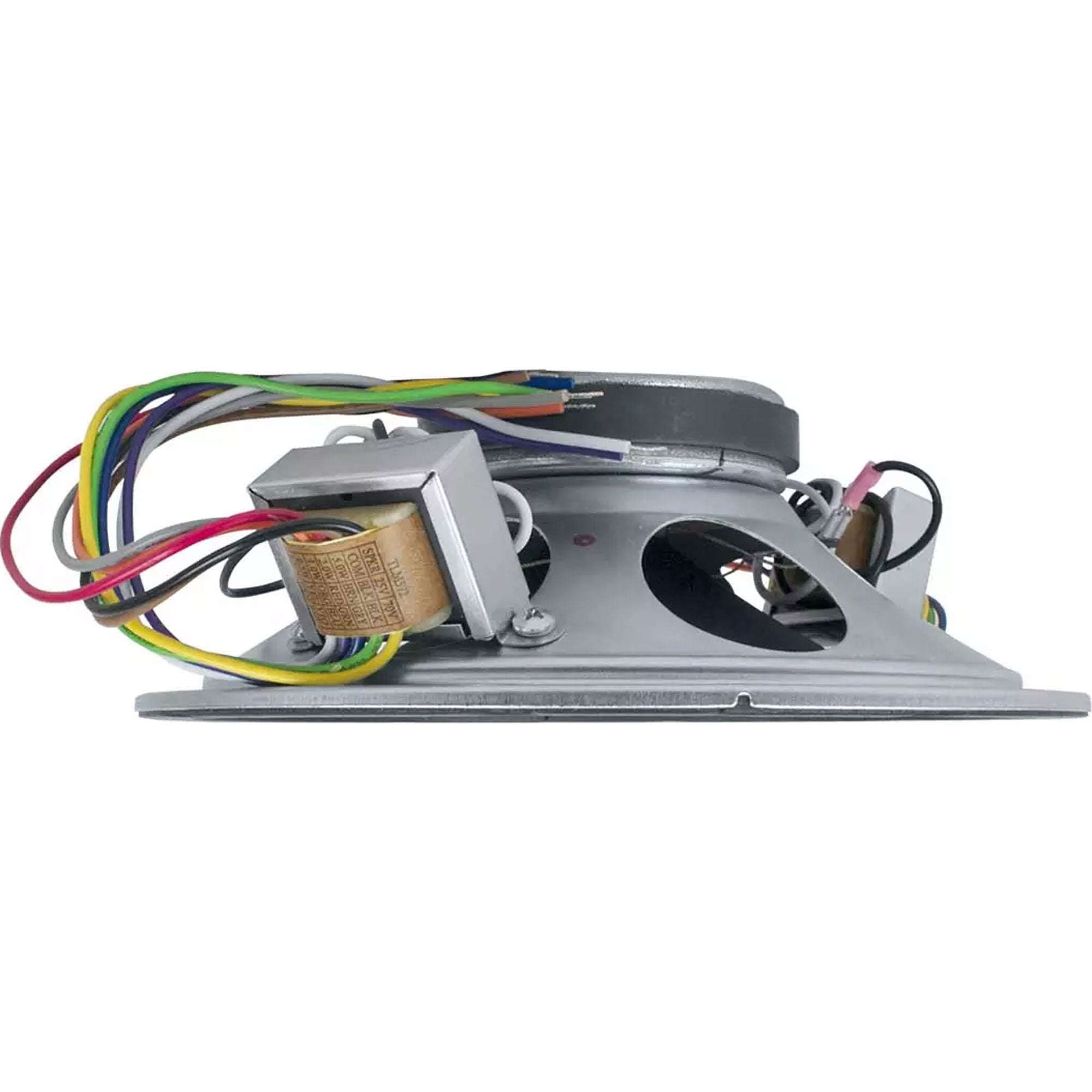

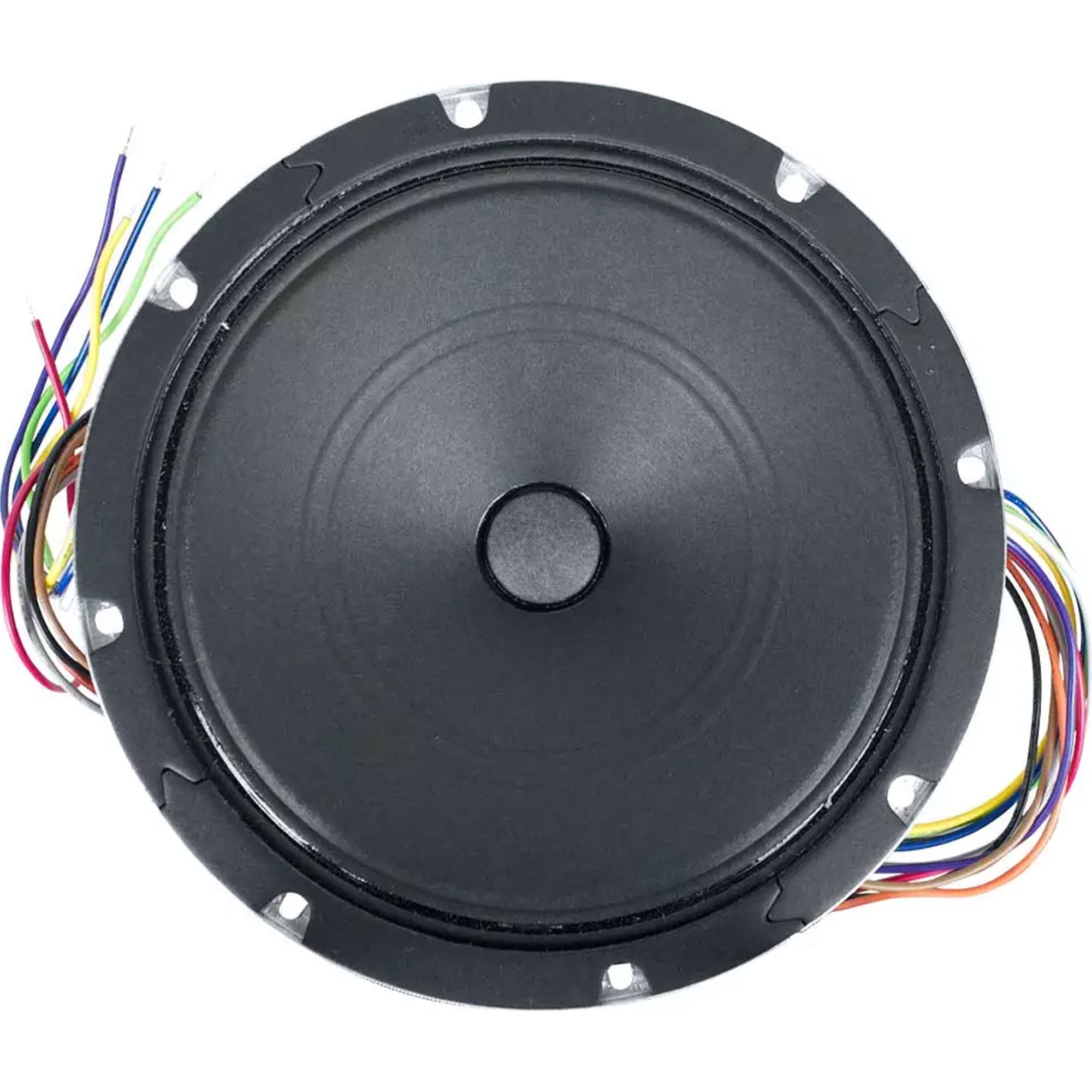

Lowell 8C10DVCA-2T72 8" Cone Driver with 2 Voice Coils, 2 Transformers (16 Pack)

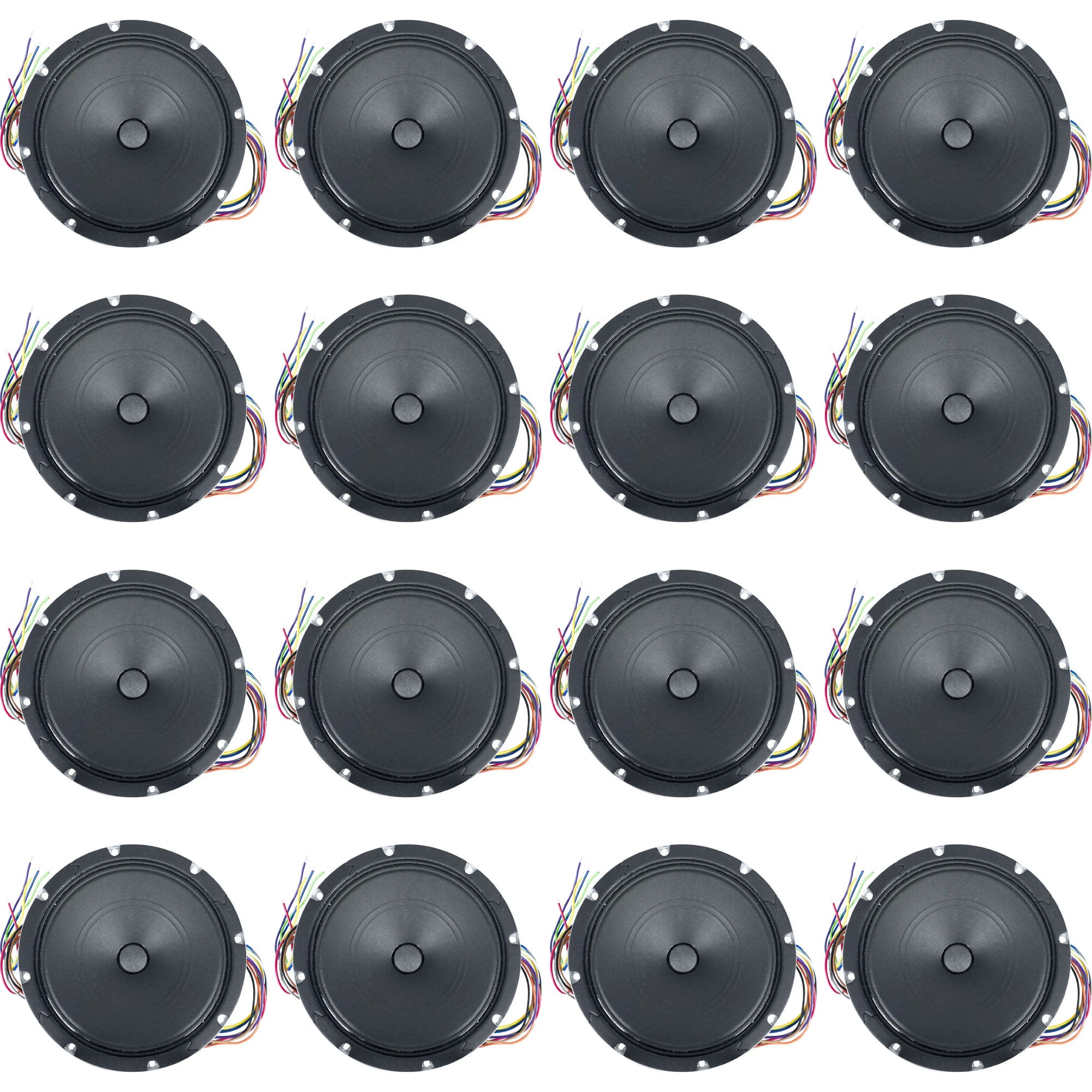

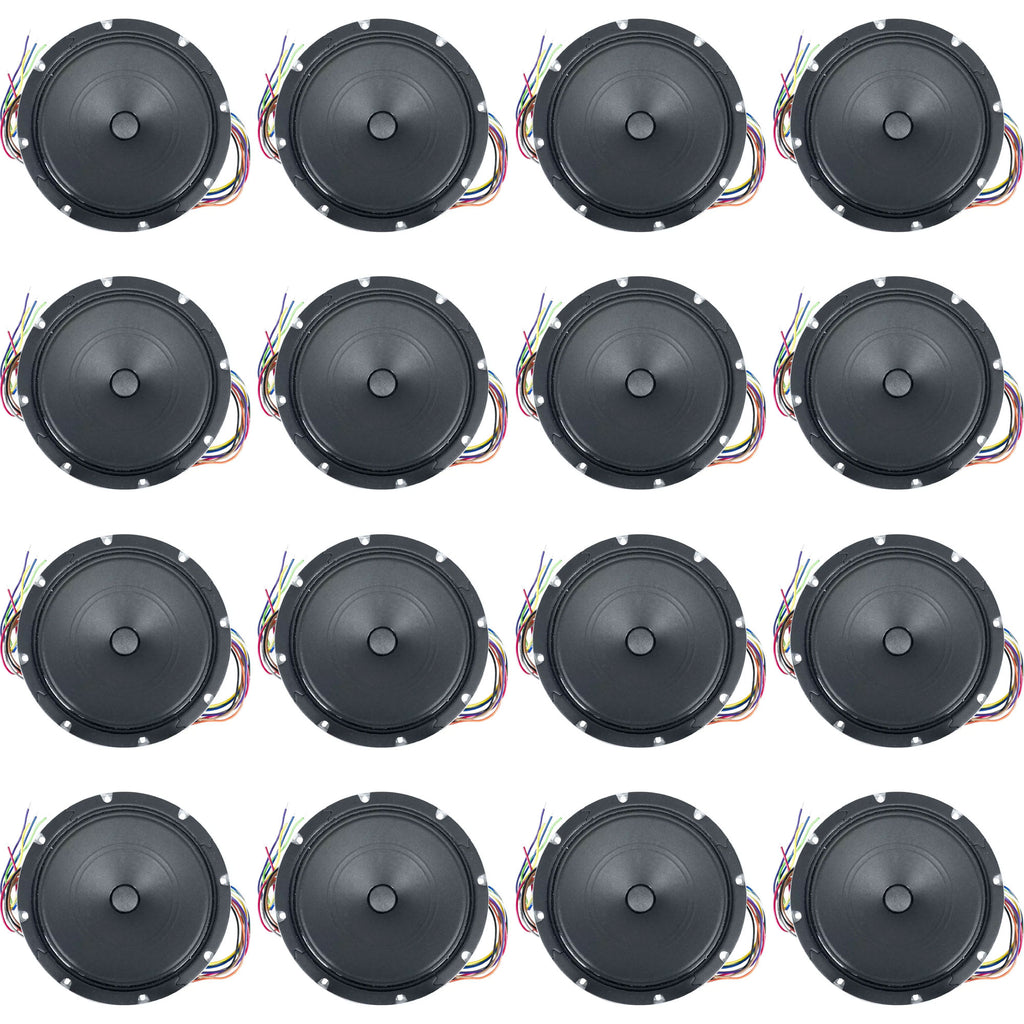

8" Single Cone Driver with Dual Voice Coils and Two Transformers - Case of 16 Drivers

Single cone driver (8 in. 15W) with dual voice coils and two transformers is made for systems where individual speakers must be connected to two separate or piggy-backed systems, typically used for retrofit applications.

IMPORTANT: DO NOT USE this driver when one voice coil is fed from a local or zoned sound system because there will be a cross-talk problem. That application requires two separate drivers.

Features:

• Reliable 15W 8" (10oz.) cone speaker with two voice coils.
• Dual voice coil design allows for mechanical mixing of two circuits such as music and paging at the speaker.
• Two factory-wired transformers (TLM-572) with taps at 0.25, 0.5, 1, 2, 5W (70/25V)
• Compatible with Lowell architectural grilles, backboxes, and sur- face baffles.
• Manufactured in USA to meet or exceed all applicable EIA stan- dards.

Specifications:

• Driver: 8 in. 15W cone speaker with two voice coils allows for mechanical mixing of two circuits, such as music and paging, at the speaker. Highly efficient magnetic structure energized by 10oz ceramic magnet.
• Frame: 20-gauge stamped steel with zinc-plated finish.
• Mounting Bolt Circle: 7.625 in.
• Transformers (2): 25V/70V dual voltage transformers with taps at .25, .5, 1, 2, 5W
• Assembly Frequency Response: 54Hz-9kHz (±6dB) and 50Hz-20kHz (±13.4dB)
• Assembly Mounting Depth: 2.84 in.
• Assembly Dispersion Angle: 90 degrees conical
• Assembly Average Sensitivity: 95.8dB
• COMPLIANCE & CERTIFICATION
• Made in U.S.A. with global components
• Meets or exceeds industry standards
