Key Features
- 8" Driver
- 70 Volt Transformer
- Taps at 4, 8 & 16W
- 90º Conical Dispersion
- For Restaurants & Retail Stores
- 20 oz. Magnet
- 1.4 Inch Voice Coil
Description

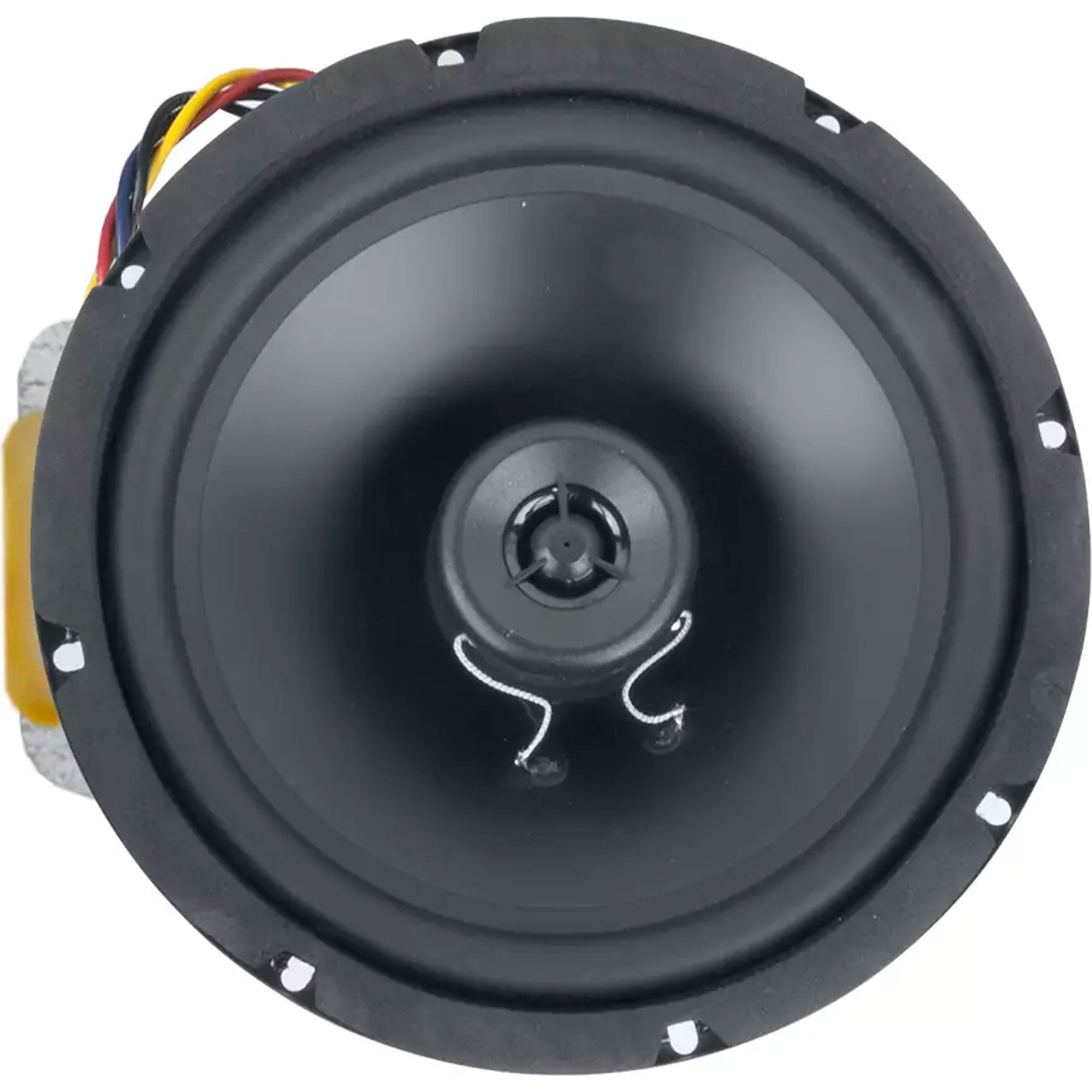

50-Watt Shallow 8in Coaxial Compression Driver Speaker, 20oz Magnet, 70V, 16W Transformer
The 8 in. 50W coaxial driver is the flagship of our A-Series with greater power handling, lower distortion, and smoother musical sound than standard commercial drivers. Ideal for venues where the listening experience is a key part of customer satisfaction.
8 in. 50W coaxial driver with 20 oz. LF magnet coupled with 1.4 in. copper voice coil drive a polypropylene cone with half-roll rubber surround for long cone travel and good edge damping. Post-mounted tweeter (1 in. balanced-drive dome) protected by Ferrofluid and first-order high-pass filter.
Features:
- 20 oz. LF magnet coupled with 1.4" copper voice coil drive a polyproylene cone with half-roll rubber surround for long cone travel and good edge damping.
- Post-mounted tweeter is a 1" balanced-drive dome protected by Ferrofluid and a first-order high-pass filter.
- Frequency response is 40Hz-20kHz+6dB with a crossover at 4 kHz. Loudspeaker's capacity to deliver a wide angle of sound distribution (110-degrees) over a large area with uniform re- sponse and voice clarity ensures complete coverage with min- imum units.
- Speaker frame is stamped 20-ga. steel with black enamel finish and zinc plated backplate.
- Meets or exceeds all applicable EIA standards.

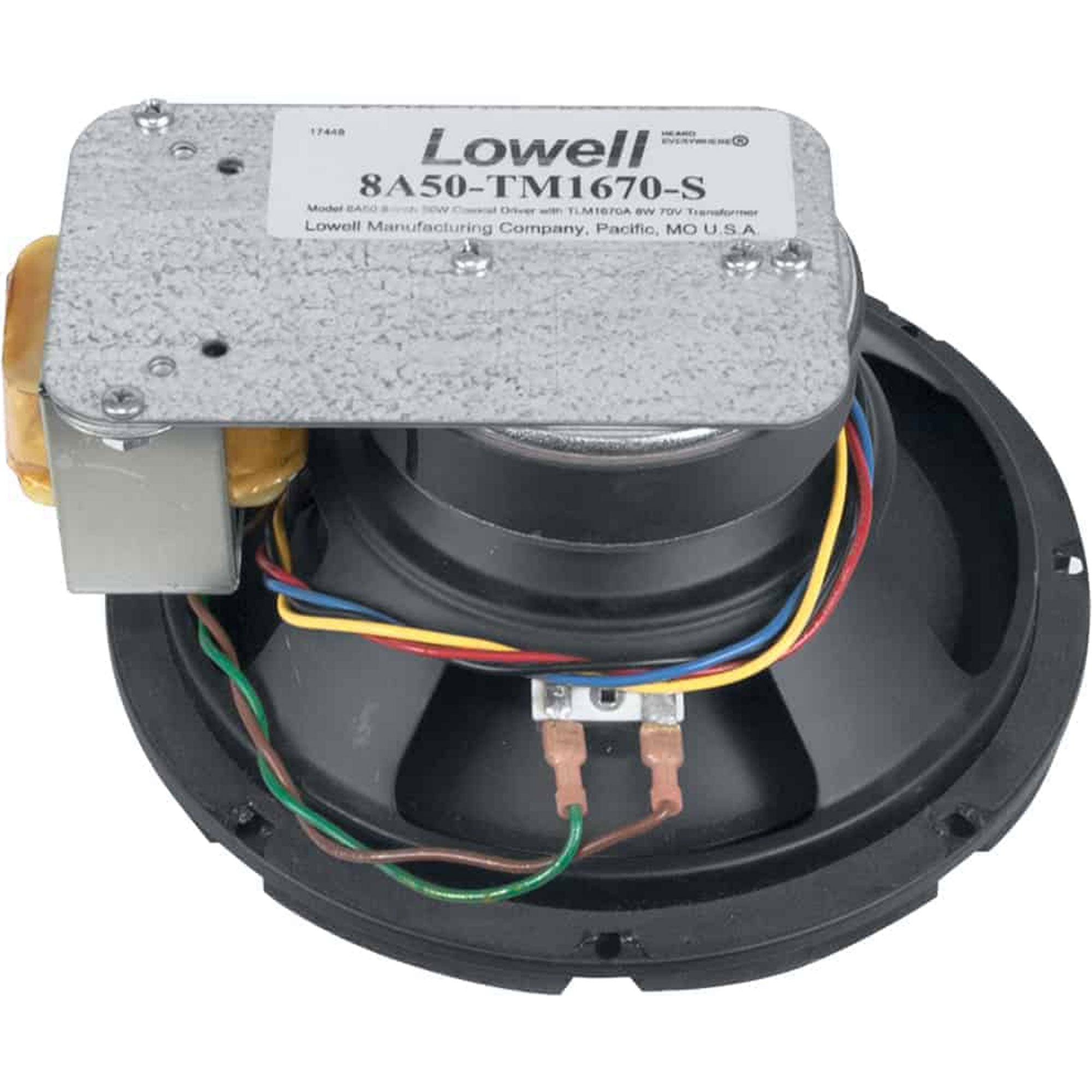

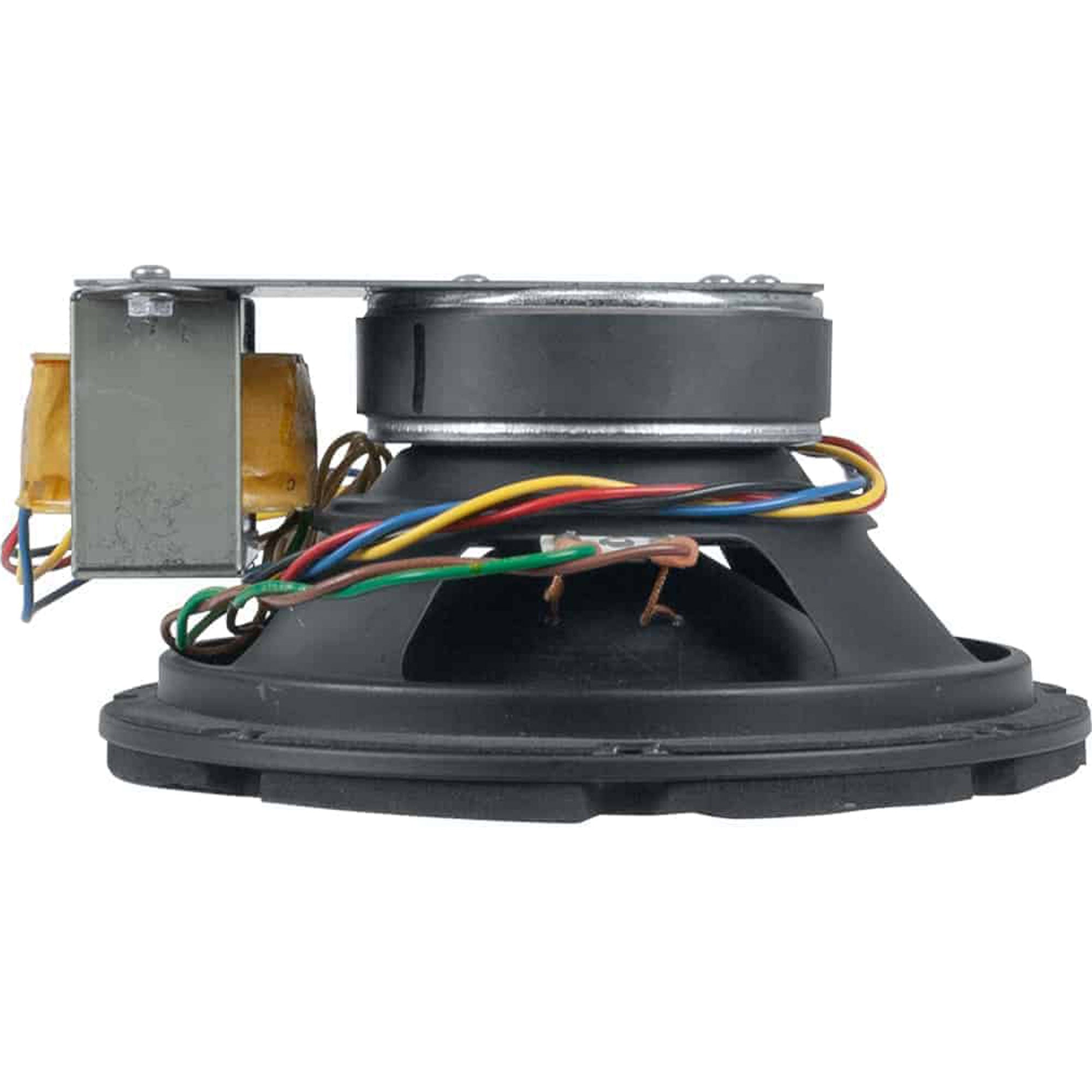

- Available with factory-wired transformer (8W, 16W or 32W) or in a shallow depth. Models with a transformer include a bracket mounted to top of magnet for secure support.
Specifications:
- Frame: 20-gauge stamped steel, black enamel finish, zinc-plated back-plate.
- Mounting Bolt Circle: 7.625 in.
- Transformer: 70V (4, 8, 16W), shallow mount
- Assembly Frequency Response: 40Hz-17.4kHz (±6dB) and 40Hz-20kHz (±11.4dB)
- Assembly Mounting Depth: 4.1 in.
- Assembly Dispersion Angle: 90 degrees conical
- Assembly Average Sensitivity: 90.8dB
- COMPLIANCE & CERTIFICATION
- Made in U.S.A. with global components
- Meets or exceeds industry standards
