Key Features
- 200 Watt Power Rating
- 3dB per Step Attenuation
- Rotary Dial Switch
- Two Gang Size
- Fits Standard Electrical Boxes
Description

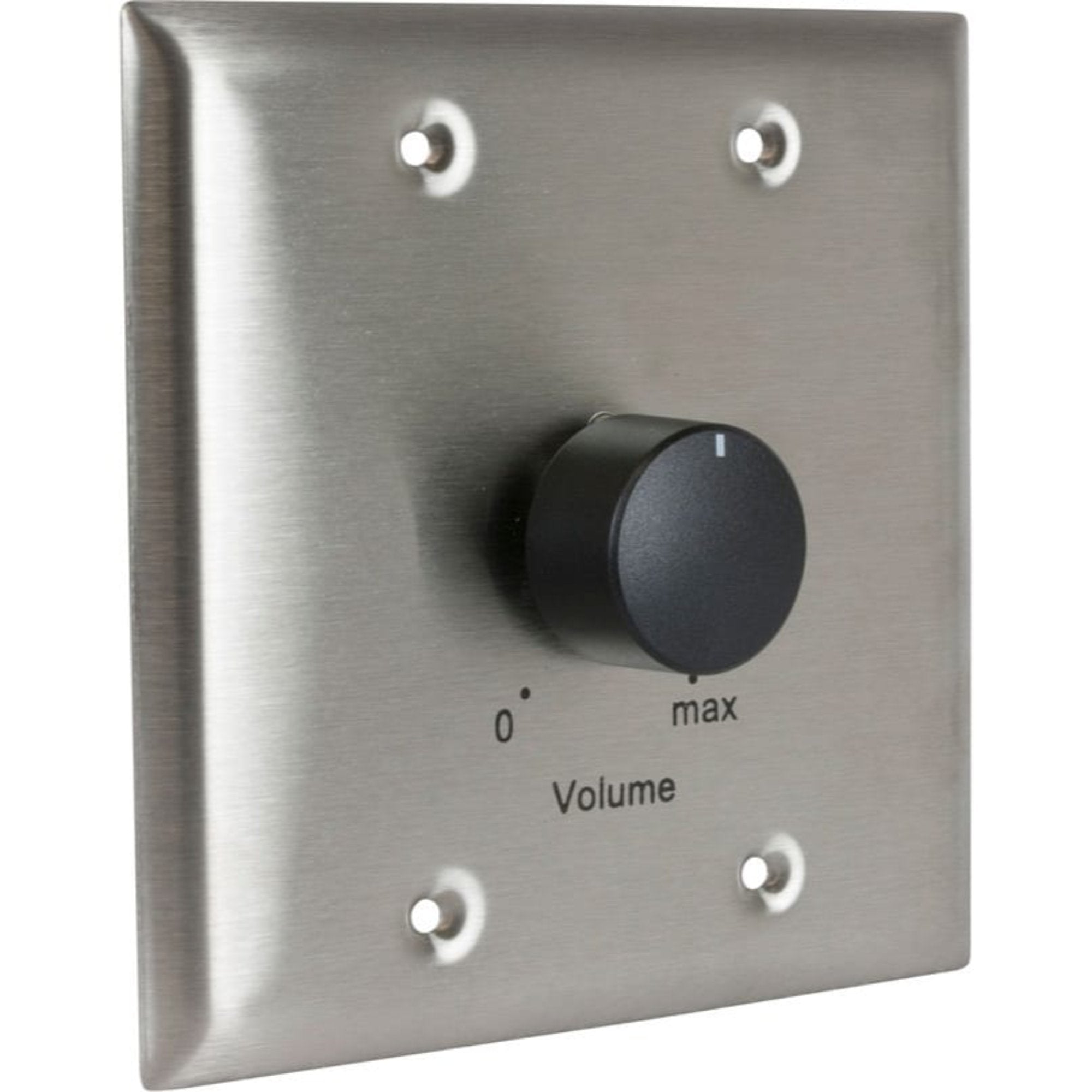

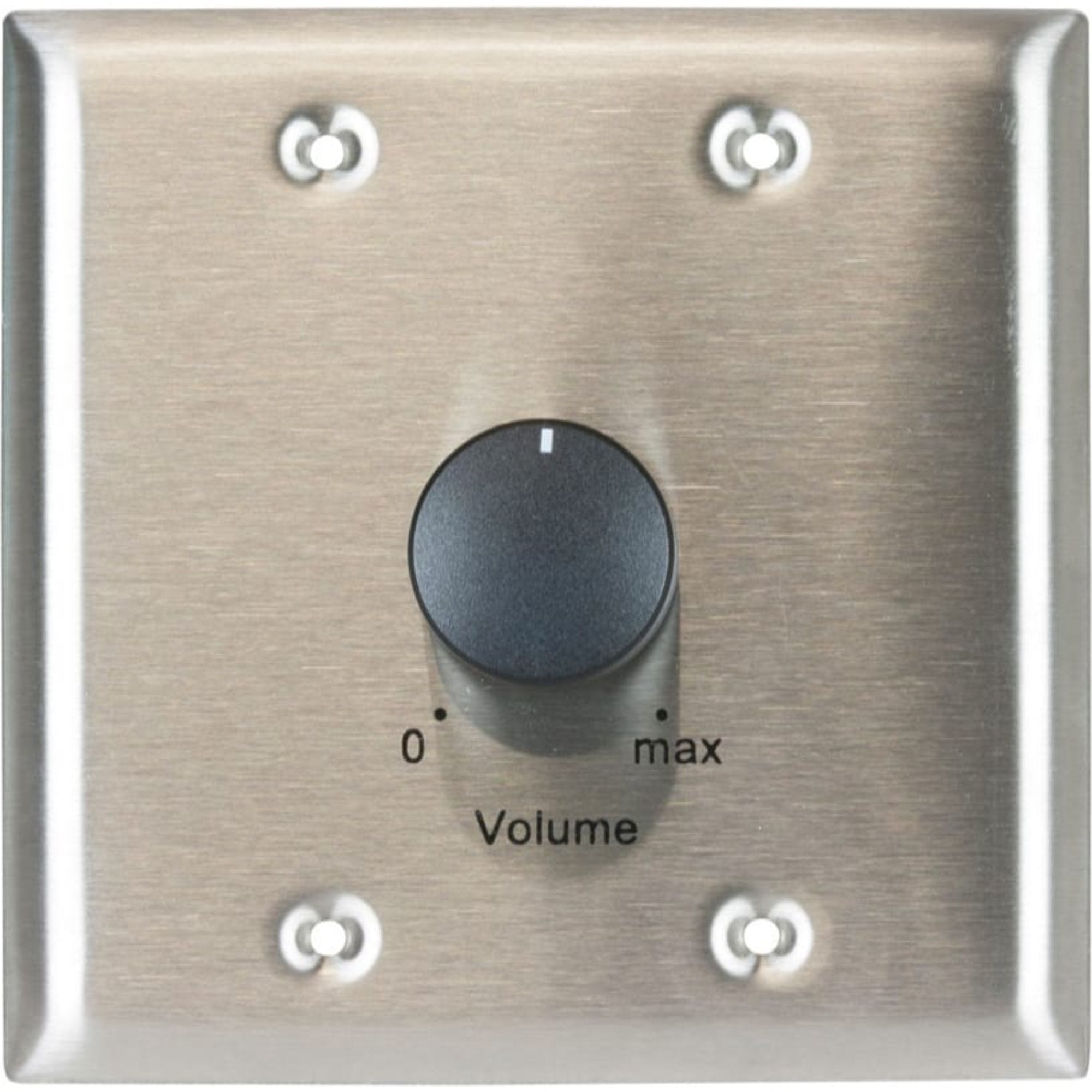

200 Watt Volume Control with Rotary Switch and Two-Gang Wall Plate - Stainless Steel

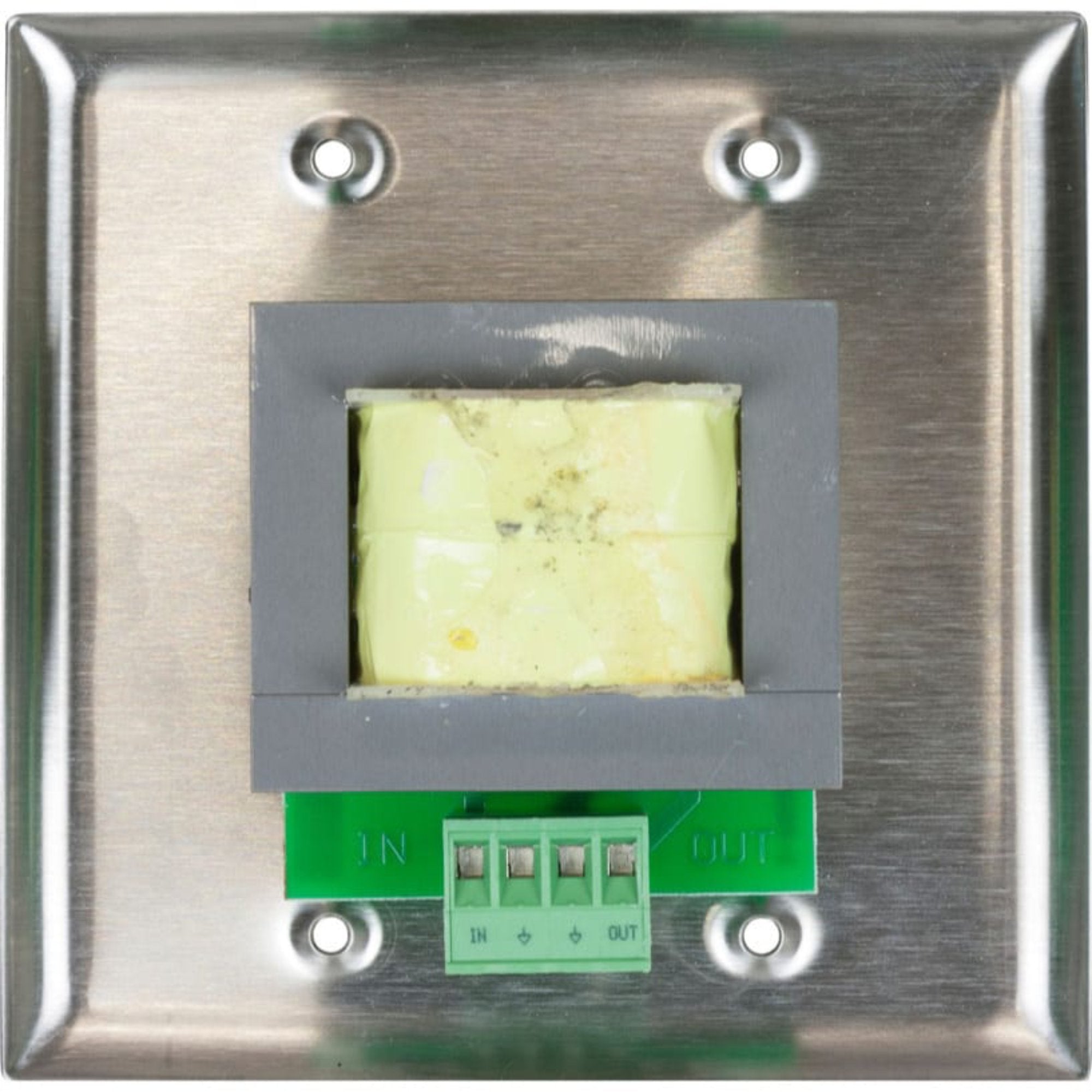

The 200LVC Series volume controls with 200 watt power rating provide precise level adjustment of single or multiple speaker lines. The devices are available with standard Decora wall plate, or as a rackmount unit with a plastic adhesive dial. Controls feature phoenix-style easy-to-connect, plug-in screw termination strips for pre-wire convenience. Controls have a wire capacity up to 14-ga. Attenuation is 3dB per step with two positions of 6dB prior to OFF (as noted).

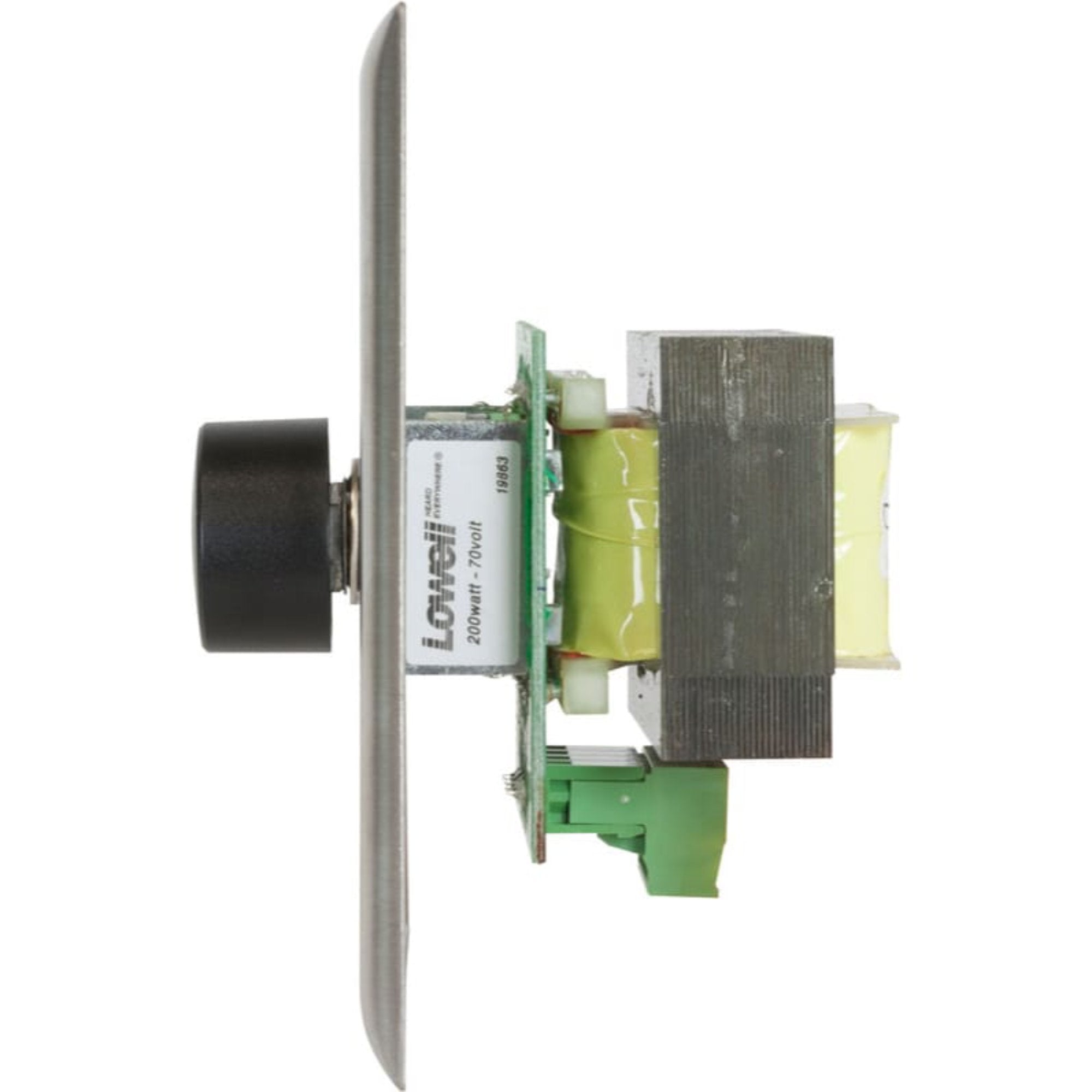

- Model 200LVC: stainless steel assembly mounts in two-gang E.O.Box with minimum depth requirement of 2.5" including mud ring (if used). For applications specifying durable, non- corrosive wall plate.
- Model 200LVC-DSB: Decora-style wall plate assembly (stainless steel with black plastic subplate) mounts in two- gang E.O.Box with minimum depth requirement of 2.5" in- cluding mud ring (if used). For applications specifying durable, non-corrosive wall plate.
- Model 200LVC-RMDB: rackmount assembly with Decora subplate, for installation in Lowell rackmount panel model D8P-ID-3 or D9P-ID-3. Due to assembly's 2.25" width, units cannot be installed side by side in either panel. They can be installed in every other position, with room to install a nar- rower device between them.
- Model 200LVC-RM: traditional rackmount assembly includes control unit with exposed shaft, knob and adhesive dial scale. For custom panel applications or for installation in Lowell rackmount panel model LVC8P-ID-2. Due to assembly's 2.25" width two units cannot be installed side by side but only in every other position, with a narrower device between them.
Specifications:
- Power Rating: 200W
- Attenuation: 3dB per step (two positions of 6dB before "off")
- Use With: 70/100V speaker line
- Activation: Rotary dial
- Volume Positions: 0-10
- Termination: Phoenix-style
- Wire Capacity: 14-gauge
- Wall Plate: 2-gang standard
- Finish: Stainless Steel
- Fits standard E.O. box (2.5 in. min. depth)
- COMPLIANCE & CERTIFICATION
- Made in the U.S.A. with global components
