Key Features
- For Camera Slots & Various Adapters
- Dual-Receiver Design for 2 Channels
- Tracking Front-End Filters
- 5-Pin Audio Output Connector
- Tunes Over a 75 MHz Range
- LCD with RF Spectrum Scanning
- SmartSquelch DSP-Controlled
- DSP-Based Pilot Tone
- IR Sync Port for Quick Transmitter Setup
- SmartTune Frequency Selection
Description

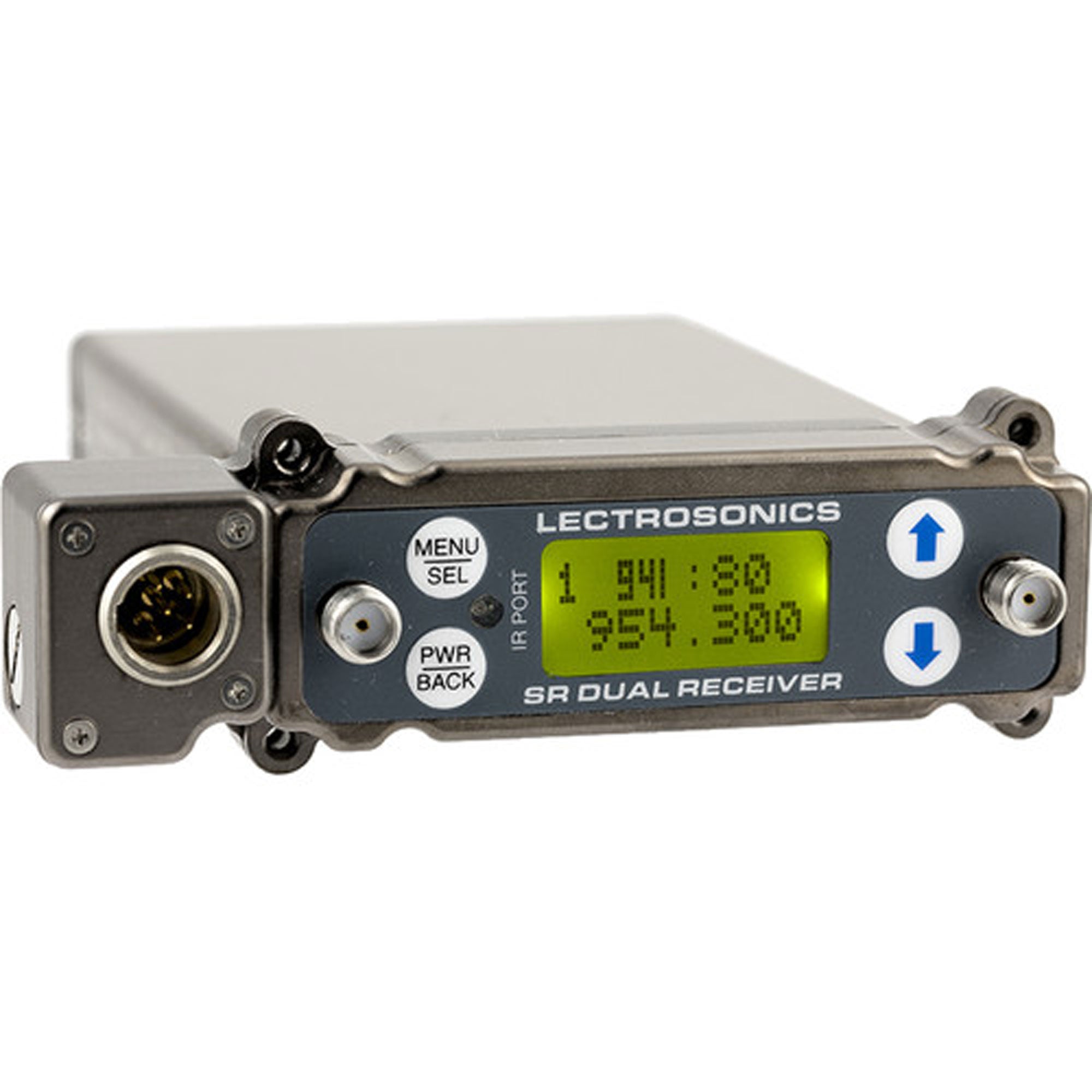

Dual Channel Slot Mount ENG Receiver with 5-Pin Audio Output Connector (Frequency Range 941: 941.525 to 959.975 MHz)
The SRc5P and SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless technology provides superb, compandor-free audio quality and compatibility with other wireless systems. The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.
DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.
SuperSlot ready for the Sound Devices SL6.
Features:
- Fits camera "slots," Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
- 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies (bands A1, B1, C1)
- 941 band offers 695 frequencies over 19 MHz tuning range with 25 kHz steps
- Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
- Digital Hybrid Wireless with compatibility modes for use with other transmitters
- Tracking front-end filters for high performance in tough RF environments

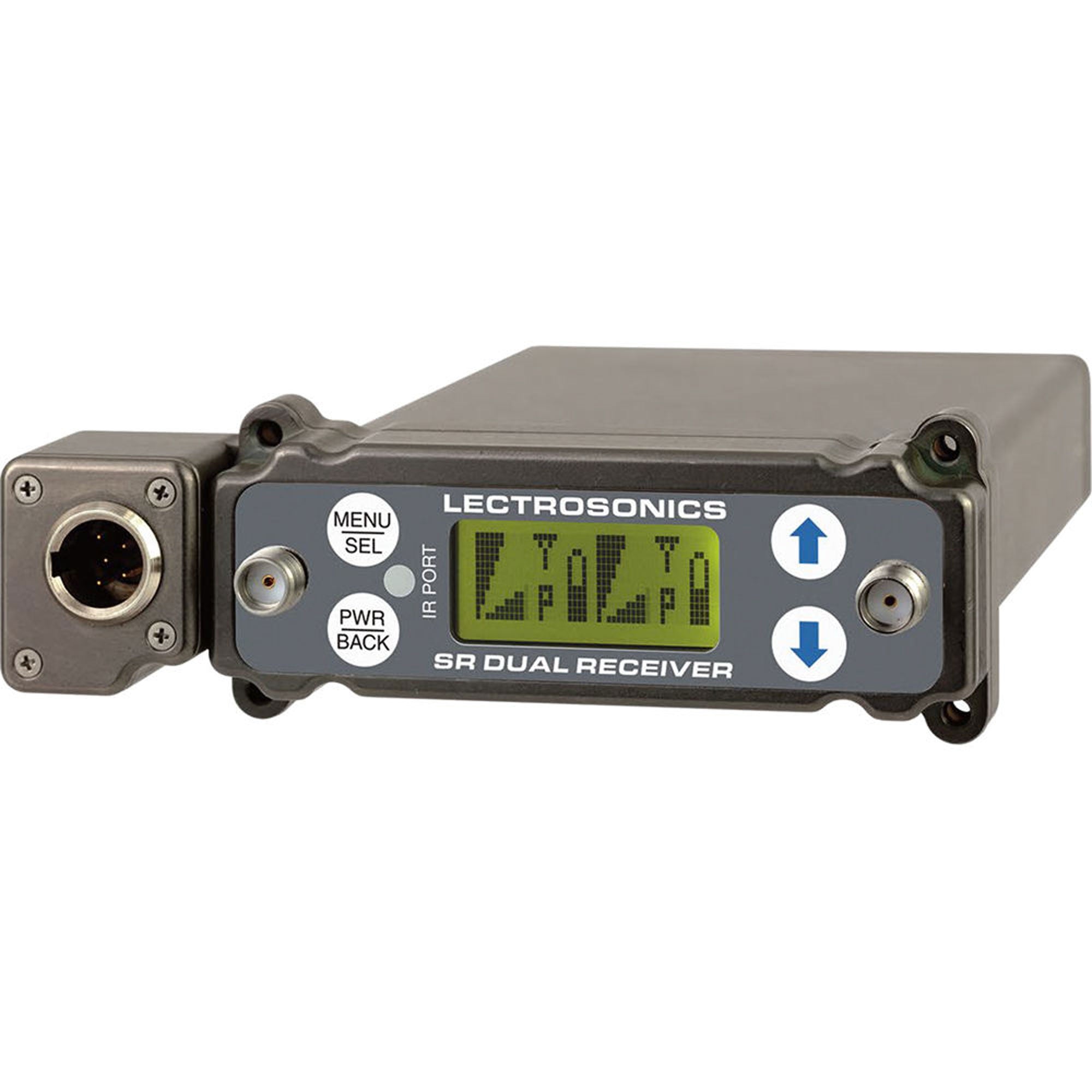

- LCD with RF spectrum scanning
- SmartSquelchTM DSP-controlled, noise based filtering and squelch
- DSP-based pilot tone for squelch control
- IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
- SmartTune operation for quick and confident frequency selection
Includes:
- 1 - Adjustment Tool (Part# 35679)
- 2 - Antennas (Part #AMJ-XX)
- 1 - Quickstart Guide
