Lectrosonics S1 Supercardioid Shotgun Microphone

The Lectrosonics S1 supercardioid shotgun microphone combines focused dialogue pickup, low self-noise, and lightweight construction for demanding production sound work. From feature films and scripted television to reality shows, documentaries, and news coverage, it gives location sound crews a compact microphone built for indoor and outdoor recording.

Focused Dialogue with Natural Off-Axis Response

A precision RF-biased true condenser capsule and line tube deliver a tight, consistent, axially symmetrical pickup pattern. Uniform off-axis rejection helps isolate the intended sound while keeping off-axis coloration low. The line tube's full radial symmetry maintains consistent performance regardless of the microphone's rotational orientation, with minimal lobing across the frequency range.

The S1's broadly flat frequency response includes a slight upper-frequency lift for clear dialogue capture. Its electronics provide 10 dBA self-noise and a maximum sound pressure level of 130 dB SPL, accommodating quiet passages and louder sources.

Lightweight for Extended Boom Work

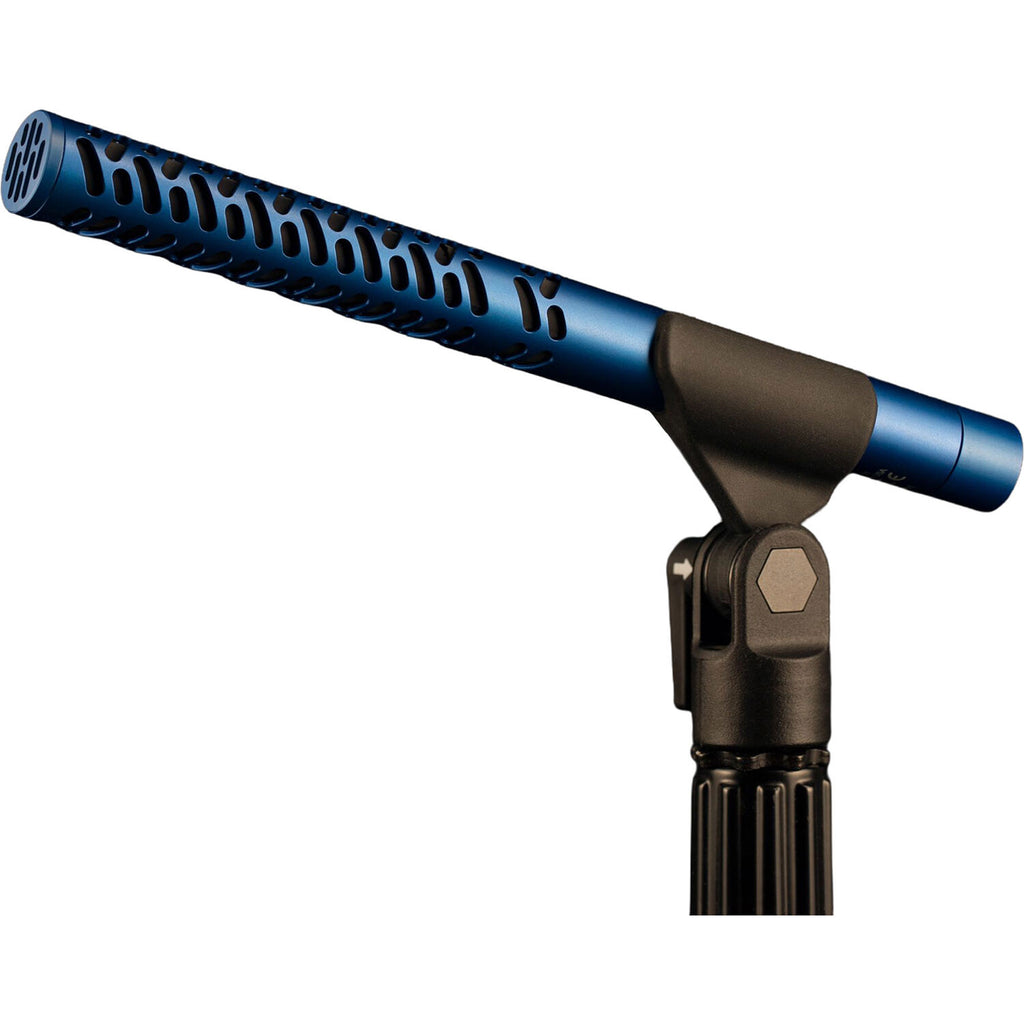

Built from aircraft aluminum alloy, the S1 measures 8.4 inches (215 mm) long and weighs just 2.7 oz (78 g). Its combination of strength and low weight makes it well suited to boom work, including use on extended poles. The 0.75-inch (19 mm) diameter accommodates a wide range of microphone suspensions and mounting options.

Ready for Location Recording

The RF-bias design provides resistance to humidity, moisture, and other environmental factors encountered on location. Drawing less than 2 mA from standard 48V phantom power, the S1 is also a practical choice for battery-powered mobile recording rigs.

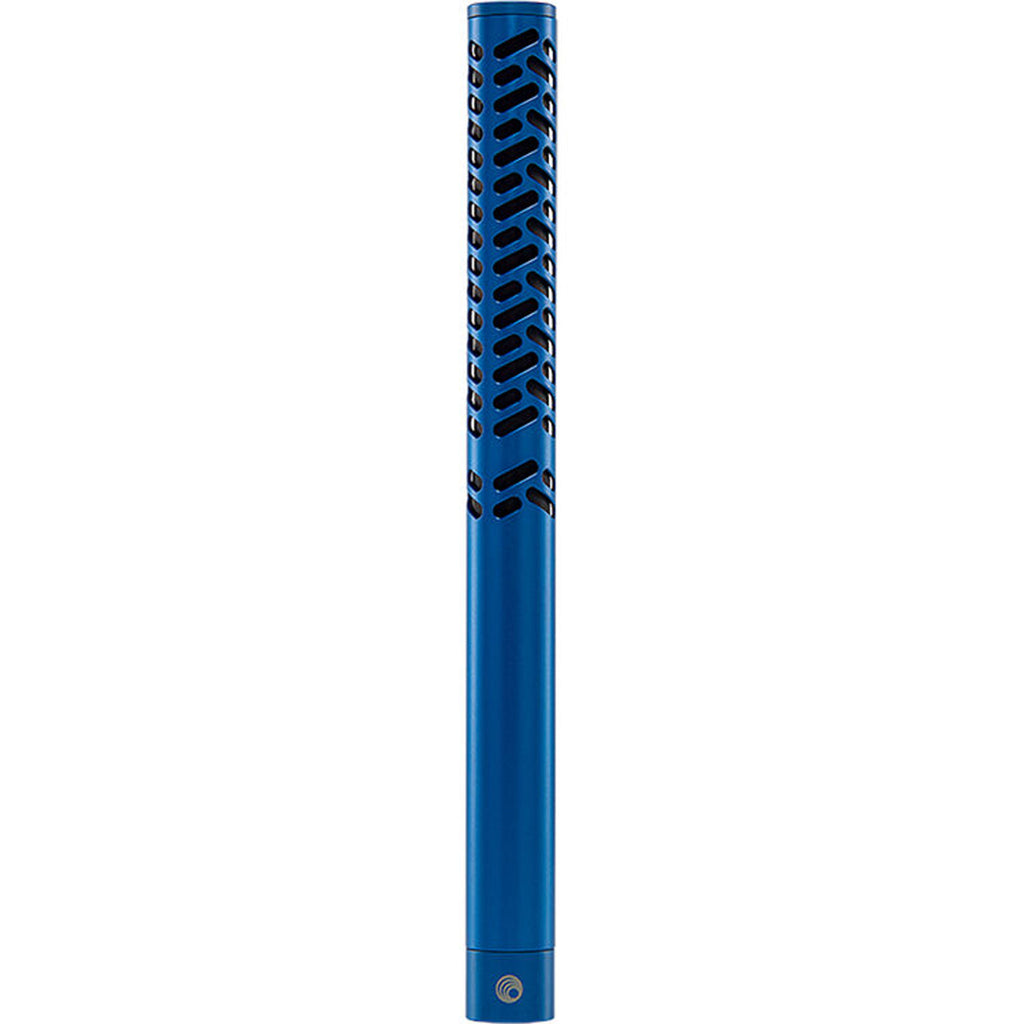

A hard-wearing blue anodized finish protects the aluminum body. The S1 is assembled in the USA at Lectrosonics headquarters in Rio Rancho, New Mexico.

Key Features and Specifications

• Capsule: RF-biased true condenser element
• Polar pattern: Supercardioid
• Frequency response: 20 Hz–20 kHz
• Sensitivity: >26 dBV ±1 dB
• Signal-to-noise ratio: >84 dB
• Equivalent noise: 10 dB SPL (A-weighted)
• Maximum SPL: 130 dB
• Power: 48V phantom power; less than 2 mA current draw
• Construction: Aircraft aluminum alloy with blue anodized finish
• Dimensions: 8.4 inches (215 mm) long; 0.75 inches (19 mm) in diameter
• Weight: 2.7 oz (78 g)
• Assembly: USA, at Lectrosonics headquarters in Rio Rancho, New Mexico
