Key Features
- 2x Redundant Power Supplies
- 4x 12 VDC 1.5A Outputs
- Failover Mode Configuration
- Dual Cooling Fans
- Automotive Blade-Type Fuses
- Locking Coaxial DC Power Connectors
- 1 RU Rackmount Assembly
Description
Redundant DC Power Supply
The RPS4 provides a highly reliable DC power source for low voltage devices such as wireless microphone receivers, IFB transmitters and audio signal processing equipment. Two internal power supplies and two temperature controlled fans operate in a failover mode for an automatic backup in the event one of them fails.
The 1RU chassis eliminates the need for a separate power strip with individual "wall warts" or "boa style" power supplies for each low voltage device. Power cables from the RPS4 to the devices can be securely routed to prevent inadvertent disconnects and free up space on power strips in the equipment rack. The DC power connectors are a threaded, locking type for reliability.
Features:
- Dual power supplies for fail-over operation
- Four 12VDC 1.5A outputs
- Dual cooling fans - temp controlled
- 2A automotive type blade fuses
- Locking coaxial DC power connectors

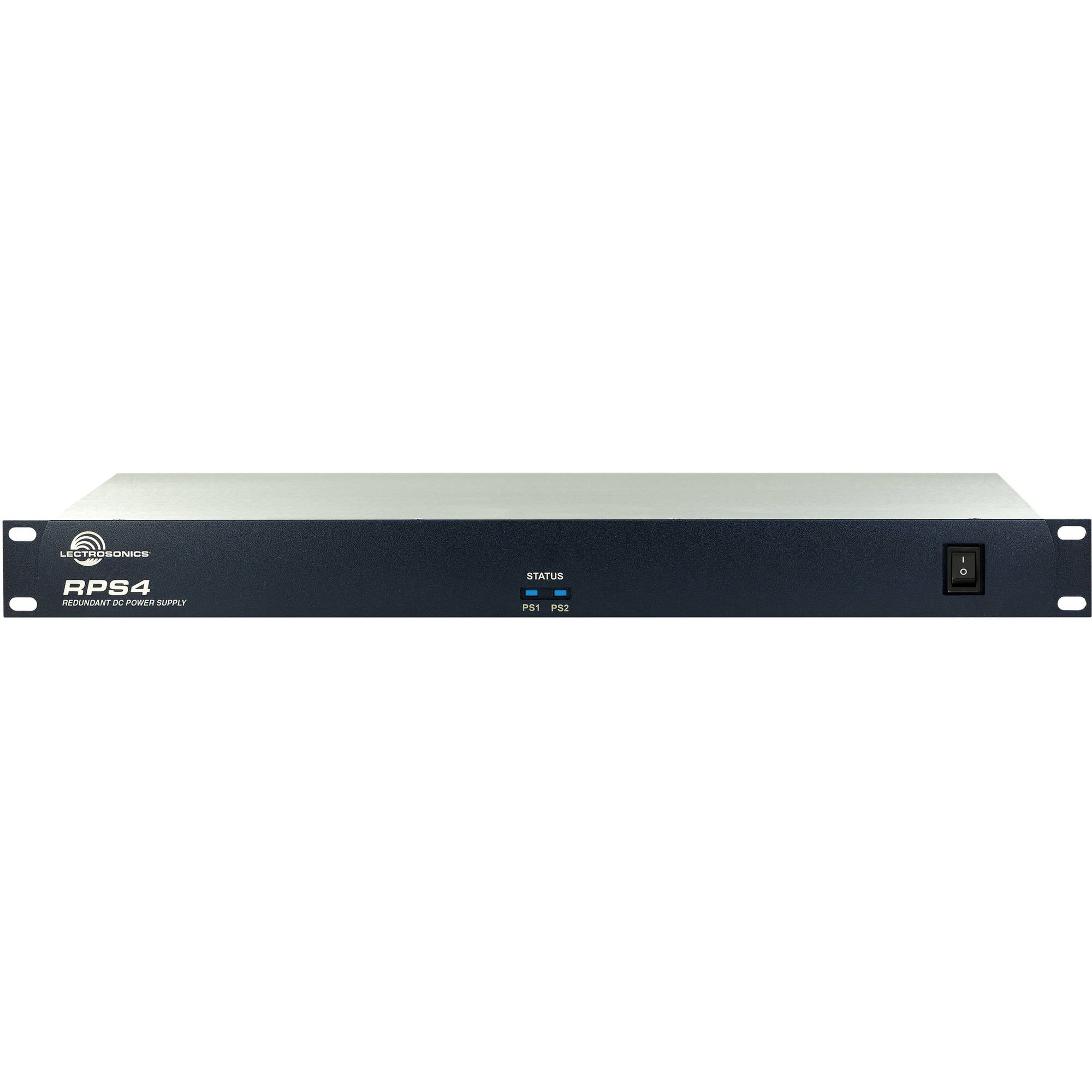

- LED indicators blink red during fault

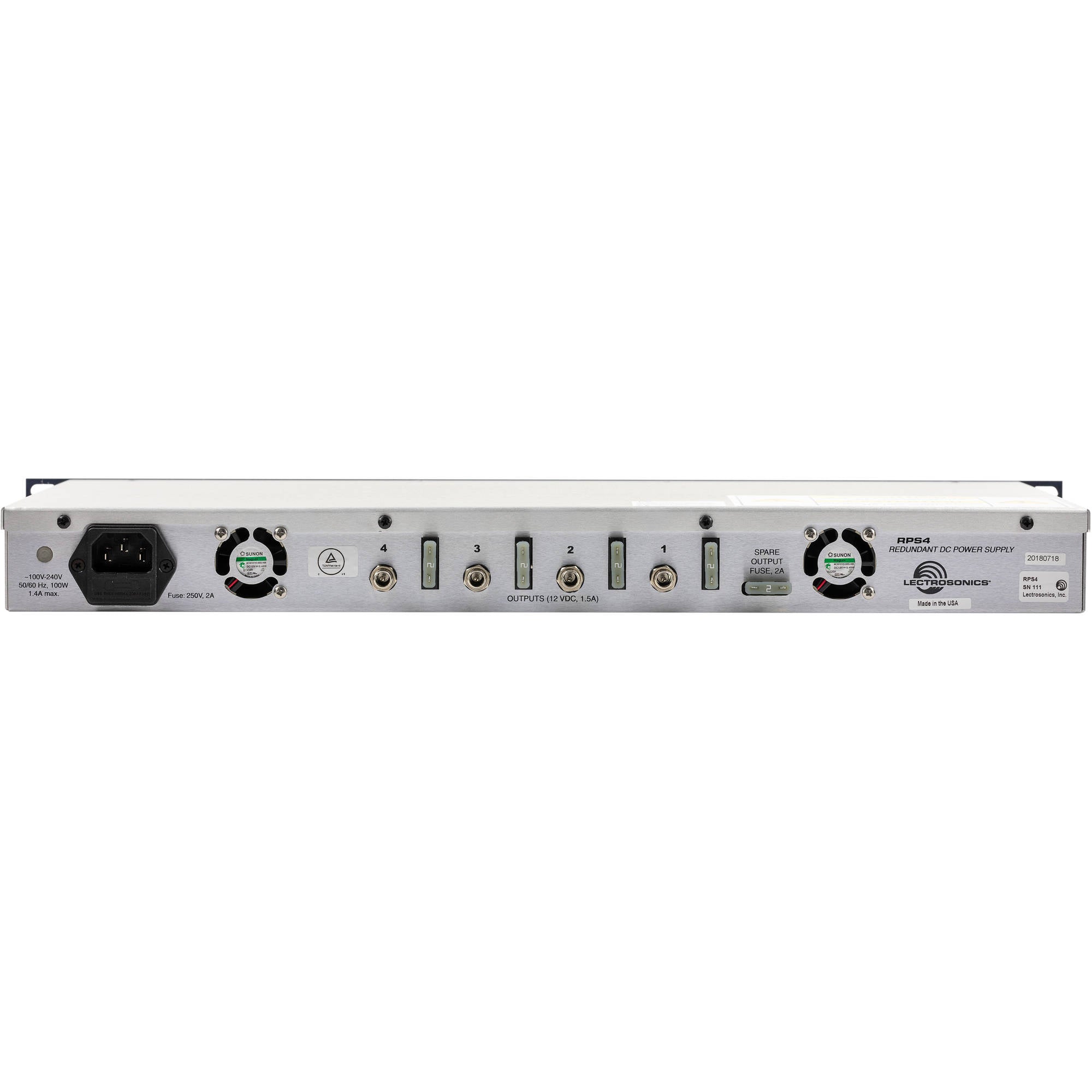

- Spare fuse holder on rear panel
Specifications:
- Input Voltage Range: 100 to 240 VAC, 1.4 A Max, 50/60 Hz
- Power Consumption: 100 W Max
- Outputs: 4 x 12 VDC, 1.5 A, 18 W
- LZR Connectors
- Output Fuses: 4 x 2 A Individual Automotive Blade-Type
- Temperature Range: -4 to 122°F / -20 to +50°C
- Output DC Ripple: < 20 mV
- Dimensions (H x W x D): 1.75 x 17.4 x 9.1" / 4.4 x 44.2 x 23.1 cm
- Faceplate Width: 19" / 48.3 cm
- Weight: 4.68 lb / 2.13 kg
