Key Features
- Directional Dipole Design
- 825-1025 MHz Frequency Range
- Circular Pattern with 3.7 dB Gain
- Includes Aluminum Mounting Strap
Description
Compact and rugged semi-directional antenna covering 825 MHz to 1 GHz with moderate gain of 3.7 dB. BNC connector with standard 50 ohm load. Ideal match for systems in the 902-928 MHz and 941-960 MHz ranges.

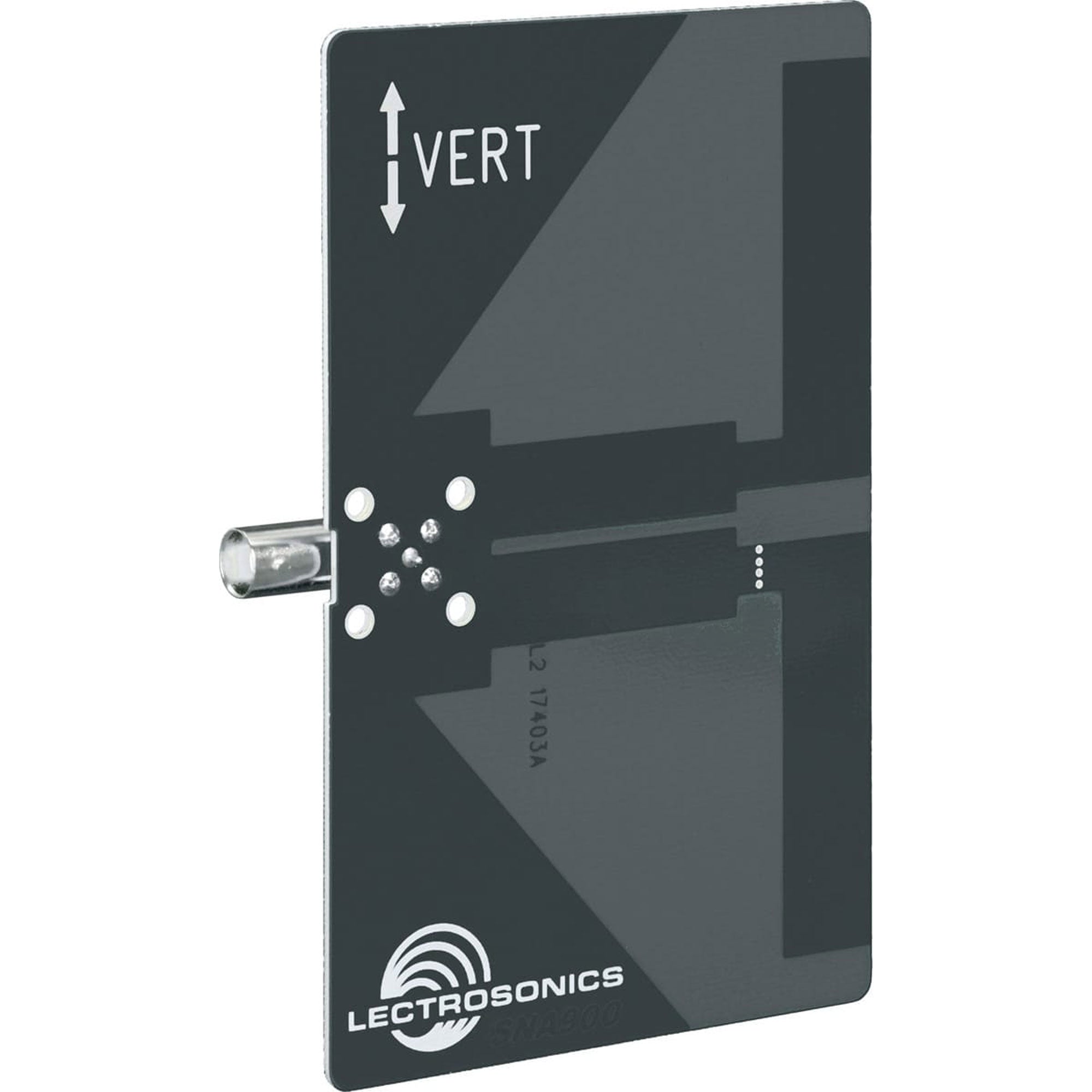

A unique and very useful design, the PCA900 antenna provides wide bandwidth and a circular pattern in a compact, rugged package. A BNC connector allows direct connection to receivers and multicouplers with standard 50 ohm coaxial cable. An aluminum mounting strap for fixed installation is included and a variety of other mounting options are also available for mobile applications.
Features:
- Printed circuit finished with black solder mask on FR4 fiberglass for a slim profile and the ruggedness needed for field use
- Directional dipole design
- 825 to 1025 MHz frequency range
- Circular pattern with 3.7 dB gain
- Supplied with aluminum mounting strap
Details
- Manufacturer: Lectrosonics
- MPN: PCA900
- Model Number: PCA900
