Description

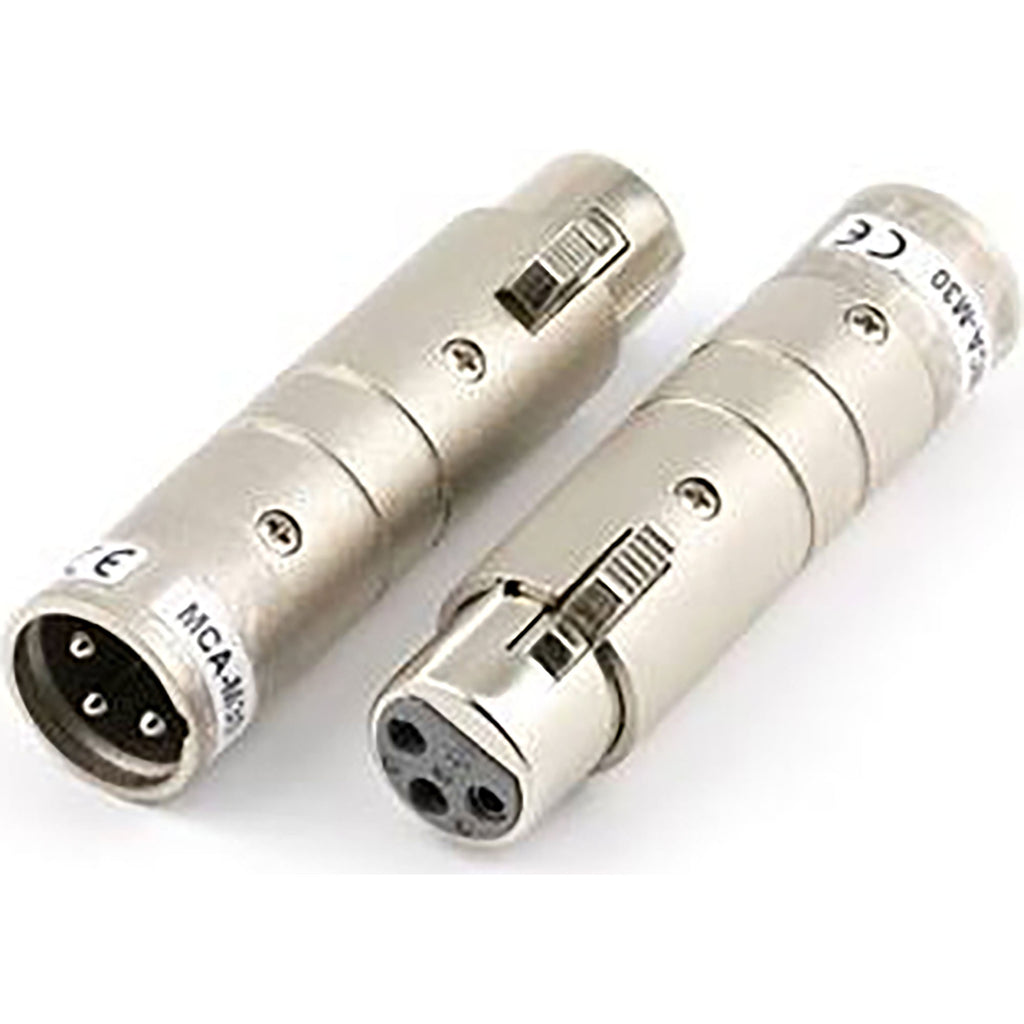

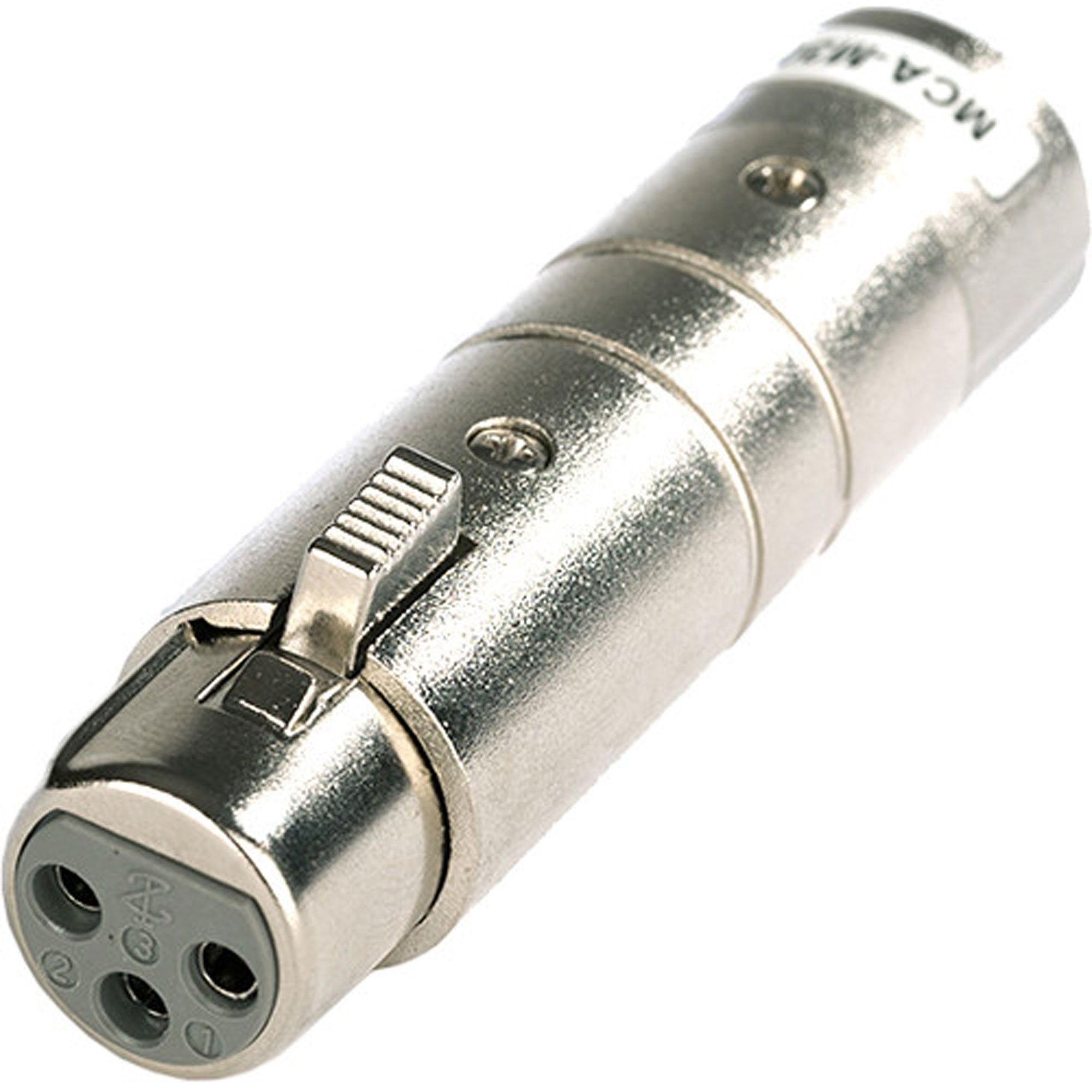

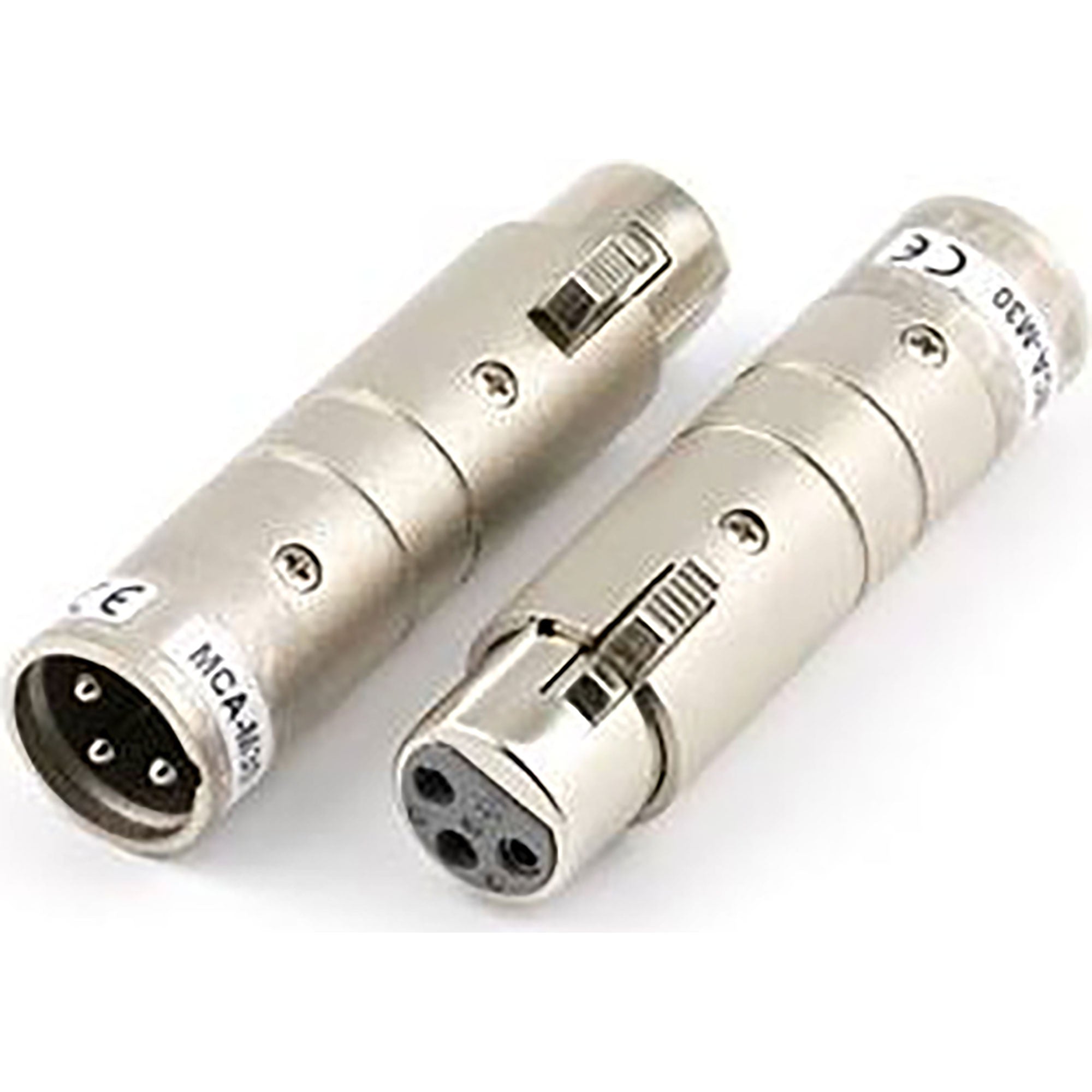

Mic Adapter for Earthworks M30 with HM or UH400A/TM
Lectrosonics' Microphone Cable Adapter for UH200D/UH400/HM Transmitter is to be used with the UH200D, UH400 and HM plug-on transmitters with T-powered microphones. It will protect a T-power microphone against the 48V phantom power setting in the transmitter while allowing normal operation. The transmitter should be set to the 15V position for best operation and minimum current drain.
Mic adapter for Earthworks M30 with HM or UH400a/TM.
This adapter may be needed if you are experiencing noise or distortion with measurement microphones, particularly the Earthworks M30. The adapter has common mode checks for supressing RF noise. If your microphone signal exhibits the problems listed above when connected to a UH400- or HM-type transmitter, insert the adapter between the microphone and the transmitter.
Insert the adapter between the transmitter and microphone to alleviate the problems listed above.
