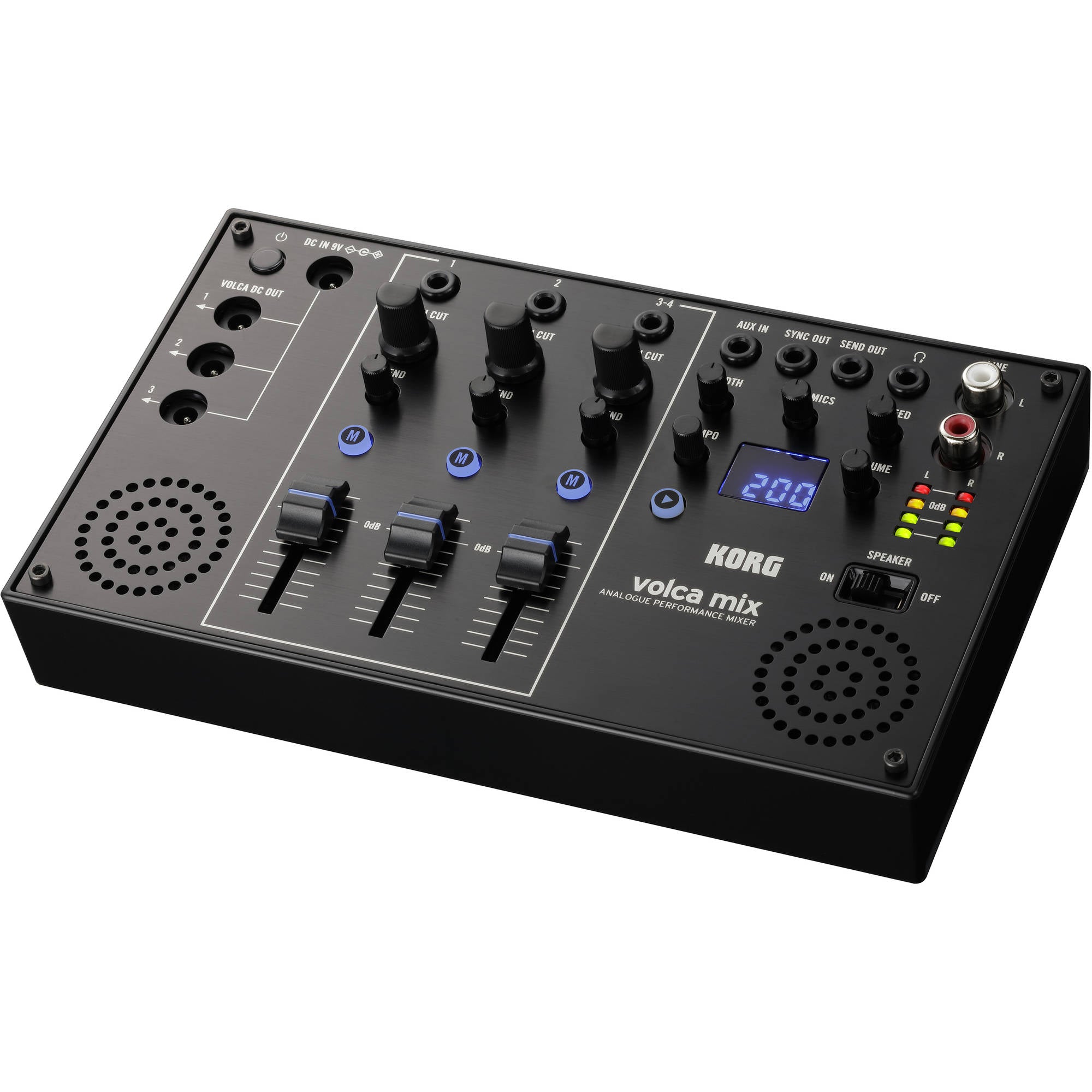

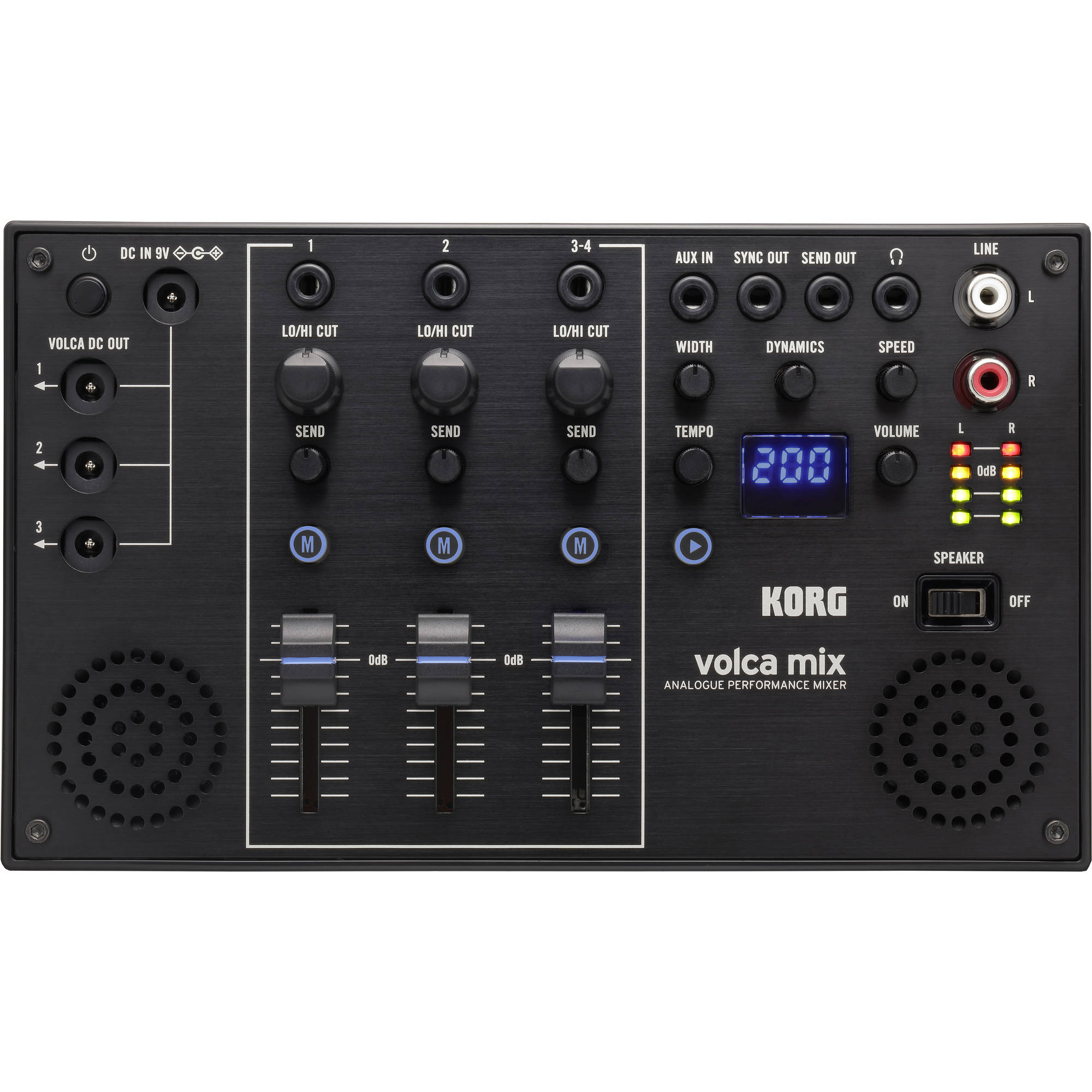

Korg Volca Mix 4-channel Analog Performance Mixer

Analog Mixer with 2 Mono Inputs, 1 Stereo Input, Effects Send/Return, Volca Sync, and Built-in Speakers

The Korg Volca Mix is a four-channel analog mixer designed for a live performance setup combining multiple volca units. The mixer offers two mono channels, a stereo channel, plus aux send and return functions for incorporating external effects. Each channel offers a hi-/lo-cut filter allowing you to contour the sounds of each device to create a polished mix. Additionally, the unit offers master effects including an analog stereo width expander and an analog dynamic range compressor with sidechain capabilities.

Inputs and outputs are made via 1/8" connectors including a dedicated headphone output and a sync output, which allows the volca mix to be used as a master sync generator to the connected volcas in the setup. A built-in stereo speaker is provided for portable performances. The volca mix can power up to three volca units and ships with a power supply, three audio cables, and three DC-to-DC volca power cables.

Features:

• Compact multi-function, four-channel mixer
• Volume faders and lo-/hi-cut filter for professional-quality performances
• Output and monitor capabilities for use on stage, plus stereo speakers for maximum portability
• Powerful effects and control
• Master chain lets you control dynamics
• Send out and auxiliary in for connecting external effects
• Sync function that can act as the master of a live setup
• Unlocks even more potential out of the volca series
• DC out can supply power for up to three volca units
• Includes AC adapter, DC-to-DC cables, and audio cables

Specifications:

• Mixer: Mixer Type: Four-channel analog mixer
• Number of Channels: 2 x monaural, 1 x stereo
• Monaural Output: volca keys, volca bass, volca beats, volca kick
• Stereo Output volca: volca sample, volca fm
• Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (available to boost +6 dB gain)
• Bus: Four-channels analog mix bus, monaural mix send bus, stereo aux in/return bus
• Master: Volume
• Master Effects: Effect Types:
• Analog stereo width expander (width)
• Analog dynamic range compressor (dynamics, speed)
• Sync: Play, tempo
• Inputs and Outputs: Mixer Input: 3 x 1/8" / 3.5 mm stereo mini jack, 0 dBu
• Aux Input: 1 x 1/8" / 3.5 mm stereo mini jack, 0 dBu
• Send Out: 1 x 1/8" / 3.5 mm stereo mini jack, 0 dBu
• Sync Out: 1 x 1/8" / 3.5 mm stereo mini jack, (Output Level: 5 V)
• Audio Output:
• Line Out: L/R, 2 x RCA, (maximum 11.1 dBu)
• Headphone: 1 x 1/8" / 3.5 mm stereo mini jack
• Speaker: Built-in stereo speaker, on/off
• Power: Power: AC adapter (9 VDC)
• Current Consumption: 300 mA
• Output Power: 3 x volca DC out (connect with included DC-to-DC cable, up to 800 mA in total, 9 V)
• Dimensions (W x D x H): 7.6 x 4.5 x 1.7" / 193.0 x 115.1 x 43.2 mm
• Weight: 12.3 oz / 350.0 g

Includes:

• Korg Volca Mix - Analog Performance Mixer
• Power Adapter
• 3 x DC-to-DC Power Cables
• 3 x Audio Cables
• Limited 1-Year Warranty
