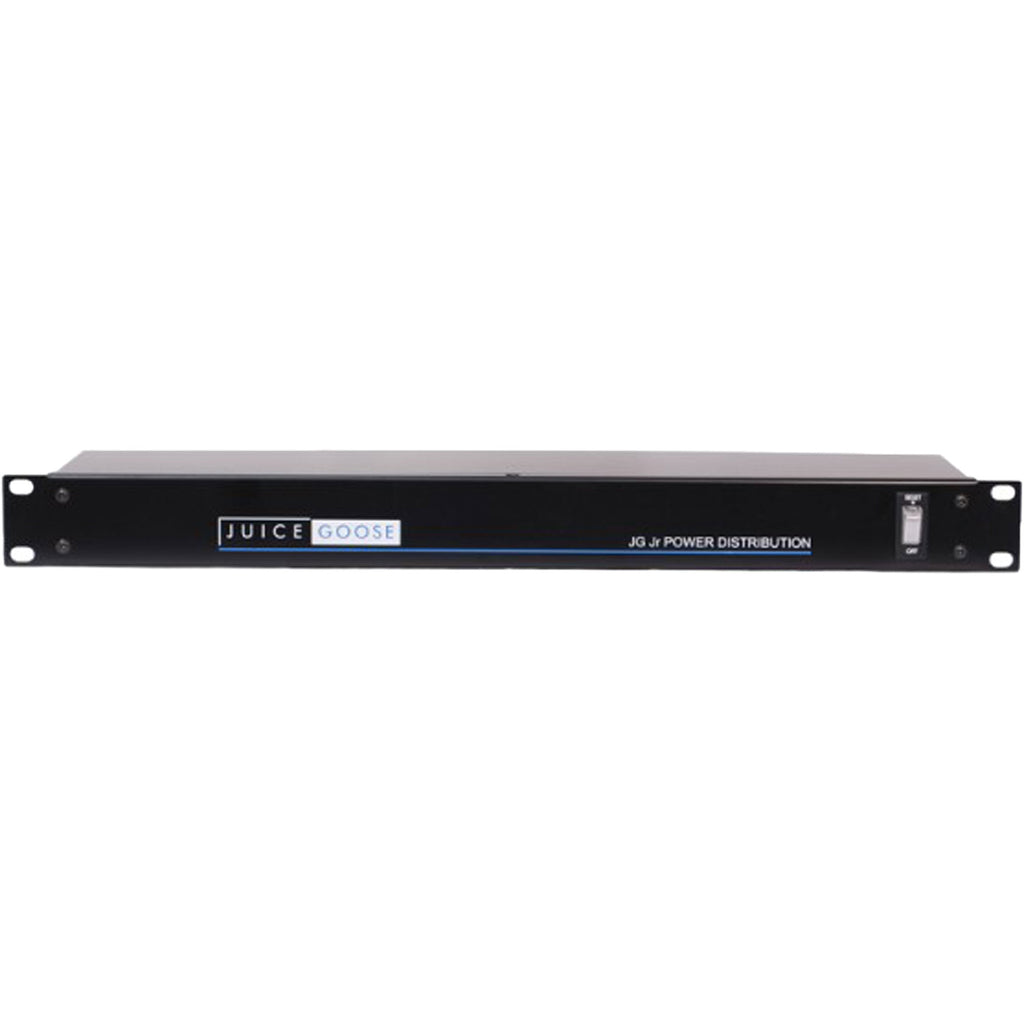

Juice Goose JG Jr Power Distribution Center for 19" Rack Systems

6-outlet Rackmountable Power Conditioner with Noise Filtering and Surge Protection

JG Junior Power Distribution Center with 6 Outlets and 15 Amp Capacity

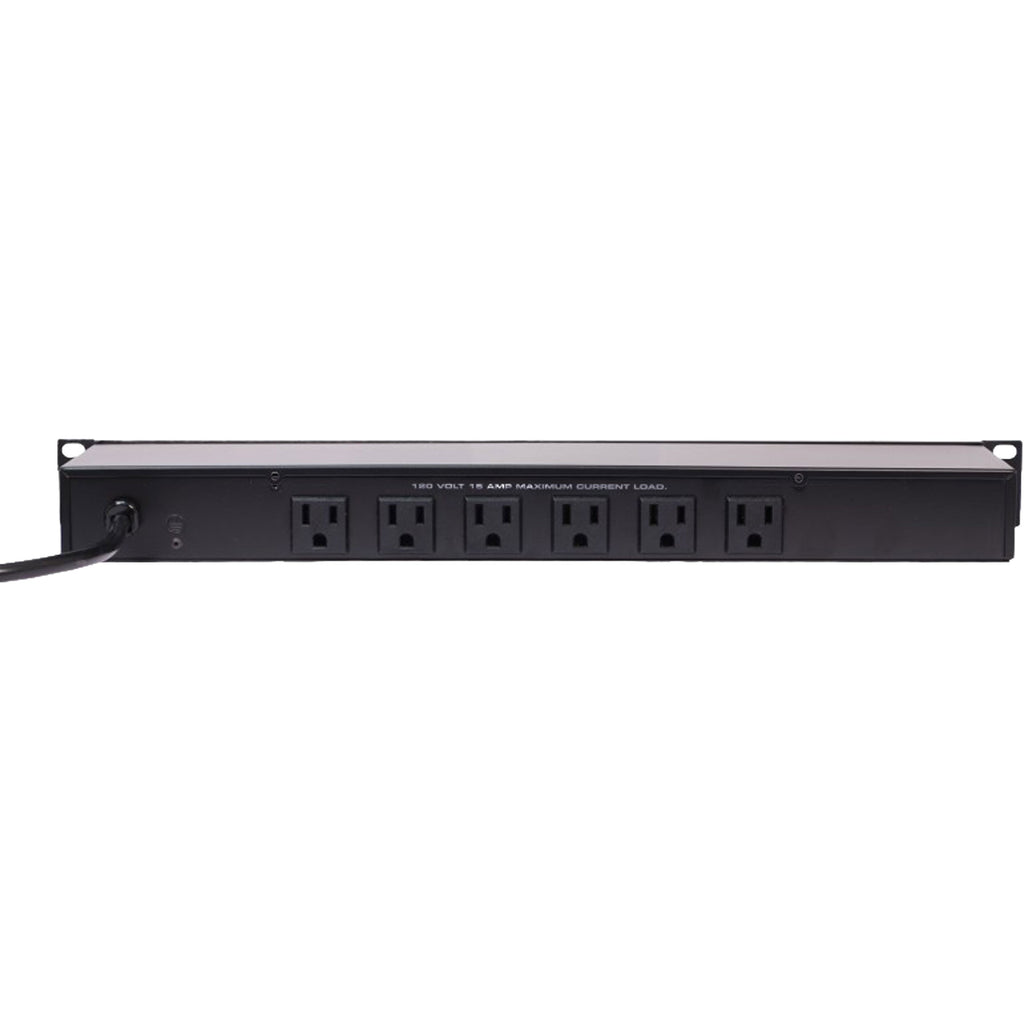

Less expensive fifteen amp connectivity has base level surge protection, six rear outlets and a shallower chassis.

The JG Series family of commercial grade power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

Specifications:

• INPUT VOLTAGE: 120vac, 60 Hz
• TECHNICAL CURRENT CAPACITY: 12 Amps
• CURRENT OVERLOAD PROTECTION: 15 Amps
• DIMENSIONS (inches): 1.75H x 19W x 4.5D
• WEIGHT (lbs): 4.0
• POWER CORD: 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug
• POWER OUTPUT RECEPTACLES: Six NEMA 5-15 (back)
• AC LINE FILTRATION: Line Capacitor (Line & Neutral)
• VOLTAGE SPIKE PROTECTION: Metal Oxide Varistor (Line & Neutral)
• WARRANTY: One year
