Key Features
- 800W/1600W/3200W
- 50 x 90° Coverage
- Differential Drive Woofer
- Neodymium-Magnet Transducers
- Bi-Amplified or Full-Range
Description

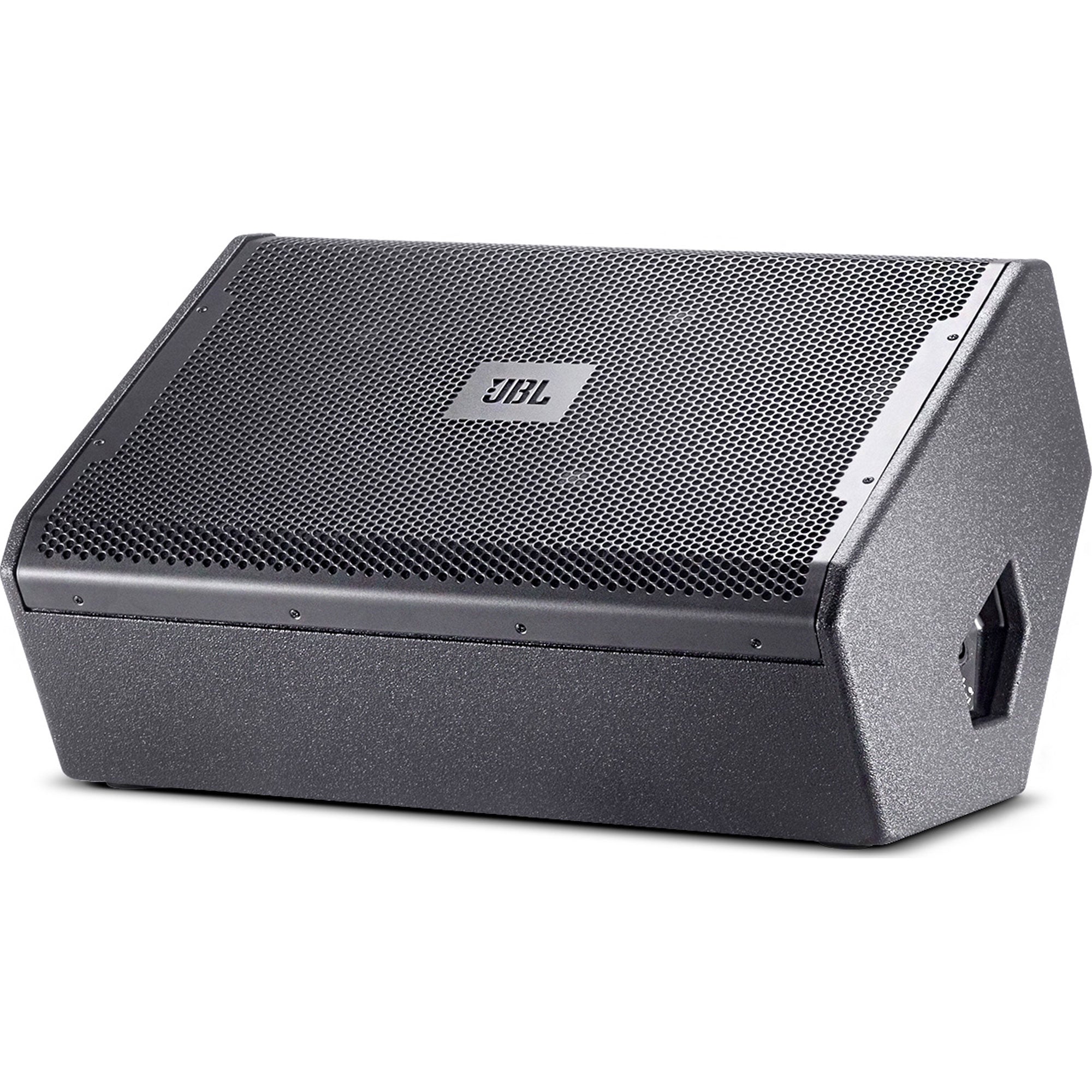

15 in. Two-Way Stage Monitor
The VRX915M is a dedicated, compact and lightweight 15" two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL's latest neodymium-magnet transducers.
Features:
- Compact and low-profile for minimal obstruction of audience sightlines
- 50° x 90° nominal coverage
- Bi-amplified or full-range passive operation
- Differential Drive woofer with neodymium magnet for high power capacity and very light weight
- 4" (voice coil) diameter compression driver with neodymium magnet
Specifications:
- Power Rating: 800 W / 1600 W / 3200W
- Frequency Range: 60 Hz - 20 kHz
- Dimensions (H x W x D):
629 mm x 432 mm x 324 mm (375 mm stage height)
24.75 in x 17 in x 12.75 in (14.75" stage height) - Frequency Response: 70 Hz - 20 kHz
- Coverage Pattern: 50° x 90° nominal
- Crossover Modes: Passive / Bi-amp
- Crossover Frequency: 1.1 kHz
- System Maximum SPL: 127 dB SPL continuous (133 dB SPL peak)
- System Sensitivity (1w @ 1m): 98 dB SPL
- LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive woofer 8 Ohms
- HF Driver: 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet
- Nominal Impedance: 8 ohms
- Active Tunings: Tunings available at www.jblpro.com
- Enclosure: Symmetrical stage monitor, 15/18 mm, plywood
- Finish: Black DuraFlex finish
- Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
- Input Connectors: Neutrik Speakon NL-4 (x2), one on each end
- Net Weight: 21 kg (46.0 lb)
