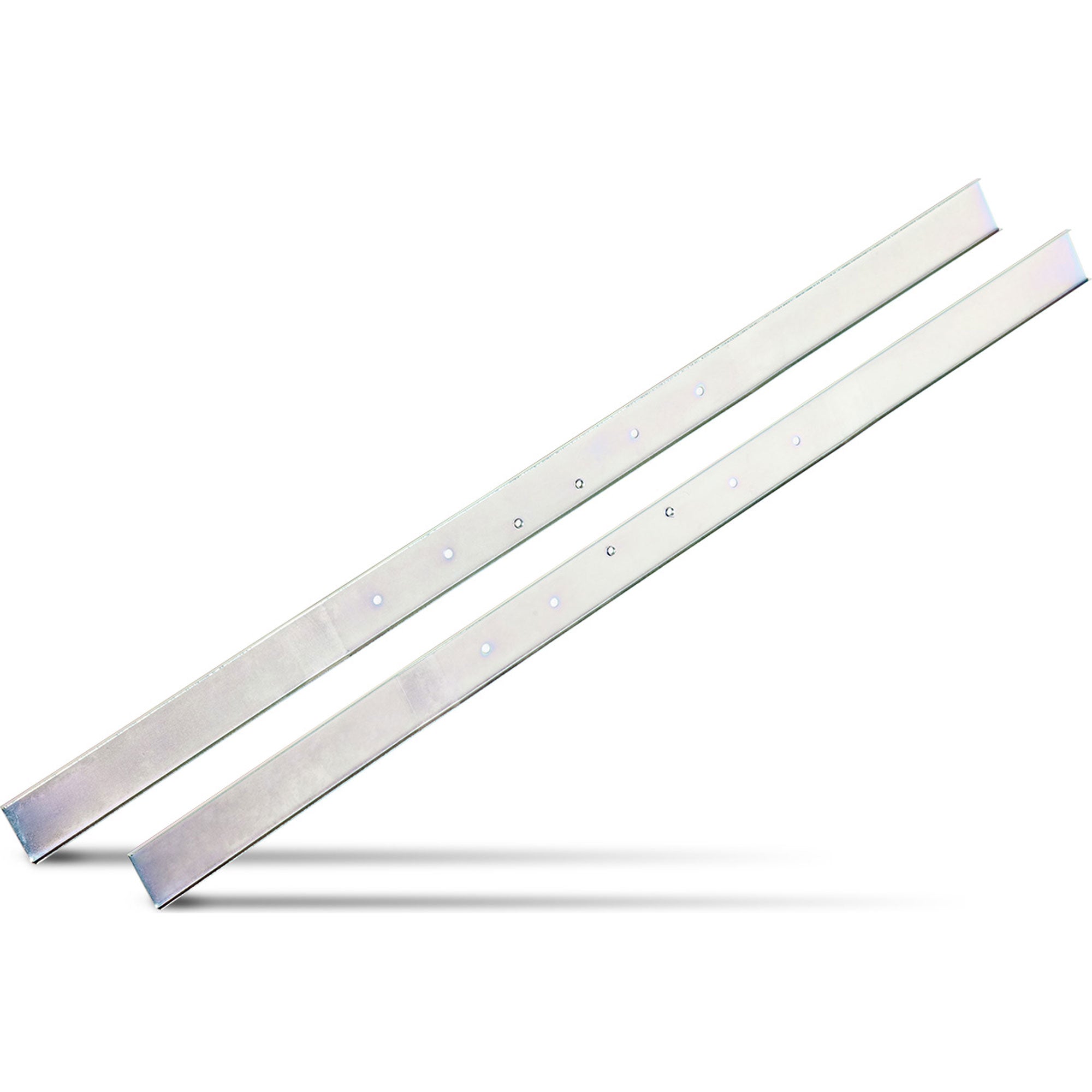

JBL CSS-TR4/8x12 Tile Rails for CSS-BB4x6 and CSS-BB8x6 (12 Pack)

Tile Rails for CSS-BB4x6 and CSS-BB8x6 Backcans - Package of 12

Package of Twelve Tile Rails for JBL CSS-BB4x6 and CSS-BB8x6 Backcans.

The 12-piece JBL CSS-TR4/8x12 Tile Rails are designed to support six CSS-BB4x6 and CSS-BB8x6 backcans when installing speakers in tiled or suspended ceiling. Mounting screws are included.

Specifications:

• Compatibility: CSS-BB4x6 and CSS-BB8x6 backcans
• Dimensions: 600 x 36 x 8 mm (23.6 x 1.4 x 0.3 in)
• Bolt Mount Circle: N/A
• Air Space: N/A
• Material: Punched/formed steel, zinc-plated
• Conduit Knockouts: N/A
• Attachment Points: 2 points screw onto backcan, each rail.
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849.
• Net Weight (ea): 0.18 kg (0.4 lb)
• Shipping Weight (ea): 0.21 kg (0.5 lb)
• Included Accessories: M4 x 8 mm machine screws for attaching rails
