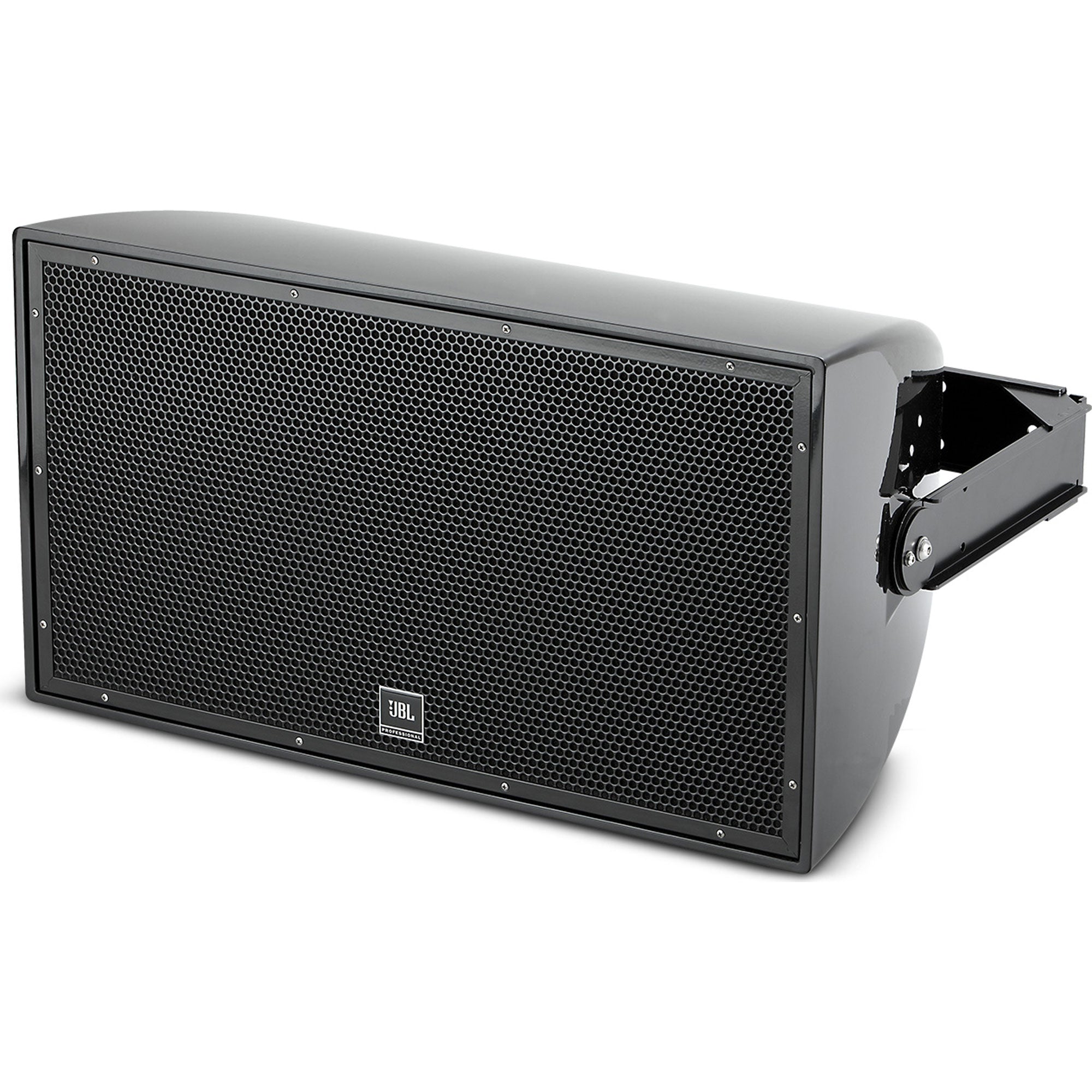

JBL AW266-BK 12" 2-Way Full-Range Loudspeaker (Black)

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF, Black

The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60 x 60 coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90 corners. The AW266 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features:

• Weather-Resistant, All Fiberglass Enclosure
• 60 x 60 Coverage
• 2262H Differential Driver Low- Frequency Driver
• 2432H High Frequency Compression Driver
• Large PT Progressive Transition waveguide for excellent pattern control and low distortion
• Available in Gray and Black finish
• 400 W, 70/100V Transformer Included
• U-type Mounting Bracket Included

Specifications:

• Frequency Range (-10 dB) : 40 Hz - 20 kHz
• Frequency Response (+/-3 dB) : 51 Hz - 18 kHz
• Coverage Pattern : 60 x 60 waveguide
• Directivity Factor (Q) : 15.8
• Directivity Index (DI) : 12 dB
• Crossover Frequency : 1.1 kHz
• Long-Term System Power Rating (IEC) : 500 W (2000 W peak) 100 hrs
• Maximum SPL : 126 dB SPL (132 dB peak)
• System Sensitivity (1W @ 1m) : 98 dB
• 70V/100V Transformer Taps : 70V: 400 W, 200 W, 100W
• 100V: 400W, 200W
• Low Frequency Driver : 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with 75 mm (3 in) dual voice coil
• LFD Nominal Impedance : 8 ohms
• LFD Sensitivity (1W @ 1m, within operational band) : 96 dB SPL
• High Frequency Driver : JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
• HFD Nominal Impedance : 8 ohms
• HFD Sensitivity (1W @ 1m) : 113 dB SPL
• Waveguide : PT-H66HF-1
• Enclosure : Hand-Laminated Fiberglass, gray gelcoat
• (black available)
• Suspension Attachment: : 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

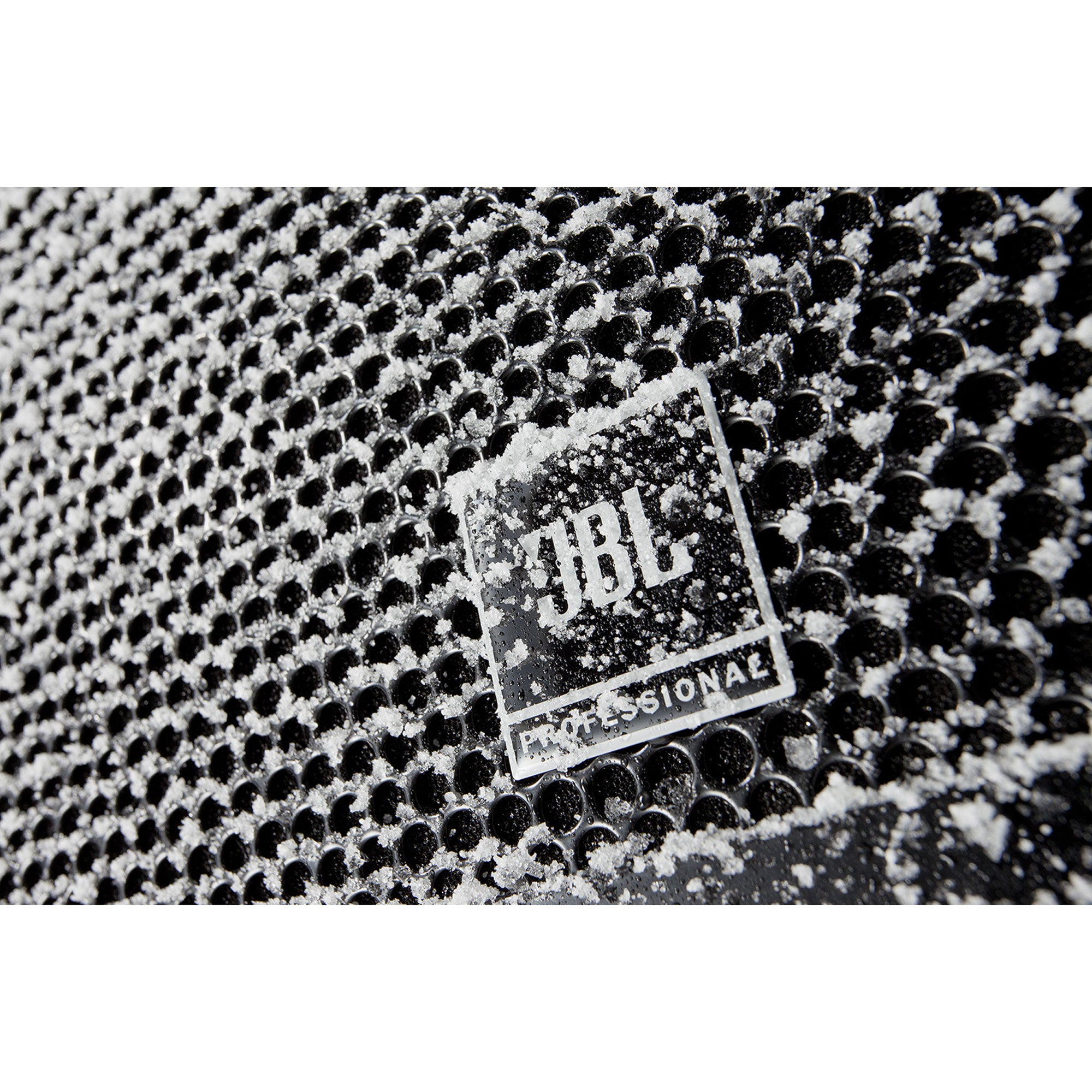

• Grille : Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
• Input Connector : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in)
• spade lugs.
• Environmental Specifications: : IP56 per IEC 529
• Dimensions (H x W x D in horizontal cabinet orientation) : 409 x 732 x 452 mm
• (16.1 x 28.8 x 17.8 in)
• Net Weight : 25.2 kg (55.5 lb)
