Description

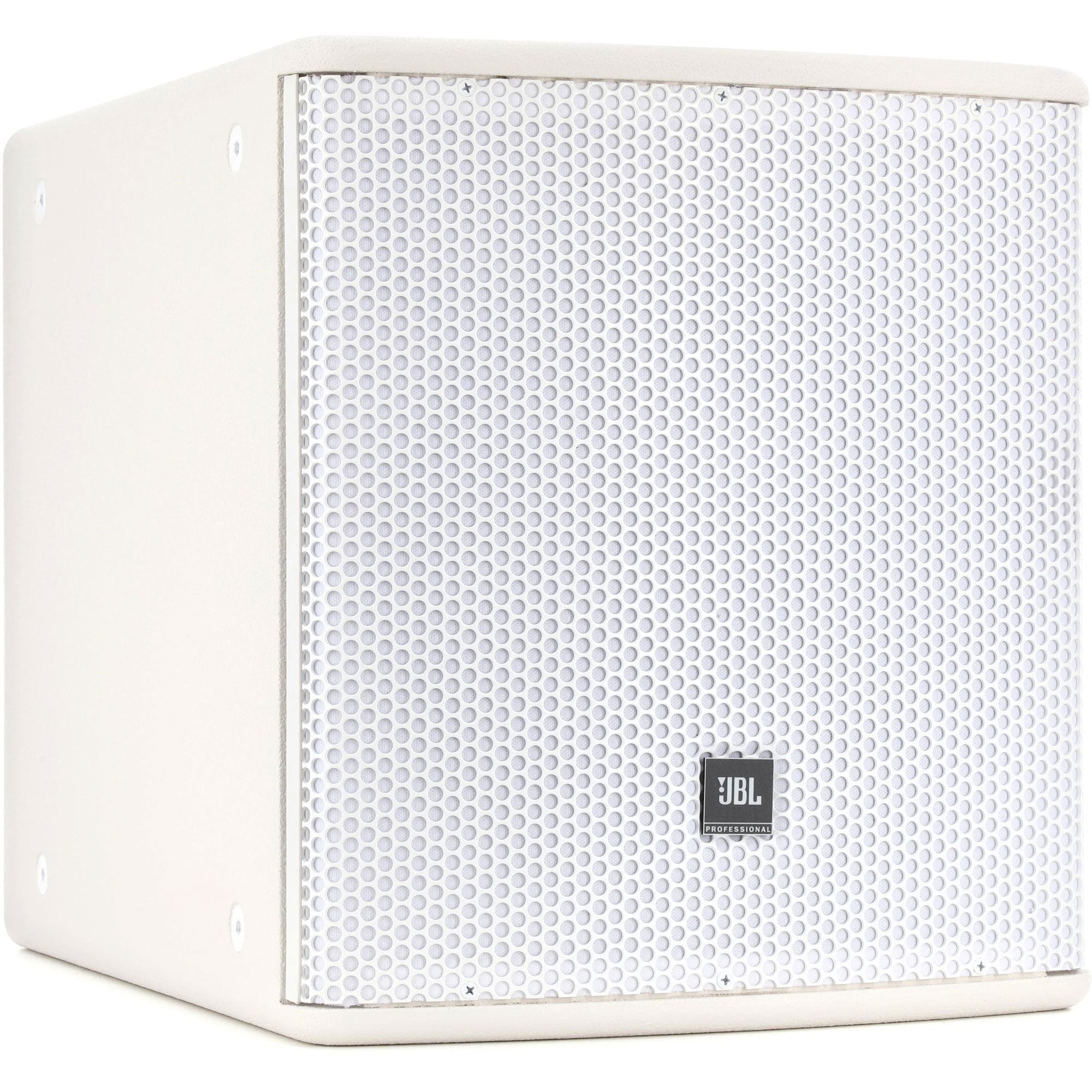

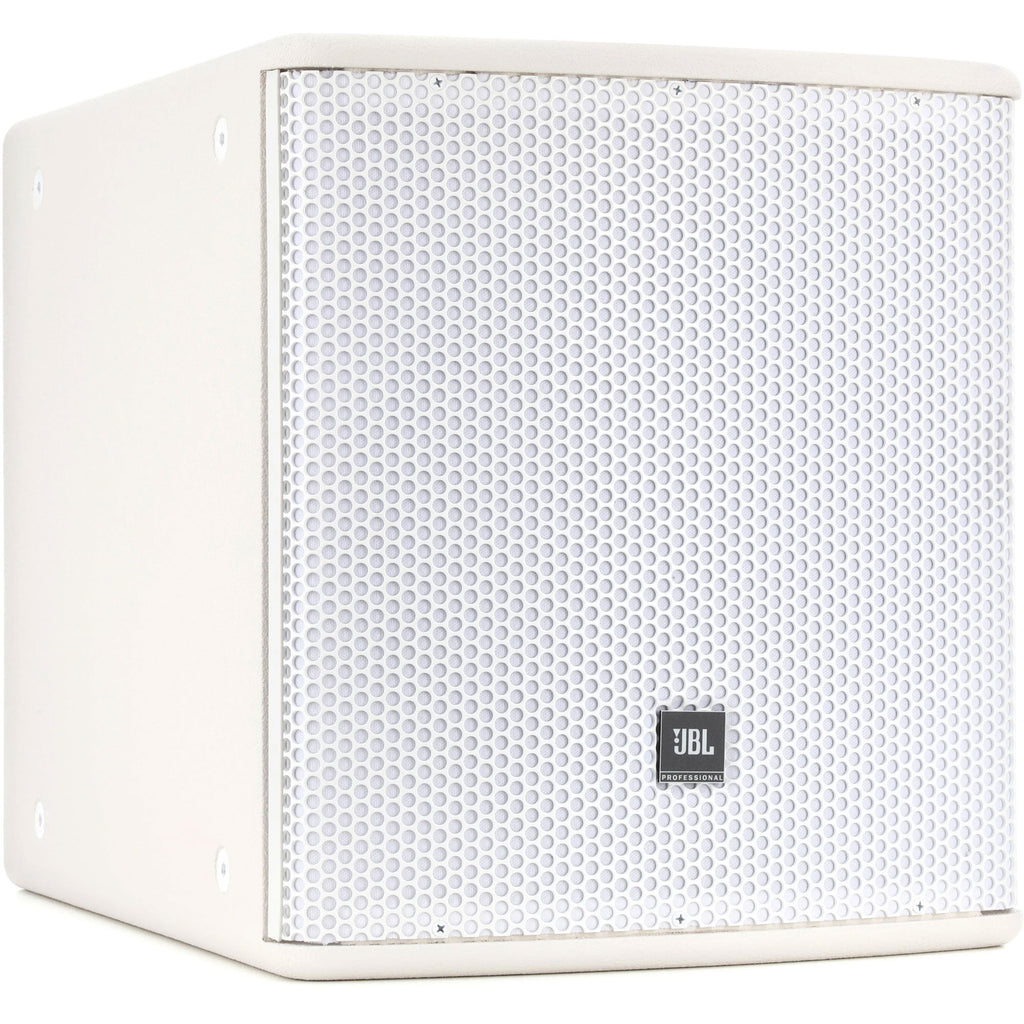

Compact High Power Single 12" Subwoofer, White
The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL's 2263H Differential Drive dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Features:
- 2263H 12" Differential Drive dual voice coil dual gap,
- neodymium magnet transducer
- 1000 watts continuous pink noise,
- 4000 watts peak power handling capacity
- Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
Specifications:
- Frequency Range
- (-10 dB): 35 Hz - 1 kHz
- Frequency Response
- (+/- 3 dB): 43 Hz - 1 kHz
- Transducer Power Rating: 1000 W (4000 W peak), 2 hrs.
- Long-Term System Power Rating: 700 W (2800 W peak), 100 hrs.
- Maximum SPL (1m): 40 Hz - 300 Hz: 126 dB-SPL
- cont avg (132 dB peak)
- System Sensitivity: 40 Hz - 300 Hz: 96 dB-SPL,
- 1W (2.83V) @ 1m
- Nominal Impedance: 8 ohms
- Low Frequency Driver: 1 x 2263H, 305 mm (12 in) dia.,
- 75 mm (3 in) Dual Coil Dual
- Gap neodymium Differential Drive driver
- Enclosure: Rectangular cabinet, 16 mm (5/8 in)
- exterior grade 11-ply birch plywood
- Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side),
- M10 threaded hardware
- Finish: Black DuraFlex finish.
- White available upon request.
- Grille: Powder coated 14 gauge perforated steel,
- with acoustically transparent black foam backing.
- Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
- Dimensions (H x W x D in
- vertical cabinet orientation): 406 x 369 x 483 mm
- (16.0 x 14.5 x 19.0 in)
- Net Weight: 16.3 kg (36.0 lb)
- Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
Details
- Manufacturer: JBL
- MPN: ASB6112-WH
- Model Number: ASB6112-WH
- UPC: 691991011672
