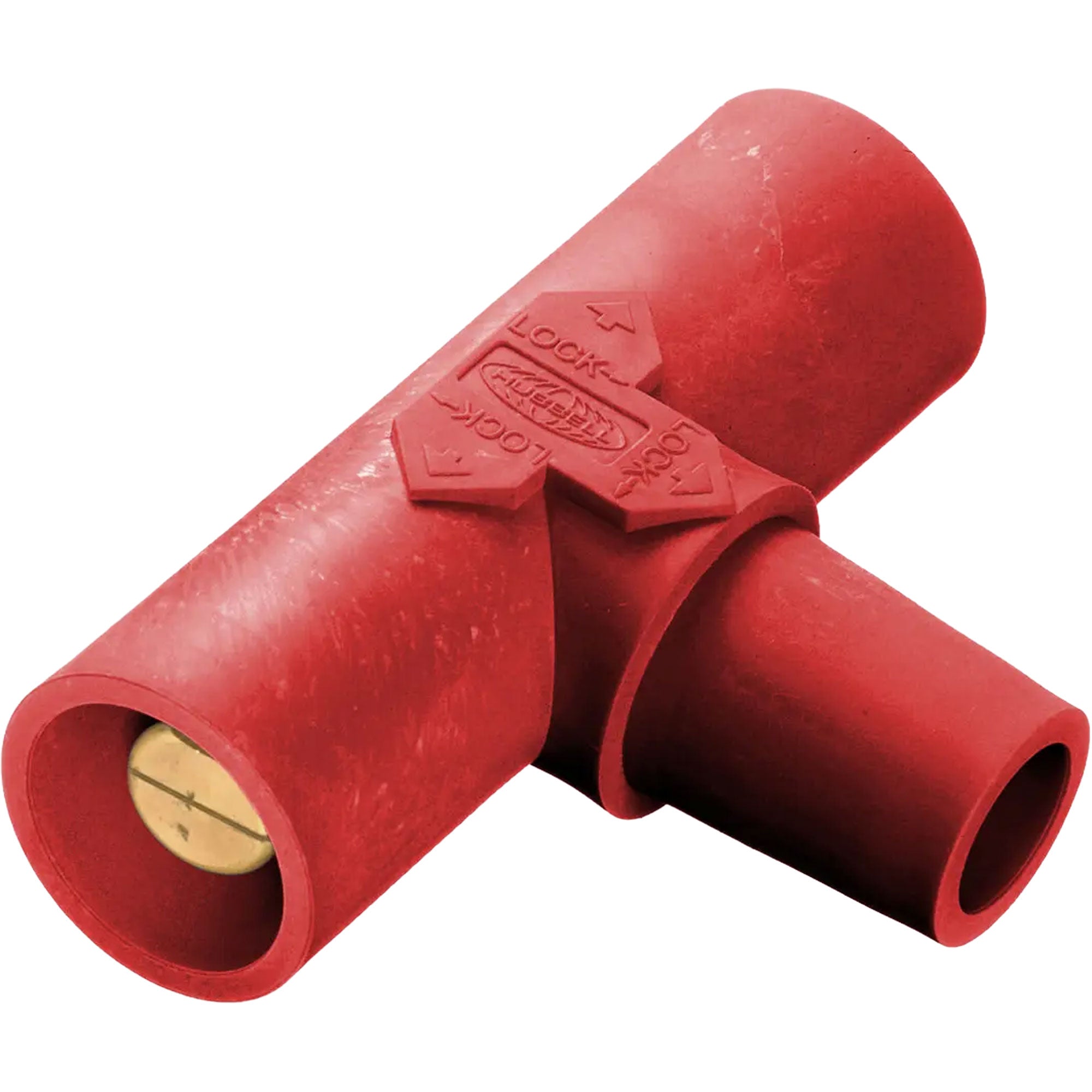

Hubbell HBLPTR Female-Male-Male 400 Amp Single Pole Cam-Lock Paralleling Tee (Red)

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female-Male-Male, Paralleling Tee, 300/400A 600V AC/DC, Single Conductor, Pre-Wired, Red

• Industrial Grade
• Female-Male-Male
• Paralleling Tee
• Standard Product

Specifications:

• General
• Application: High Ampacity
• Catalog Number: HBLPTR
• Color: Red
• Insulation: Insulated Body
• Item Type: T-Fittings
• Material: Brass and Elastomer
• Number Of Pins: 1) In, 2) Out- Male-Female-Female
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Performance:
  Electrical - Amperage Rating - 400A Maximum
  Electrical - Voltage Ratings - 600V AC Maximum
  250V DC Maximum
  Mechanical - Product Identification - Ratings are a permanent part of the device
• Series: 16 Series
• Specifications:
  Body Material - Thermoplastic Elastomer
  Contact Material - Brass
  Product Type - T's" and Tri-Taps
  Tee and Tap Type - Paralleling "T" Fitting
• Style: Paralleling Tee Femal-Male-Male
• Type: Tees and 3-Fers
• UPC: 783585113159
• Dimensions
• Weight: 1 lb
• Electrical Ratings
• Amperage Rating: 400 A
• Current / Amperage Rating: 400 A
• Current Rating: 400 A
• Voltage Rating Description: 600V AC/DC
• Wattage: 360000 W
• Certifications And Compliance
• Industry Standard(s): UL 498 And UL1691
• Operational
• Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Performance:
  Electrical - Amperage Rating - 400A Maximum
  Electrical - Voltage Ratings - 600V AC Maximum
  250V DC Maximum
  Mechanical - Product Identification - Ratings are a permanent part of the device
• Configuration
• Number Of Pins: 1) In, 2) Out- Male-Female-Female
• Logistics
• Carton Quantity: 10
• Pallet Quantit: 1680
