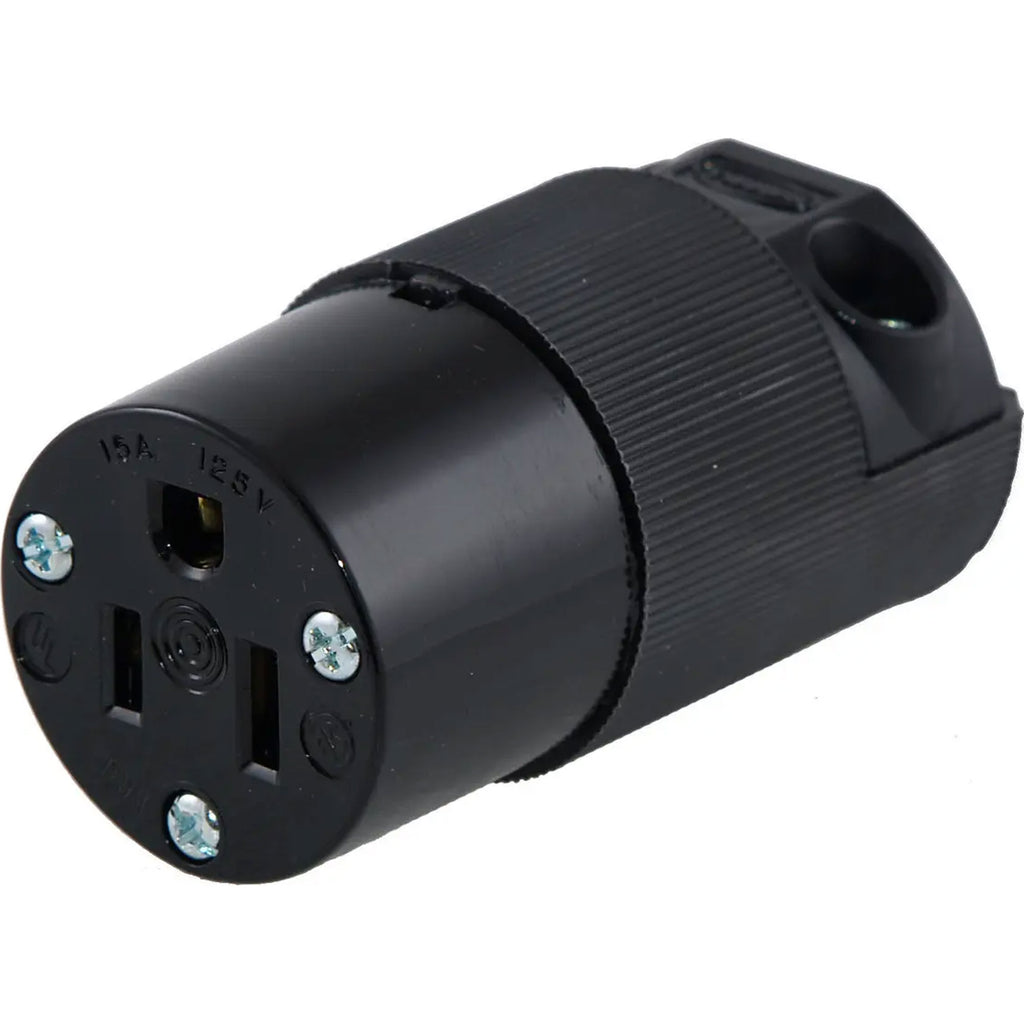

Hubbell HBL5269CM2 15A Industrial Grade Straight Blade Edison Female Plug NEMA 5-15R (Black)

Straight Blade Connector Body, Insulgrip Heavy Duty, Industrial/Commercial, Straight, 2- Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack

Features:

• Individual wiring terminals completely enclosed
• Powerful, offsetting cord grips clamp on individual conductors
• Fast lead assembly screws
• Beveled housing prevents snagging
• All Black

Specifications:

• General:
• Application: Heavy Duty Industrial
• Catalog Number: HBL5269CM2
• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Insulgrip
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Series: Insulgrip
• Style: Standard
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Connector Body
• UPC: 783585848525
• Dimensions:
• Display Size: Standard
• Electrical Ratings:
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Voltage Rating: 125 VAC
• Conductor Related:
• Conductor Range: #14 AWG to #12 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2-Pole
• Certifications And Compliance:
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Operational:
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Logistics:
• Carton Quantity: 10
• Pallet Quantity: 3600
