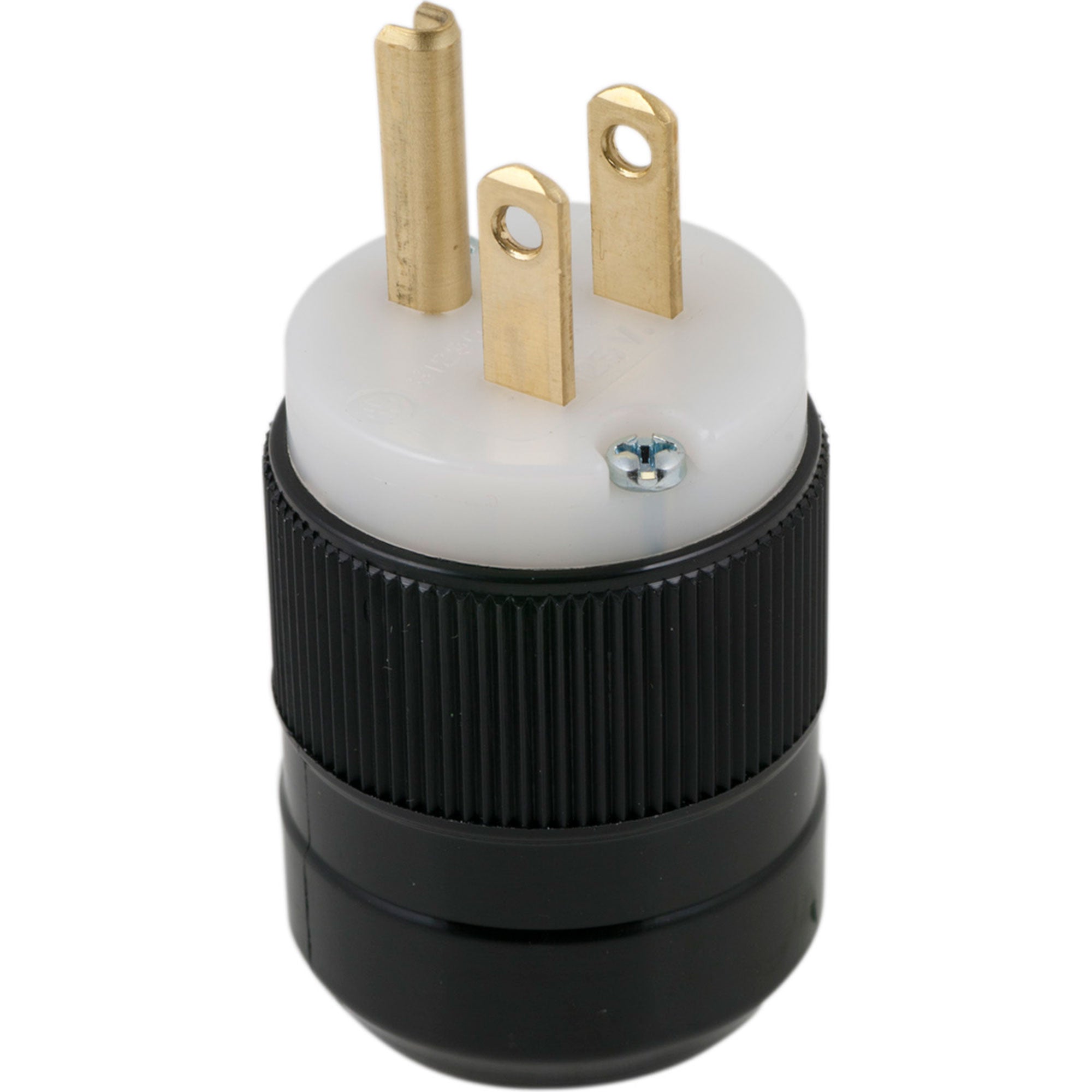

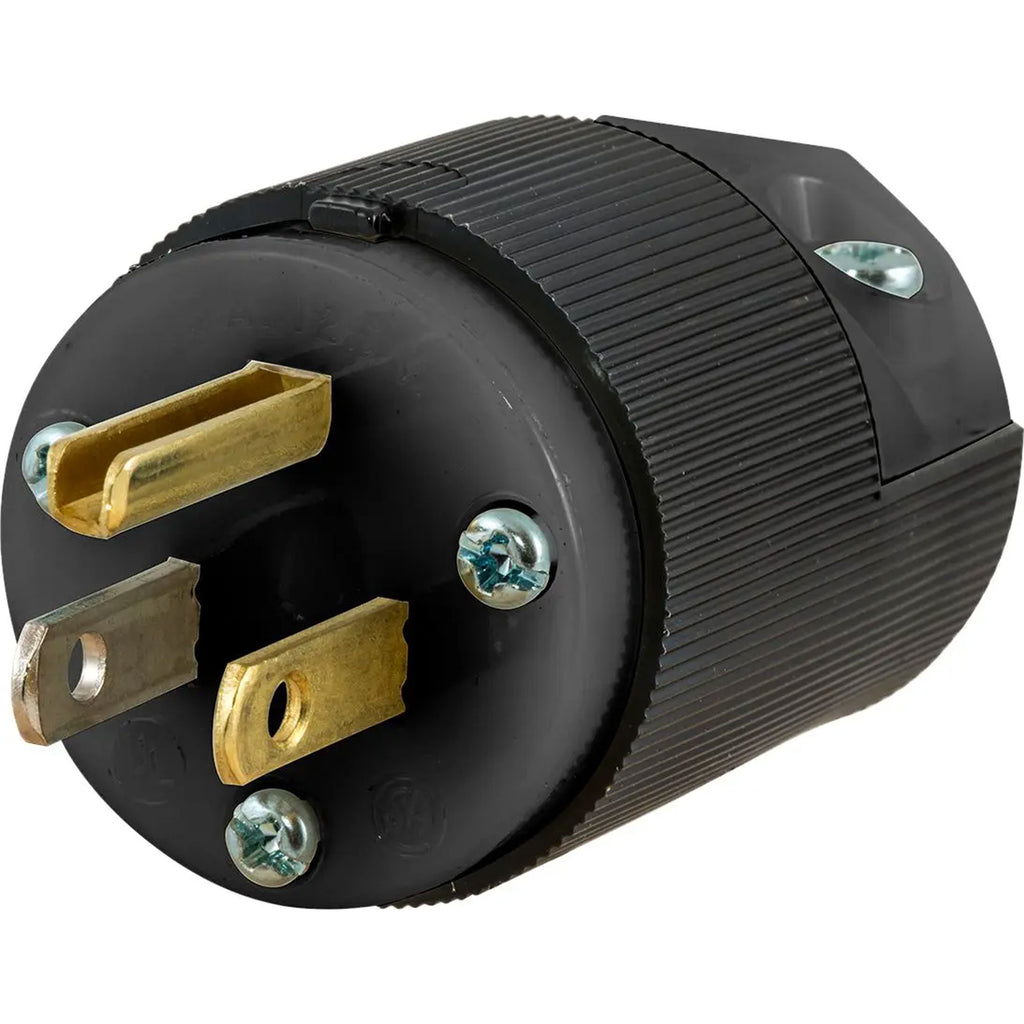

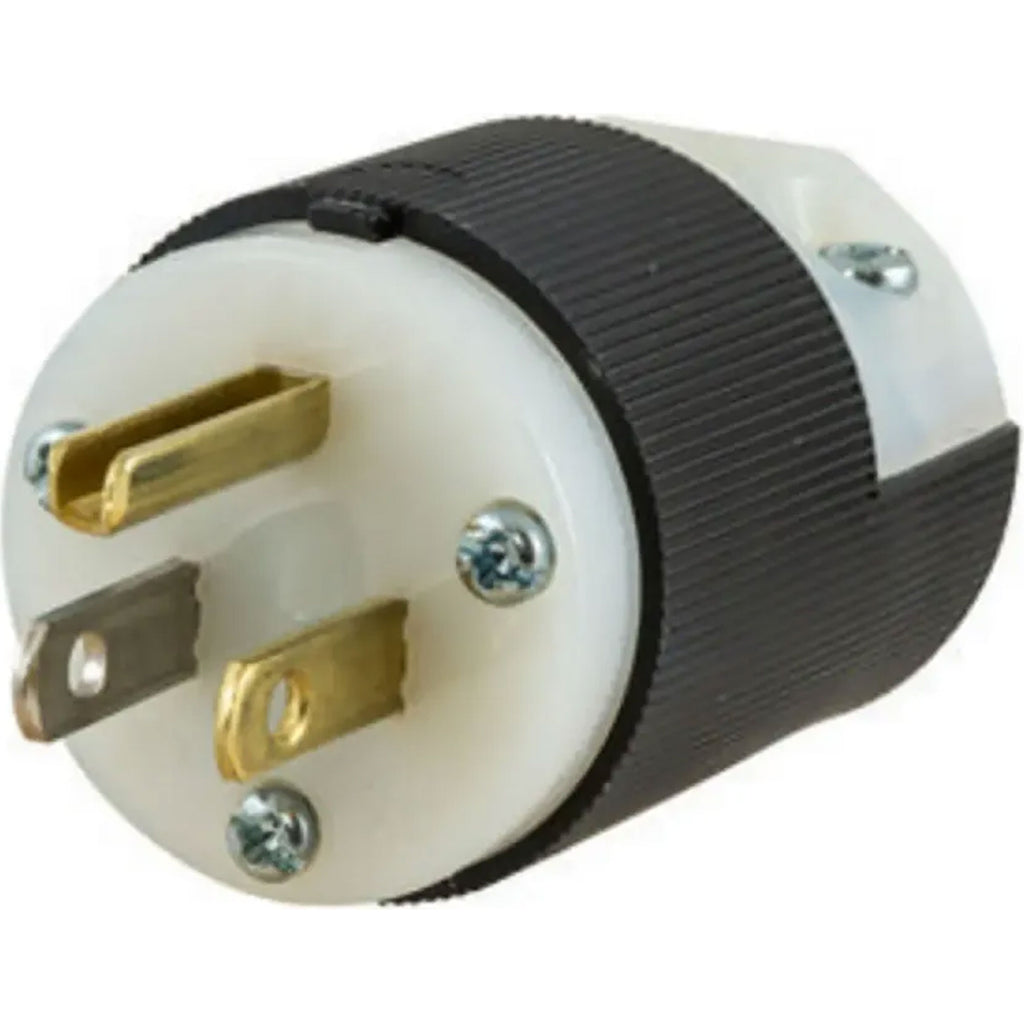

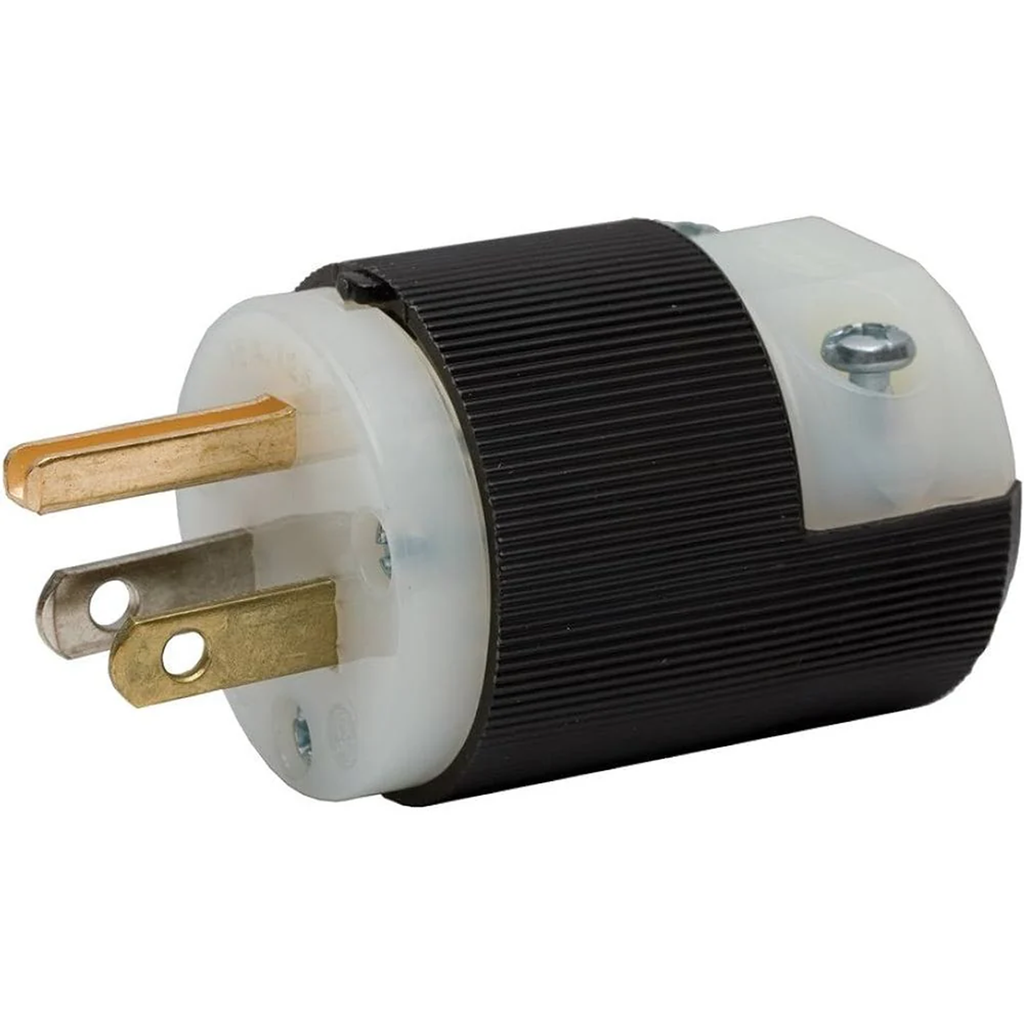

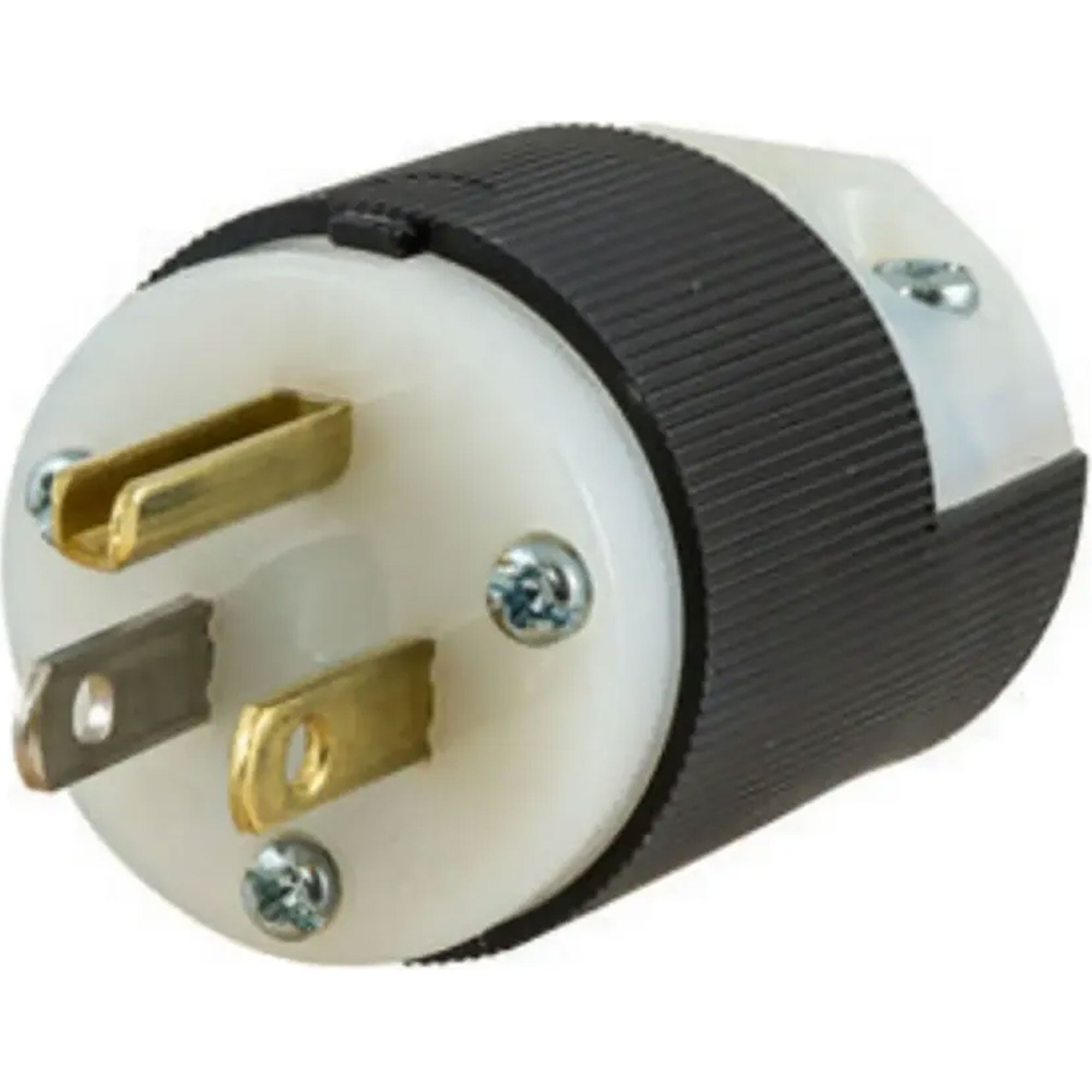

Hubbell HBL5266CM2 15A Industrial Grade Straight Blade Edison Male Plug NEMA 5-15P (Black)

Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A125V, 5-15P, Single Pack

Straight Blade Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A125V, 5-15P

Features:

• Ribbed nylon housing is impact and chemical resistant
• VARI-SIZE adjustable cord clamp
• Fast lead assembly screws
• Beveled housing prevents snagging


Specifications:

• General:
• Catalog Number: HBL5266CM2
• Color: Black, White
• Material: Polycarbonate
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance:
  Electrical - Current Interrupting - Certified for current interrupting at full rated current
  Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - UL 94 HB or better
  Environmental - IP Suitability - IP20
  Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Series: Insulgrip
• Specifications:
  Assembly Screws - Nickel plated steel
  Blade Holder - Nylon
  Blades - .060 in. (1.5) Brass
  Housing/Cord Clamp - Nylon
  Terminal Clamp - Nickel plated steel
  Terminal Retainer - Clear Polycarbonate
  Terminal Screws - #8-32 Brass, multiple drive
• Style: Standard
• Type: Plug
• UPC: 783585848501
• Dimensions:
• Dimensions: 1.52 in x 1.52 in x 1.96 in
• Height: 1.96 in
• Length: 1.52 in
• Weight: 0.15 lb
• Width: 1.52 in
• Electrical Ratings:
• Amperage Rating: 15 A
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125 V
• Conductor Related:
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG
• Certifications And Compliance:
• Industry Standard(s):
  CSA Certified to C22.2 No. 42 File 280
  Fed. Spec. W-C596G
  NEMA WD-6 Compliant
  UL Listed to UL498 File E1706
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM
• Operational:
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance:
  Electrical - Current Interrupting - Certified for current interrupting at full rated current
  Electrical - Dielectric Voltage - Withstands 2,000V minimum
  Environmental - Flammability - UL 94 HB or better
  Environmental - IP Suitability - IP20
  Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only
  Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Logistics:
• Carton Quantity: 10
• Pallet Quantity: 4500
