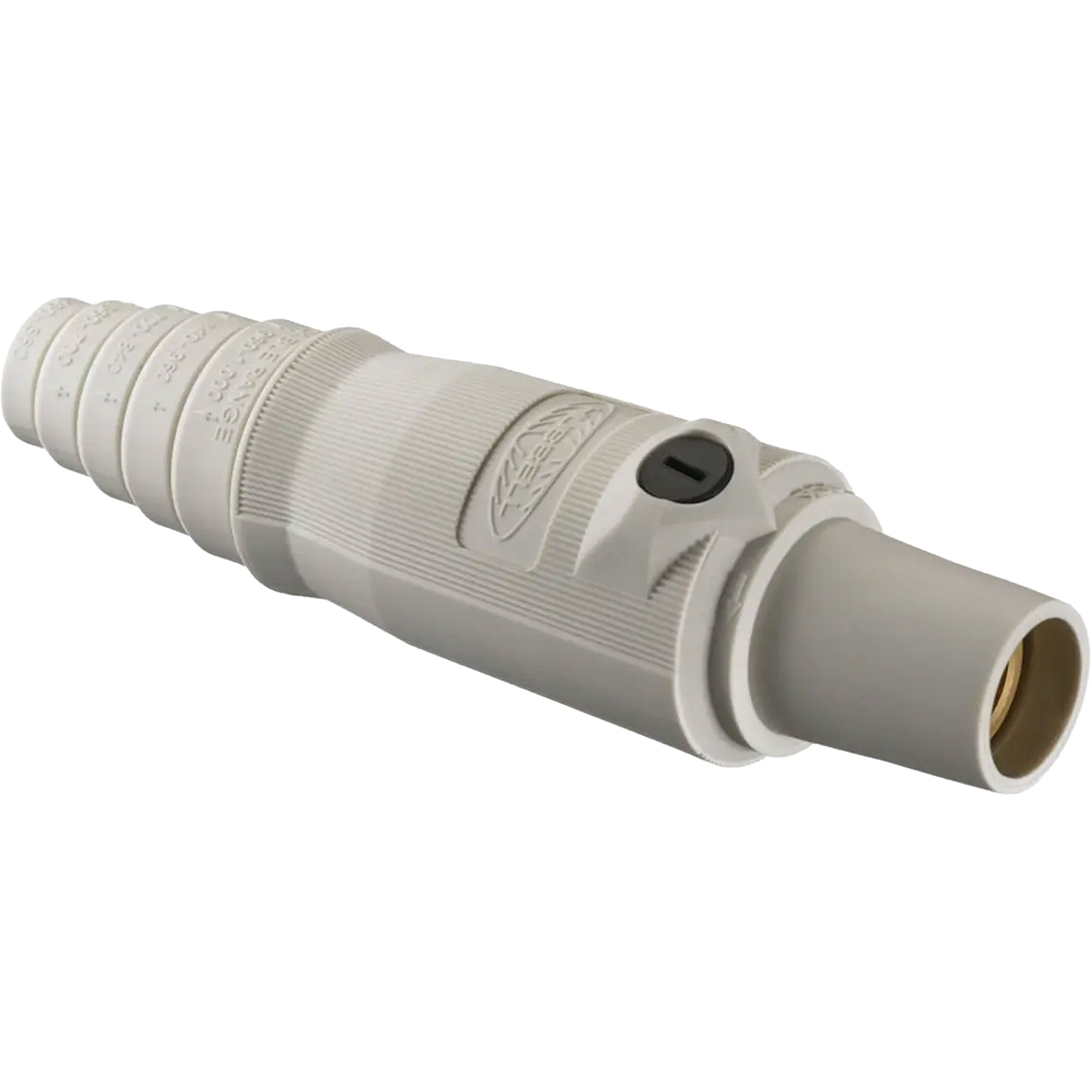

Hubbell HBL300FW Female 300 Amp Single Pole Cam-Lock Inline Plug (White)

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, White

Hubbell Wiring Device-Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• Extra Long non-conductive inner sleeve
• Turn and Lock Symbol aids in the mating of devices
• Easily Identifiable Cable with cut off points for secure fit

Specifications:

• General
• Catalog Number: HBL300FW
• Color: White
• EU RoHS Indicator
• Performance:
  Electrical - Amperage Rating - 400A Maximum
  Electrical - Voltage Ratings - 600V AC Maximum
  250V DC Maximum
  Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17
  Mechanical - Product Identification - Ratings are a permanent part of device
  Mechanical - Terminal Accommodation - #6 to 2/0 AWG
• Series: 16 Series
• Specifications:
  Base Compound - Thermoplastic Elastomer
  Contact Material - Brass
  Retaining Screw Material - Nylon
• Style: Female
• Type: Plugs
• UPC: 783585112060
• Dimensions
• Weight: 0.8 lb
• Electrical Ratings
• Amperage Rating: 300 A
• Current / Amperage Rating: 300 A
• Voltage Rating Description: 600V AC/DC
• Certifications And Compliance
• EU RoHS Indicator
• Industry Standard(s):
  National Electric Code (NEC), ANSI/NFPA 70
  UL and cUL Listed
  UL Enclosure Types 3R, 4X, 12
• Operational
• Performance:
  Electrical - Amperage Rating - 400A Maximum
  Electrical - Voltage Ratings - 600V AC Maximum
  250V DC Maximum
  Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17
  Mechanical - Product Identification - Ratings are a permanent part of device
  Mechanical - Terminal Accommodation - #6 to 2/0 AWG
• Logistics
• Carton Quantity: 10
• Pallet Quantity: 1800
