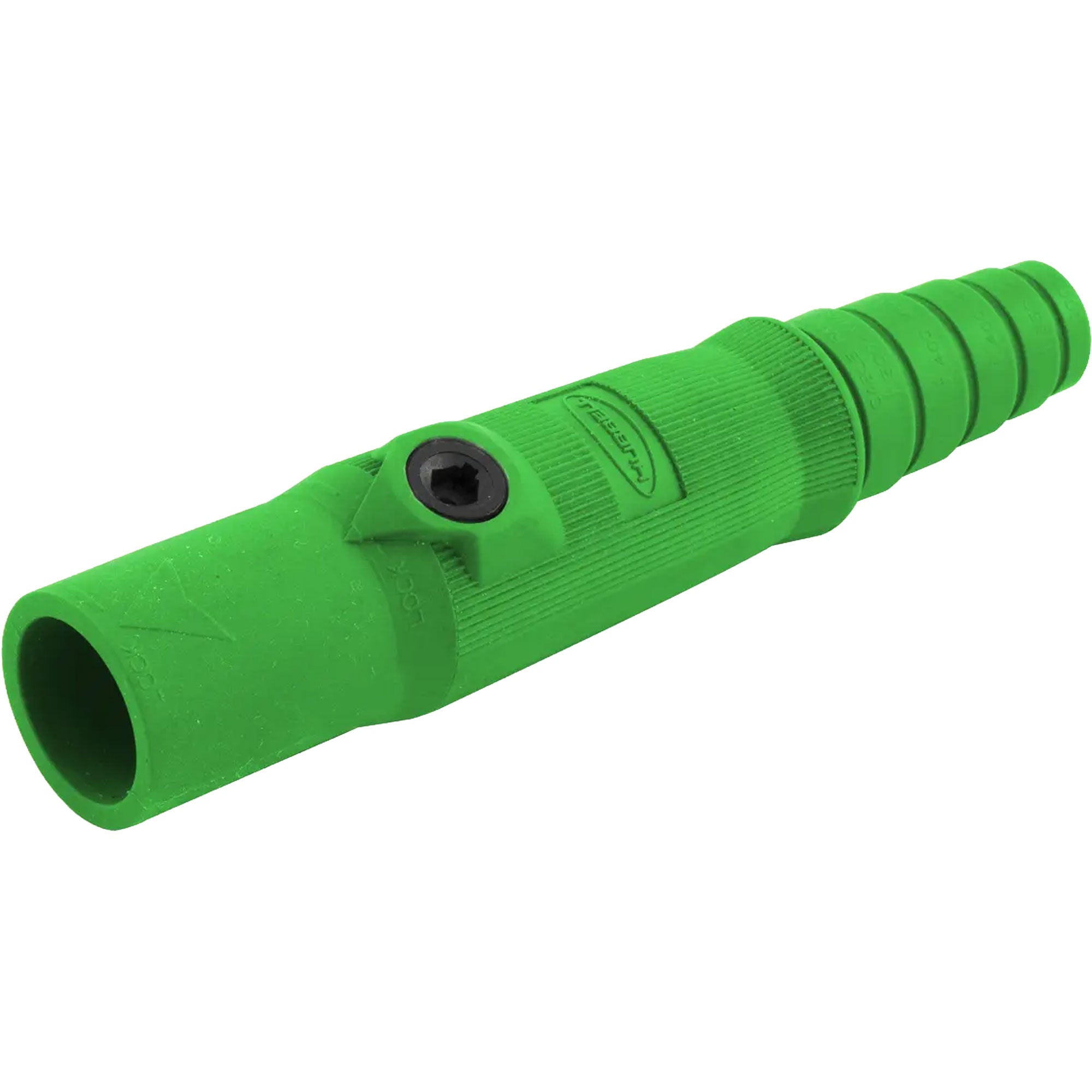

Hubbell HBL15MGN Male 150 Amp Single Pole Cam-Lock Inline Plug (Green)

Single Pole Products, Male Plug, 150 Amp Series, Green

Hubbell Wiring Device-Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• Insulgrip Style Housing for Superior Gripping
• Non-Conductive Retaining Screw locks contacts in place
• Large Raised Alignment Arrow aids in the mating of devices

Specifications:

• General
• Catalog Number: HBL15MGN
• Color: Green
• EU RoHS Indicator
• Performance:
  Electrical - Amperage Rating - 150A Maximum
  Electrical - Voltage Ratings - 600V AC Maximum
  250V DC Maximum
  Mechanical - Product Identification - Ratings are a permanent part of device
  Mechanical - Terminal Accommodation - #8 to #2 AWG
• Series: 15 Series
• Specifications:
  Base Compound - Thermoplastic Elastomer (TPE)
  Contact Material - Brass
  Retaining Screw Material - Nylon
• Style: Male
• Type: Plugs
• UPC: 783585458366
• Dimensions
• Weight: 0.2 lb
• Electrical Ratings
• Amperage Rating: 150 A
• Current / Amperage Rating: 150 A
• Voltage Rating Description: 600V AC/DC
• Certifications And Compliance
• EU RoHS Indicator
• Industry Standard(s):
  National Electric Code (NEC), ANSI/NFPA 70
  UL and cUL Listed
  UL Enclosure Types 3R, 4X, 12
• Operational
• Performance:
  Electrical - Amperage Rating - 150A Maximum
  Electrical - Voltage Ratings - 600V AC Maximum
  250V DC Maximum
  Mechanical - Product Identification - Ratings are a permanent part of device
  Mechanical - Terminal Accommodation - #8 to #2 AWG
• Logistics
• Carton Quantity: 25
• Pallet Quantity: 4500
