Key Features
- Multiple Type Cable Tester
- XLR: 3-Pin and 5-Pin
- SpeakON: 2, 4, and 8-Pole
- Phono (RCA), Phone (1/4" TRS and TS)
- DIN: 3, 5, and 8-Pin
- RJ45 (Ethernet)
- BNC: 75 Ohms
- USB: Type A to Type B
- Provides Continuity Verification

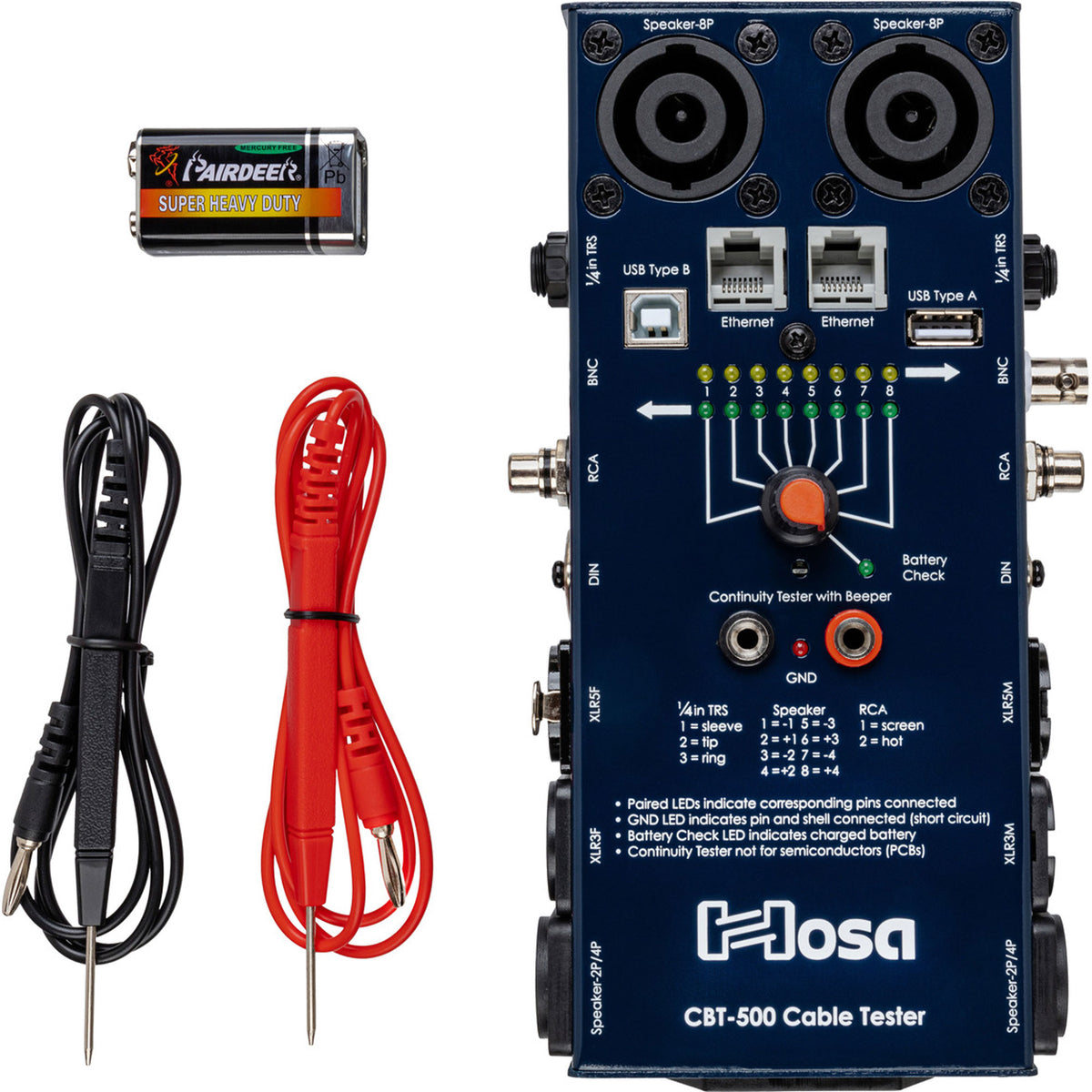

- Includes 2 Removable Leads & Battery
Description
Audio Cable Tester

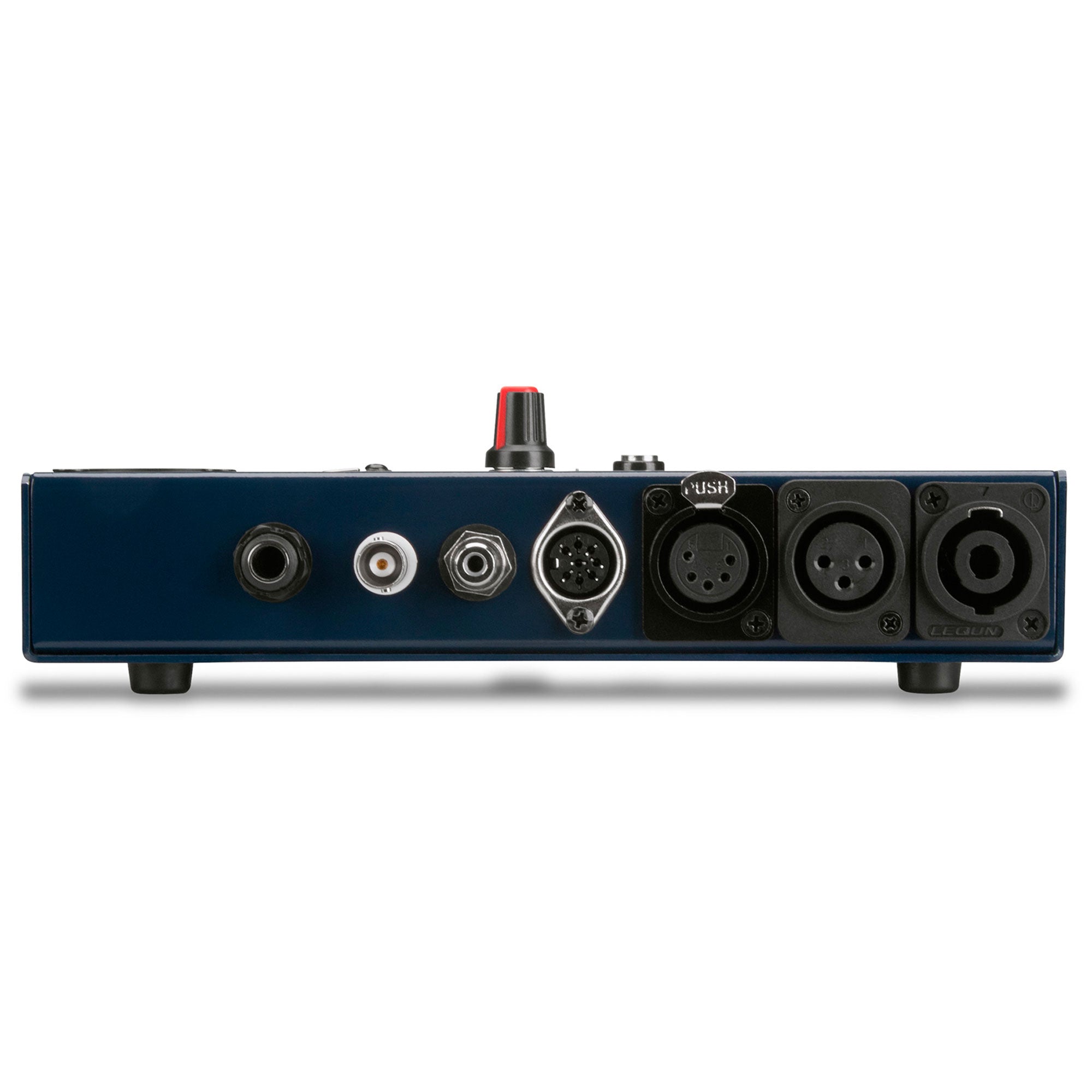

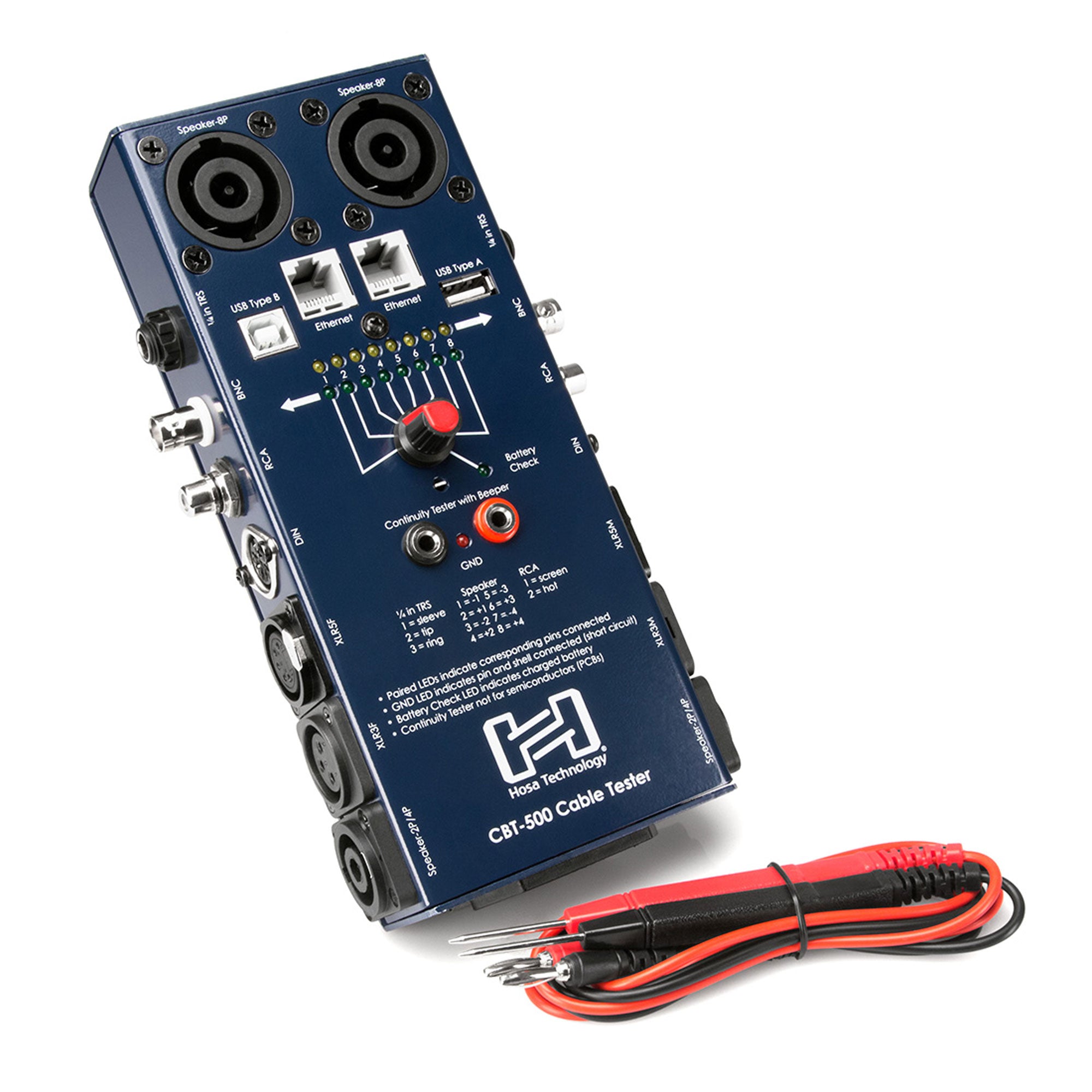

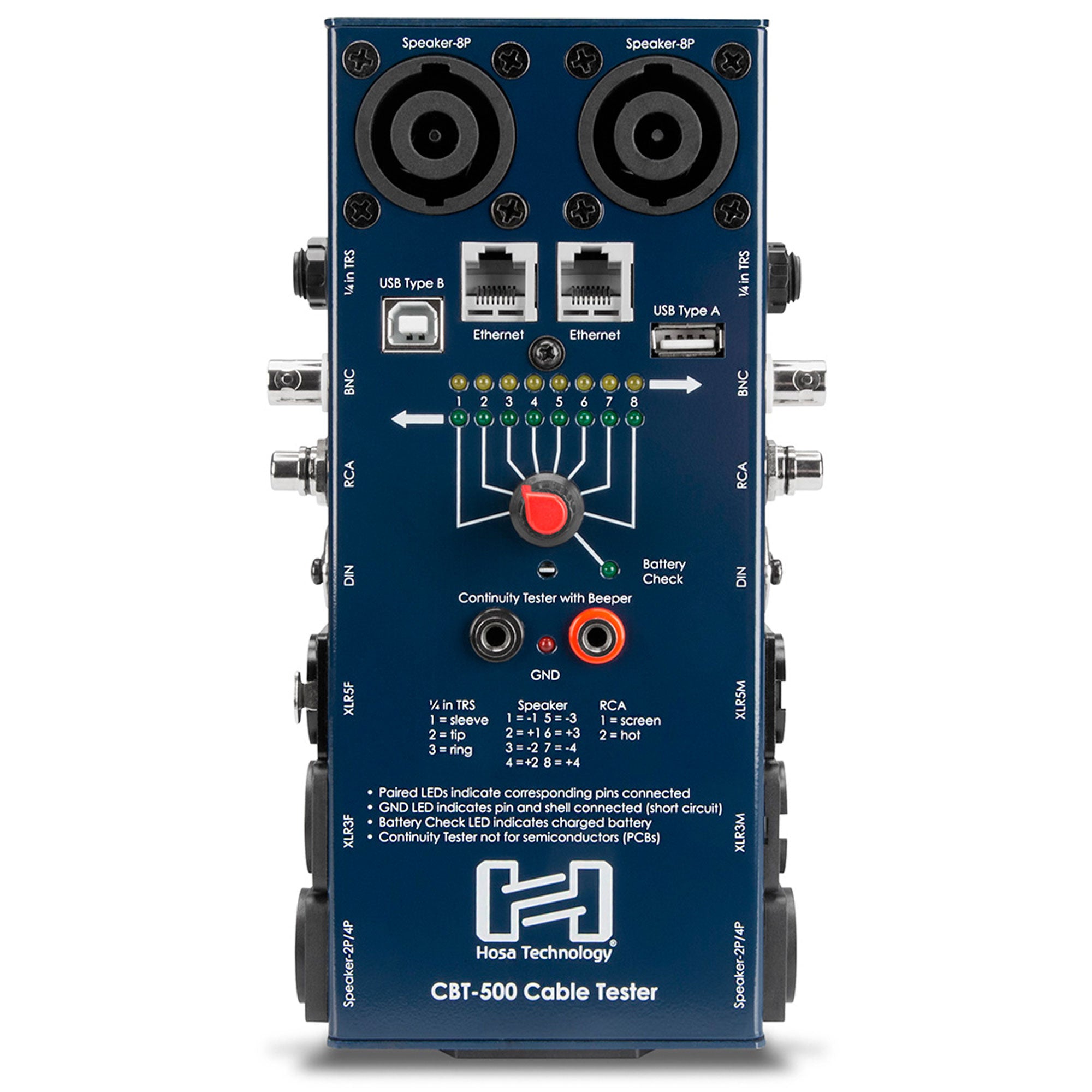

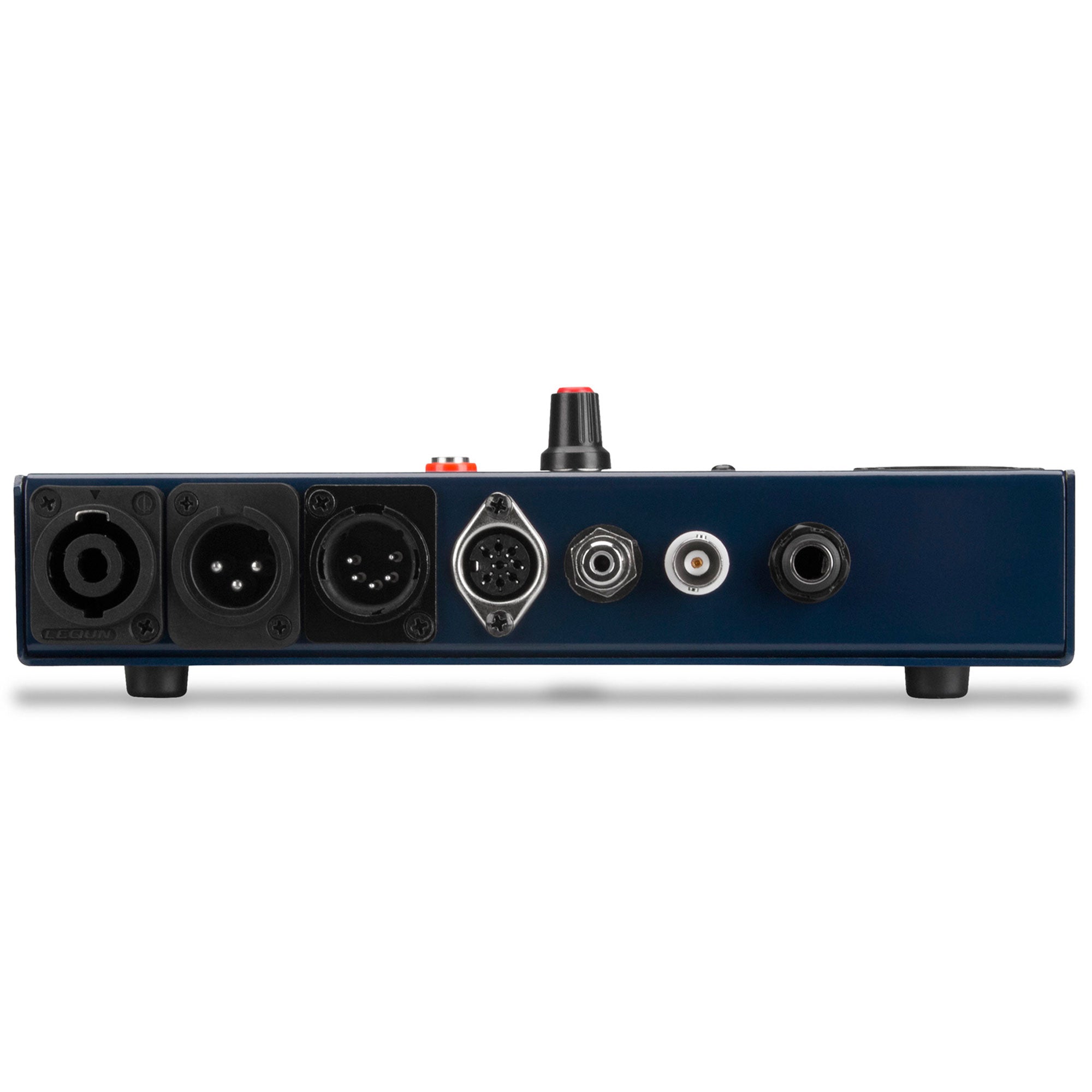

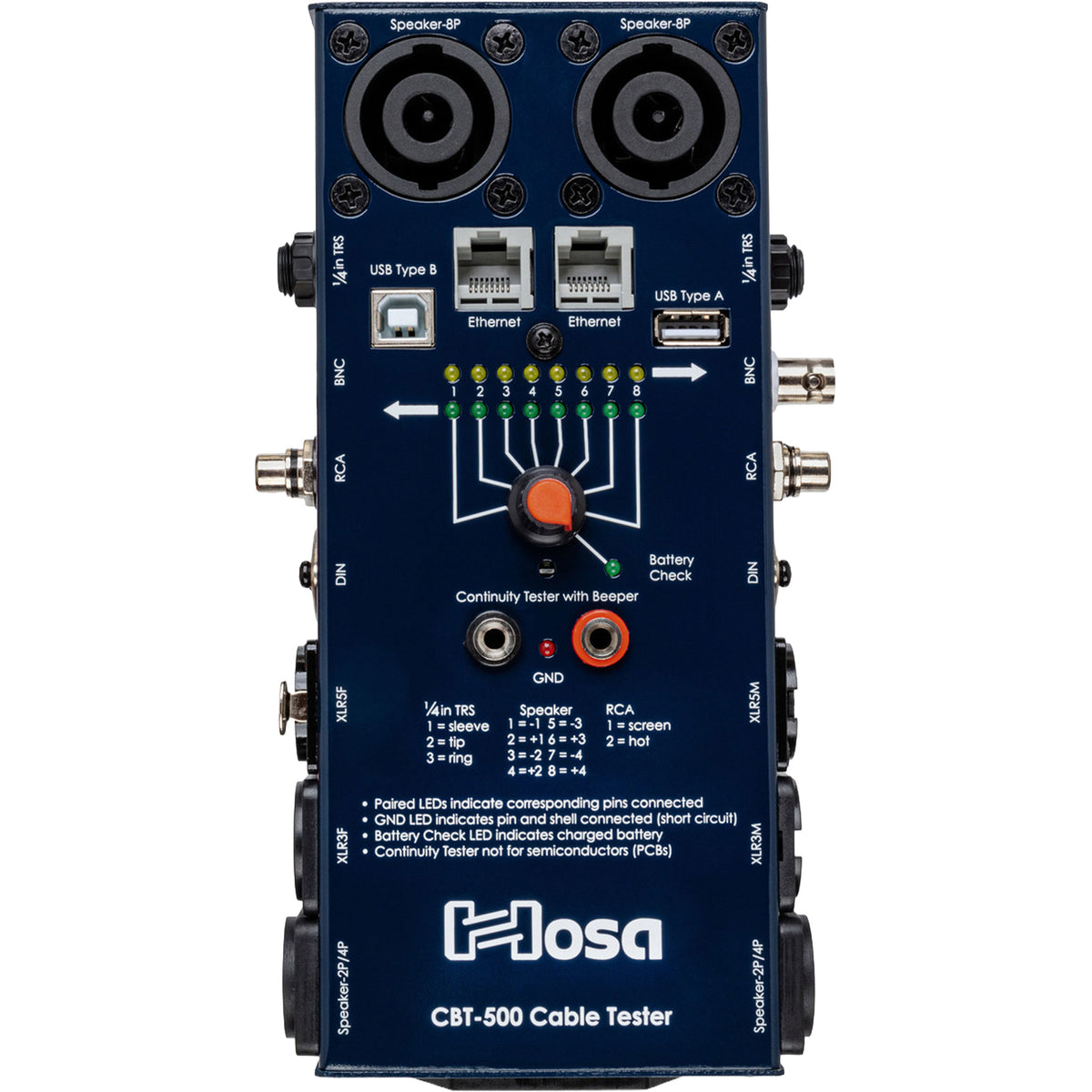

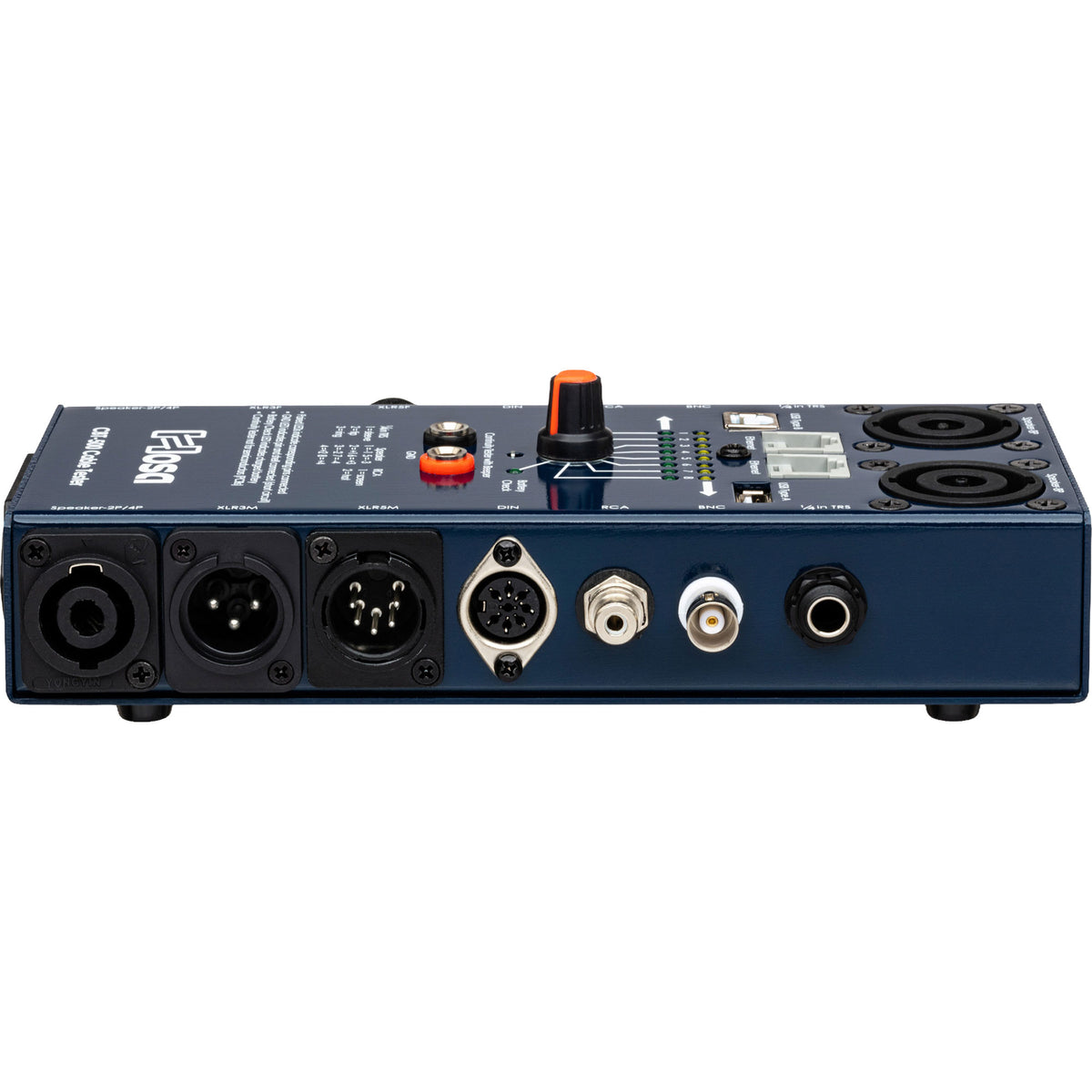

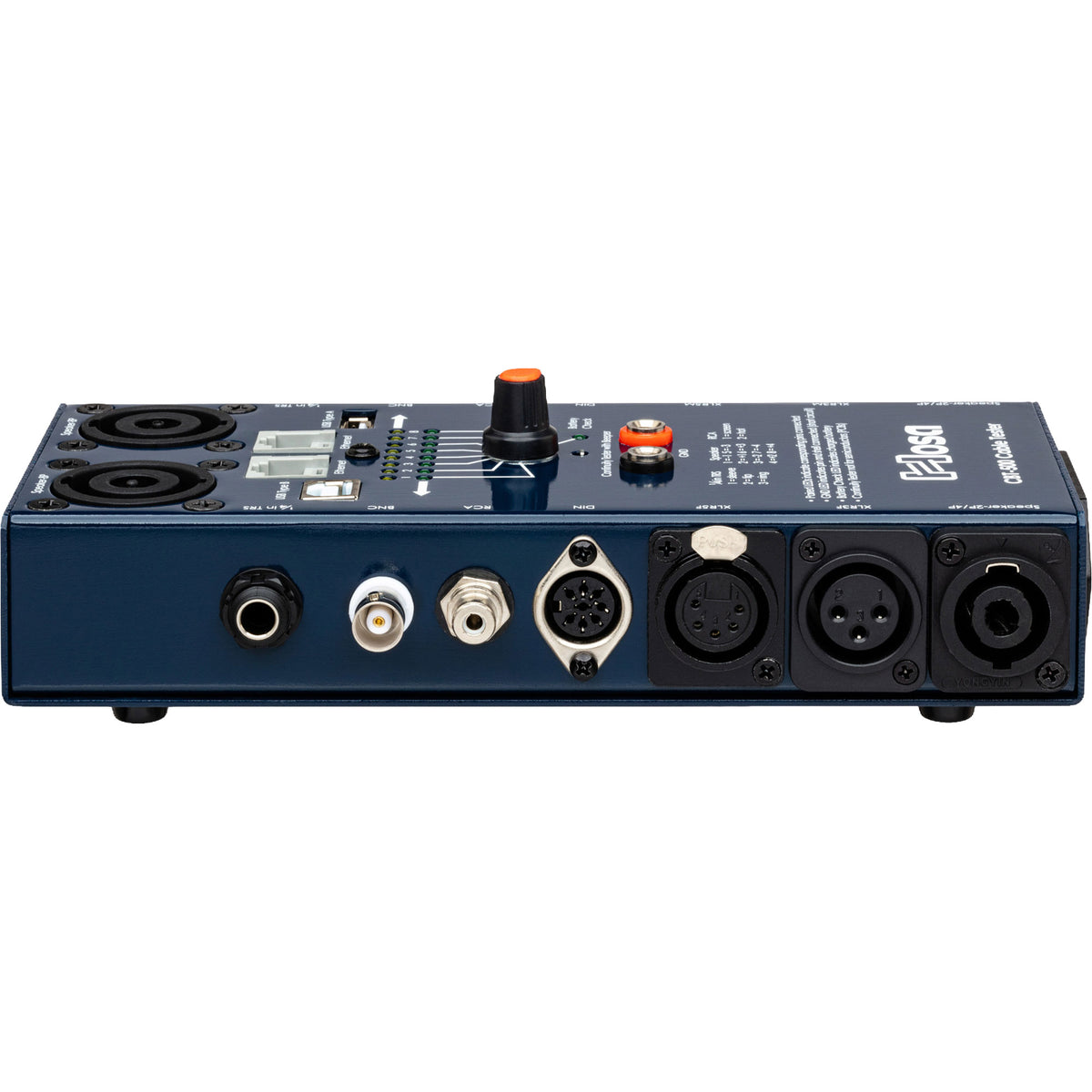

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).
Cable Test:
- Turn knob to position 1
- Plug one connector into corresponding jack on left side of tester
- Plug other connector into corresponding jack on right side of tester
- Turn knob to each position to check wiring of each contact
Continuity Test:
- Apply the tip of each lead to the corresponding contacts
- If continuity exists, the center LED will illuminate and tester will beep
Battery Check:
- Turn knob to Battery Check
- LED will illuminate if the battery is charged
Features:
- XLR: 3- and 5-pin
- SpeakON: 2-, 4-, and 8-pole
- Phono (RCA)
- Phone (1/4" TRS and TS)
- DIN: 3-, 5-, and 8-pin
- RJ45 (Ethernet)
- BNC: 75-Ohms
- USB: Type A to Type B
- Includes two removable leads to verify continuity of additional connectors and jacks
- Comes equipped with a 9-volt battery to get you up and running right out of the box
Specifications:
- Connectors
- SpeakON (8P/4P/2P)
- Ethernet
- USB (Type A and B)
- 1/4" TRS
- RCA
- DIN (3P/5P/7P/8P)
- XLR5
- XLR3
- BNC
