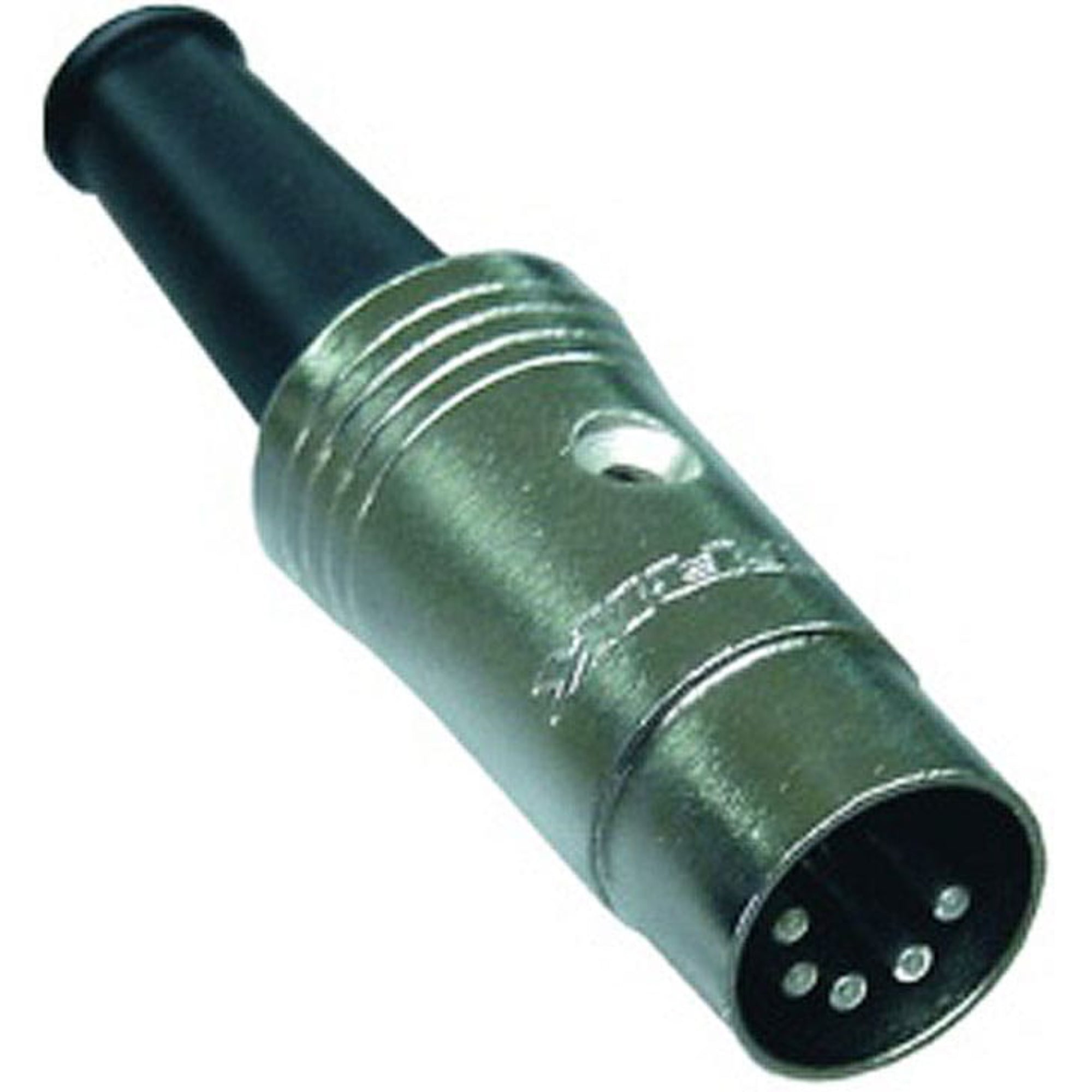

RapcoHorizon NN5DIN 5-Pin DIN Male Connector

5-Pin DIN Male Cable End Connector

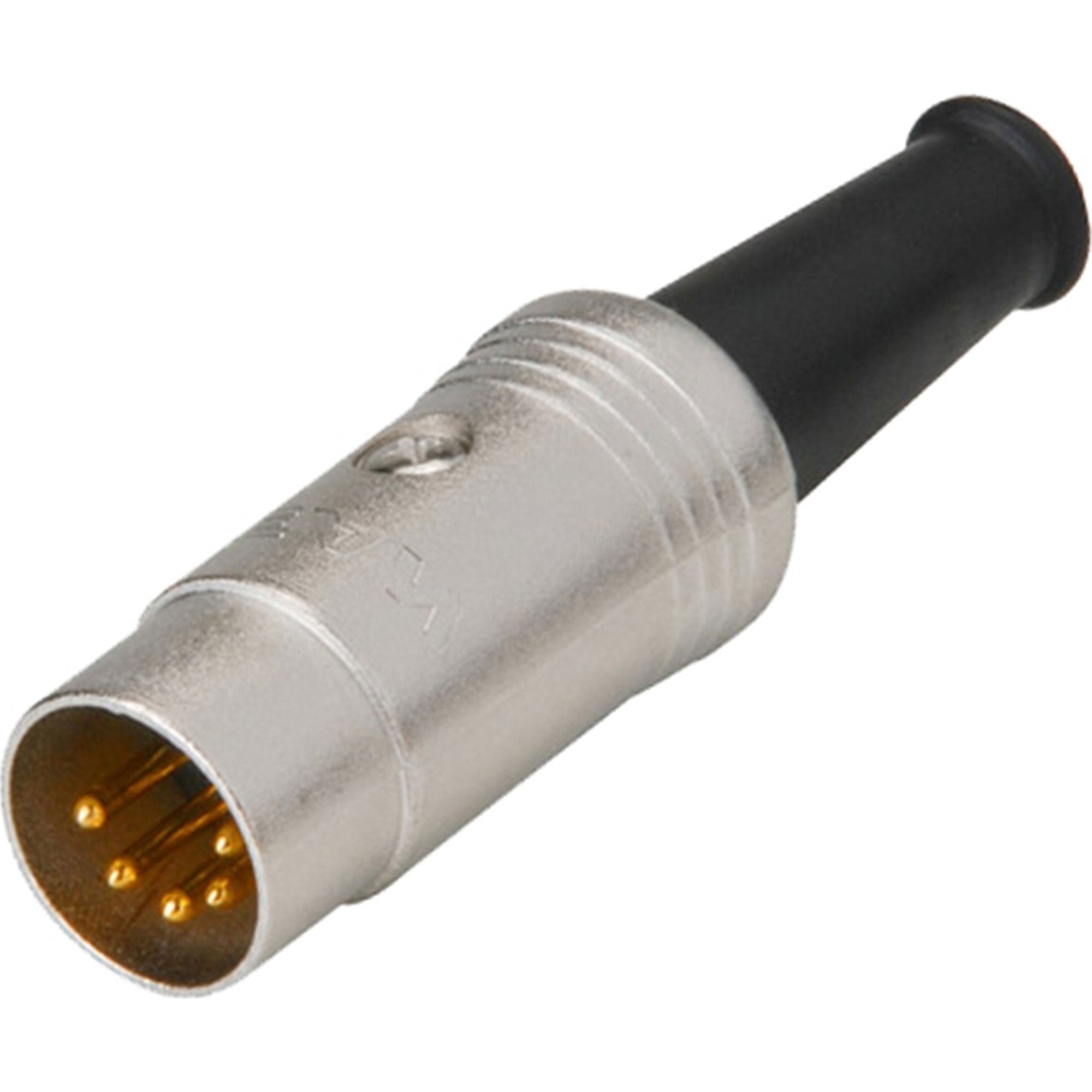

Neutrik REAN 5-Pin DIN MIDI Cable Connector (Nickel/Silver)

5 pole DIN cable connector, silver plated contacts

Excellent cost-performance ratio, attractive design and reliable functionality are the strengths of REAN.

Based on long-time know-how audio and video connectors for professional applications are developed and produced on up to date production facilities. An efficient logistics system and a global sales network make a high availability and short delivery times possible. The REAN product range is an alternative solution for cost sensitive applications.

REAN a brand of Neutrik AG

Specifications:

• Product
• Title: NYS322
• Electrical
• Dielectric strength: 0.5 kVdc
• Insulation resistance:>200 MΩ (Initial)
• Rated current: depends on mated connector
• Contact resistance: depends on mated connector
• Mechanical
• Cable O.D.: 5 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 26 mm-
• Material
• Contact plating: Ag
• Contacts: Brass (CuZn39Pb3)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Insulation: Thermoplastic
• Bushing: PVC, crimp type Zn plated strain relief
• Environmental
• Solderability: Complies with IEC 68-2-20
• Temperature range: -25 °C to +70 °C
