Key Features
- 1 Conductor Instrument Wire
- 24AWG Stranded Bare Copper
- Polyethylene Insulated
- Vinyl & Copper Serve Shield
- Matte PVC Jacket
- Sold by the Foot
Description

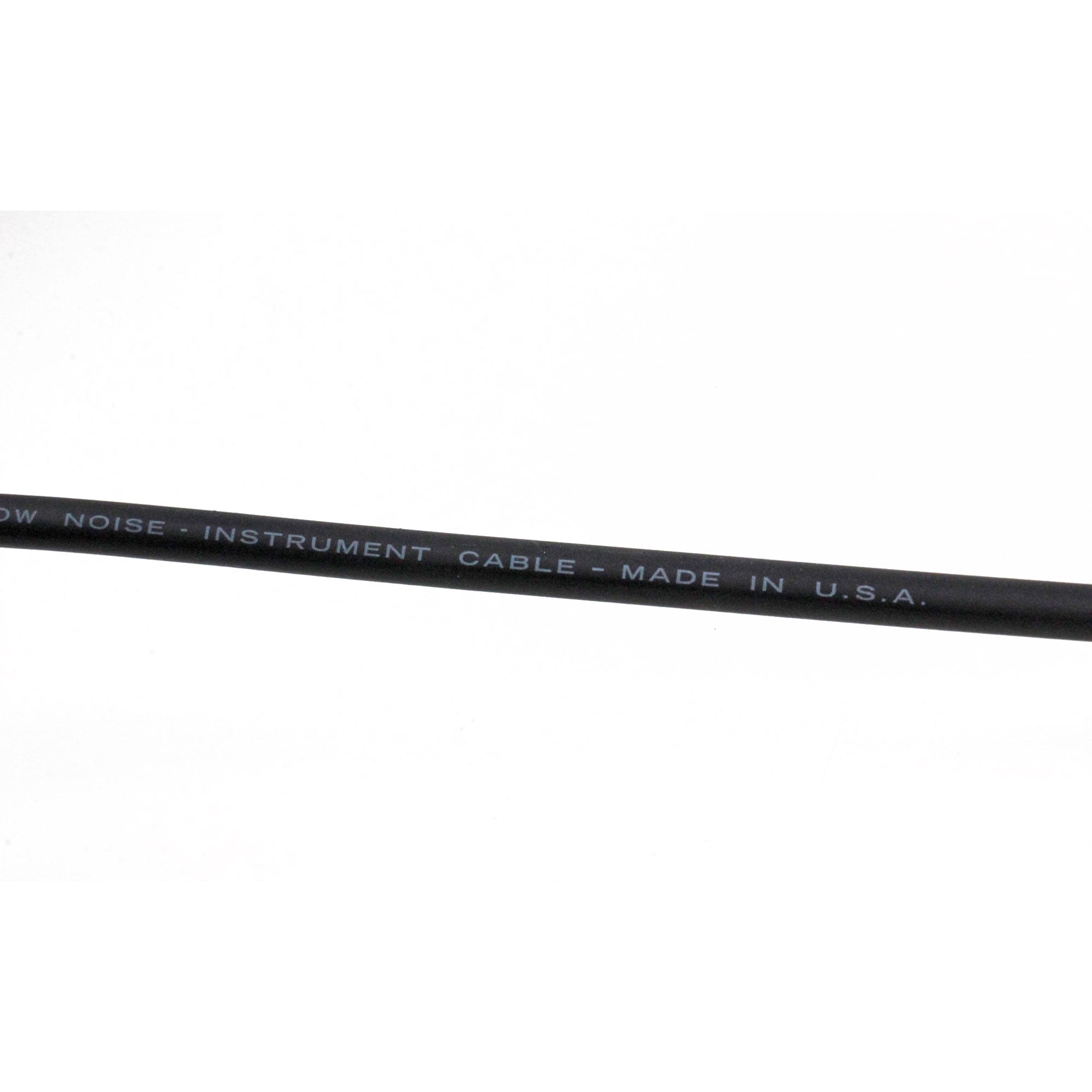

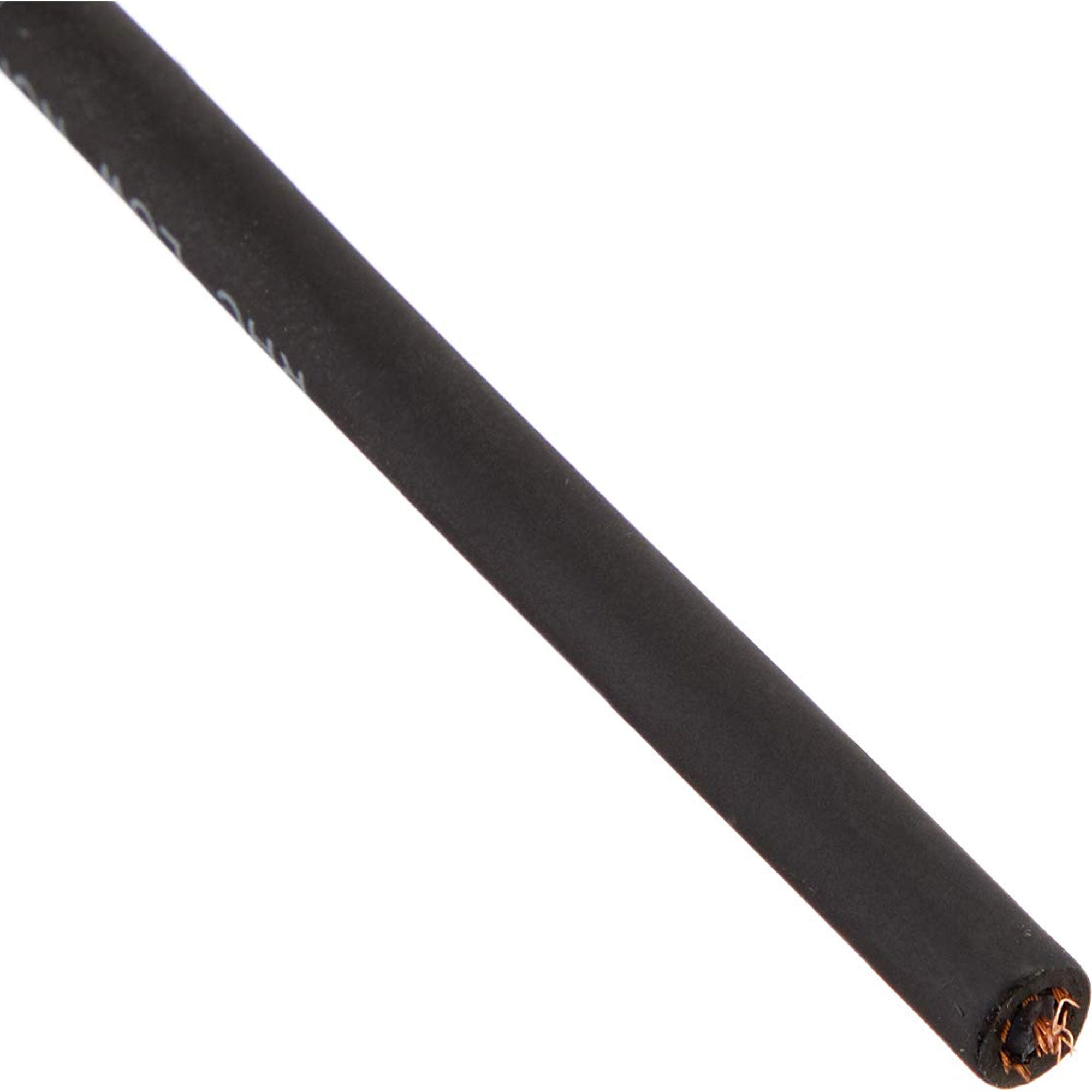

24 Gauge Hi-Z1 Miniature Guitar and Instrument Wire - Black - Sold by the Foot - Shipped in a Continuous Length

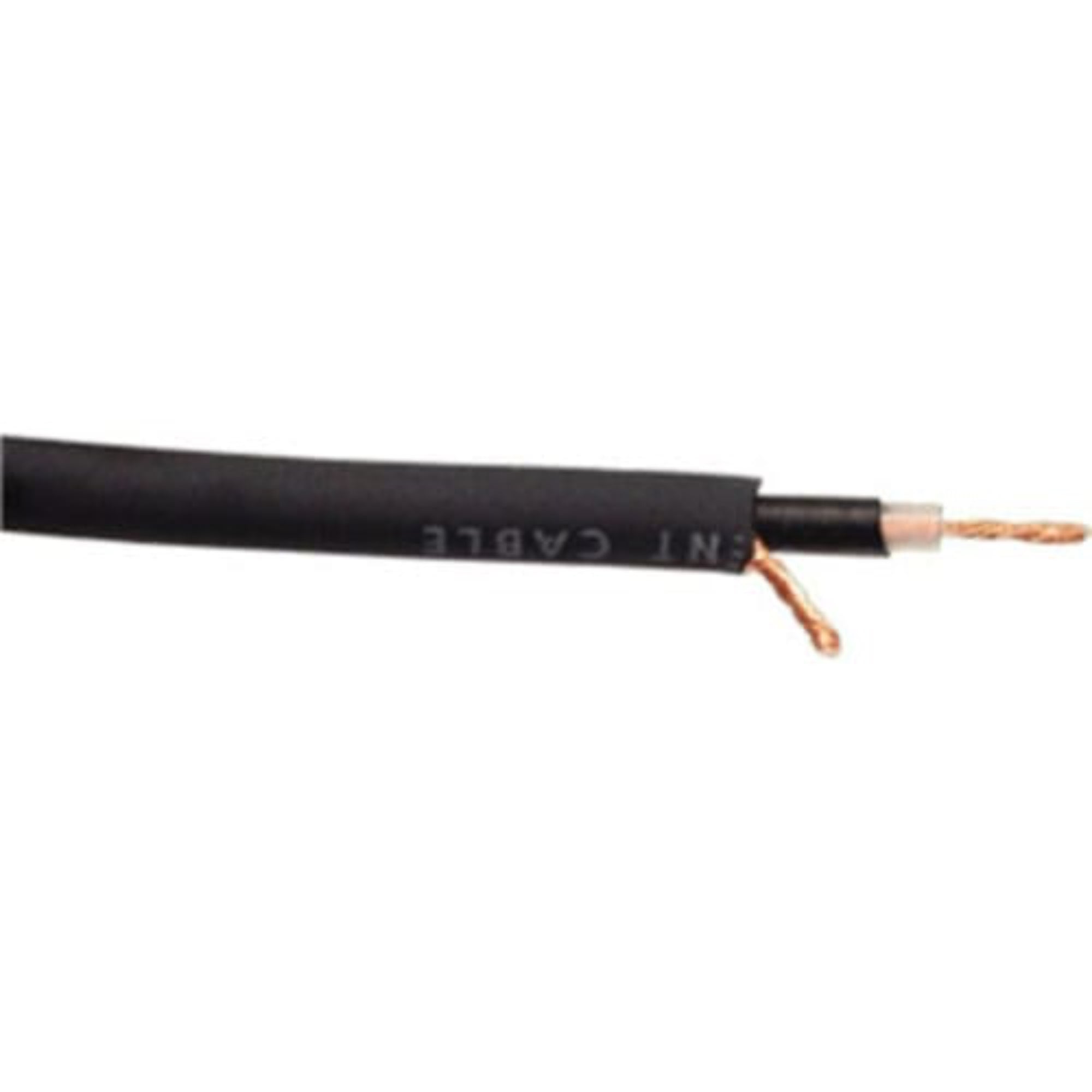

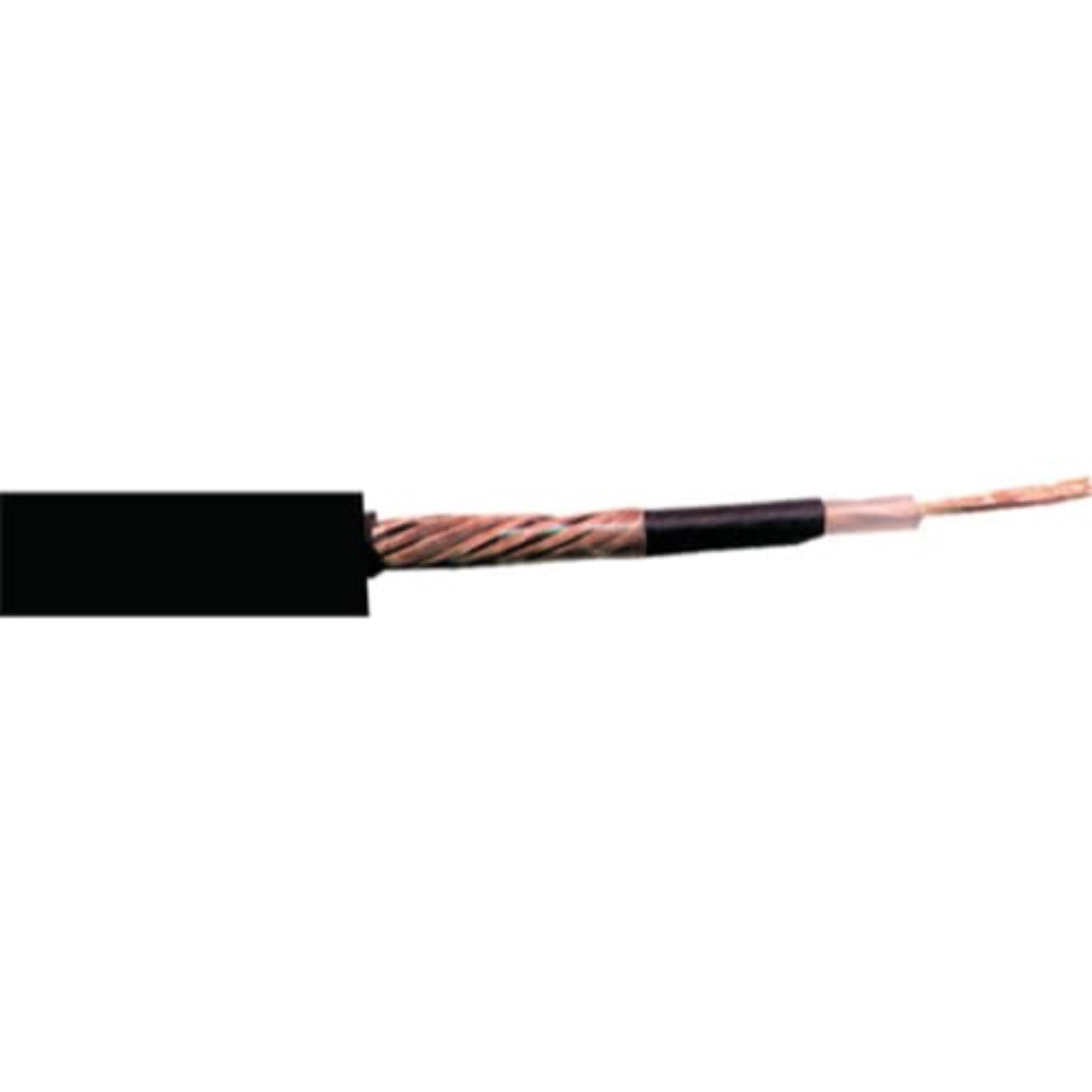

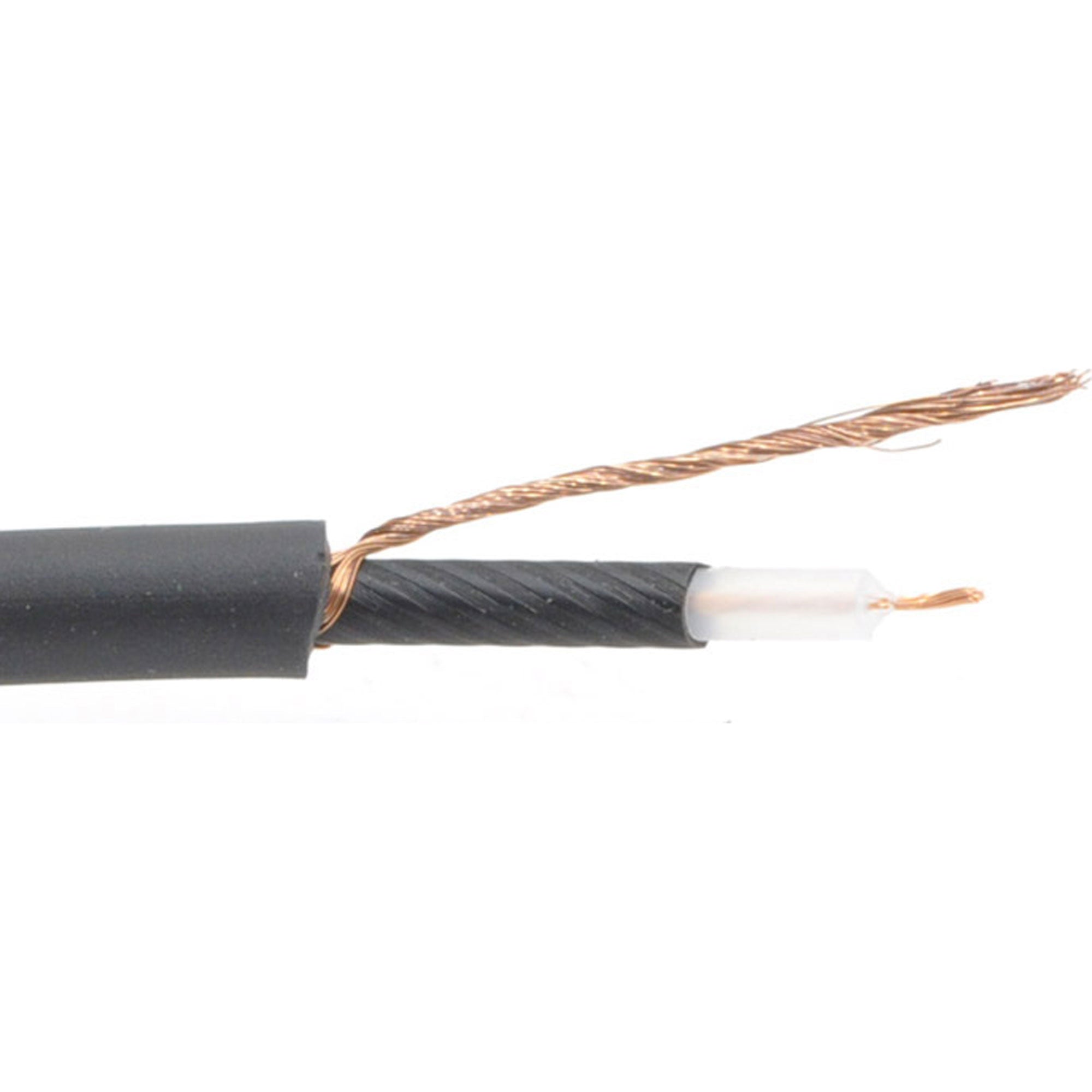

1 conductor, 24awg stranded bare copper, polyethylene insulated, overall conductive vinyl and copper serve shield, PVC jacket instrument wire
Available in Black, blue, purple, red, white, yellow, neon blue, neon green, neon orange, neon pink, and neon yellow.
NOTE: Colors other than black must be ordered in full 1000' roll lengths only.
Specifications:
- Cable: INST1.*
- Conductor Gauge: (1)24 gauge
- Shield: Composite conductive vinyl and copper serve
- Shield Coverage: 70%
- Jacket: Matte PVC
- O.D.: 0.242"
- Capacitance: 25 pF/ft. @ 1 kHz
- Characteristic Impedance: 60Ω NOMINAL
- D.C. Resistance @ 20°C: 23Ω/1000'
Details
- Manufacturer: RapcoHorizon
- MPN: INST1.K
- Model Number: INST1.K
- UPC: 765811509622
