RapcoHorizon DURACAT6-SOLID Ruggedized Cat6 Ethernet Networking Wire (By the Foot)

RapcoHorizon SKU: HOR DURACAT6SOLID
MPN: DURACAT6-SOLID UPC: 765811630340
Price:
$0.74
Stock:
53 In Stock & Ready to Ship

Make it a bundle

Custom Cable 25 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 25 Feet of RapcoHorizon DURACAT6-SOLID Wire
$18.50
Custom Cable 9 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 9 Feet of RapcoHorizon DURACAT6-SOLID Wire
$6.66
Custom Cable 300 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 300 Feet of RapcoHorizon DURACAT6-SOLID Wire
$222.00
Custom Cable 140 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 140 Feet of RapcoHorizon DURACAT6-SOLID Wire
$103.60
Custom Cable 110 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 110 Feet of RapcoHorizon DURACAT6-SOLID Wire
$81.40
Custom Cable 120 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 120 Feet of RapcoHorizon DURACAT6-SOLID Wire
$88.80
Custom Cable 75 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 75 Feet of RapcoHorizon DURACAT6-SOLID Wire
$55.50
Custom Cable 175 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 175 Feet of RapcoHorizon DURACAT6-SOLID Wire
$129.50
Custom Cable 50 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 50 Feet of RapcoHorizon DURACAT6-SOLID Wire
$37.00
Custom Cable 40 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 40 Feet of RapcoHorizon DURACAT6-SOLID Wire
$29.60
Custom Cable 19 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 19 Feet of RapcoHorizon DURACAT6-SOLID Wire
$14.06
Custom Cable 65 Feet of RapcoHorizon DURACAT6-SOLID Wire Image 1
Custom Cable 65 Feet of RapcoHorizon DURACAT6-SOLID Wire
$48.10

Key Features

  • Solid Conductor Networking Wire
  • ETL Verified to Category 6
  • Heavy Duty Rugged Jacket
  • 4 Pair 24 AWG
  • Sold by the Foot

Description

Ruggedized Cat6 bulk cable for custom network runs

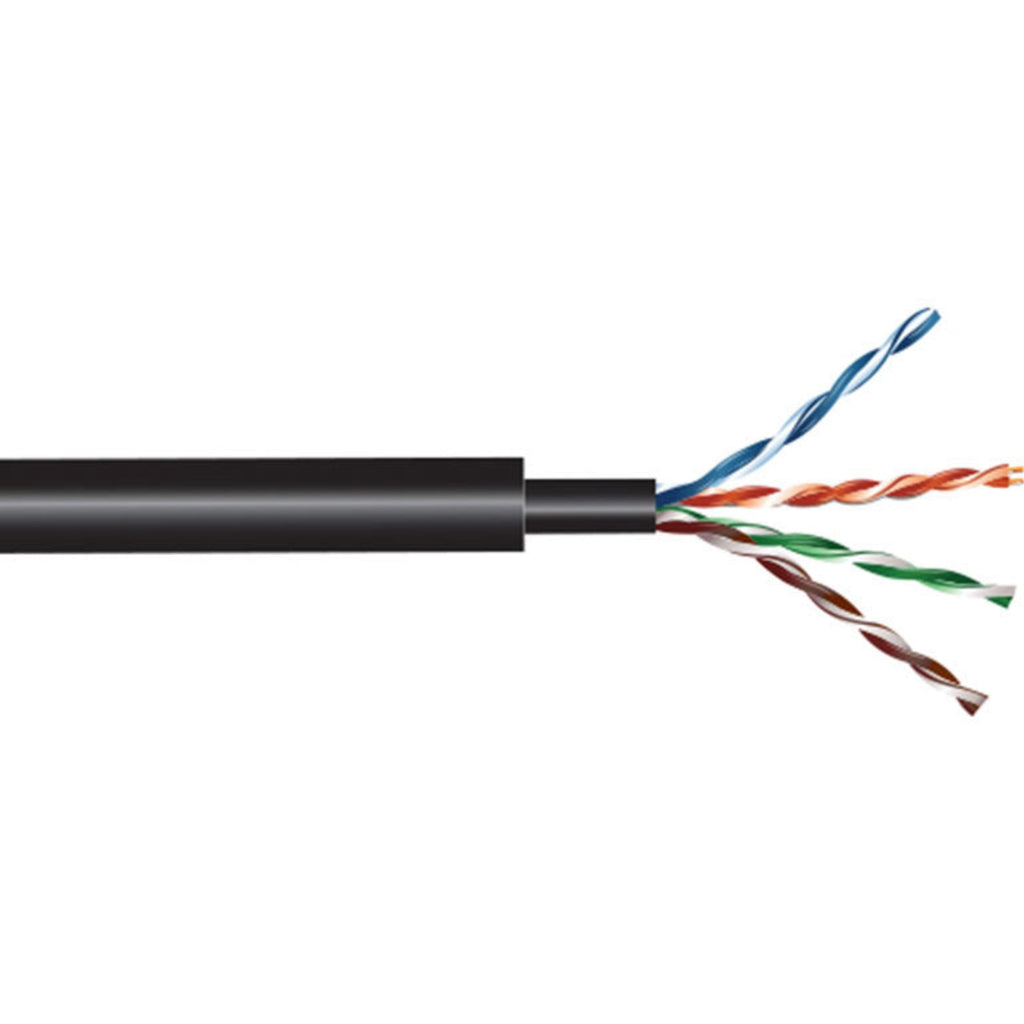

RapcoHorizon DURACAT6-SOLID is Black, unshielded Cat6 networking cable with four twisted pairs of 24 AWG solid conductors and a heavy-duty PVC outer jacket. Use it to build custom-length network runs where a tougher jacket is useful, including compatible digital audio and data systems.

Sold by the foot as unterminated bulk cable. Order quantity represents the number of feet purchased: for example, a quantity of 25 represents 25 feet of cable. Connectors are not included; this is not a finished Ethernet or EtherCon cable.

Choose it for the right application

The rugged outer jacket provides a substantial cable construction, but the solid conductors are an important consideration when planning your run. Avoid treating it as a substitute for a cable specifically designed for frequent flexing, repeated coiling, or moving connections. For regularly deployed portable cables, check your equipment's cable requirements and whether stranded cable is the better choice.

For digital consoles, stage boxes, amplifiers, and other audio equipment, verify the manufacturer's required cable category, shielding, connector type, and maximum run length. A network-style connector does not mean every audio system uses standard Ethernet or accepts unshielded cable.

Plan your connectors and termination

The listed outer diameter is 0.34 inch, approximately 8.6 mm. Choose connectors and strain relief that accept this jacket diameter and are designed for 24 AWG solid conductors. If using an EtherCon-style carrier, check the complete plug-and-carrier assembly for compatibility rather than assuming a standard RJ45 plug or boot will fit.

Preserve the pair twists as close to the termination as practical, follow the wiring scheme required by your installation or equipment, and test the completed cable before putting it into service. Plan the allowable length for the complete connection, including patch leads and terminations, rather than assuming every equipment link supports a 100-meter cable.

Features

  • Cat6 bulk networking cable for custom-length builds.
  • Four twisted pairs with 24 AWG solid conductors.
  • Unshielded twisted-pair construction (UTP).
  • Heavy-duty Black PVC outer jacket.
  • ETL verified to Category 6, as listed in the product specifications.
  • Suitable for compatible audio/data connections where unshielded Cat6 solid-conductor cable is specified.
  • Sold by the foot; termination and connectors required separately.

Specifications

  • Manufacturer: RapcoHorizon
  • Model: DURACAT6-SOLID
  • Cable category: Cat6
  • Conductor configuration: Four pairs, eight conductors
  • Conductor size: 24 AWG, listed as 0.5 mm
  • Conductor construction: Solid bare conductor
  • Shielding: Unshielded twisted pair (UTP)
  • Insulation: Thermoplastic polyolefin
  • Outer jacket: Heavy-duty PVC; listed as lead-free and flame-retardant thermoplastic
  • Outer diameter: 0.34 inch (approximately 8.6 mm)
  • Color: Black
  • Verification: ETL verified to Category 6
  • Listed Ethernet data rate support: Up to 1,000 Mbps, subject to the completed link and connected equipment
  • Ordering unit: Foot
  • Connectors: Not included

Installation note: Confirm the jacket's specific installation rating before selecting cable for in-wall, riser, plenum, outdoor, or other regulated locations. A rugged jacket or general flame-retardant description does not establish a rating for those uses.

Details
  • Manufacturer:  RapcoHorizon
  • MPN: DURACAT6-SOLID
  • Model Number: DURACAT6-SOLID
  • UPC: 765811630340
