Furman M-8Lz Merit Series 9-Outlet Conditioner with Pull-Out Lights and EVS Surge Protection

Merit Z Series M-8Lz 15A Power Conditioner with Pull-out Lights and EVS Surge Protection

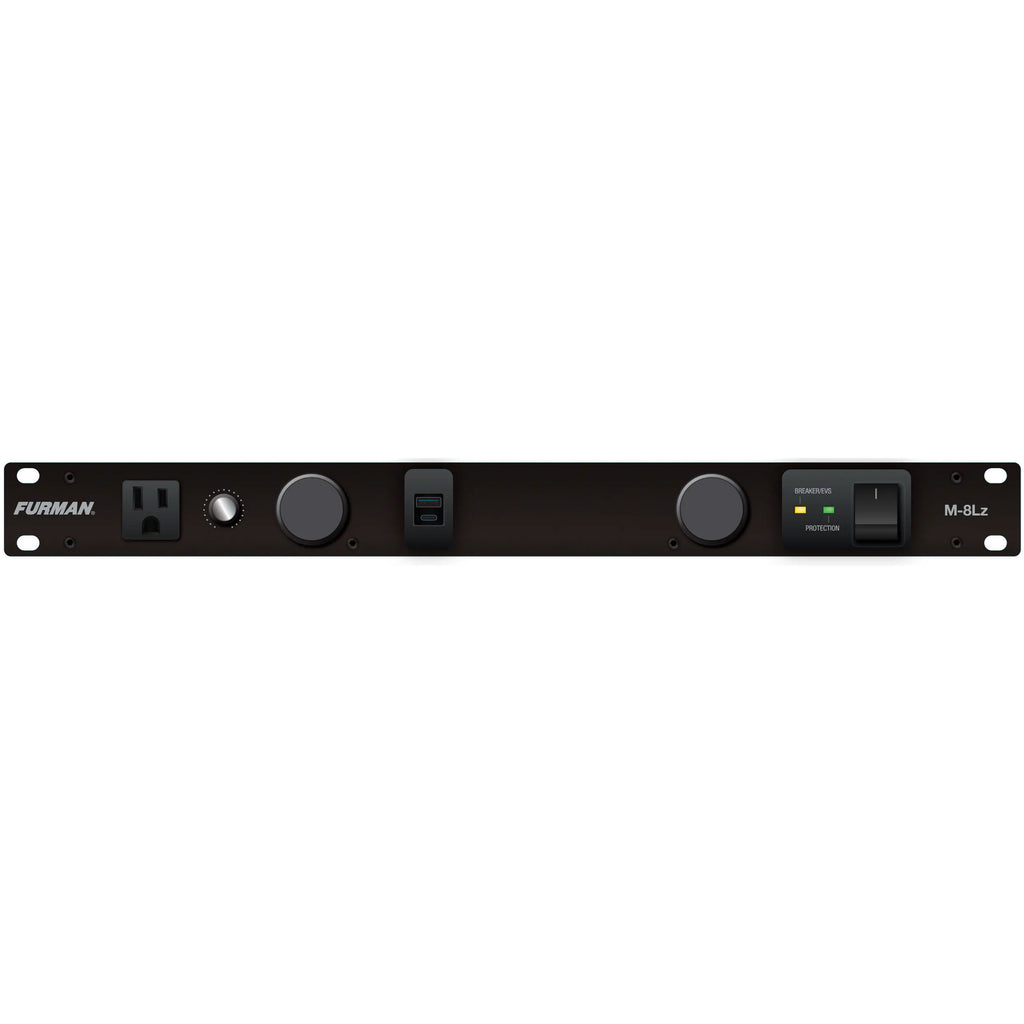

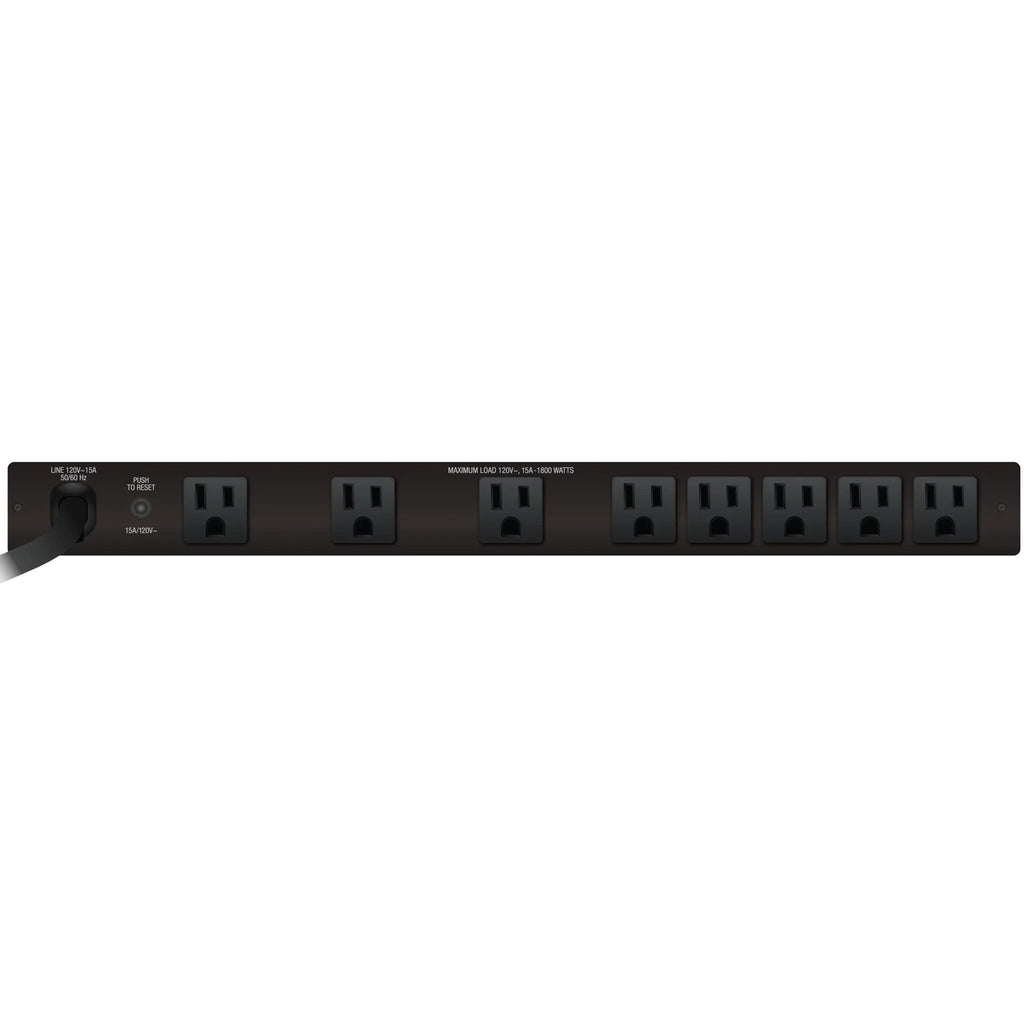

The M-8Lz is the illuminated power conditioner in the Merit Z Series, combining Furman's reliable surge protection with convenient rack visibility. It features two adjustable, pull-out light fixtures that illuminate your rack from above, making it easy to see equipment controls, patch points, and connections in low-light environments like studios and venues. Standard-level surge protection with a front-panel "Protection OK" indicator shields your gear from harmful voltage spikes, while AC noise filtration reduces RFI/EMI interference for cleaner, more stable power. The M-8Lz includes Furman Extreme Voltage Shutdown (EVS) technology that continuously monitors incoming AC and automatically disconnects during dangerous over or under voltage events, protecting your connected equipment from power anomalies. A 15-amp rating with an integrated circuit breaker, nine rear outlets, fast-charging dual USB-C and USB-A ports and generous wall-wart spacing accommodate multiple rack-mounted devices without blocking adjacent outlets.

Applications:

• RECORDING STUDIOS & HOME STUDIOS
  Pull-out light fixtures illuminate rack equipment and patch bays in dark studio environments, while EVS protection safeguards gear from dangerous voltage events
• LIVE SOUND & TOURING RIGS
  Bright, adjustable rack lights make equipment adjustments easy on dark stages and dimly lit venues, with EVS protecting amps and processors from unstable AC power
• BROADCAST & POST-PRODUCTION
  Clean, filtered power eliminates RFI/EMI interference for quieter audio and video, while the built-in lights reduce eye strain during long sessions
• INSTALLATIONS (BARS, CLUBS & VENUES)
  Pull-out lighting provides convenient rack visibility without external lighting fixtures, and EVS protection defends against unpredictable AC power in older buildings
• AV & RECORDING RACKS
  Front-panel diagnostic LEDs and the "Protection OK" indicator provide at-a-glance power status, with generous wall-wart spacing accommodating bulky power adapters

Specifications:

• Maximum Output Current: 15 Amps
• Line Cords: 3x14 AWG
• Operating Voltage: 120V~50/60Hz
• Spike Protection Mode: Line to neutral
• Energy Dissipation: 126 Joules
• Peak Impluse Current: 6500 Amps
• Maximum Continuous Operating Voltage: 225 VAC RMS
• Maximum Clamping Voltage: 455 Volts
• Noise Attenuation: Greater than 20dB, 200kHz-10MHz
• Under-voltage Shutoff: 85VAC +/- 5%
• Over-voltage Shutoff: 140VAC +/- 5%
• Weight: 7.28 lb/3.3 kg
• Dimensions: 1.75"h x 19"w x 7.5"
