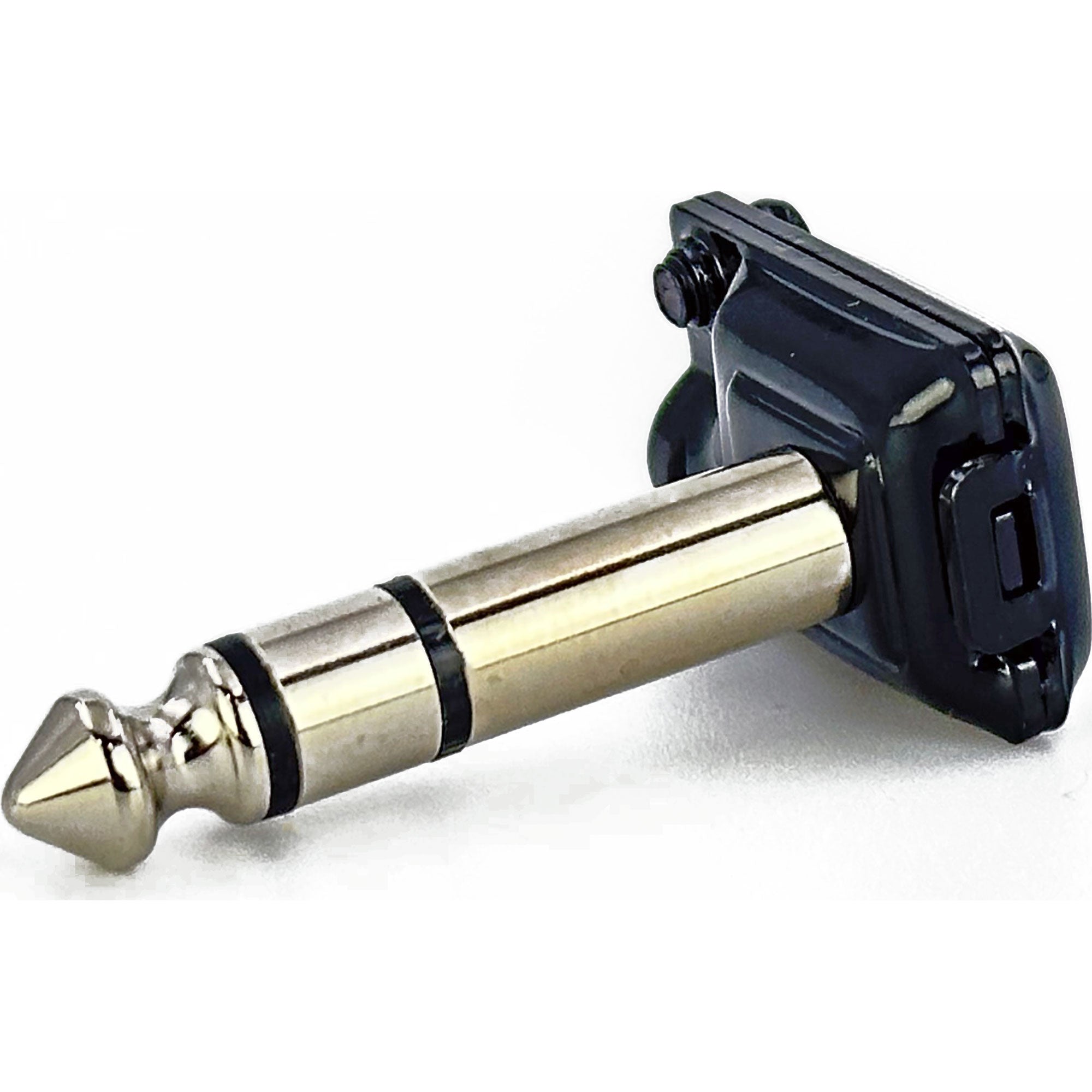

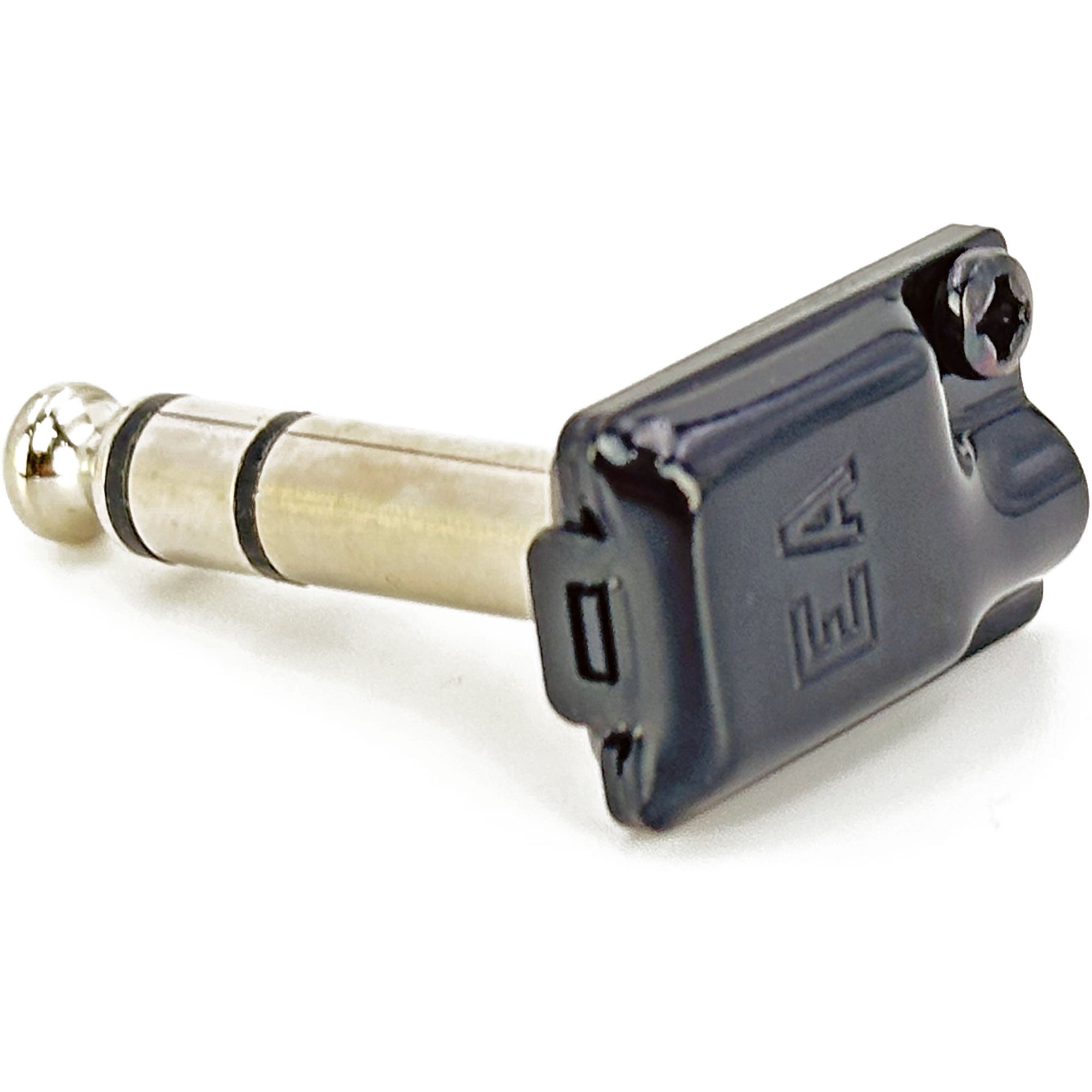

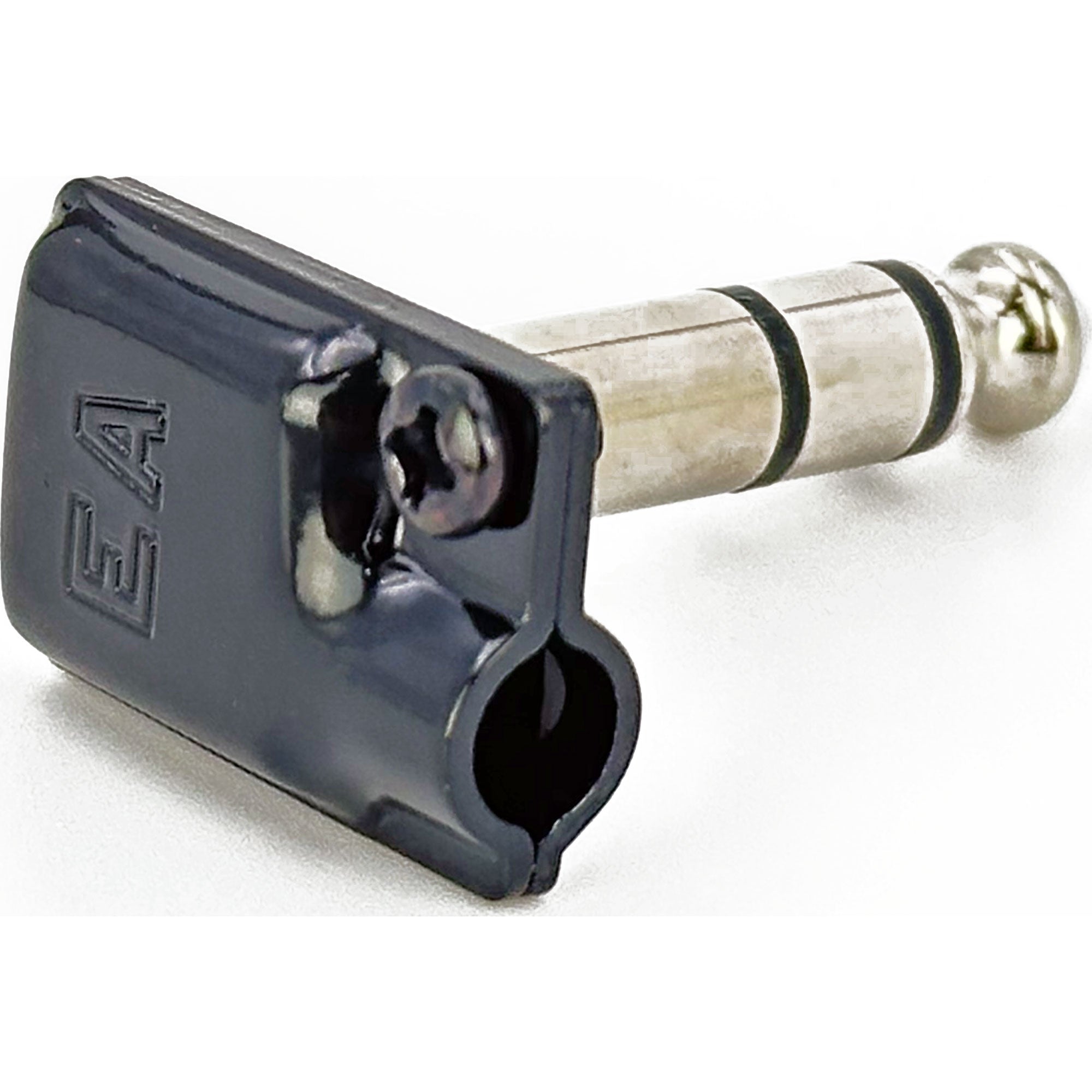

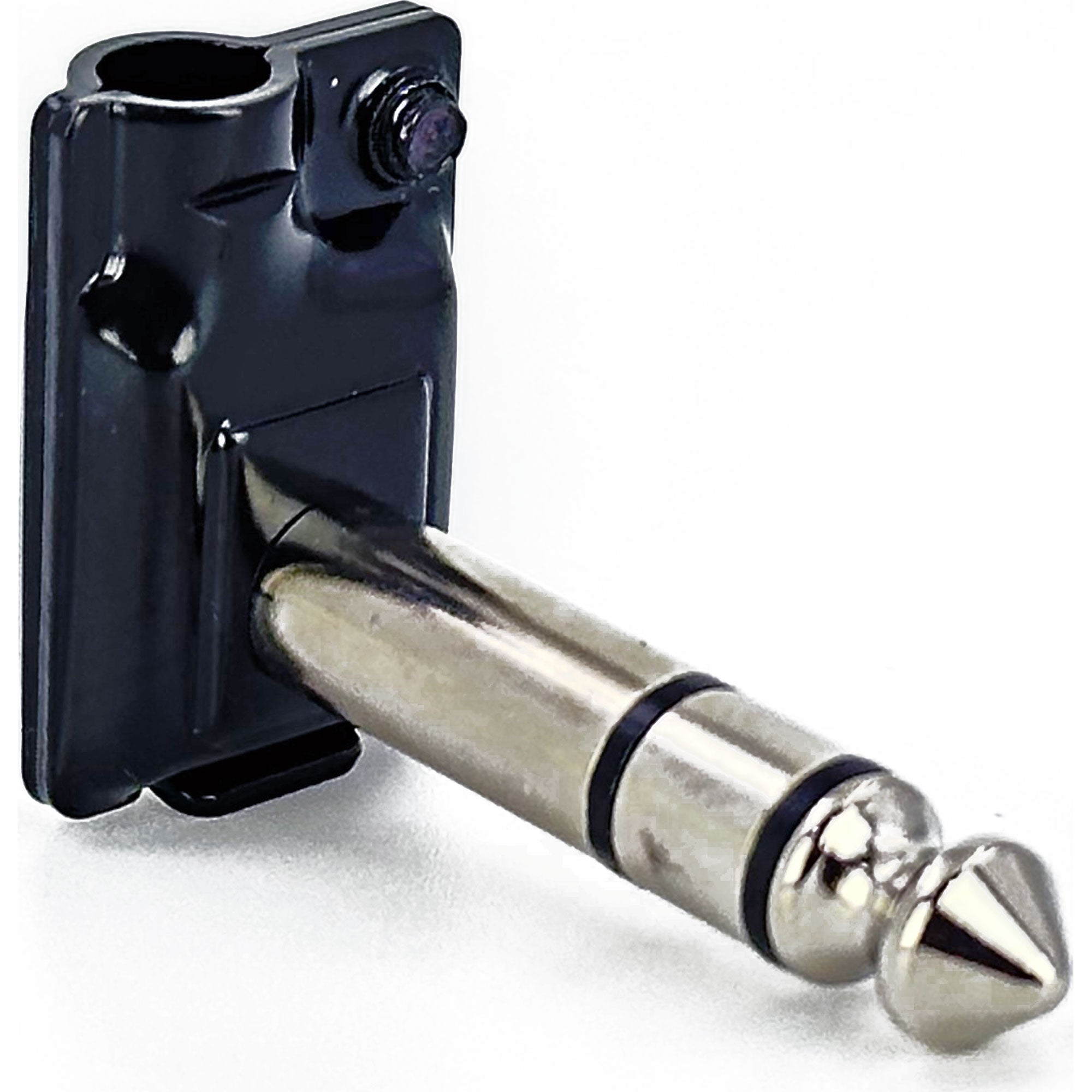

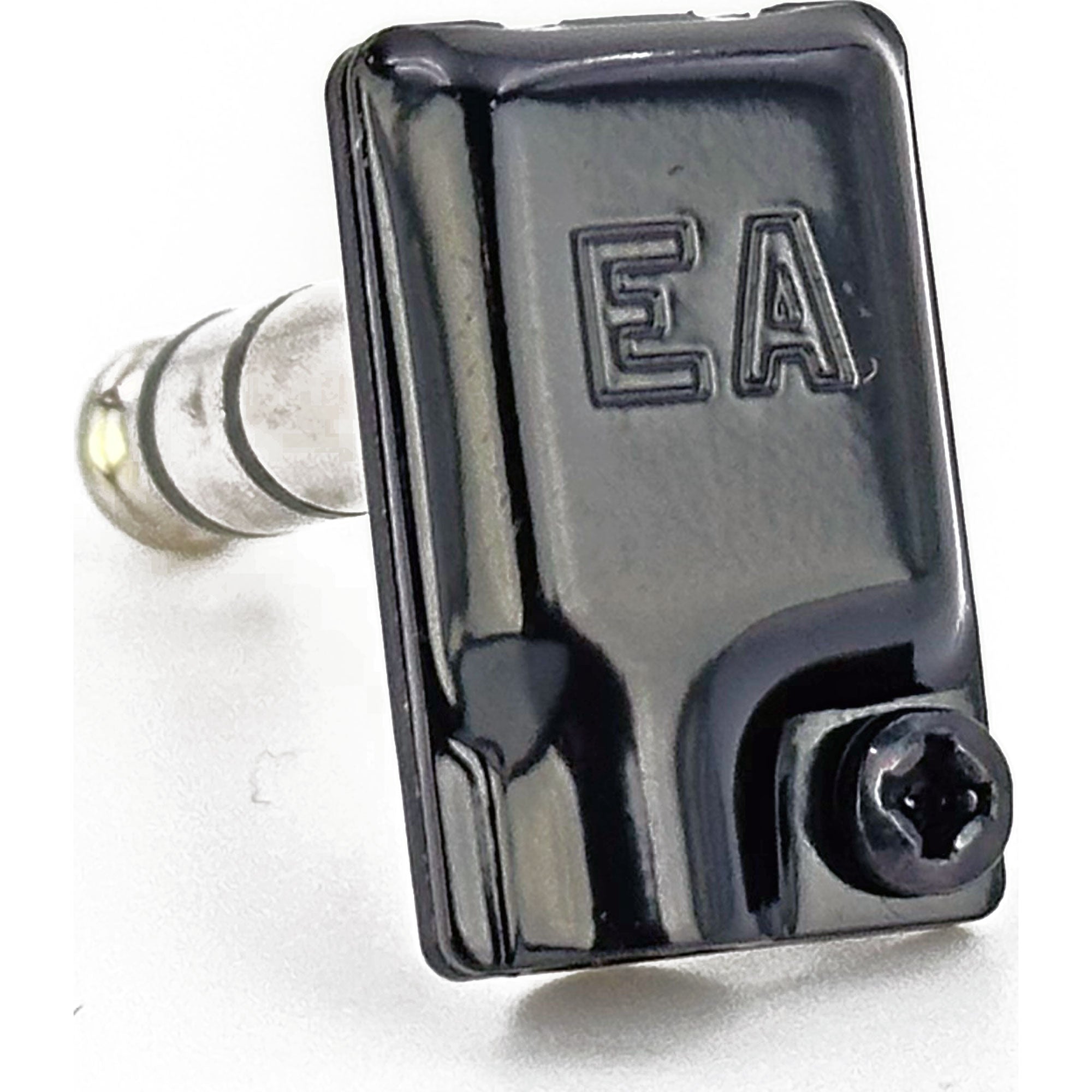

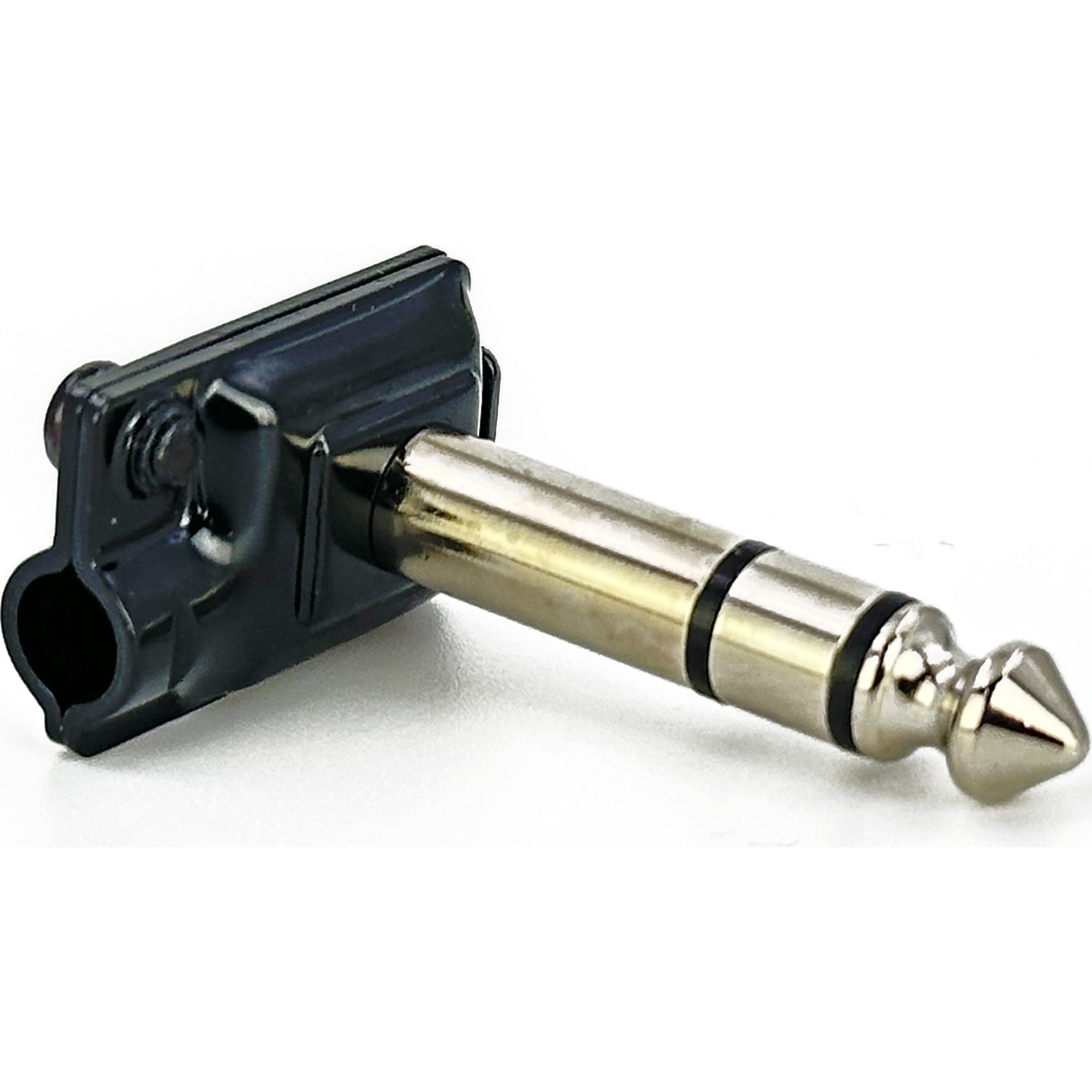

Evidence Audio ESP-RA-TRS Tiny Pancake Right-Angle 1/4" TRS Stereo Cable Plug (5mm Cable)

For stereo/balanced cables with an outer diameter of about 5mm such as Mogami W2552

ESP Soldered Plug the Smallest Pancake Connectors for Patch Cables

For those who like to solder their patch cables with the best parts available. Solder your own patch cables with what you need below.

The ESP-RA is the first solderable 1/4" phone connector from Evidence Audio and designed (like all of our products) with the primary purpose to sound demonstrably better than anything in it's class.

MATERIALS

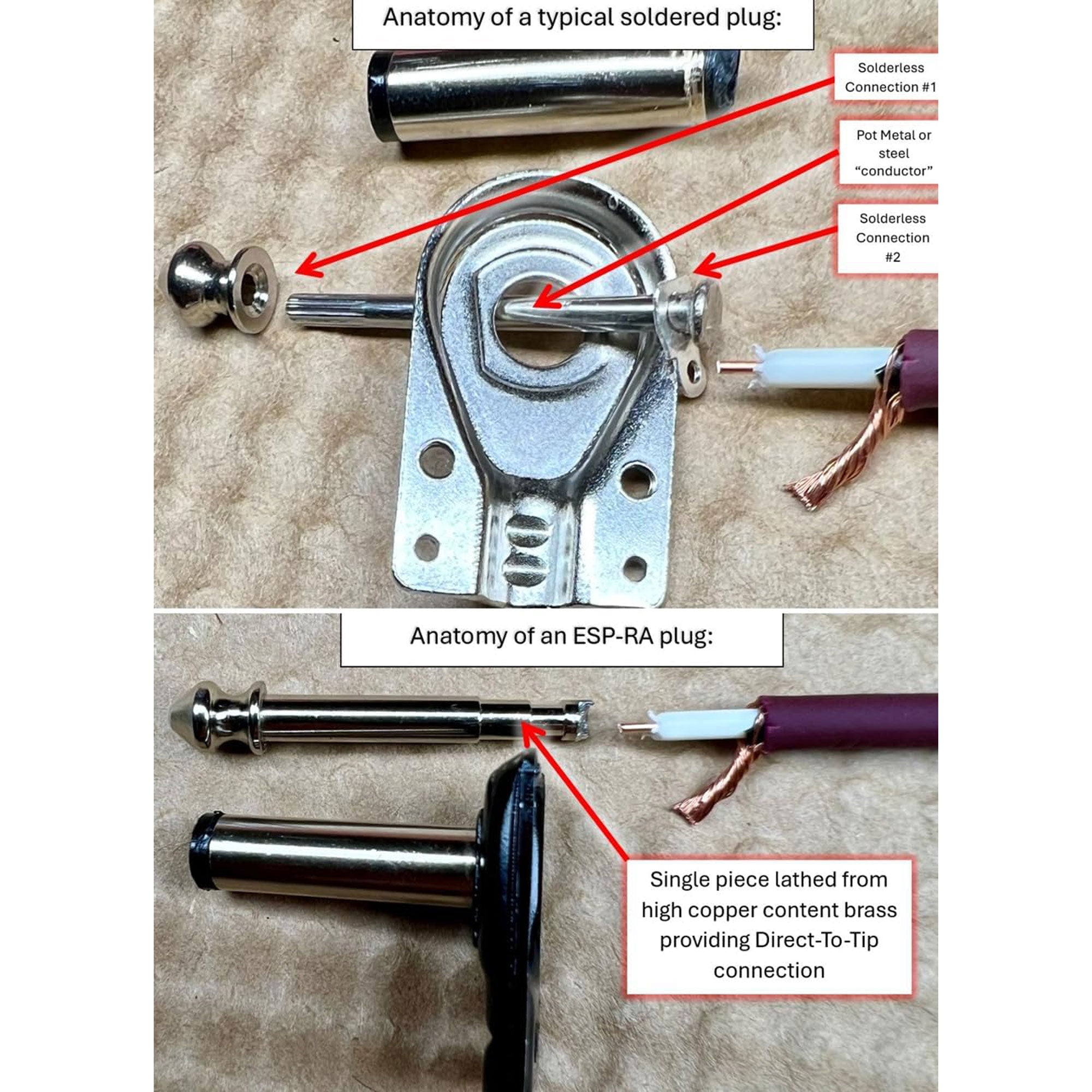

The contact points of the ESP-RA are machined from a high-copper-content brass. Brass offers the appropriate hardness and strength required for a connector with very good conductivity to minimize distortions caused by the cable the plugs are used on.

PATENT-PENDING DESIGN

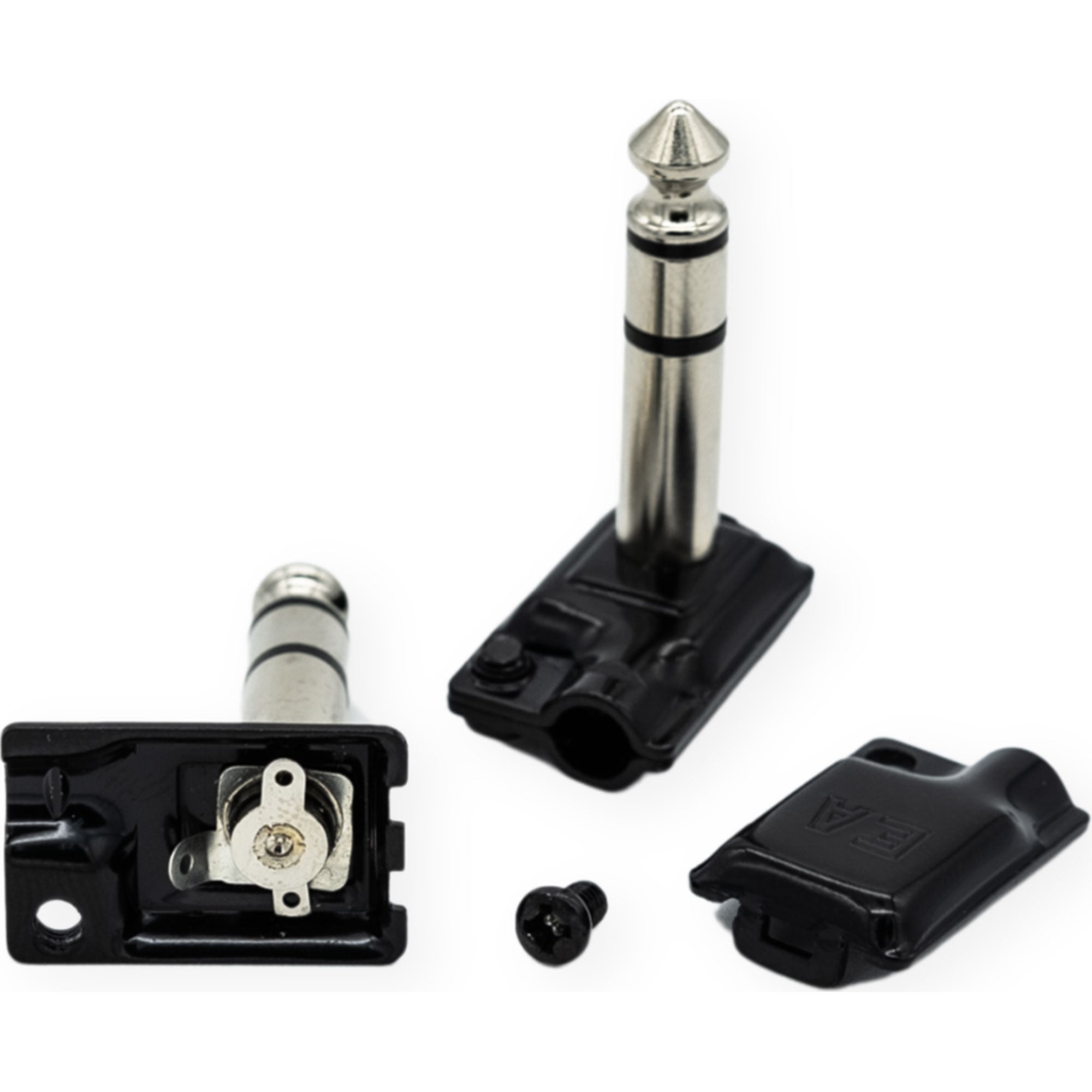

The form factor is akin to a "pancake" style plug, with a patent-pending closure system that allows for the plug to be assembled with one screw instead of two. This allows for a smaller form-factor as well as reduced assembly time.

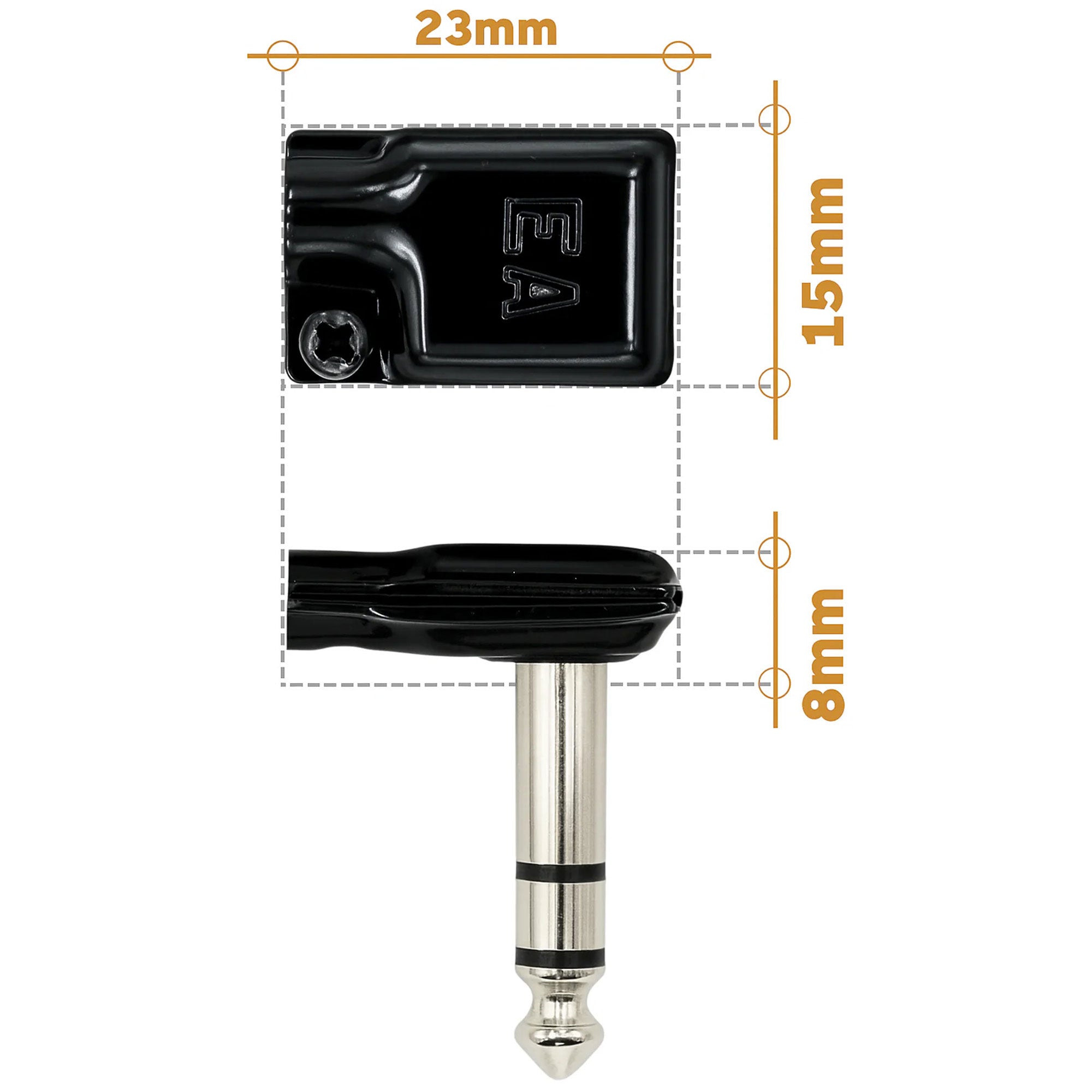

HOUSING SIZE

• Width: 15 mm
• Height: 23 mm
• Depth: 8 mm

No really...these fit EVERYTHING!

Used on live rigs by:

• David Gilmour
• Steve Lukather
• Trey Anastasio

Features:

• Brass is used for the contact points offering higher conductivity and better sound quality compared to the pot metal and steel used in low quality connectors.

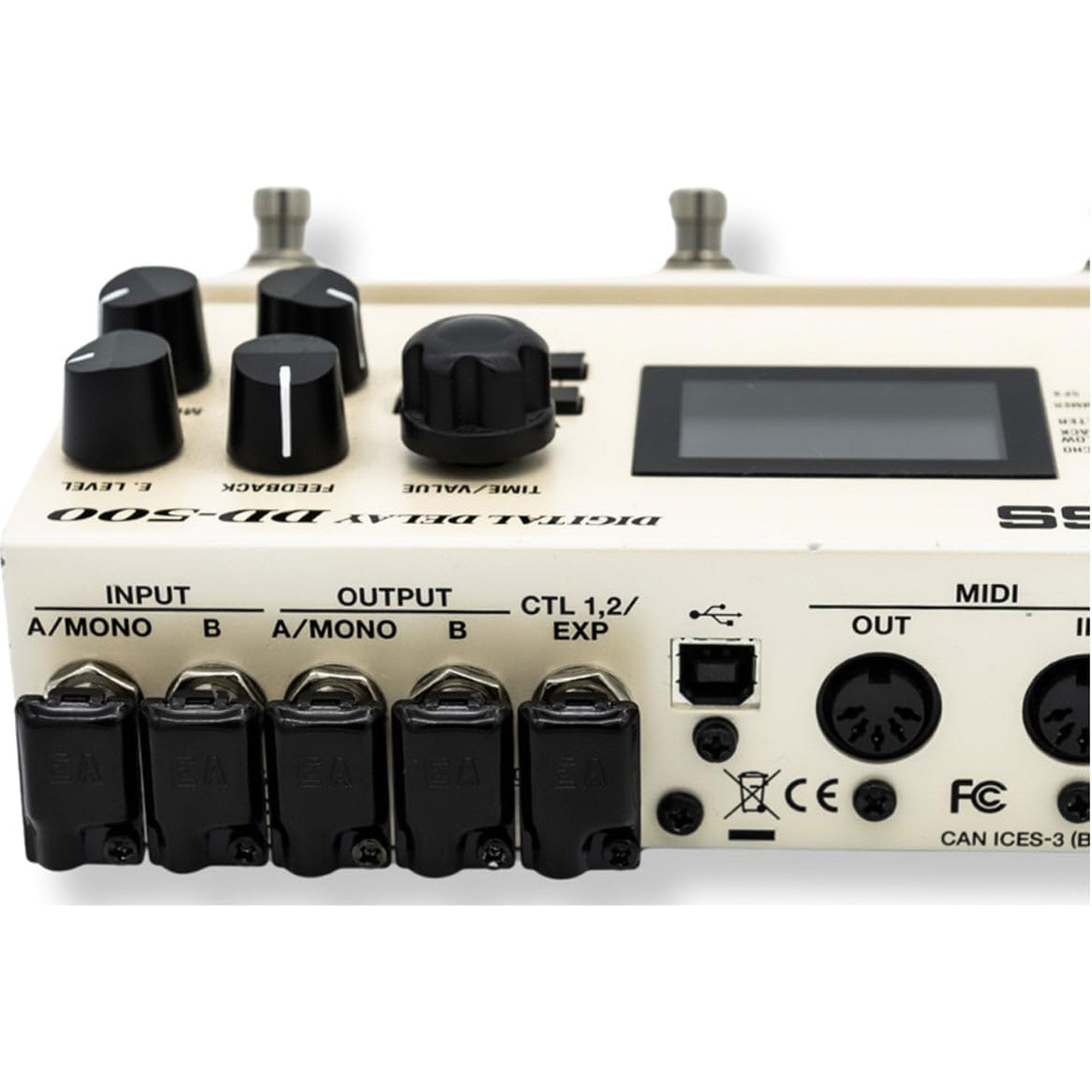

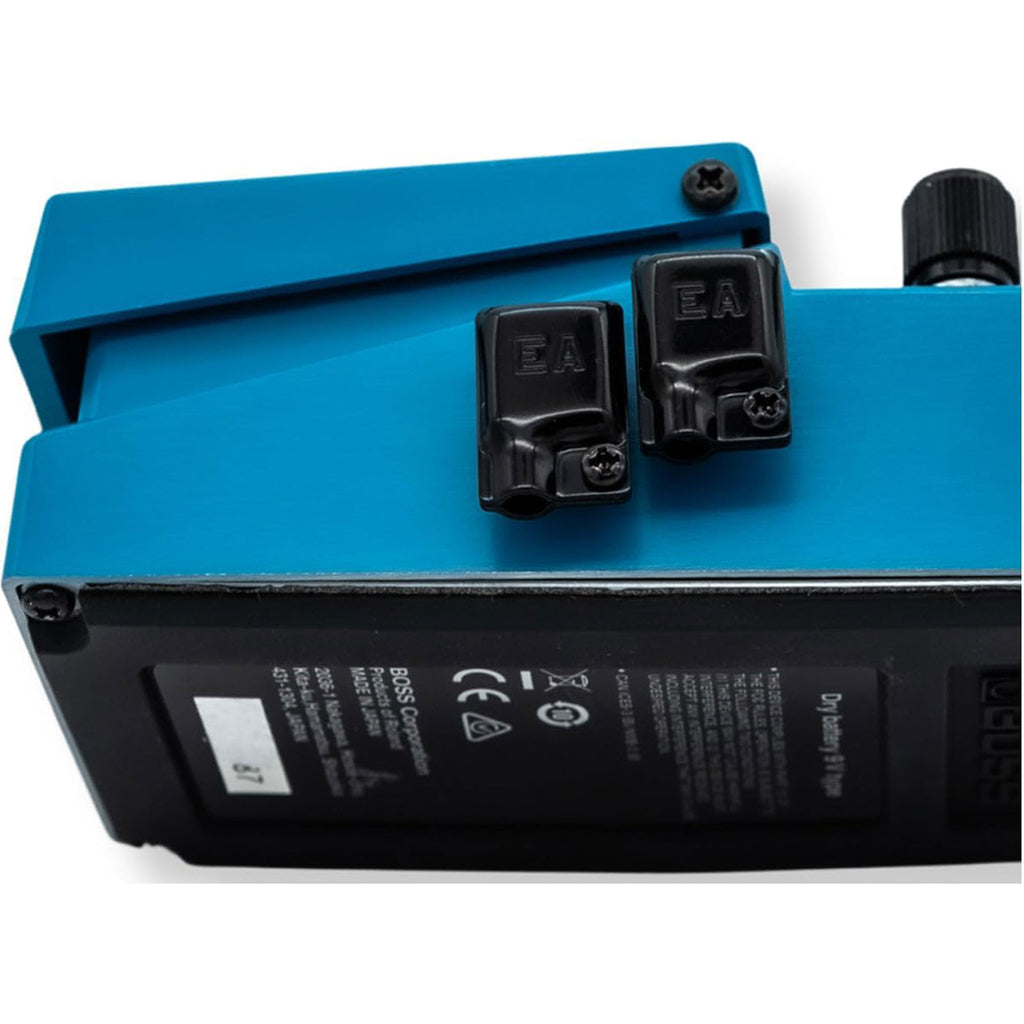

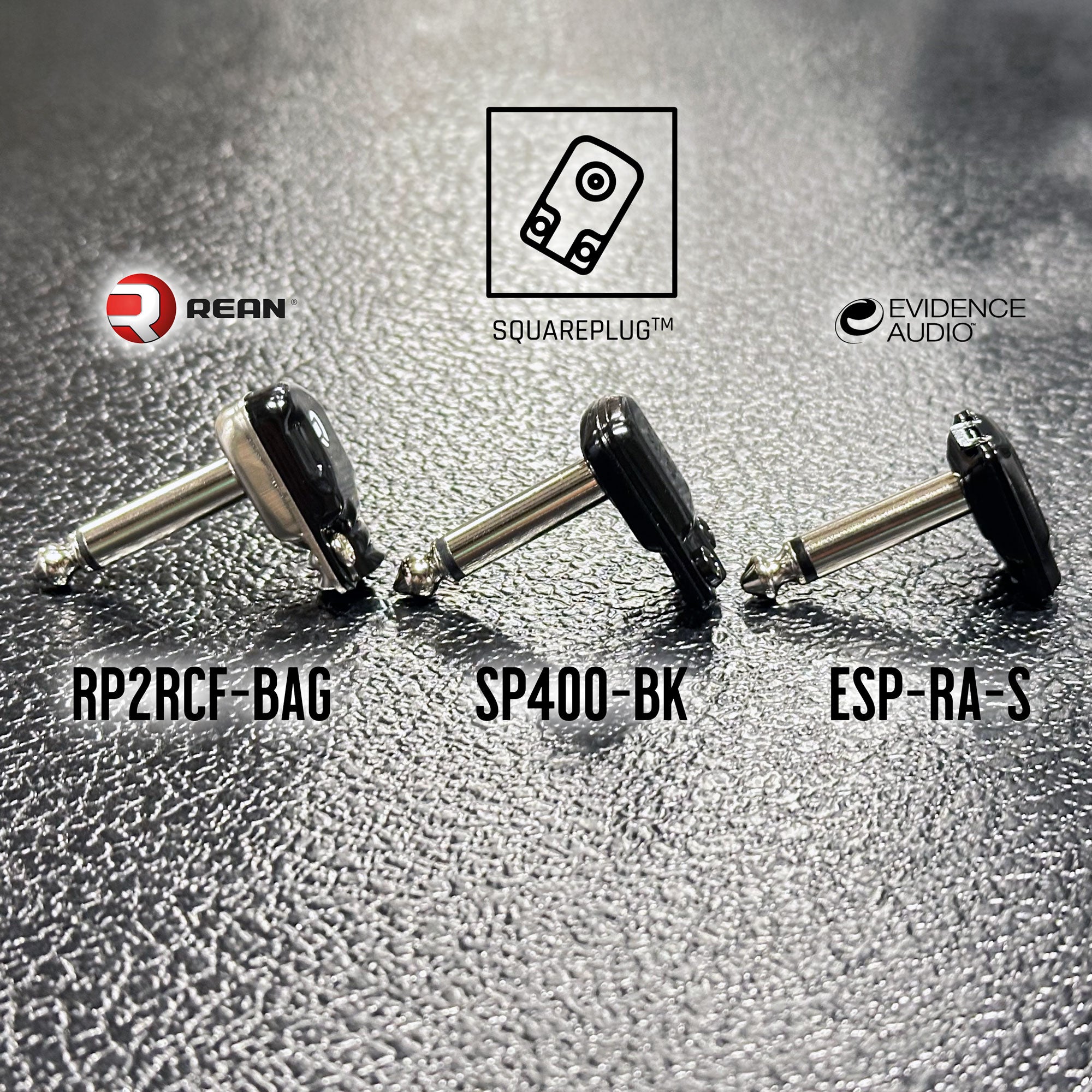

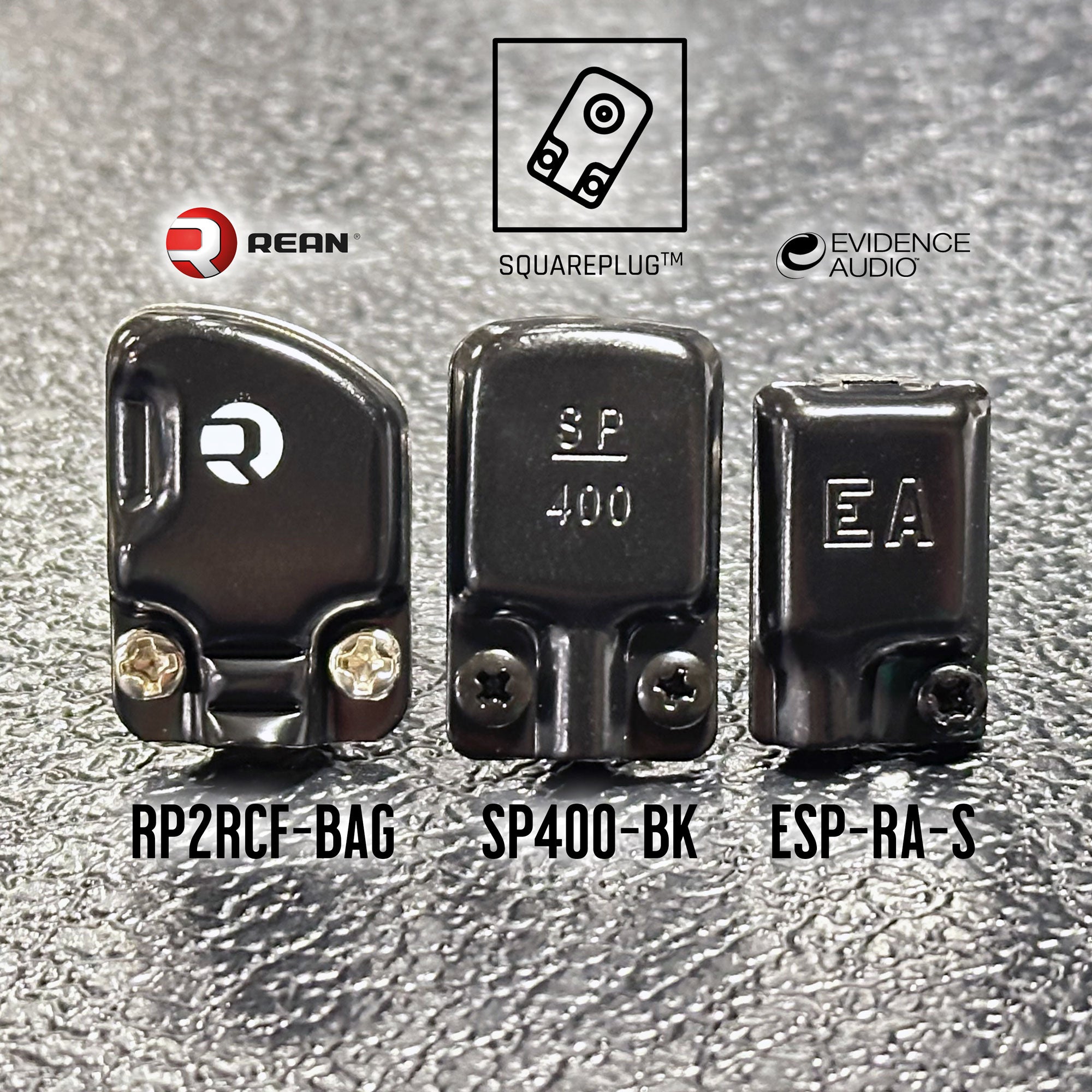

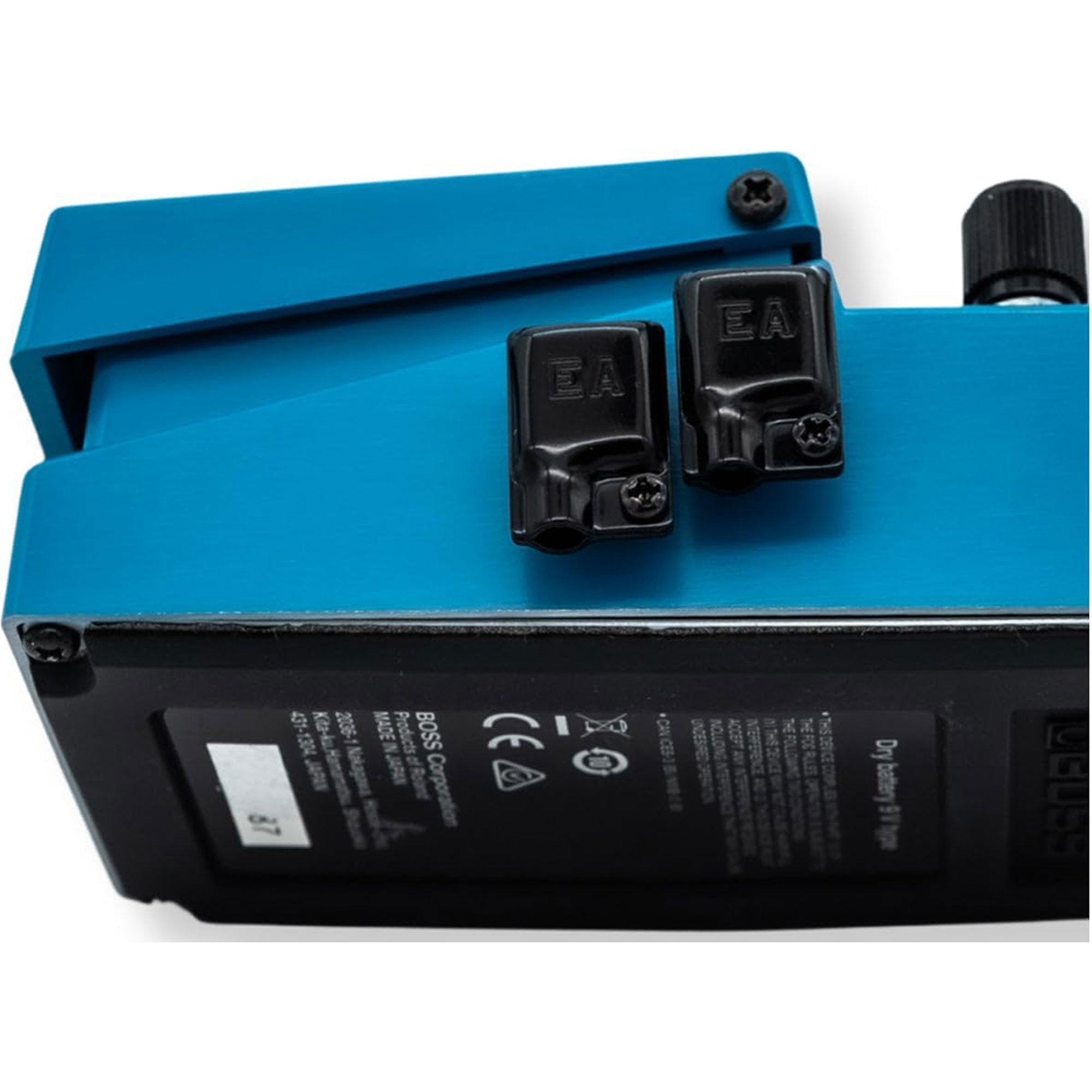

• Smallest on the market allowing use with switching systems and pedals where the jacks are close together. Where straight plugs were needed with some switchers in the past, angled connectors may now be used instead, freeing up space behind the switcher on a pedalboard.
• All plugs measure 23mm by 15mm by 8mm
• Patent-Pending single screw with latch reduces assembly time

Specifications:

• Model Name: ESP-RA-TRS
• Application: Stereo/Balanced/Tip-Ring-Sleeve
• Cable OD size: Approx 5mm
• Contact materials: Brass with direct Nickel Plating
• Works with: Mogami 2552
• GTIN: 00850045959388
