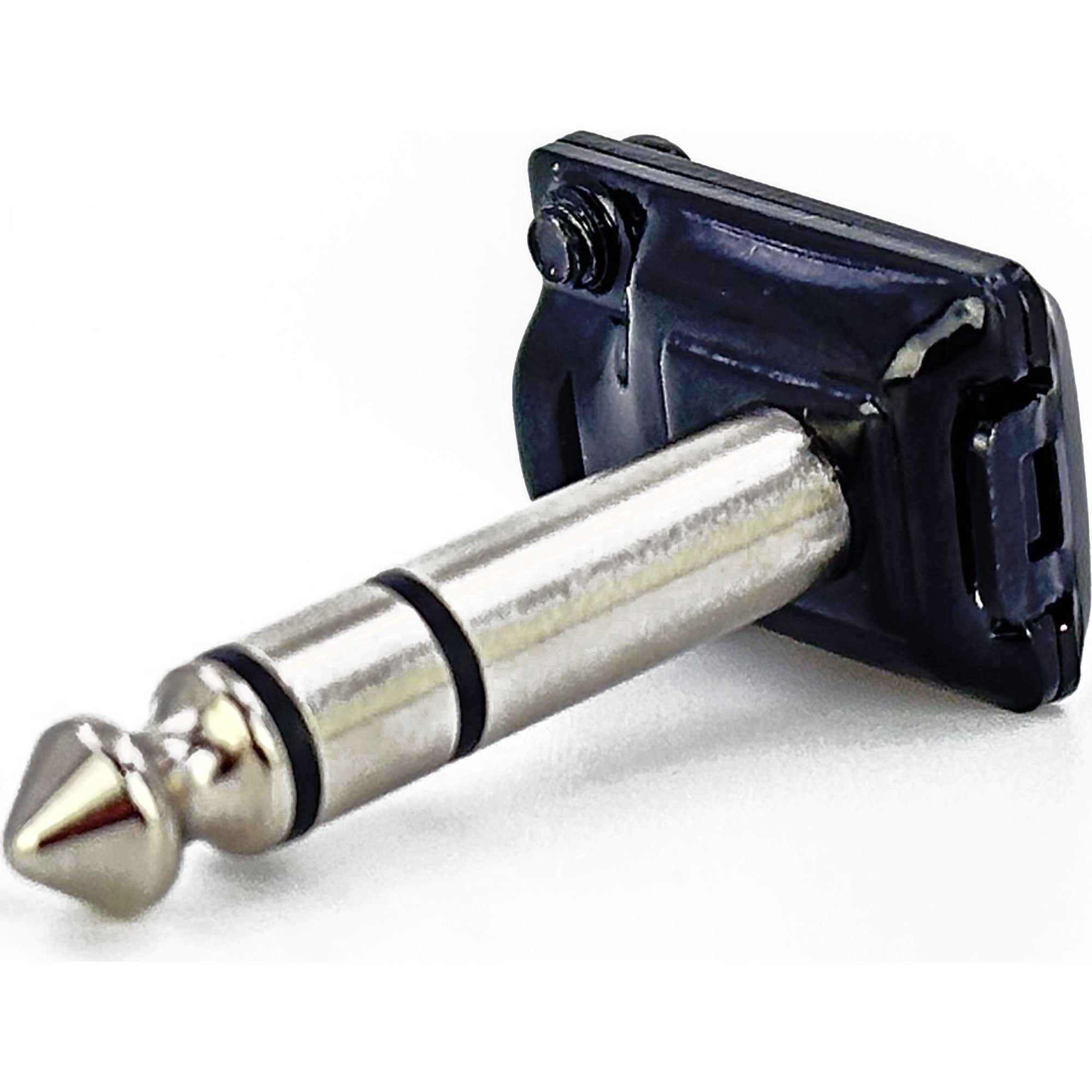

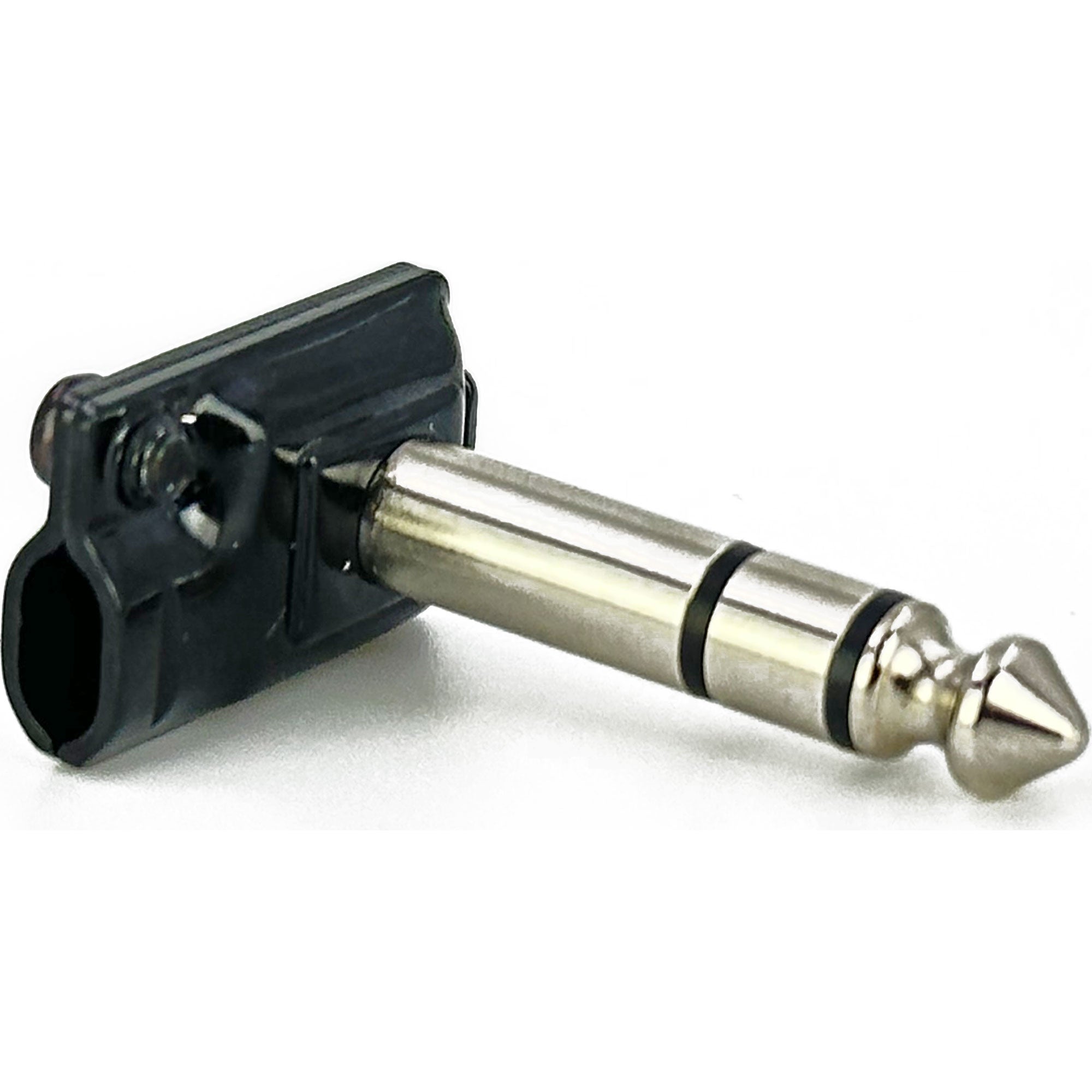

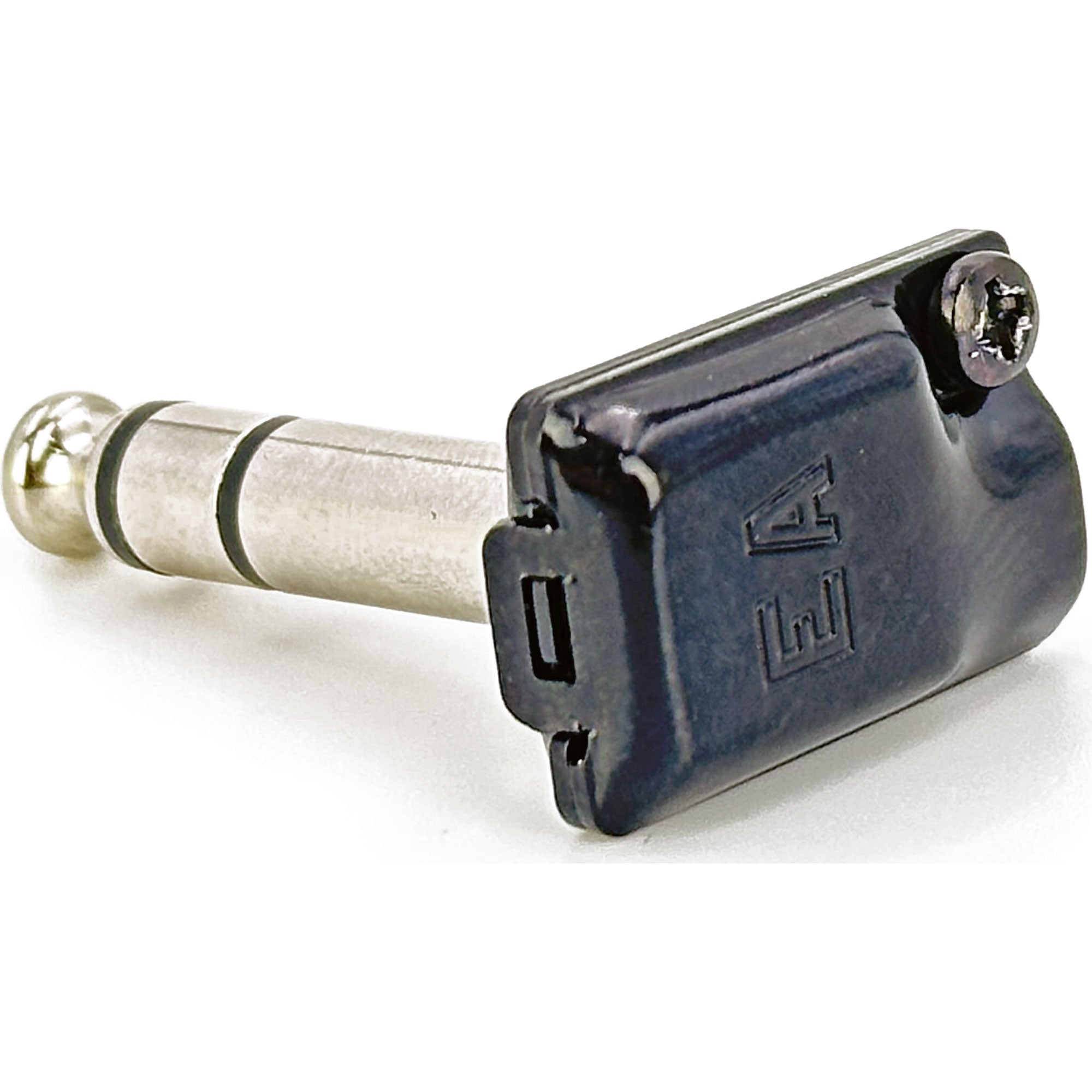

Evidence Audio ESP-RA-TRS-DM Tiny Pancake Right-Angle 1/4" TRS Stereo Cable Plug (Dual 4mm Cable)

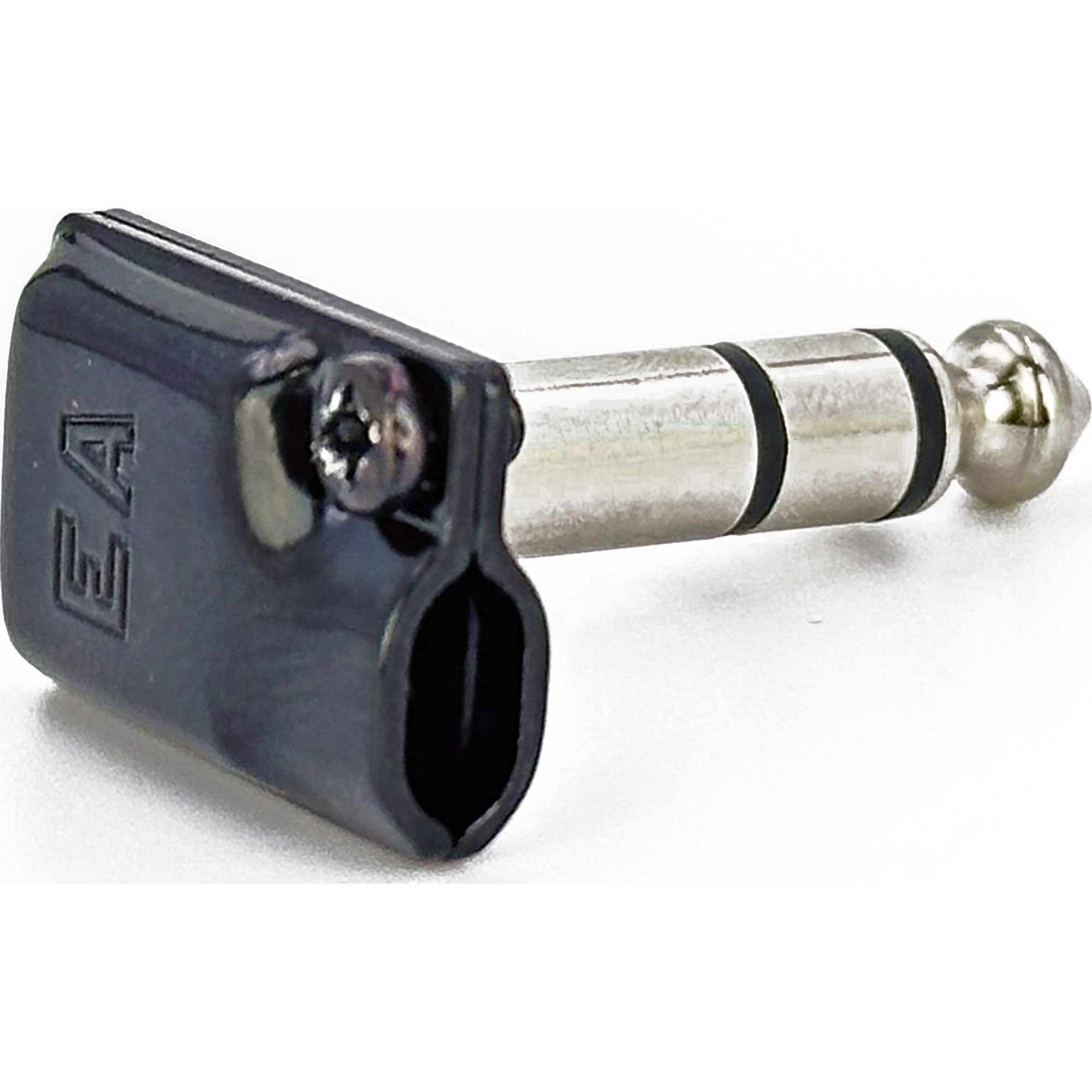

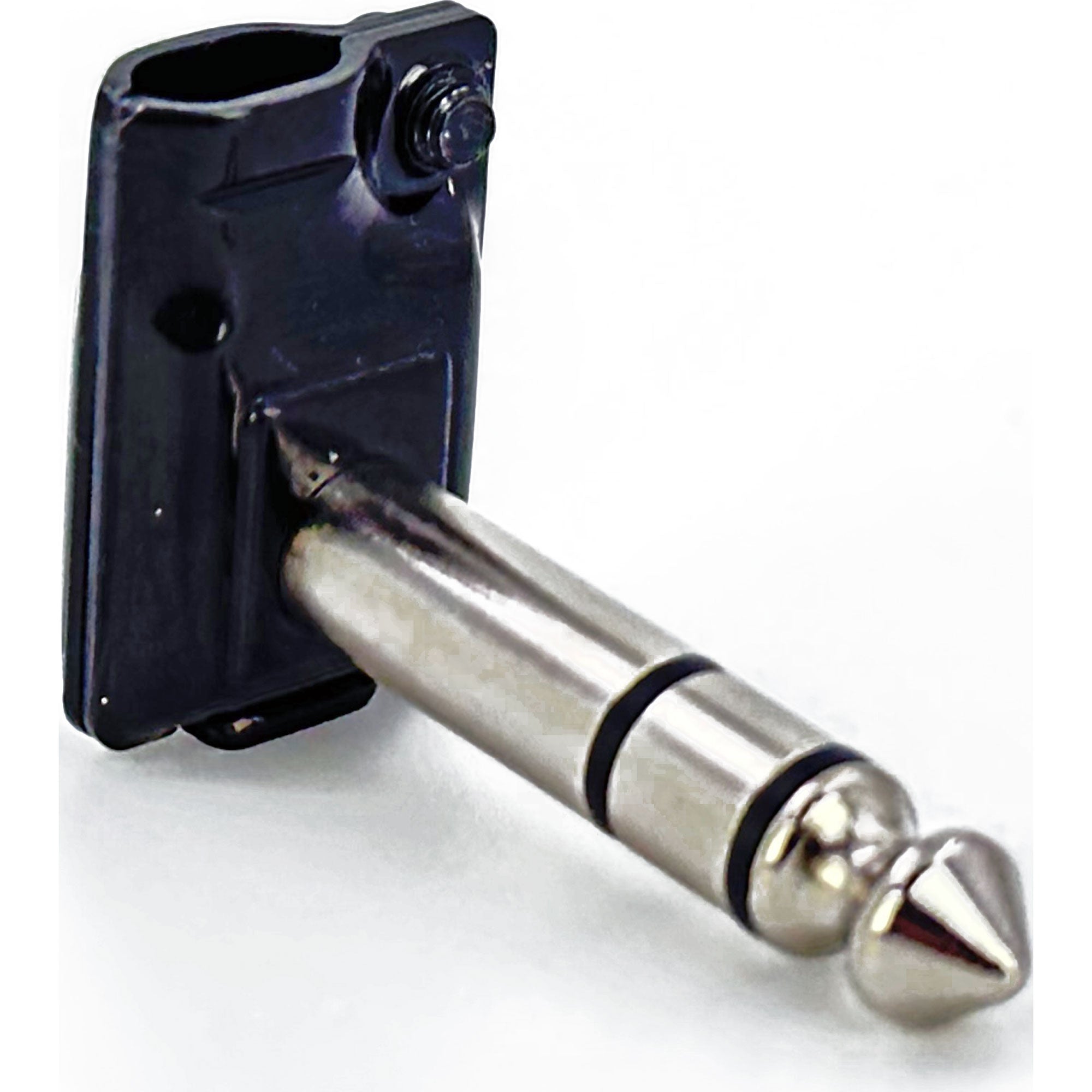

The Evidence Audio ESP-RA-TRS-DM is a compact, solderable 1/4-inch TRS right-angle plug designed to accommodate two mono cables, each approximately 4 mm in outer diameter. Its low-profile pancake housing makes it a practical choice for custom dual-mono cable assemblies where space around equipment jacks is limited.

Designed for Two Mono Cables

This dual-mono version accepts two cable runs side by side. Evidence Audio lists Mogami W2528 and two runs of its Monorail or Blackrock cable as examples. Choose the ESP-RA-TRS-DM when your build requires two approximately 4 mm mono cables rather than a single stereo or balanced cable.

Compact Housing, Simplified Assembly

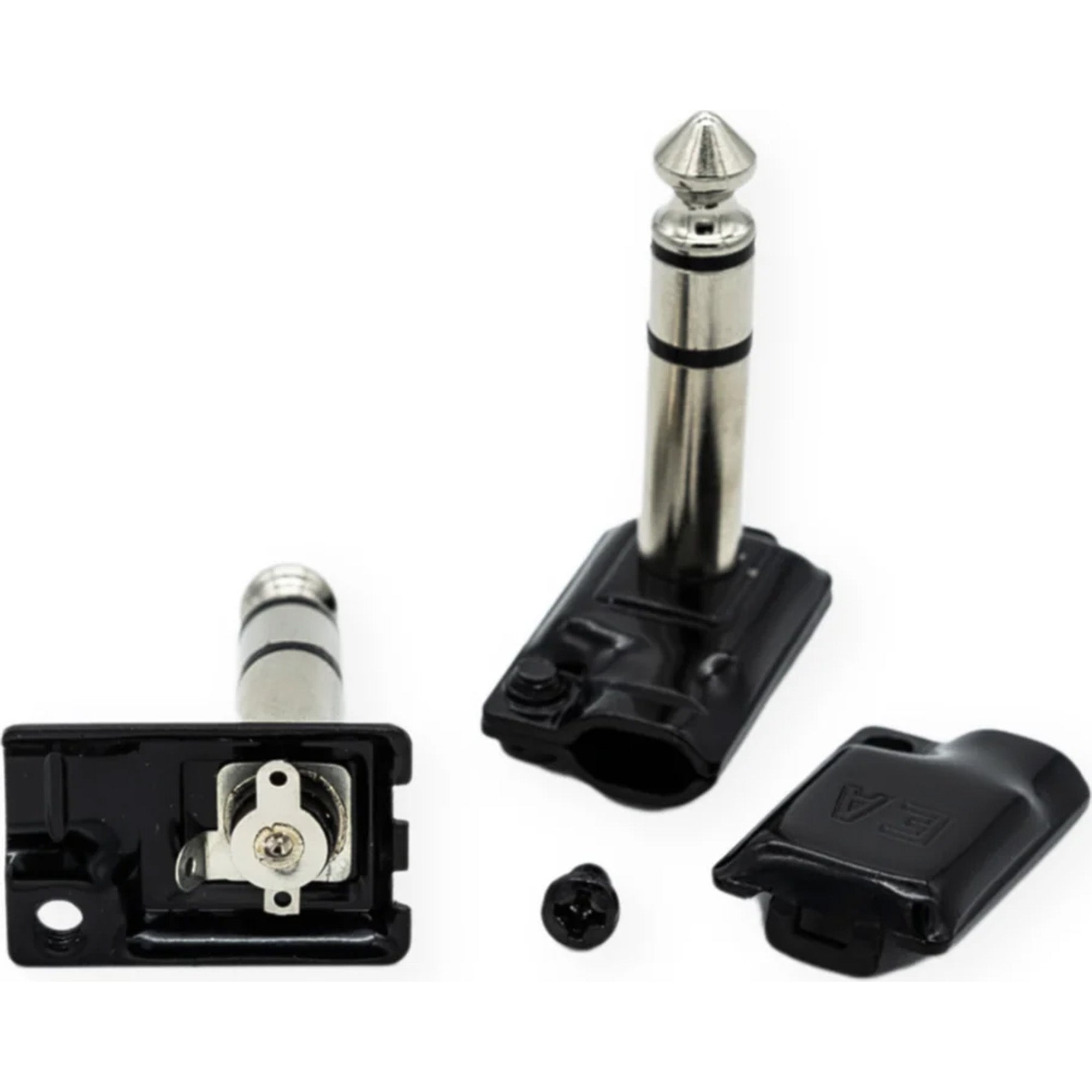

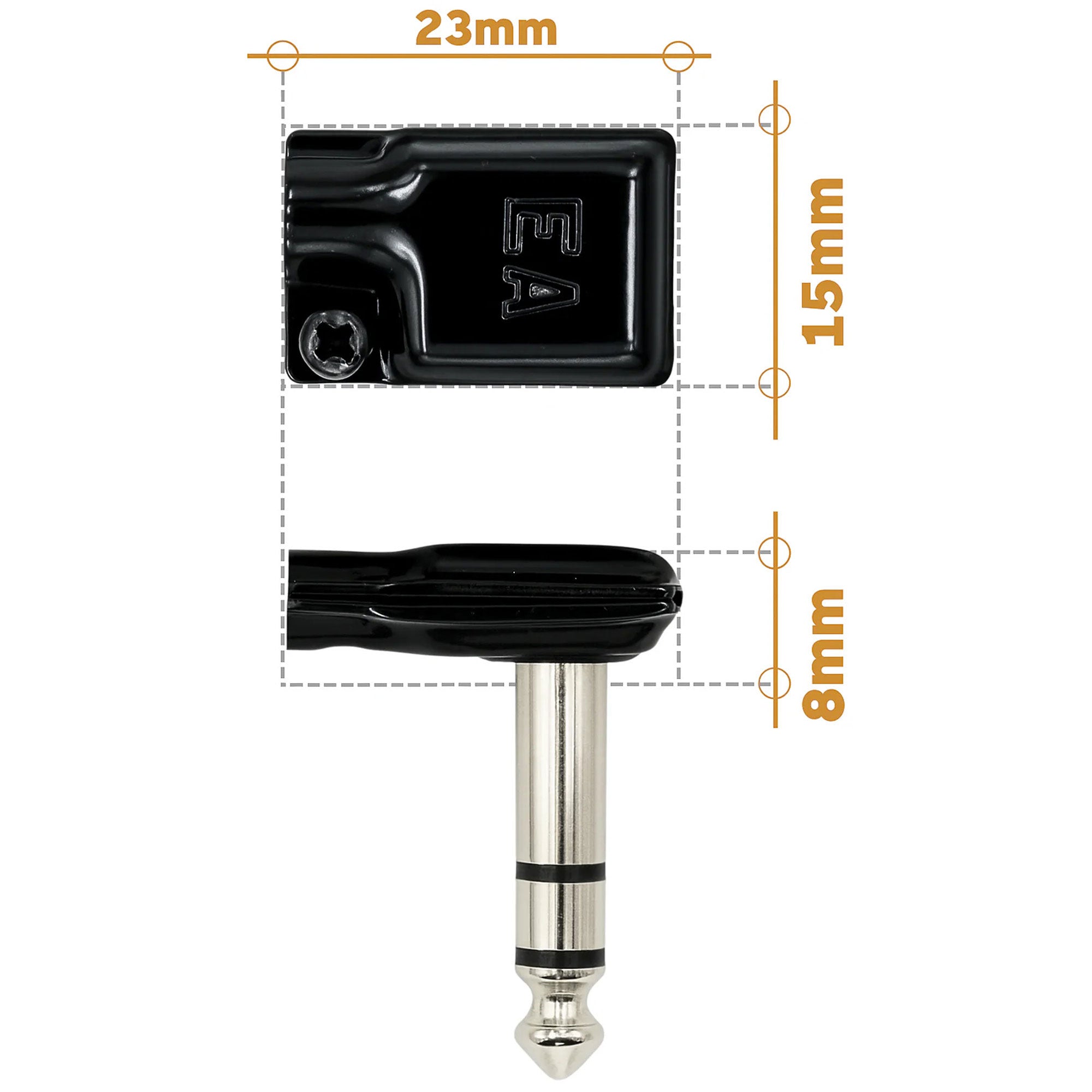

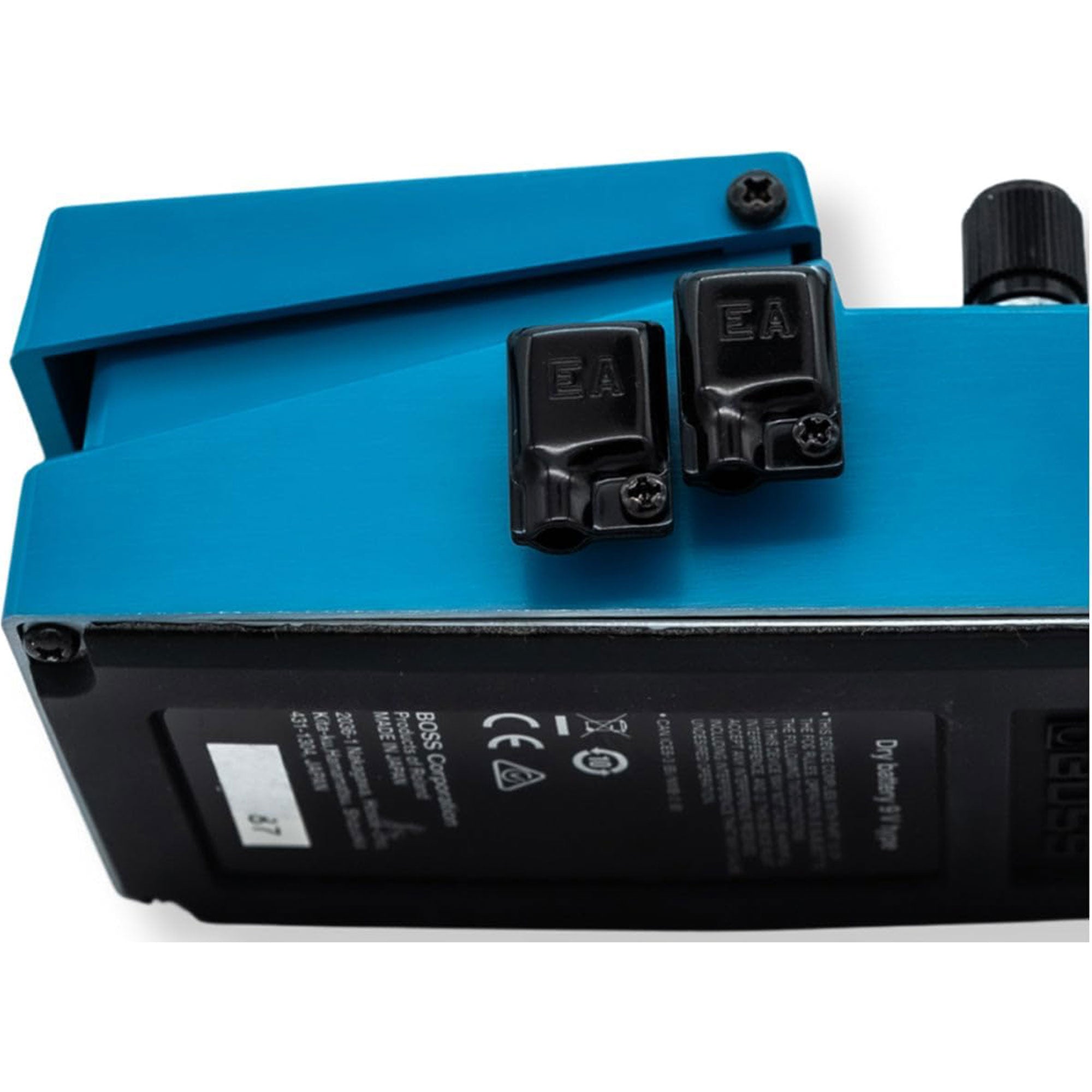

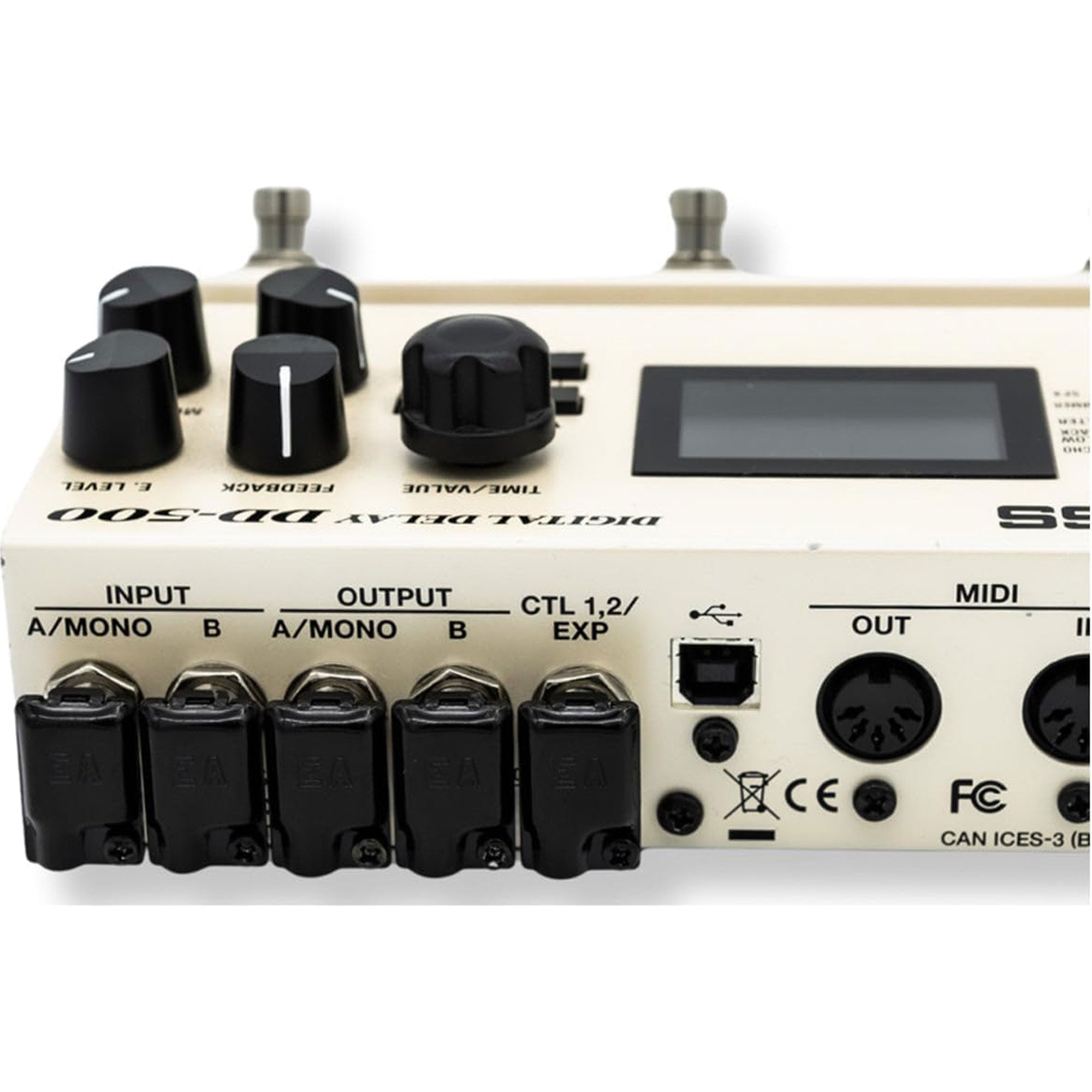

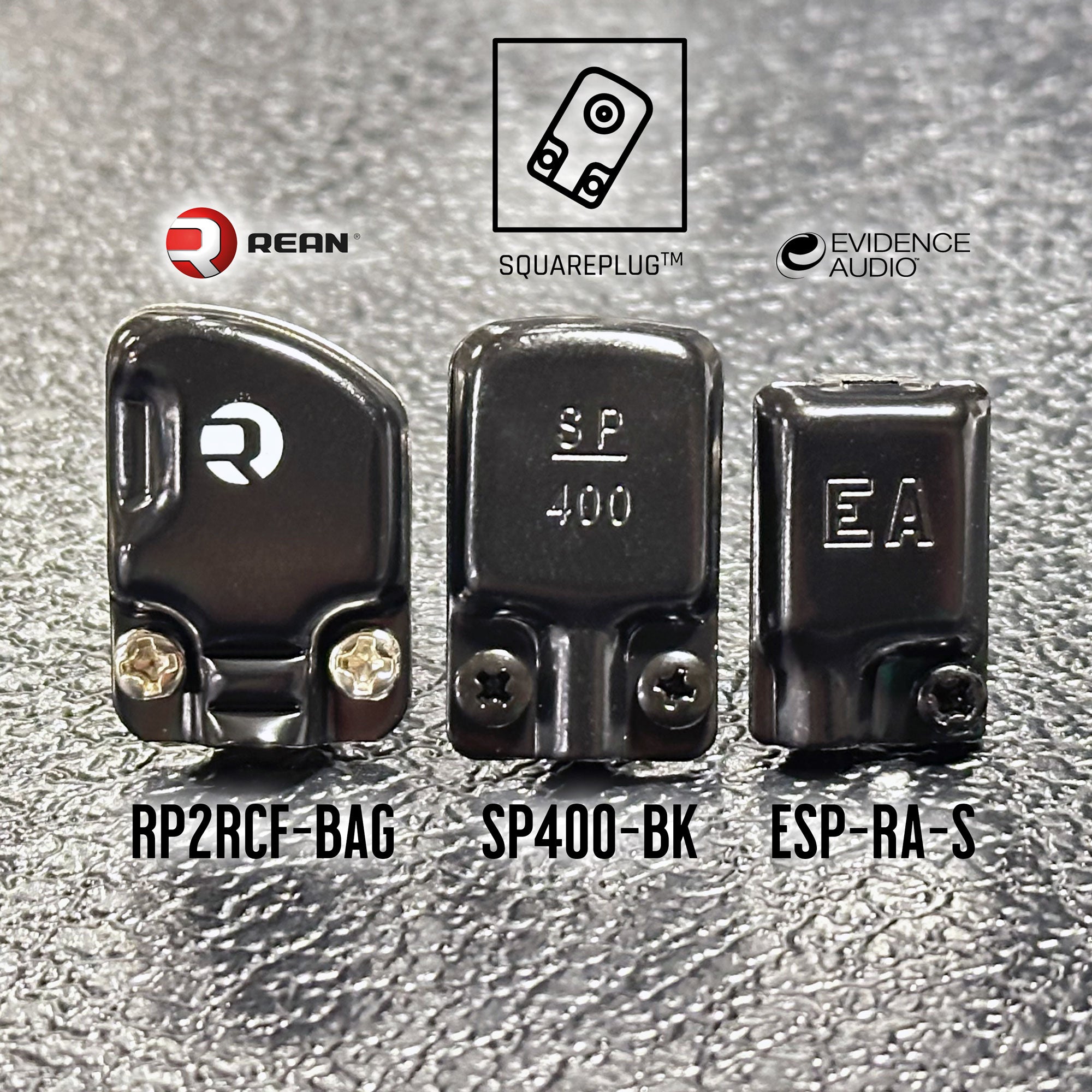

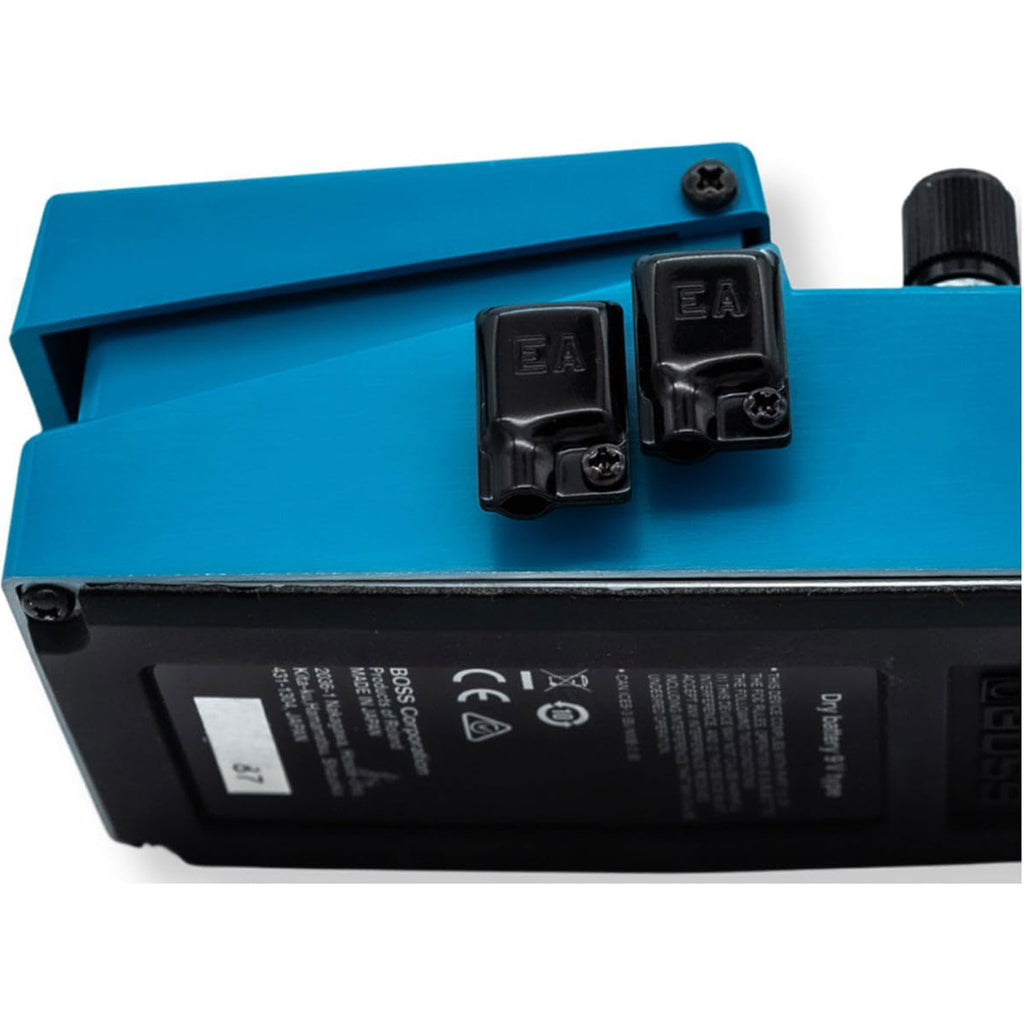

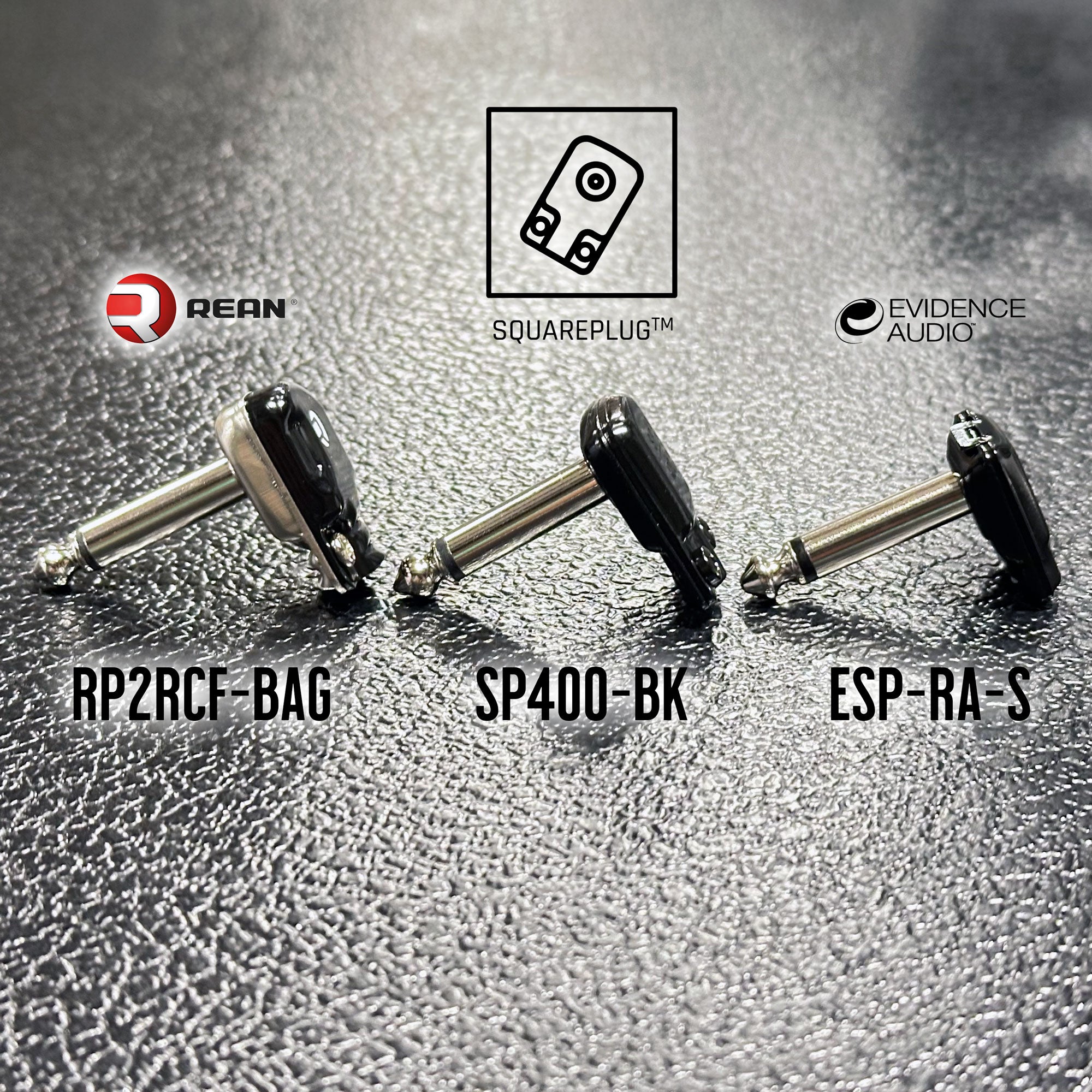

The housing measures 15 mm wide by 23 mm high by 8 mm deep. Evidence Audio's single-screw closure system replaces the two-screw arrangement commonly associated with pancake-style plugs, helping reduce assembly time while keeping the connector compact. Check the available clearance around your equipment's jacks before selecting a connector for tightly spaced connections.

High-Copper-Content Brass Contacts

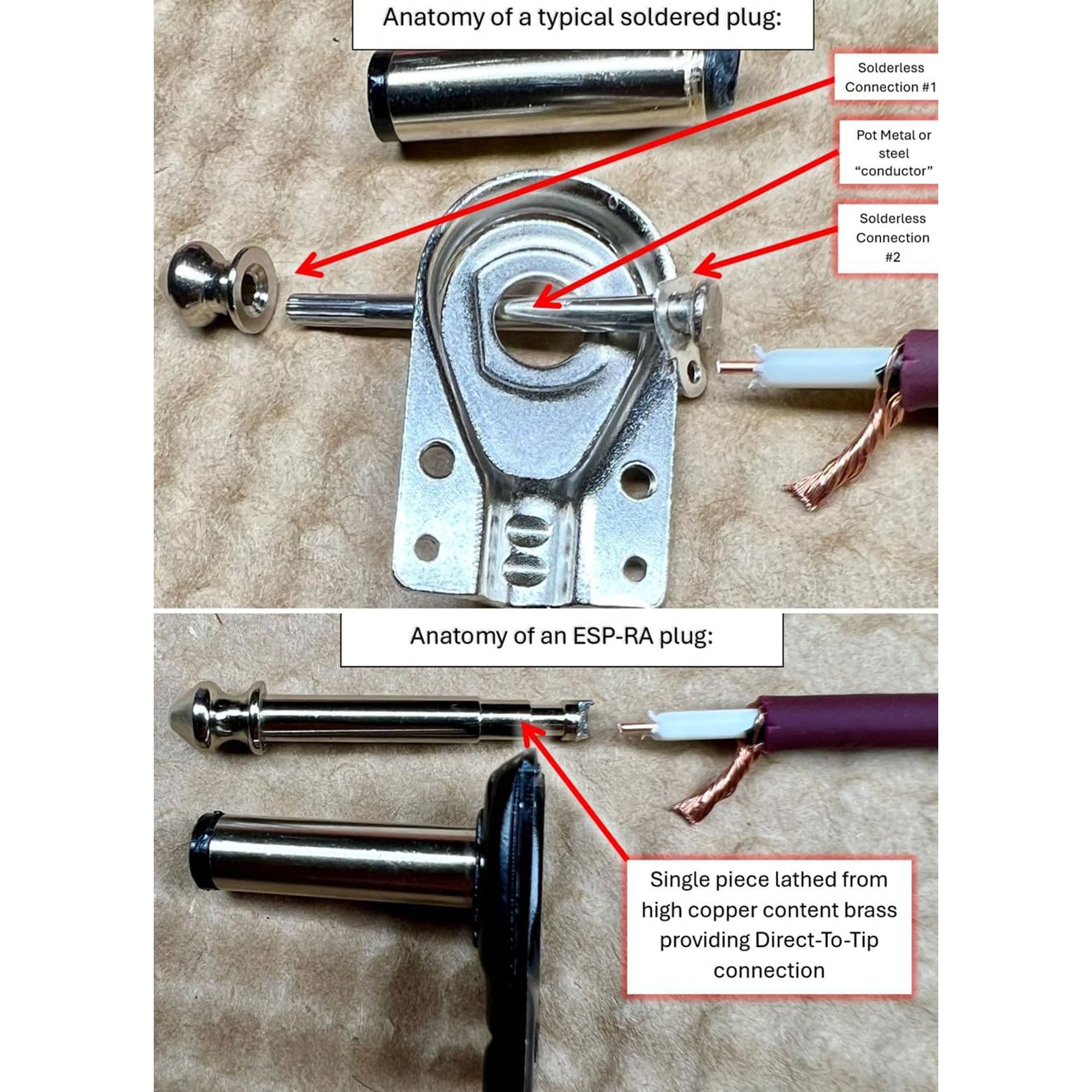

The ESP-RA series uses contact points machined from high-copper-content brass, selected to balance electrical conductivity with the hardness and strength needed in a connector. Soldered termination lets cable builders assemble custom connections to suit their wiring requirements.

Key Features

• 1/4-inch TRS right-angle cable plug
• Dual-mono cable entry for two cables approximately 4 mm in outer diameter each
• Compact pancake-style housing for space-conscious cable builds
• High-copper-content machined brass contact points
• Single-screw closure system for simplified assembly
• Soldered termination for custom cable construction

Specifications

• Model: ESP-RA-TRS-DM
• Connector: 1/4-inch TRS male
• Orientation: Right-angle
• Cable compatibility: Two mono cables, approximately 4 mm outer diameter each
• Manufacturer-listed cable examples: Mogami W2528; two runs of Evidence Audio Monorail or Blackrock
• Contact material: High-copper-content brass
• Housing dimensions: 15 mm wide x 23 mm high x 8 mm deep
• Assembly: Solder termination with single-screw housing closure

Assembly note: When using Evidence Audio Blackrock cable, its enamel-coated conductor strands must be prepared before soldering. Follow Evidence Audio's assembly guidance for this cable.
