Description

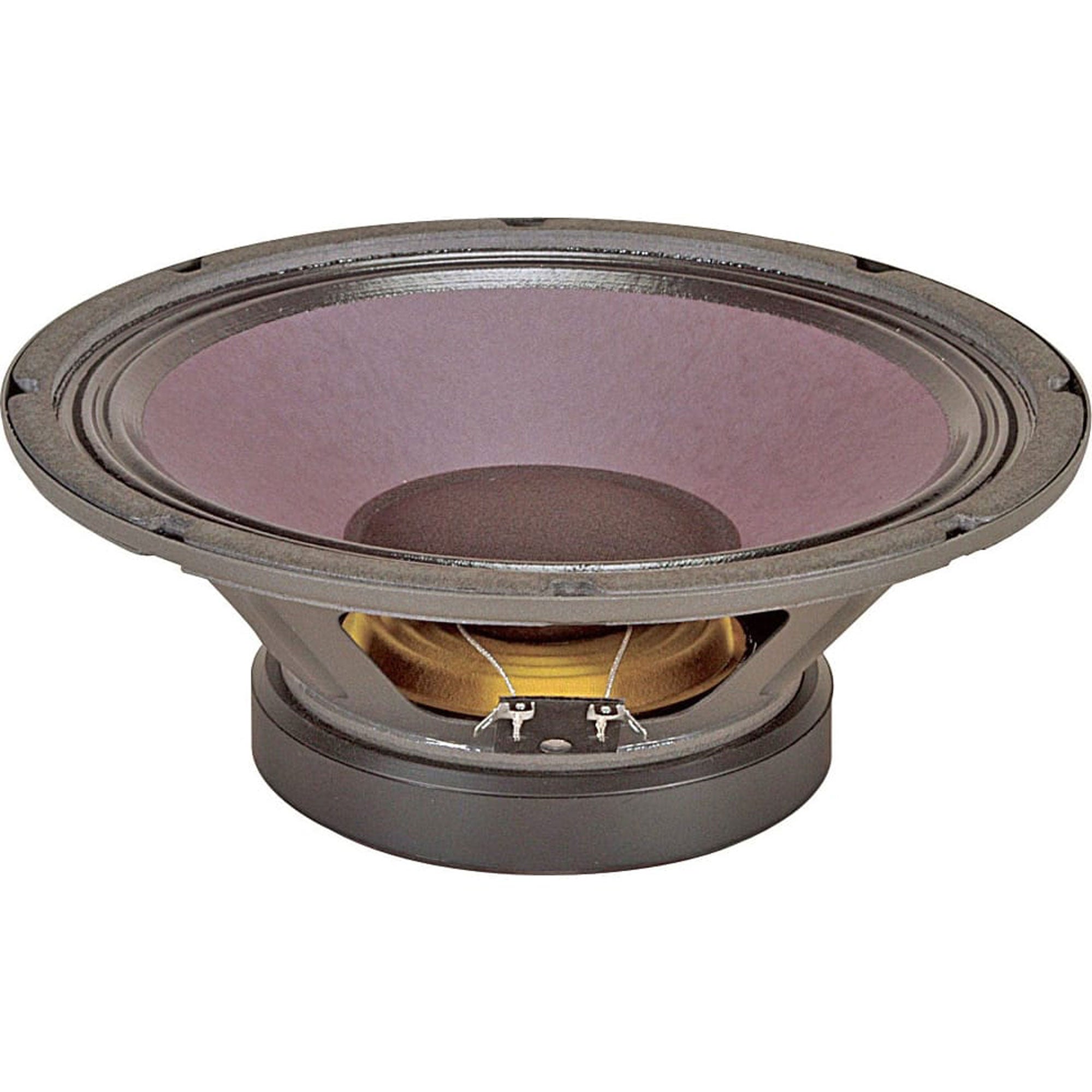

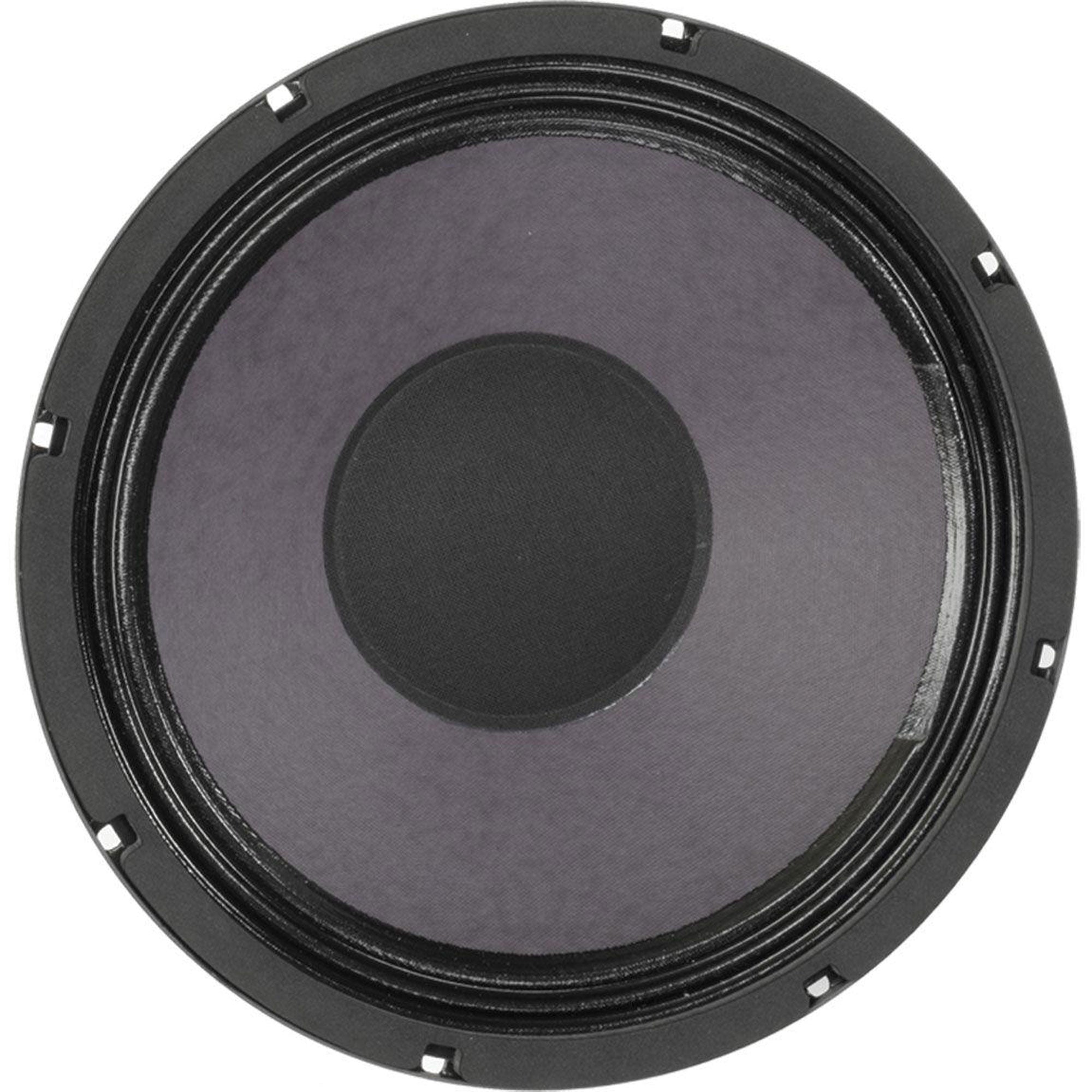

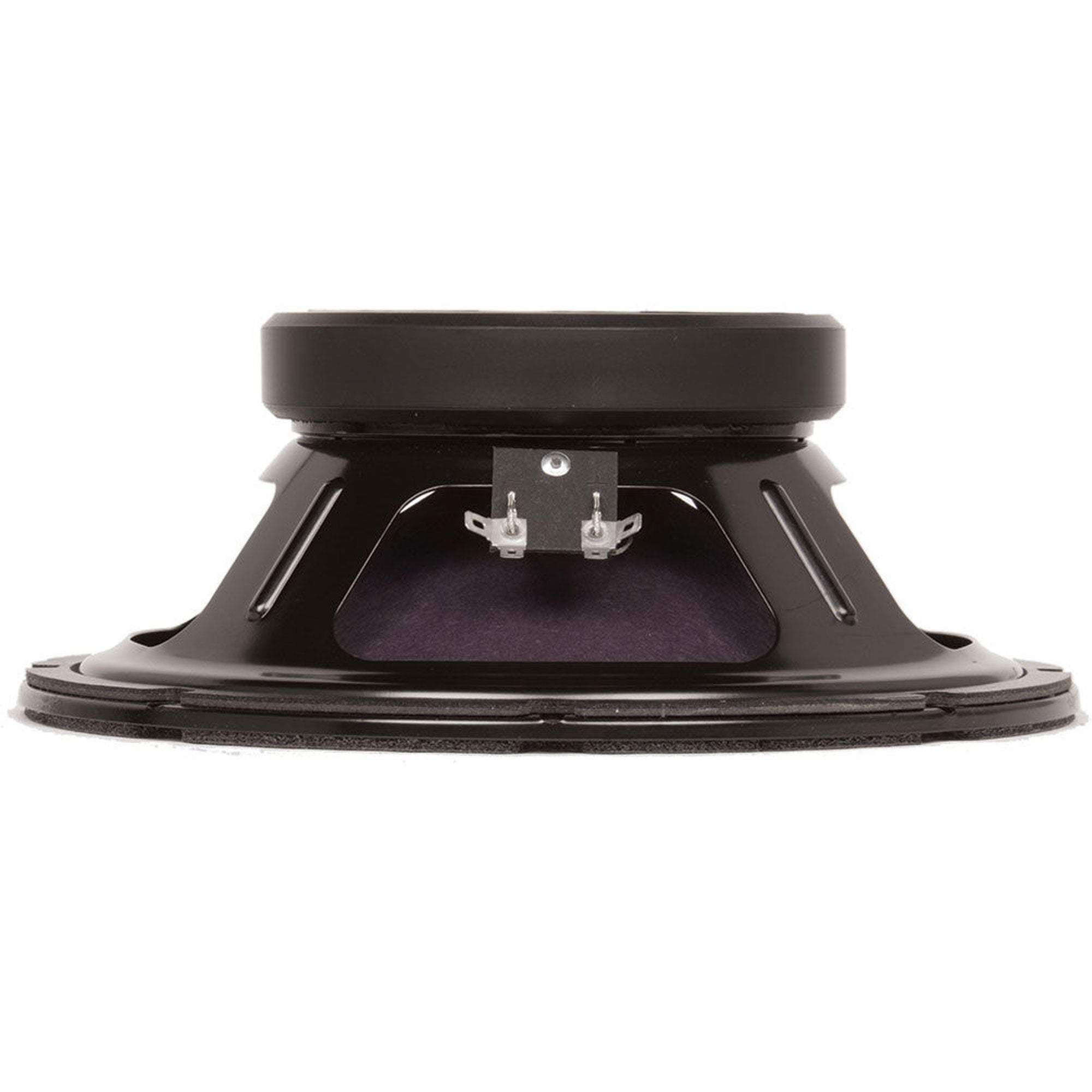

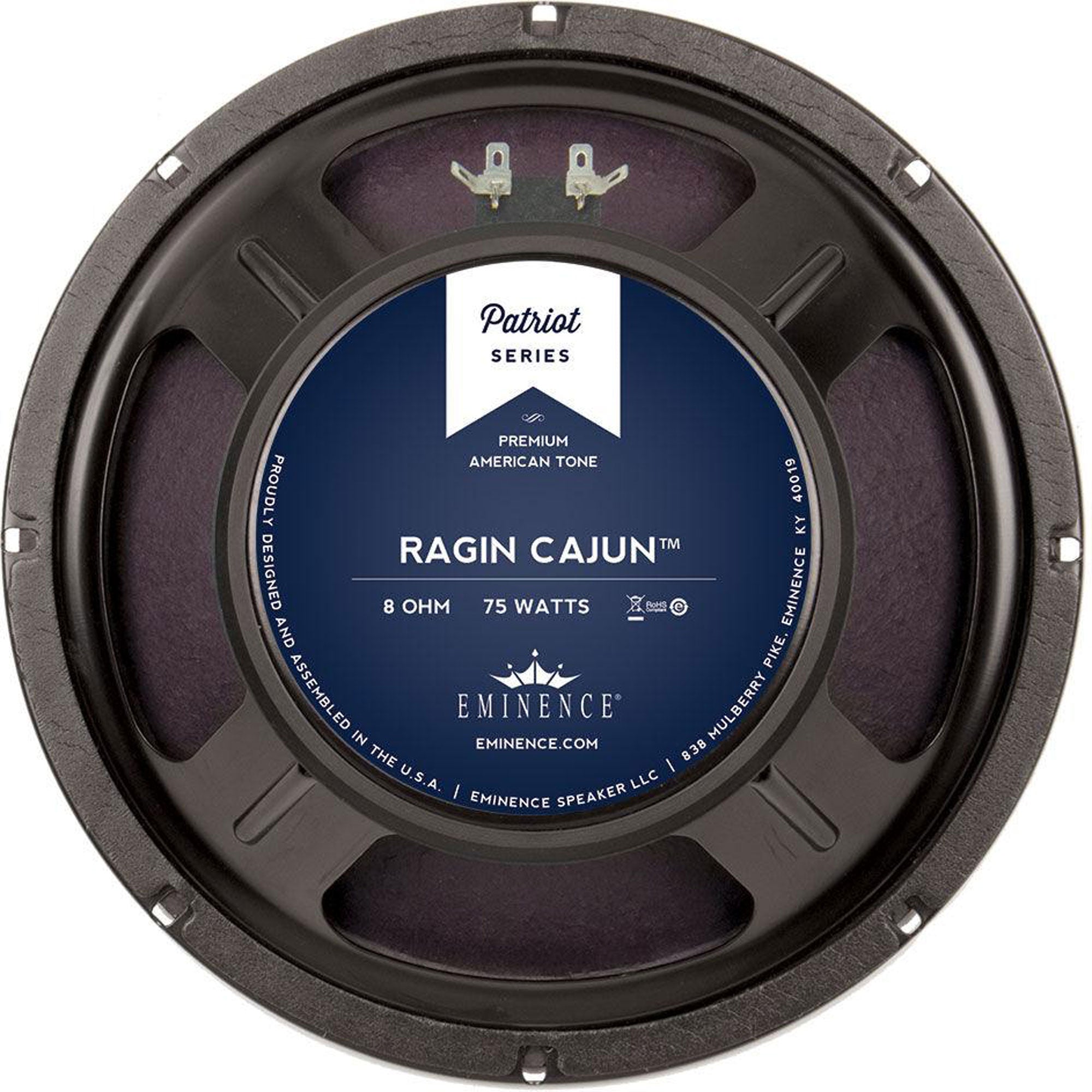

10" Guitar Driver, 8 Ohm, 75 Watt
The Eminence Ragin Cajun guitar speaker puts you in control to be heard loud and clear. Very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.
Nothing says "American Made" like rock 'n roll or blues. And nothing says "Classic" tone like the Patriot Series of guitar amp speakers from Eminence. Made in the U.S.A. for stand-up volume and reliable rockin' clarity. Seven-year manufacturer's warranty.
Features:
- Application: 10" Open or Closed Back
- Configuration: 1, 2, or 4 x 10"
- Very loud, touch-sensitive and responsive with nice bell-sounding top end and a little bite
- Genre: American Rock, Blues, and Country
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 10", 254mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 75W
- Music Program: N/A
- Resonance: 84Hz
- Usable Frequency Range: 80Hz - 5kHz
- Sensitivity***: 100.5dB
- Magnet Weight: 30 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.5", 38.1mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 84Hz
- DC Resistance (Re): 7.01
- Coil Inductance (Le): 0.38mH
- Mechanical Q (Qms): 11.42
- Electromagnetic Q (Qes): 0.54
- Total Q (Qts): 0.51
- Compliance Equivalent Volume (Vas): 34.1 liters / 1.2 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 17.6cc
- Mechanical Compliance of Suspension (Cms): 0.17mm/N
- BL Product (BL): 11.8 T-M
- Diaphragm Mass Inc. Airload (MMs): 19.9 grams
- Efficiency Bandwidth Product (EBP): 156
- Maximum Linear Excursion (Xmax): 0.48mm
- Surface Area of Cone (Sd): 366.1 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 66.9 cu.in. / 1.1 liters
- Overall Diameter: 10.11", 256.8mm
- Baffle Hole Diameter: 9.13", 231.8mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.23", 5.72mm
- Mounting Holes B.C.D.: 9.6", 243.8mm
- Depth: 4.3", 109mm
- Net Weight: 6.4 lbs, 2.9 kg
- Shipping Weight: 8.2 lbs, 3.7 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Zurette dust cap
