Description

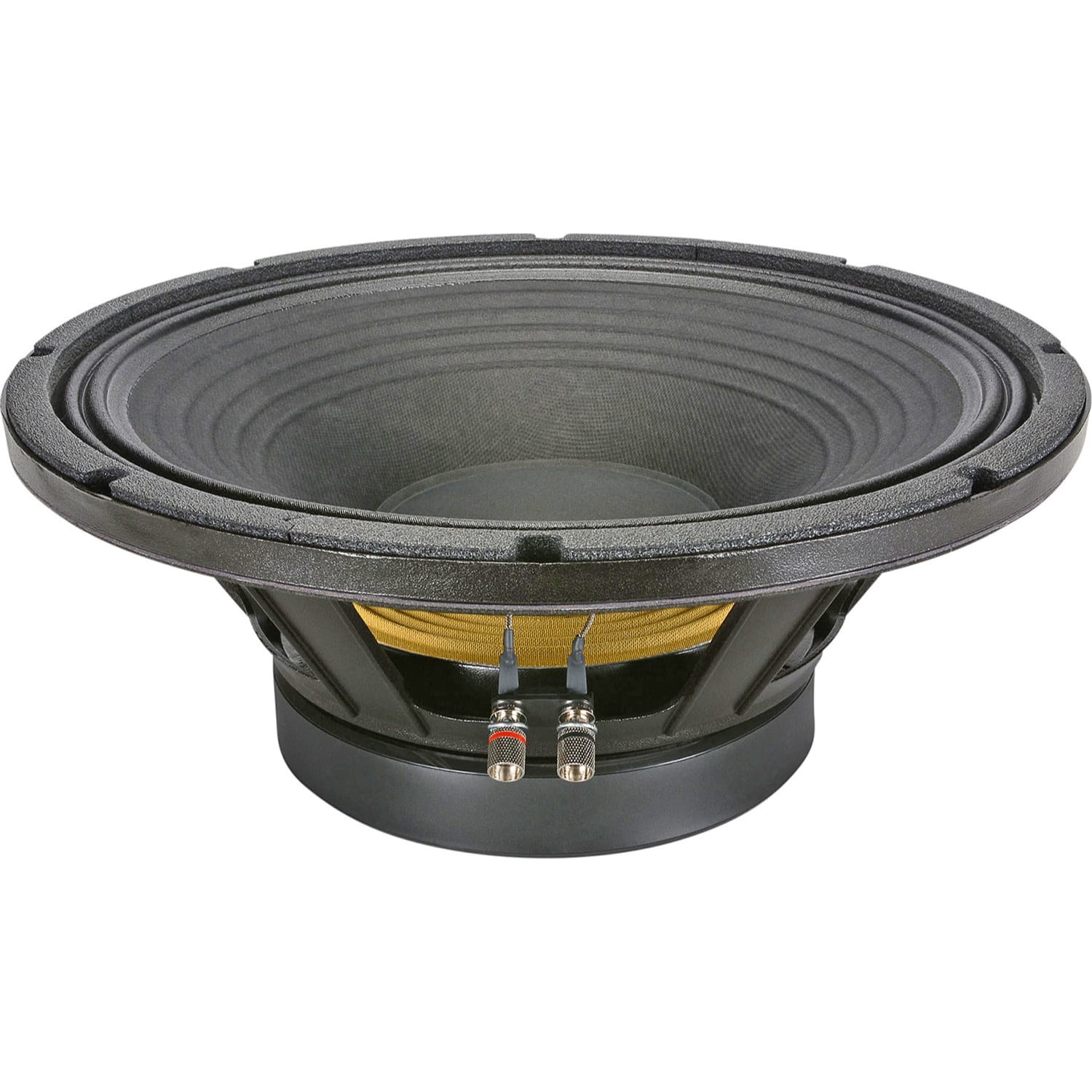

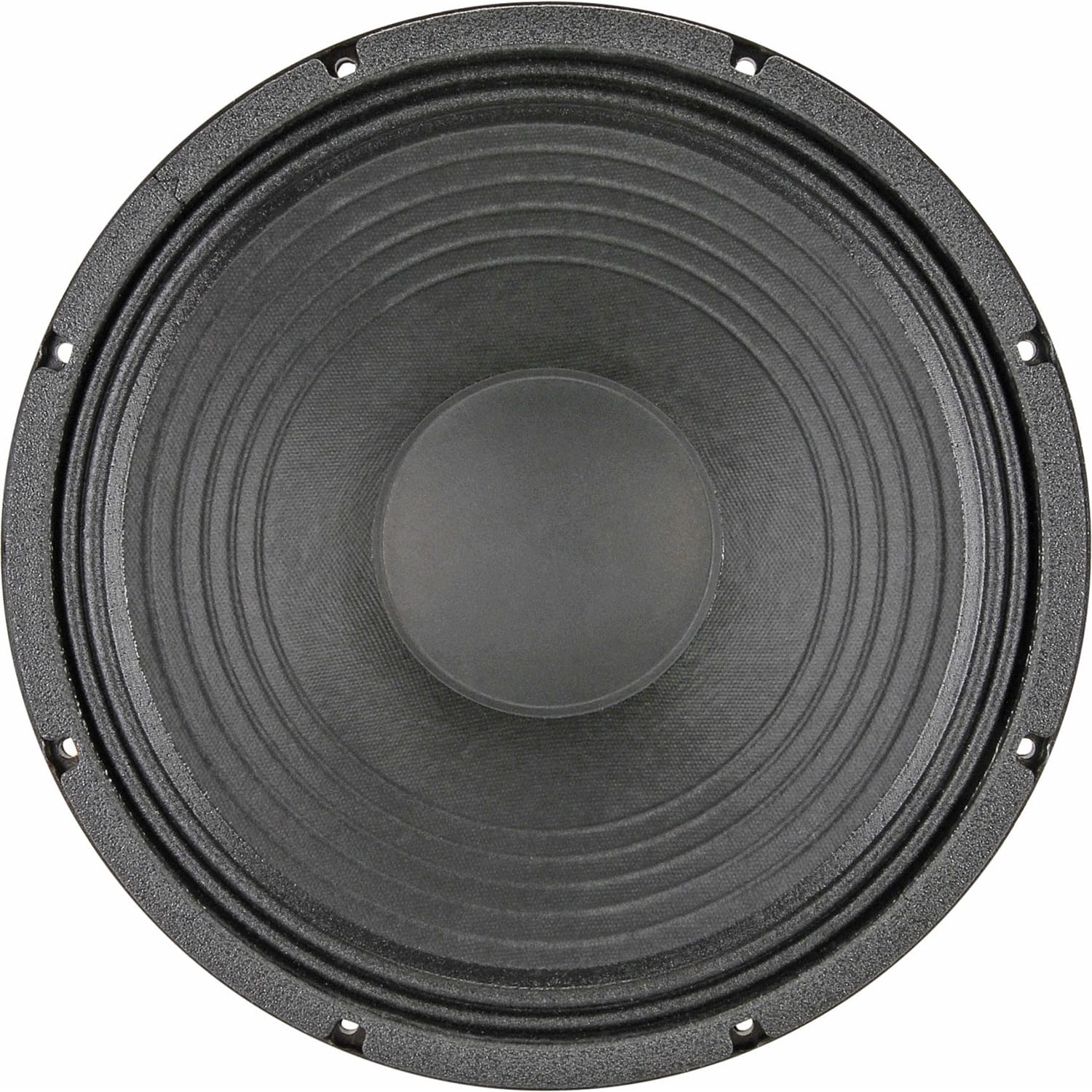

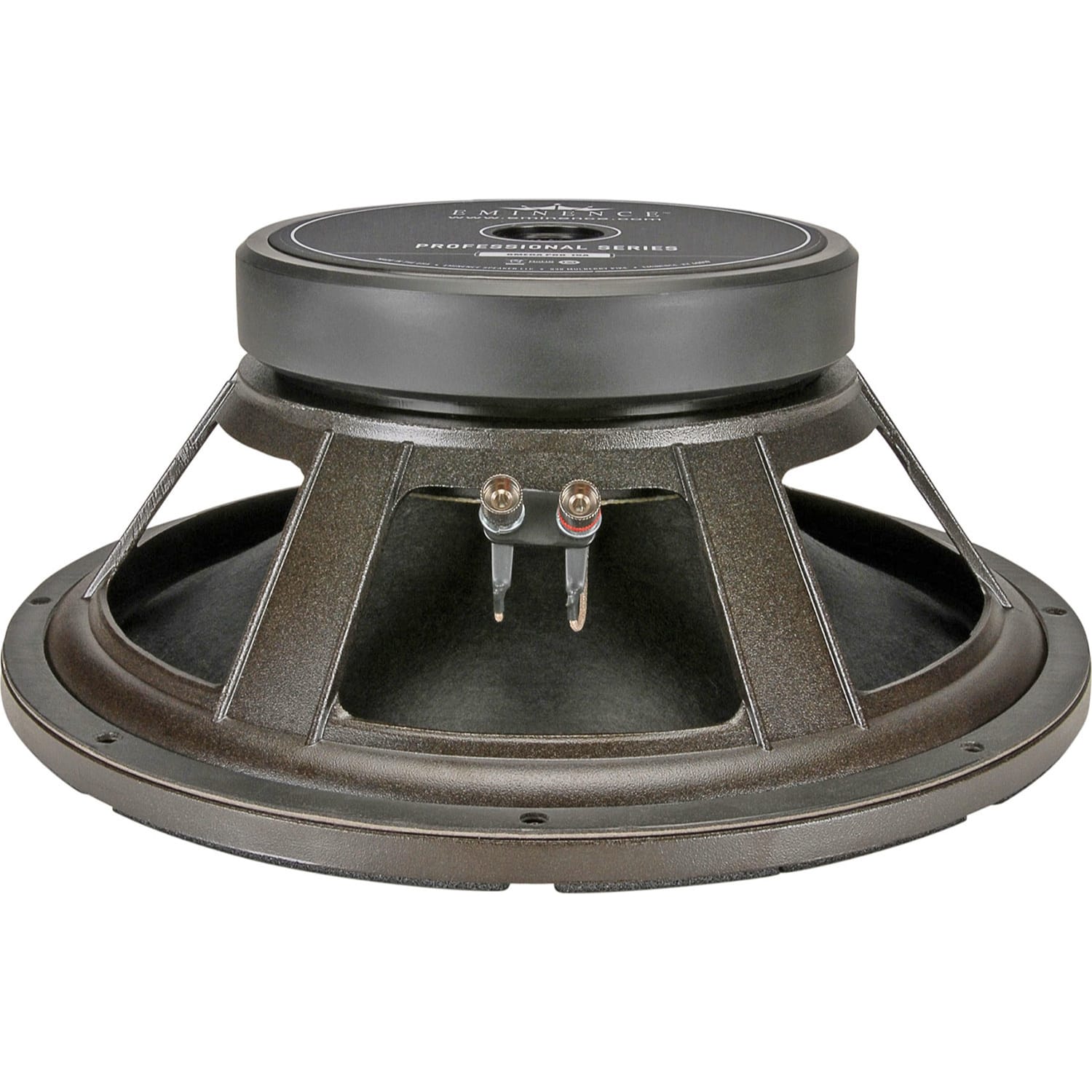

15" Cast Frame Driver, 8 Ohm, 800 Watt
Recommended for professional audio, the Eminence Omega Pro-15A 15" speaker is optimized for use as a woofer vented enclosures. Also good for horn loading and scoops. 4" copper voice coil, 109 oz. magnet, cast aluminum frame. The 800 watts RMS Omega Pro-15A delivers performance equal to drivers costing twice as much! Made in the USA. 7-year manufacturer's warranty!
Features:
- 4", two-layer, 27 ga. copper voice coil with Kapton former
- Vented and extended pole piece
- Die-cast aluminum basket
- Paper cone with double half-roll cloth cone edge
- 800 watts RMS power handling
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 15", 381mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 800W
- Music Program: 1600W
- Resonance: 33Hz
- Usable Frequency Range: 51Hz - 1.7kHz
- Sensitivity***: 97.3dB
- Magnet Weight: 109 oz.
- Gap Height: 0.37", 9.53mm
- Voice Coil Diameter: 4", 101.6mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 33Hz
- DC Resistance (Re): 5.28
- Coil Inductance (Le): 1.04mH
- Mechanical Q (Qms): 5.69
- Electromagnetic Q (Qes): 0.33
- Total Q (Qts): 0.32
- Compliance Equivalent Volume (Vas): 258.5 liters / 9.1 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 411cc
- Mechanical Compliance of Suspension (Cms): 0.25mm/N
- BL Product (BL): 17.5 T-M
- Diaphragm Mass Inc. Airload (MMs): 94 grams
- Efficiency Bandwidth Product (EBP): 99
- Maximum Linear Excursion (Xmax): 4.8mm
- Surface Area of Cone (Sd): 856.3 cm2
- Maximum Mechanical Limit (Xlim): 12.2mm
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: N/a
- Vented: 57-108 liters / 2-3.8 cu.ft.
- Driver Volume Displaced: 262.8 cu.in. / 4.31 liters
- Overall Diameter: 15.21", 386.4mm
- Baffle Hole Diameter: 14", 355.6mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.28", 7.1mm
- Mounting Holes B.C.D.: 14.56", 369.9mm
- Depth: 6.35", 161mm
- Net Weight: 22.7 lbs, 10.3 kg
- Shipping Weight: 25.2 lbs, 11.4 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Vented and extended core
- Basket Materials: Die-cast aluminum basket
- Cone Composition: Paper cone
- Cone Edge Composition: Cloth cone edge
- Dust Cap Composition: Solid composition paper dust cap
Details
- Manufacturer: Eminence
- MPN: OMEGA PRO-15A
- Model Number: Omega Pro-15A
- UPC: 876358000418
