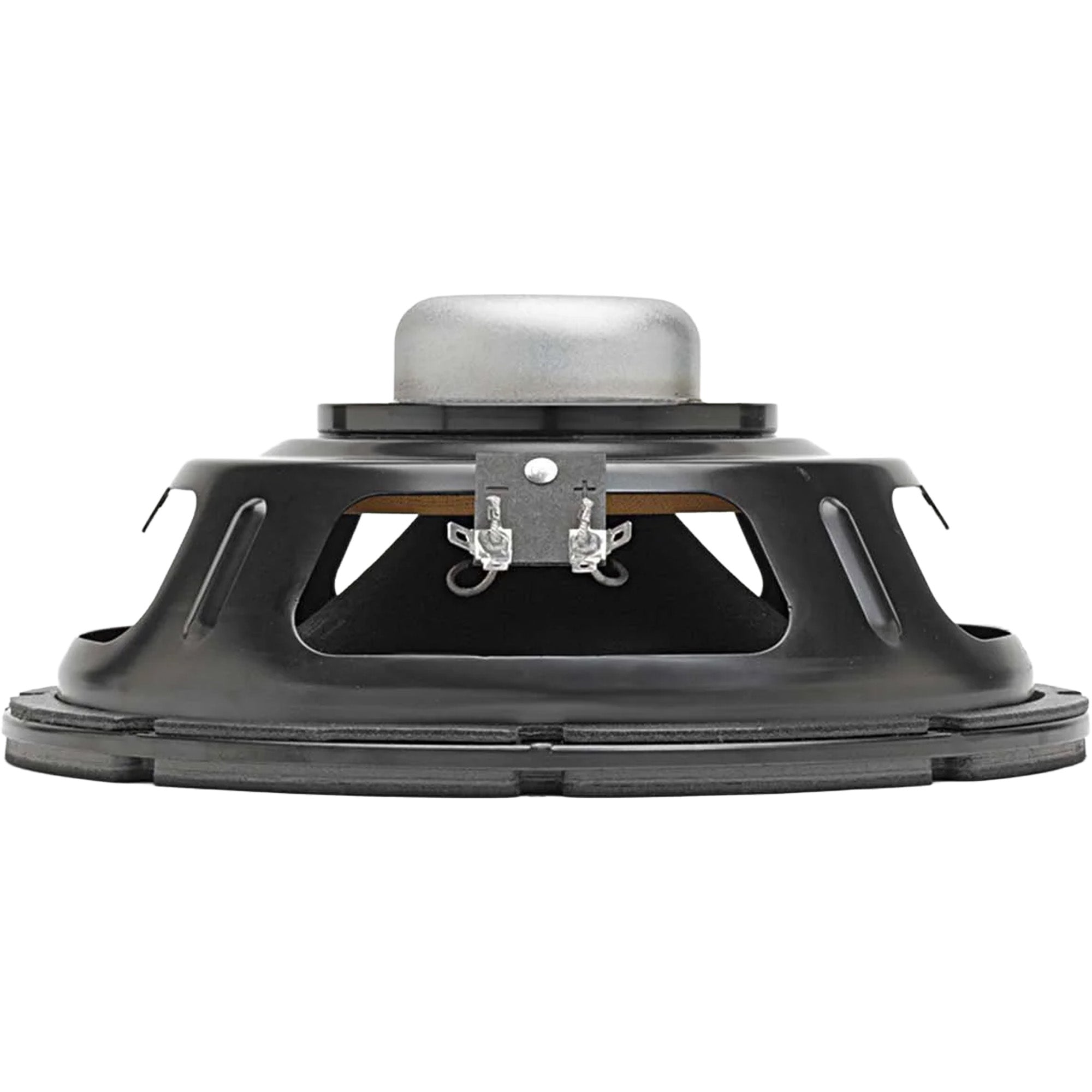

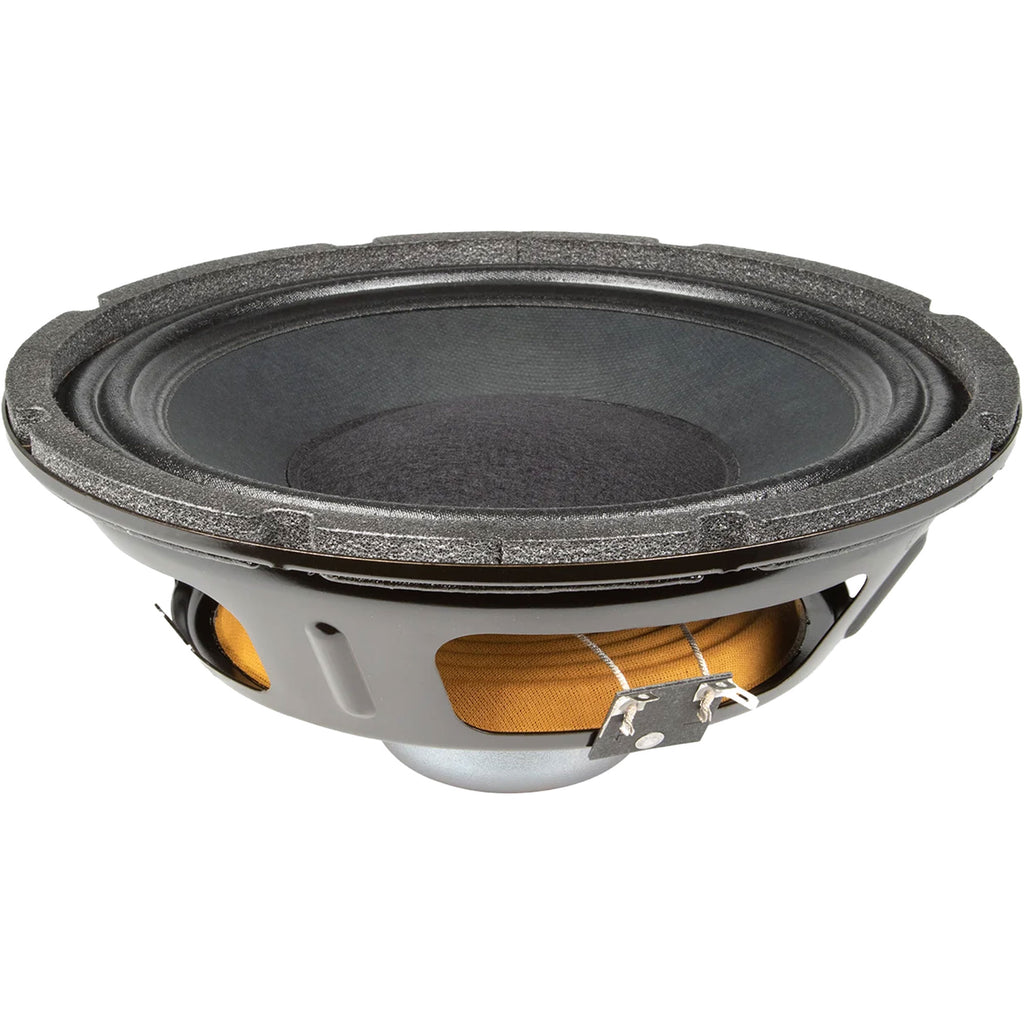

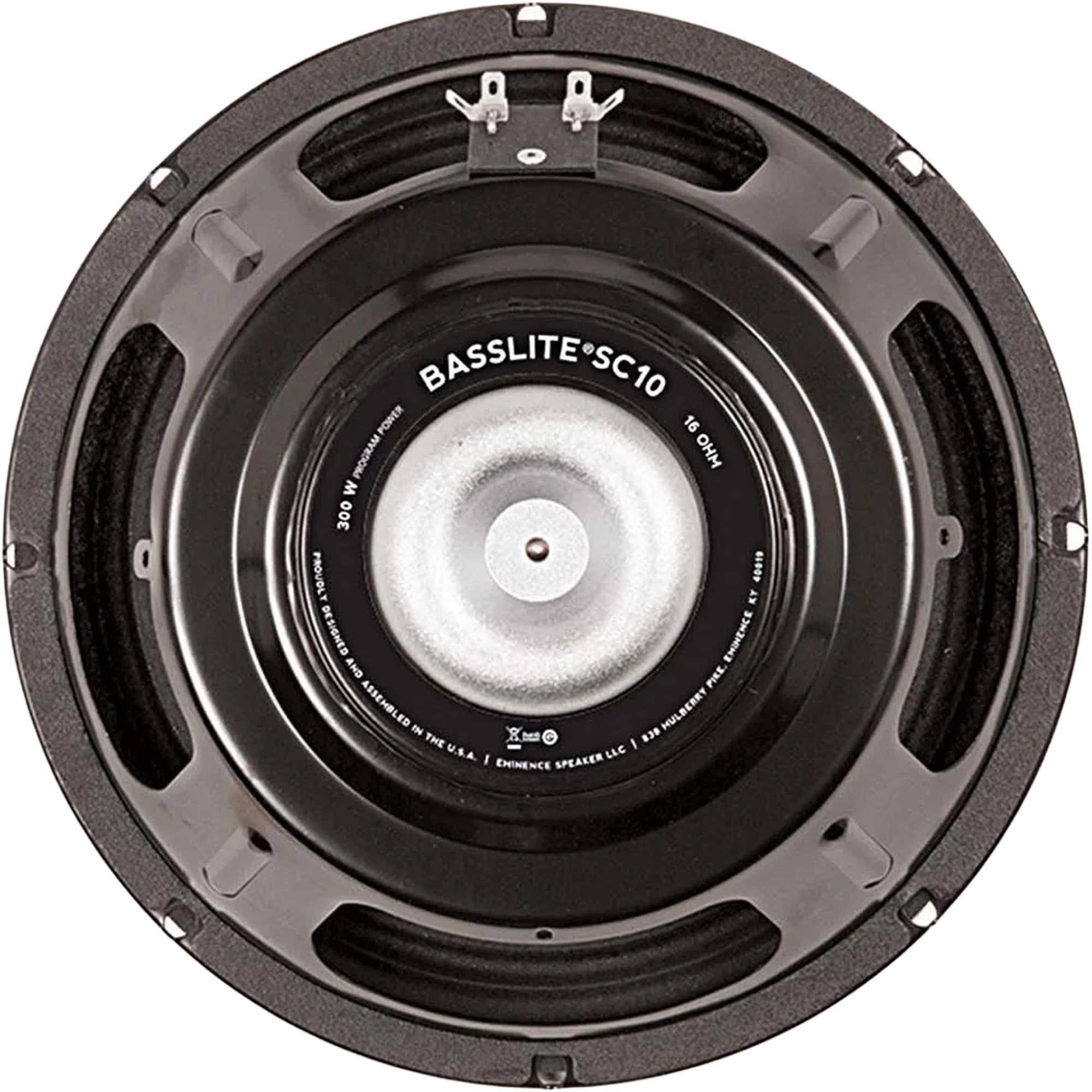

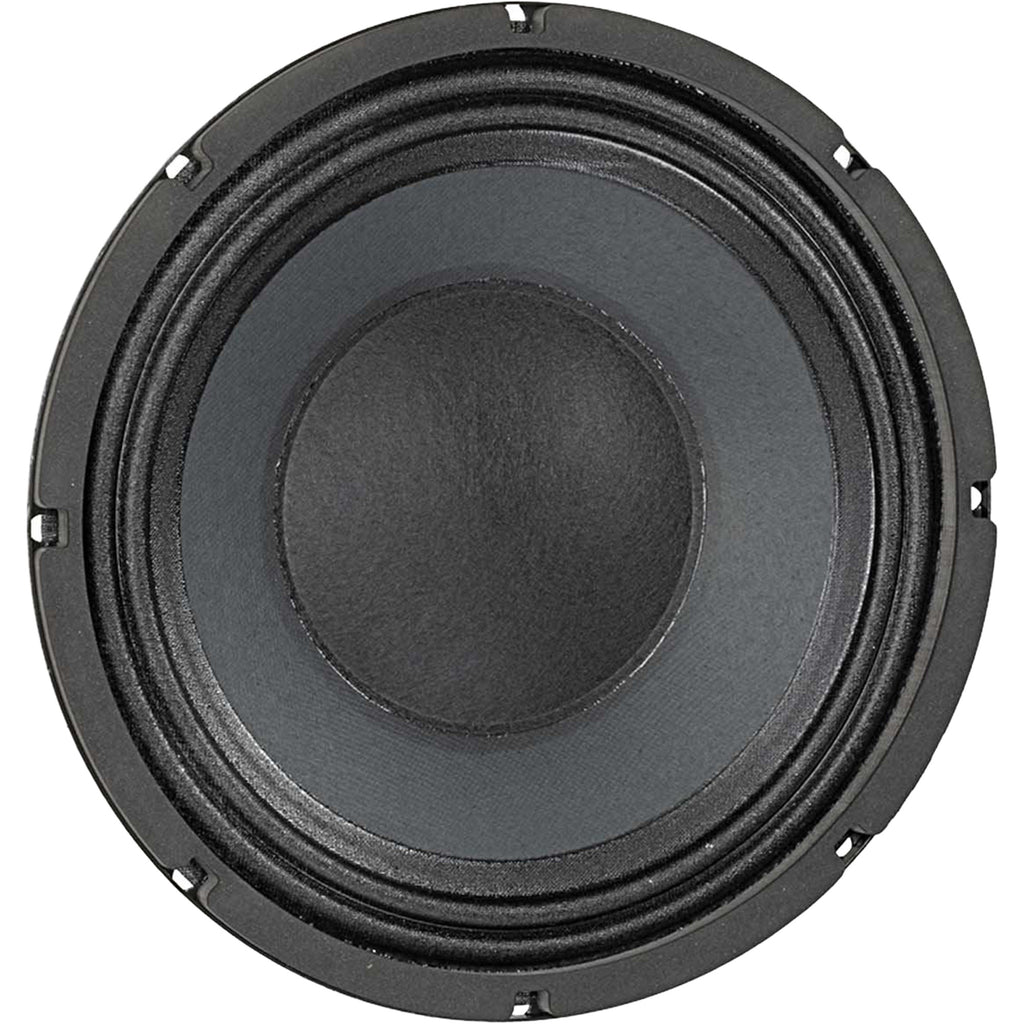

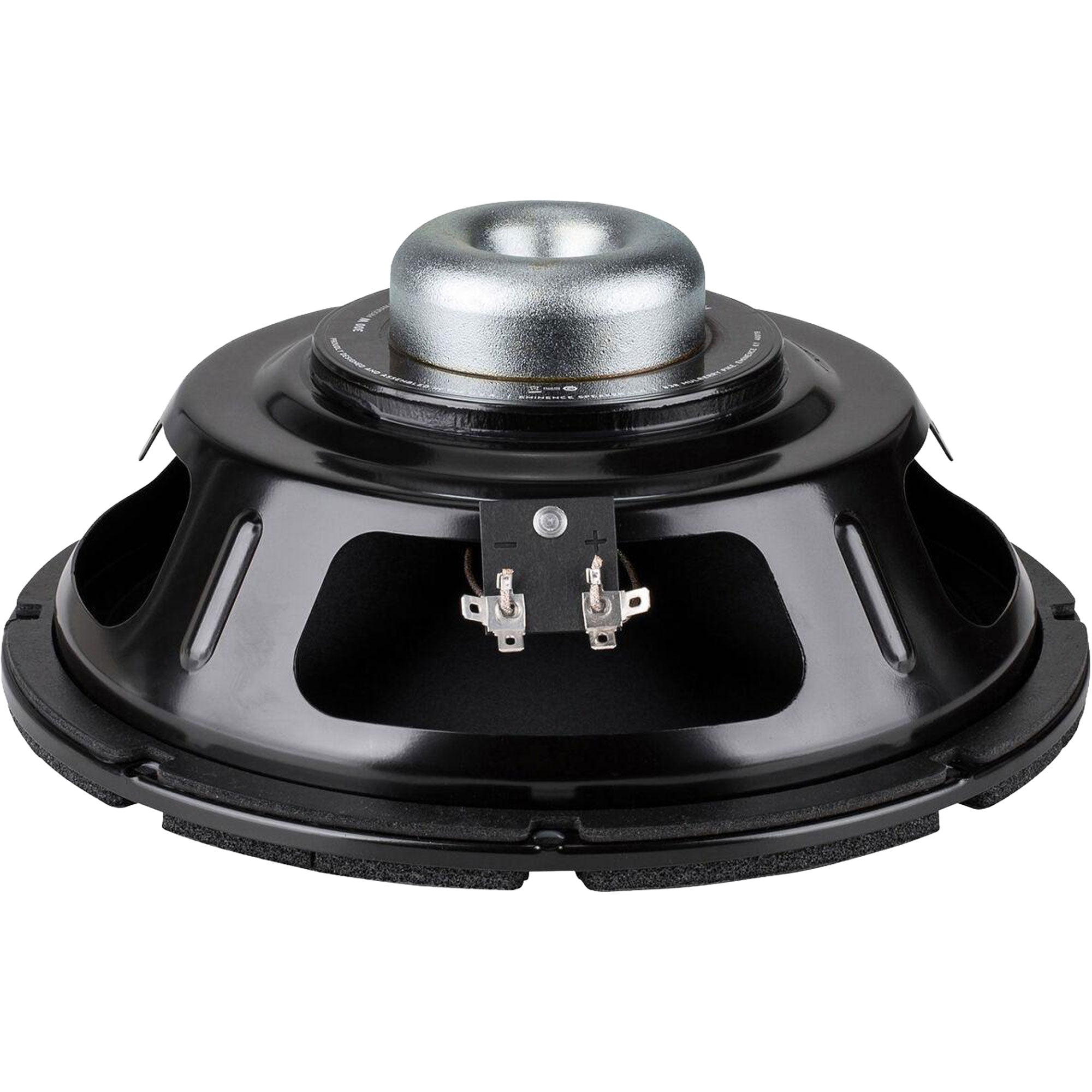

Eminence Basslite SC10-16 10" Bass Guitar Speaker

10" Bass Guitar Speaker, 300W, 16 Ohm

Featuring a 4 oz. neodymium magnet and 2-inch voice coil, this replacement speaker is optimized specifically for sealed bass cabinets. The ultra-lightweight Basslite SC10 takes the weight out and leaves in the performance.

Features:

• Powerful neodymium magnet greatly reduces weight
• 2" voice coil handles up to 300 watts
• 94 dB efficiency for high output without requiring tons of power
• Designed for sealed multiple driver systems

Specifications:

• SPECIFICATION
• Nominal Basket Diameter: 10", 254 mm
• Nominal Impedance*: 16 Ω
• Power Rating*
• Program Power: 300 W
• Watts: 150 W
• Resonance: 46 Hz
• Usable Frequency Range: 50 Hz - 4.2 kHz
• Sensitivity*: 94.3 dB
• Magnet Weight: 4 oz.
• Gap Height: 0.28", 7.1 mm
• Voice Coil Diameter: 2", 51 mm
• THIELE & SMALL PARAMETERS
• Resonant Frequency (fs): 46 Hz
• DC Resistance (Re): 12.21 Ω
• Coil Inductance (Le): 0.89m H
• Mechanical Q (Qms): 2.23
• Electromagnetic Q (Qes): 0.56
• Total Q (Qts): 0.45
• Compliance Equivalent Volume (Vas): 78.27 liters / 2.76 cu.ft.
• Peak Diaphragm Displacement Volume (Vd): 154 cc
• Mechanical Compliance of Suspension (Cms): 0.46 mm/N
• BL Product (BL): 12.79 T-M
• Diaphragm Mass Inc. Airload (MMs): 26 grams
• Efficiency Bandwidth Product (EBP): 81
• Maximum Linear Excursion (Xmax): 4.4 mm
• Surface Area of Cone (Sd): 350.1 cm2
• Maximum Mechanical Limit (Xlim): 9 mm
• MOUNTING INFORMATION
• Recommended Enclosure Volume
• Sealed: Acceptable
• Vented: Acceptable
• Driver Volume Displaced: 0.03 cu.ft. / 0.84 liters
• Overall Diameter: 10.08", 256 mm
• Baffle Hole Diameter: 9.18", 233.2 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.25", 6.4mm
• Mounting Holes B.C.D.: 9.66", 245.4mm
• Depth: 4.25", 108 mm
• Net Weight: 3.5 lbs, 1.59 kg
• Shipping Weight: 4.6 lbs, 2.09 kgs
• MATERIALS OF CONSTRUCTION
• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Neodymium magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Curved paper cone
• Cone Edge Composition: Cloth cone edge
• Dust Cap Composition: Solid composition felt dust cap
