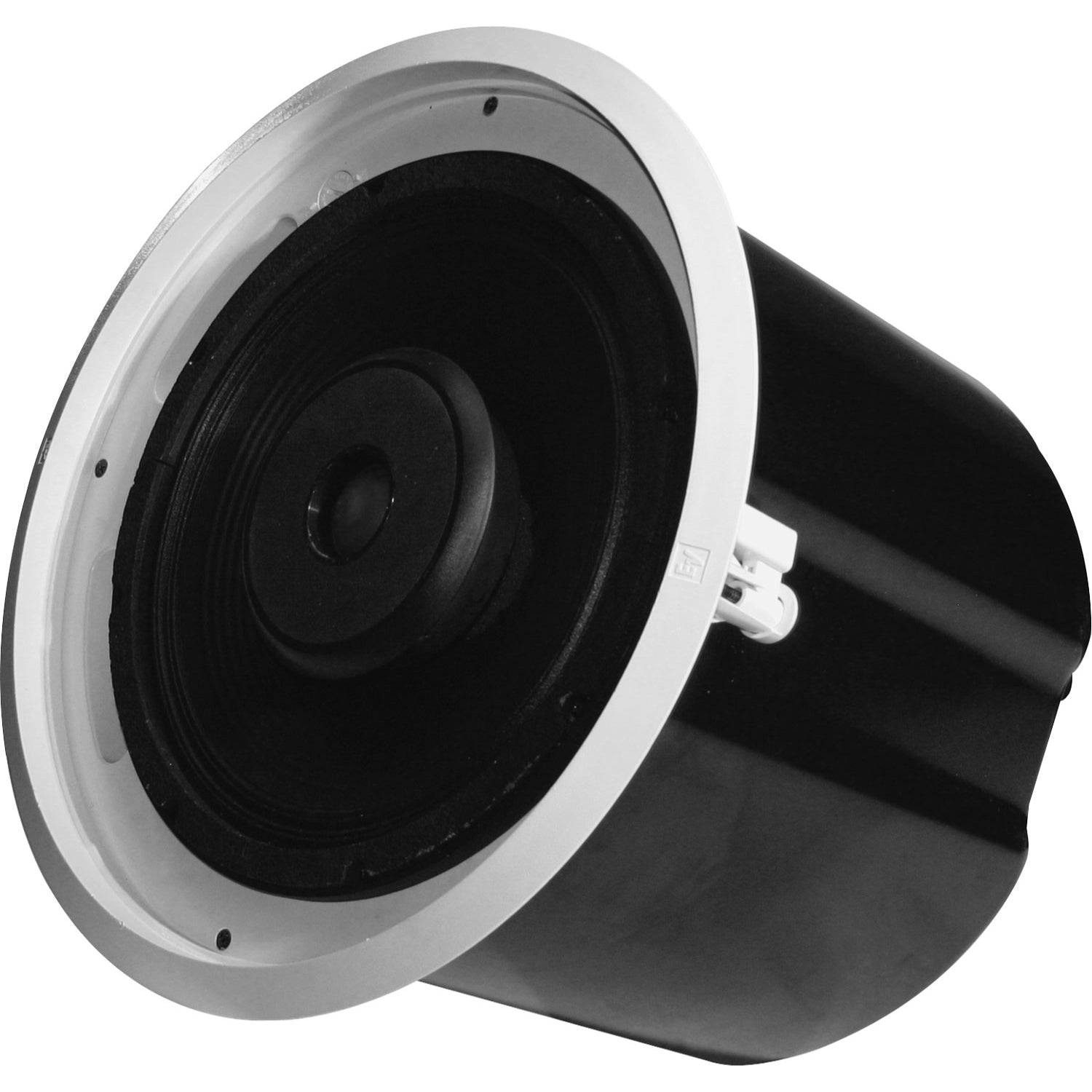

Electro-Voice EVID-C12.2 2-Way Coaxial Ceiling Loudspeaker (White)

EVID Series 12" 2-Way Coaxial Ceiling Loudspeaker System

The EVID C12.2 loudspeaker system is a high-efficiency, integrated ceiling loudspeaker package for large venues including high-ceiling applications where maximum SPL is important. The loudspeaker features the EVID 920-8B transducer, a 12" coaxial with high power handling and 100 dB sensitivity. The integrated 64 W transformer allows for use in 70 V/100 V applications, and includes automatic saturation compensation for distortion free performance at high sound levels. Transformer tap selection via a convenient switch on the front baffle. The rear enclosure is constructed from heavy-gauge steel and has a durable, black powder-coat that blends in when used in open-ceiling applications. A tile bridge is included for safe suspension of the C12.2 ceiling systems in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles. The C12.2 can also be suspended by an integrated 3/8" rigging point for use with threaded rod, or it can be mounted using the three pendant mount tabs on the rear enclosure. A rear cover, with provisions for a junction box fitting, provides access to a four-pin phoenix-type connector that allows direct connection to the speaker with 12-gauge wire and provides pass through to additional speakers.

Features:

• Designed for Commercial Sound/Life Safety, Performance & Sports Venues, Stadium Systems, and other applications.
• For use in large venues including high-ceiling applications
• Features EVID 920-8B transducer
• 12" coaxial with high power handling and 100 dB sensitivity
• Integrated 64 W transformer allows for use in 70 V/100 V applications
• Automatic saturation compensation for distortion-free performance at high sound levels
• Transformer tap selection via a convenient switch on the front of baffle
• Rear enclosure is constructed from heavy-gauge steel
• Durable black powder-coat
• Tile bridge included for safe suspension in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles
• Can also be suspended by an integrated 3/8" rigging point for use with threaded rod
• Can be mounted using the three pendant mount tabs on the rear enclosure
• Rear cover includes provisions for a junction box fitting providing access to a four-pin, phoenix-type connector that allows direct connection to the speaker with 12-gauge wire

Specifications:

• Speaker Type: Ceiling Speakers
• Transformer Taps (Transformer Version Only): 4, 8, 16, 32, 64
• Frequency Response (-3 dB): 85 - 18000 Hz
• Sensitivity 1 W/1 m: 100 dB
• Max. SPL/1m (calc); half space: 126 dB
• Crossover Frequency: 2000 Hz
• Weight Net: 12.3 kg (27.12 lbs)
