Description

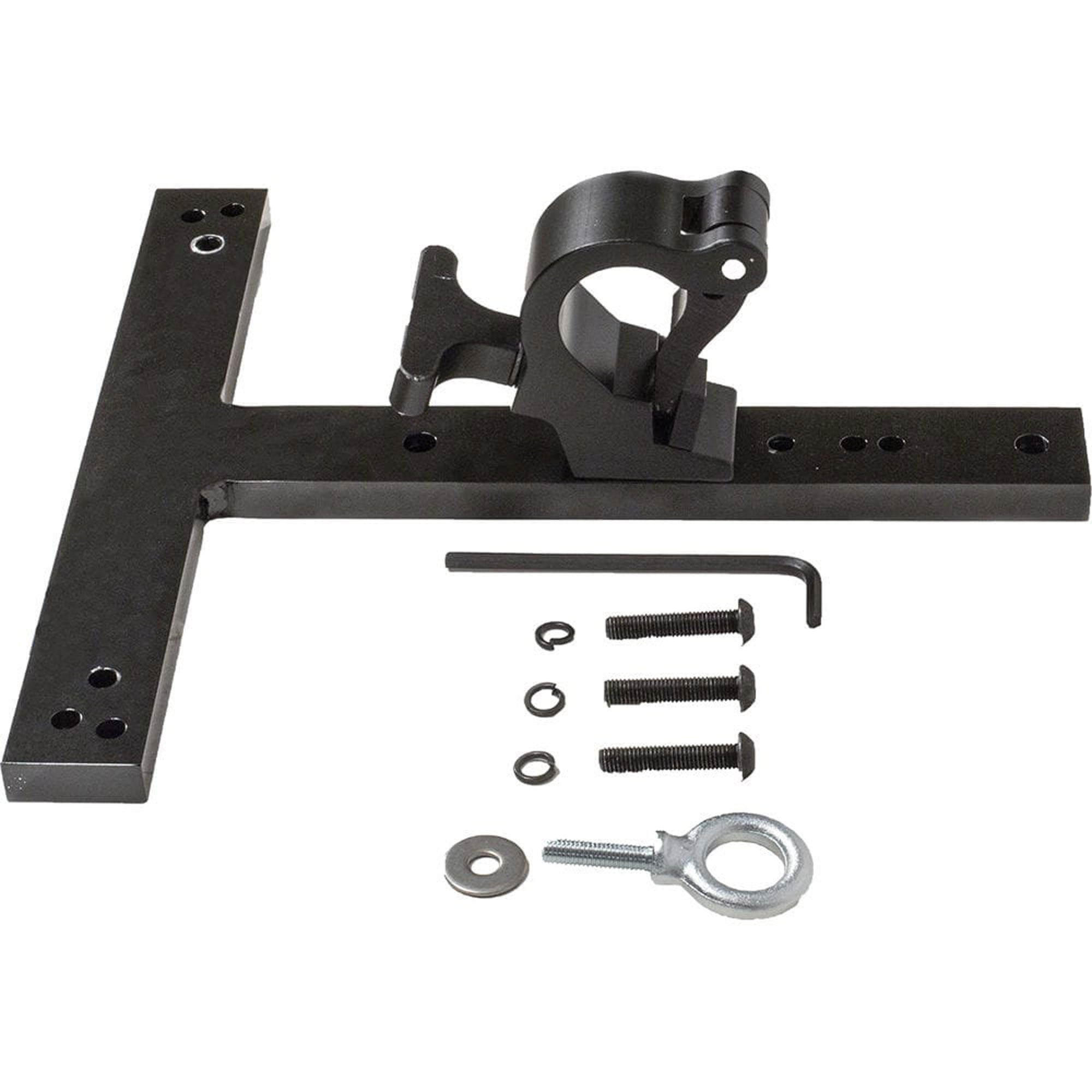

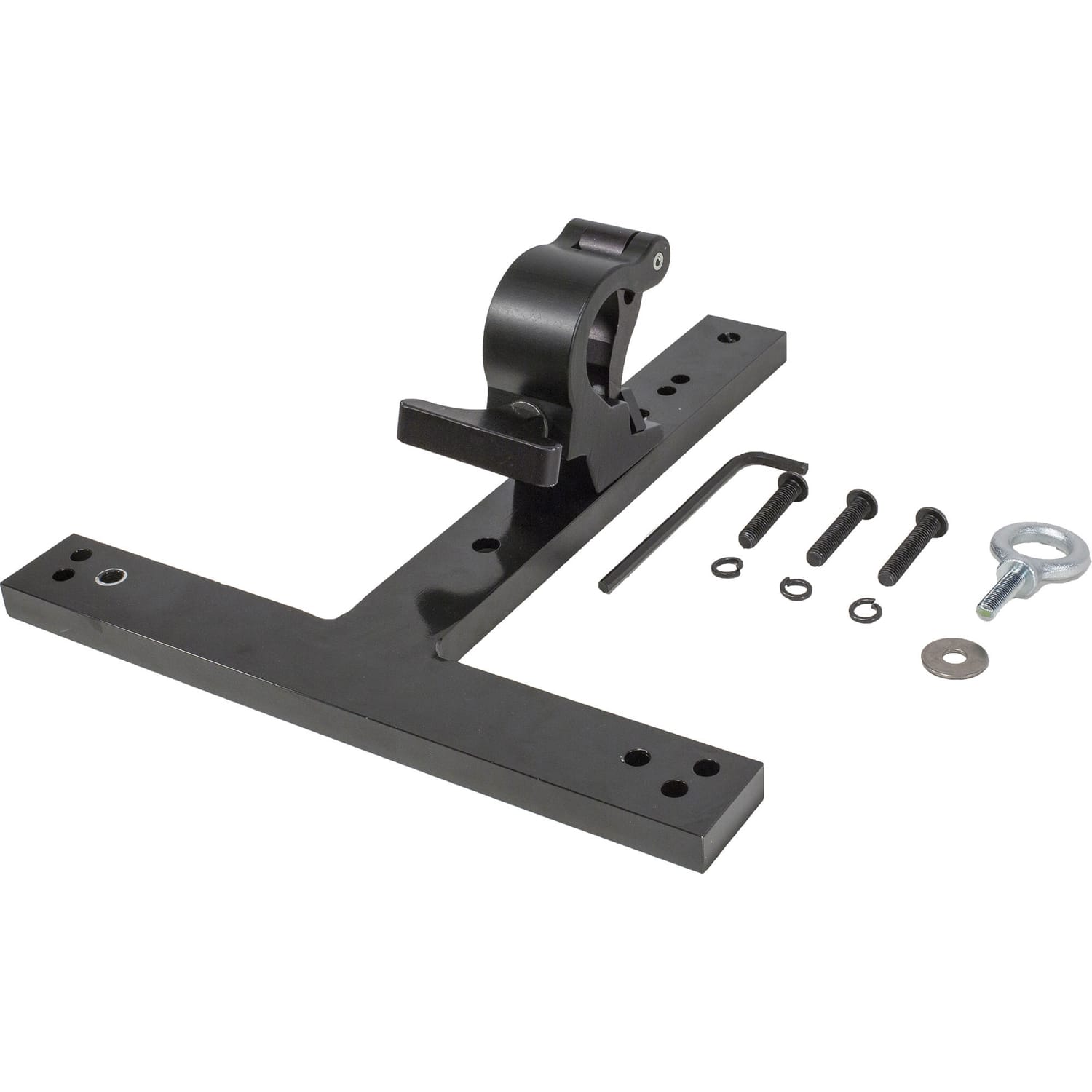

Truss Adapter for ETX-12P, ETX-15P and ETX-35P
The black Electro-Voice ETX-TCA-L Truss Adapter is used for the vertical degree of adjustment in installing the ETX-12P, ETX-15P, and ETX-35P powered loudspeaker systems.
For the ETX-12P, in position 1, there is 0-° and in position 2, 15-° down, and in position 3, 33-° down.
For the ETX-15P, in position 1, there is 0-° and in position 2, 11-° down, and in position 3, 30-° down.
For the ETX-35P, in position 1, there is 0-° and in position 2, 8-° down, and in position 3, 22-° down.
The truss bracket attaches to the truss clamp.
Allows 3 adjustments of degrees in installing the ETX-12P, ETX-15P, and ETX-35P speakers
Specifications:
- Shipping Dimensions (H x W x D): 16.5 in x 16.5 in x 4.5 in (419 mm x 419 mm x 114 mm)
- Net Weight: 6.25 lb (2.83 kg)
- Shipping Weight: 7.5 lb (3.4 kg)
- Manufacturer: Electro-Voice
- MPN: F.01U.300.022
- Model Number: ETX-TCA-L
- UPC: 800549760850
