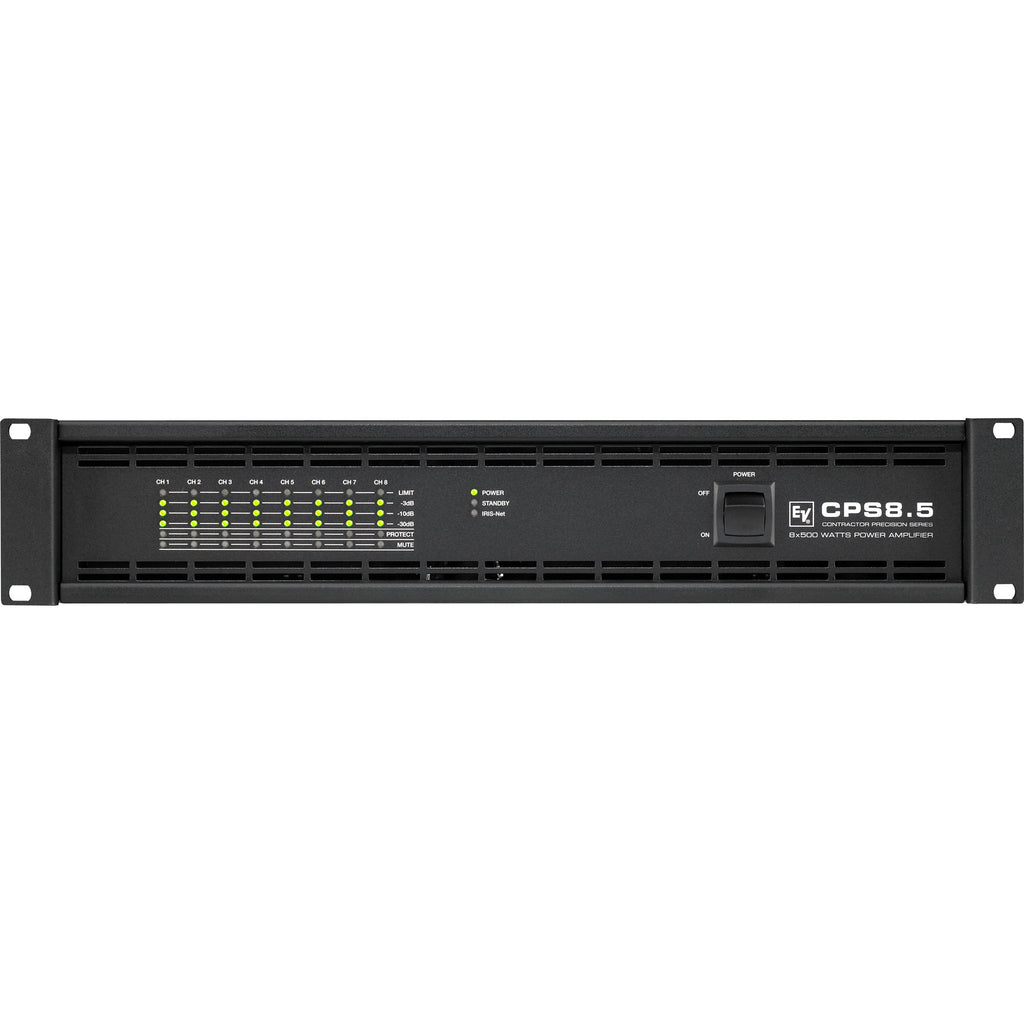

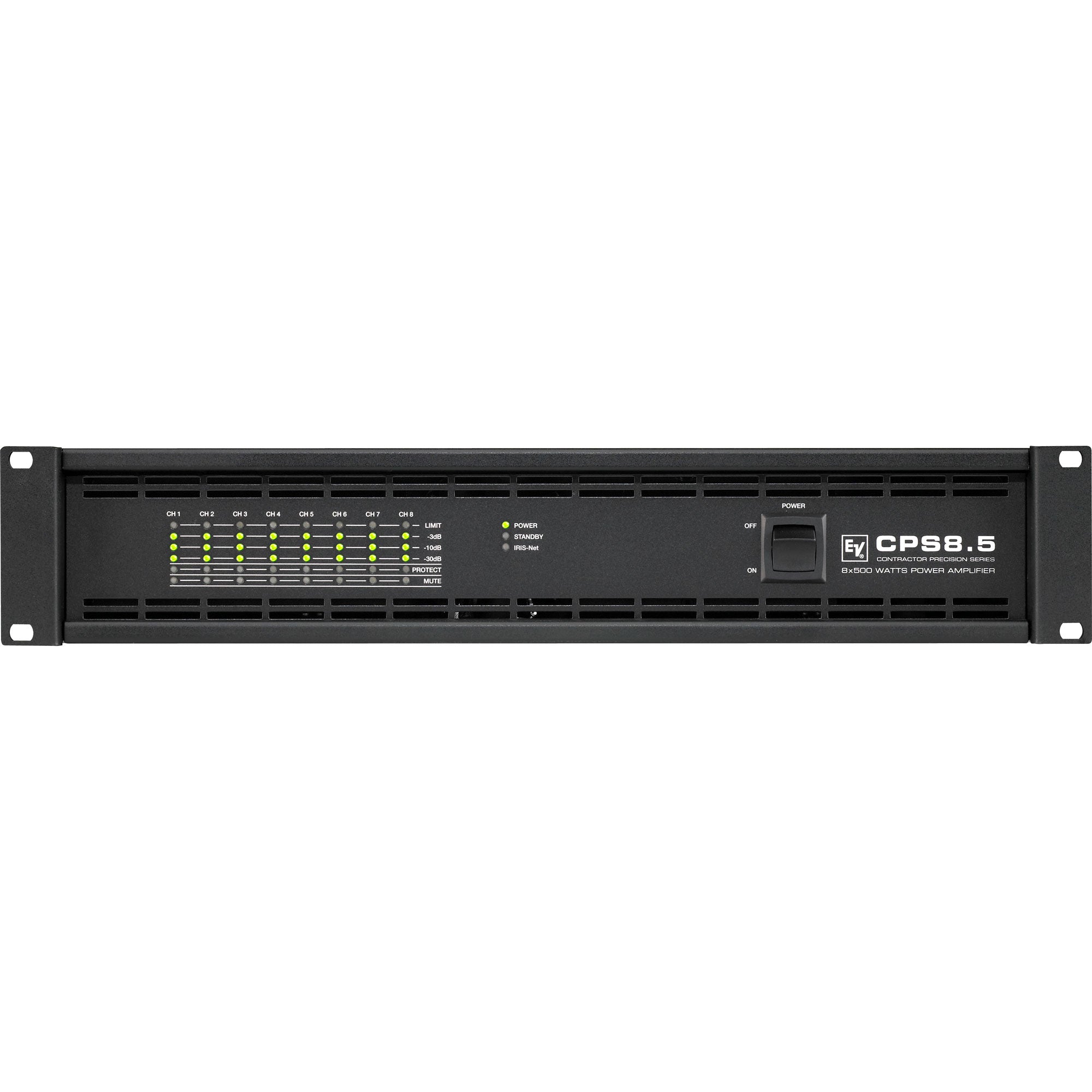

Electro-Voice CPS8.5 8-Channel Power Amplifier (500W, 2/4 Ohms)

CPS8.5 8-Channel Power Amplifier, 8 x 500W into 2, or 4 Ohms, or 70V/100V Direct Drive, 2U, ready for RCM-810 IRIS-Net Remote Control Module, In/Outputs Phoenix Type, 120V

The Electro-Voice CPS8.5 amplifier offers eight independent Class-D Variable Load Drive (VLD) amplifier blocks, each one capable of delivering up to 500 Watts into Low-Z or High-Z loads. Per default, each channel can be configured individually for max. power output into either 2°, 4°, 70V- or 100Vnetworks without involvement of any output transformers. Being designed for professional audio installation market, special care was taken for long term cost of ownership parameters: In addition to remarkably low current consumption and heat dissipation, the CPS8.5 provides remote standby switching with just 5 Watts consumption in standby mode. An optional remote control module RCM-810 provides control and supervision features via IRIS-Net, including monitoring of amplifier status and real time load supervision. In addition, via RCM-810 the Variable Load Drive characteristics can be set for max. power output into any load between 2° and 10°, in steps of 0.1°.

Features:

• Eight channels in one compact rack-efficient unit
• 500 W per channel
• 70/100 V operation for distributed systems
• Class-D design for optimum efficiency
• Slot for optional RCM-810 module, allowing IRIS-Net control and monitoring
• IRIS-Net selection of each channel's impedance (2-10 Ω in 0.1 Ω steps)
• Rear-mounted attenuators
• Switchable 50 Hz high-pass filter (Hi-Z mode)
• Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush current

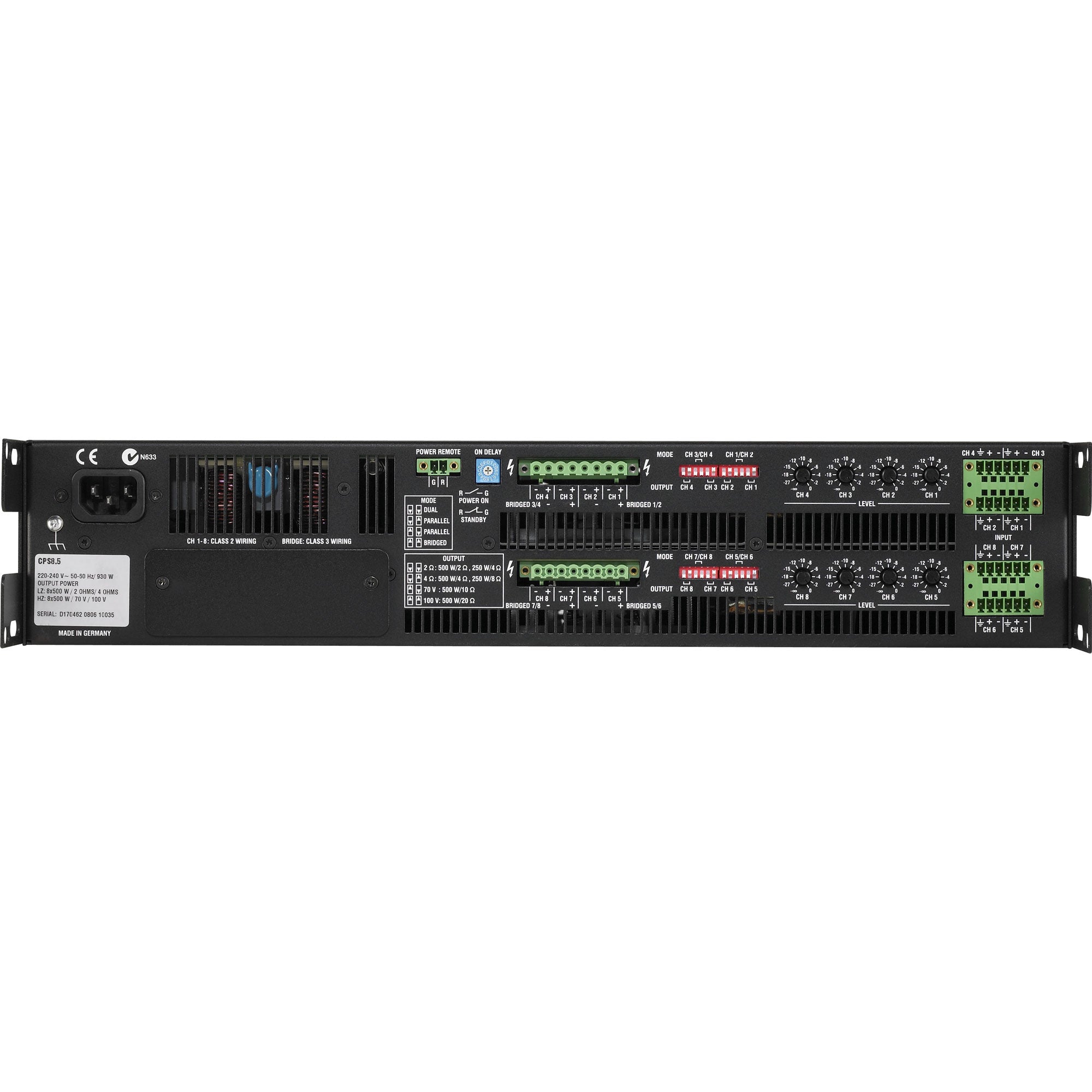

• Phoenix-type input and output connections
• Remote power-on/off contact
• Programmable power-on delay settings
• Front-to-rear fans

Specifications:

• Weight Net: 30.64lbs (13.9kg)
• Depth: 16.59" (421.5mm)
• Width: 19" (482.6mm)
• Height: 3.47" (88.1mm)
• Amplifier Gain: 32 dB (Lo-Z), 33 dB (70V), 36dB ((100V))
• Analog Inputs: 8, electronically balanced, Phoenix-type
• Audio Network: No
• CAN Bus Interface: Optional (RCM-810 card)
• Continuous Rated Power (1 kHz, THD 1%) 100v: 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 2Ω: 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 4Ω: 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 70v: 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 8Ω: 250Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 100v: 500Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω: 450Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 70v: 450Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω: 225Watts
• Cooling: Front-to-Rear, continuously variable fans
• DIM 30: 0.02%
• Electronics Type: Amplifier
• Frequency Response (-3 dB): 15 Hz-30,000 Hz
• Impedance: 2/4/8/8 VLD/71 V/100VΩ
• Input Impedance (Balanced): 20kΩ
• Input Sensitivity: 0 dBu (.775V)-2ω, +3 dBu (1.1V)-4/8ω, +6 dBu (1.55) 70V/100V
• Mains Voltage: 220 - 240 V, 50 - 60 Hz or 120 V, 50 - 60 Hz, 50 - 60 Hz
• Maximum Bridged Output 4Ω: 1000Watts
• Maximum Bridged Output 8Ω: 1000Watts
• Maximum Input Voltage: +22 (9.76 Vrms)
• Network Control (IRIS-Net): Optional (RCM-810 card)
• Signal-to-Noise Ratio (A-weighted): 100dB
• Slew Rate: 28V/µs
• Topology: Class-D
• Total Harmonic Distortion: 0.05%
• Variable Load Drive (VLD): Yes
