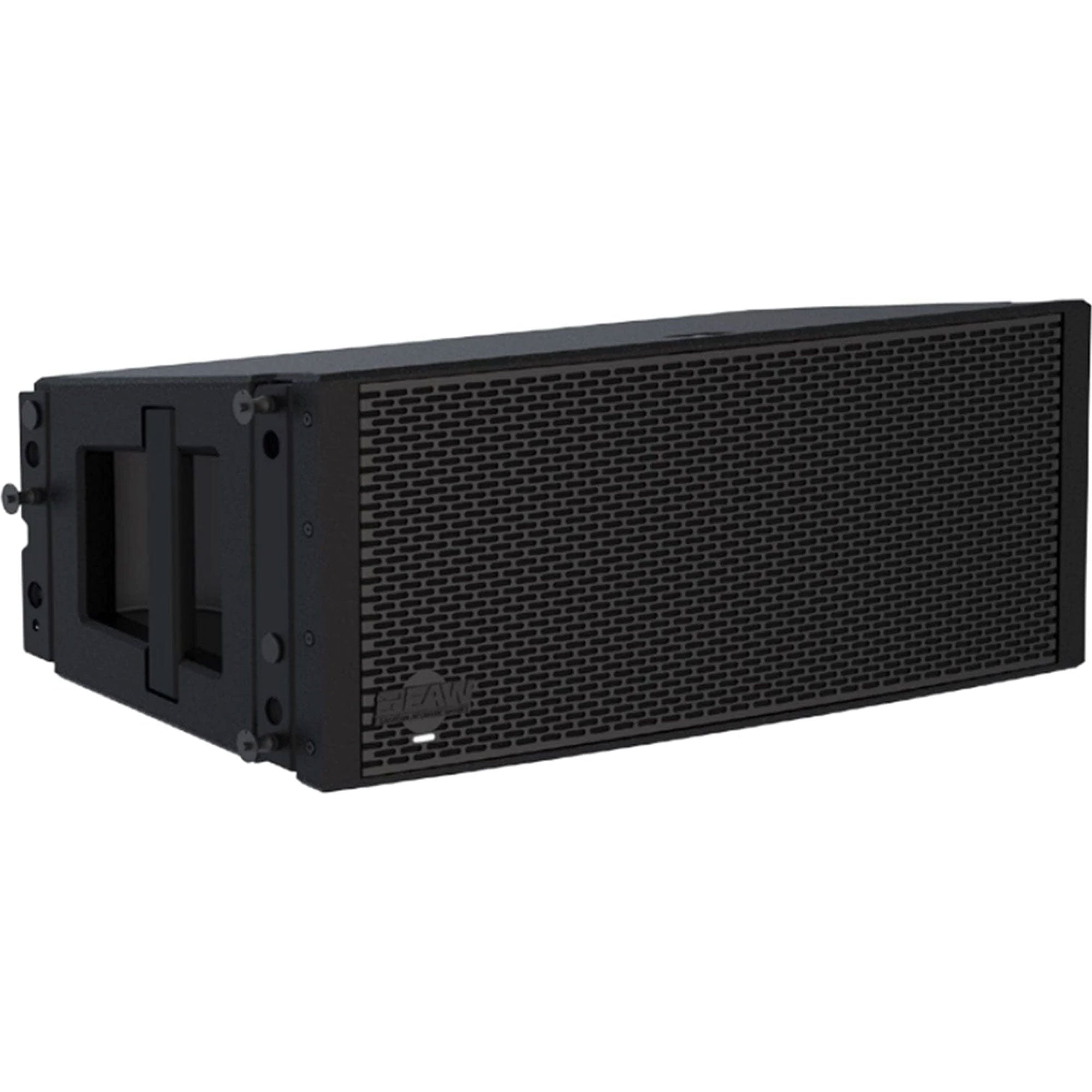

EAW Radius RSX208L Dual 8" 3-Way Self-Powered Loudspeaker

3-Way Self-Powered Loudspeaker

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. The RADIUS articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. EAWmosaic app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Features

• OptiLogic provides array self-detection via onboard infrared sensors and accelerometers for near-instant optimization that cuts down on setup and tuning time.

• Extremely approachable EAWmosaic iOS app delivers system prediction, control and monitoring from any location in the venue.

• Proven EAW acoustical design and DSP including Focusing and DynO provides a pristine impulse response at all output levels.

• Integrated Dante networking (with loop-thru) on all models including Analog redundancy capability.


Applications

• House of Worship

• Theatres, Auditoria and Performing Arts Centers

• Live Music Clubs

• Corporate AV Houses

• Live Production/Regional Rental Houses

• Dry Hire


Specifications

• Frequency Response: 70 Hz -18 kHz

• Max SPL: 131 dB

• Operating Mode:
  Amplifier Channels: Tri-amp LF,LF/MF, HF
  External Signal Processing: DSP w/EAW Focusing and DynO
• Subsystem:
  LF - 1 x 8 in cone, 2 in voice coil
  LF/MF - 1 x 8 in cone, 2 in voice coil
  HF - 2 x 1 in exit, 1.4 in voice coil compression drivers
• Nominal Beamwidth:
  Horizontal 120°
  Vertical 12°
• Power Handling: 3x 500W

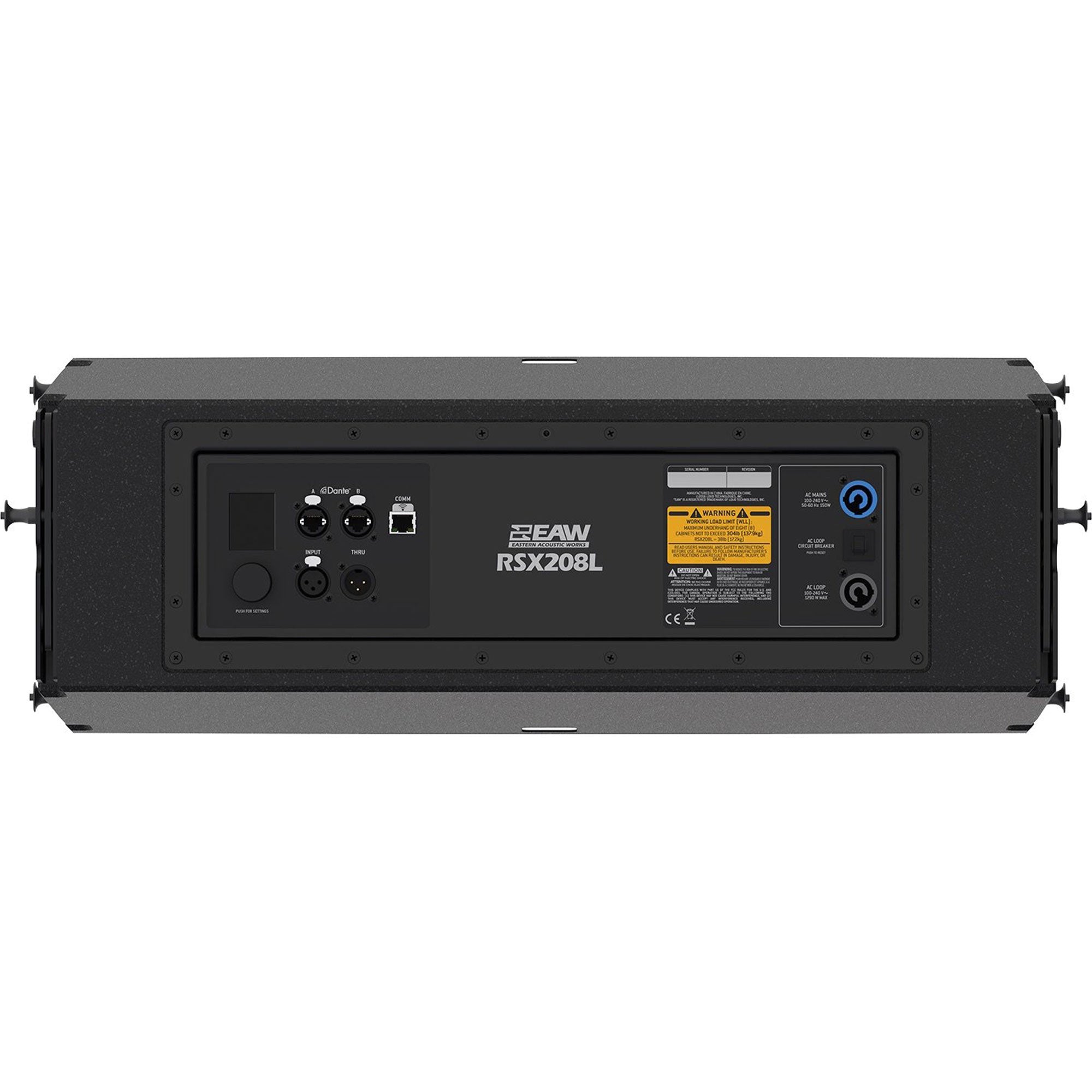

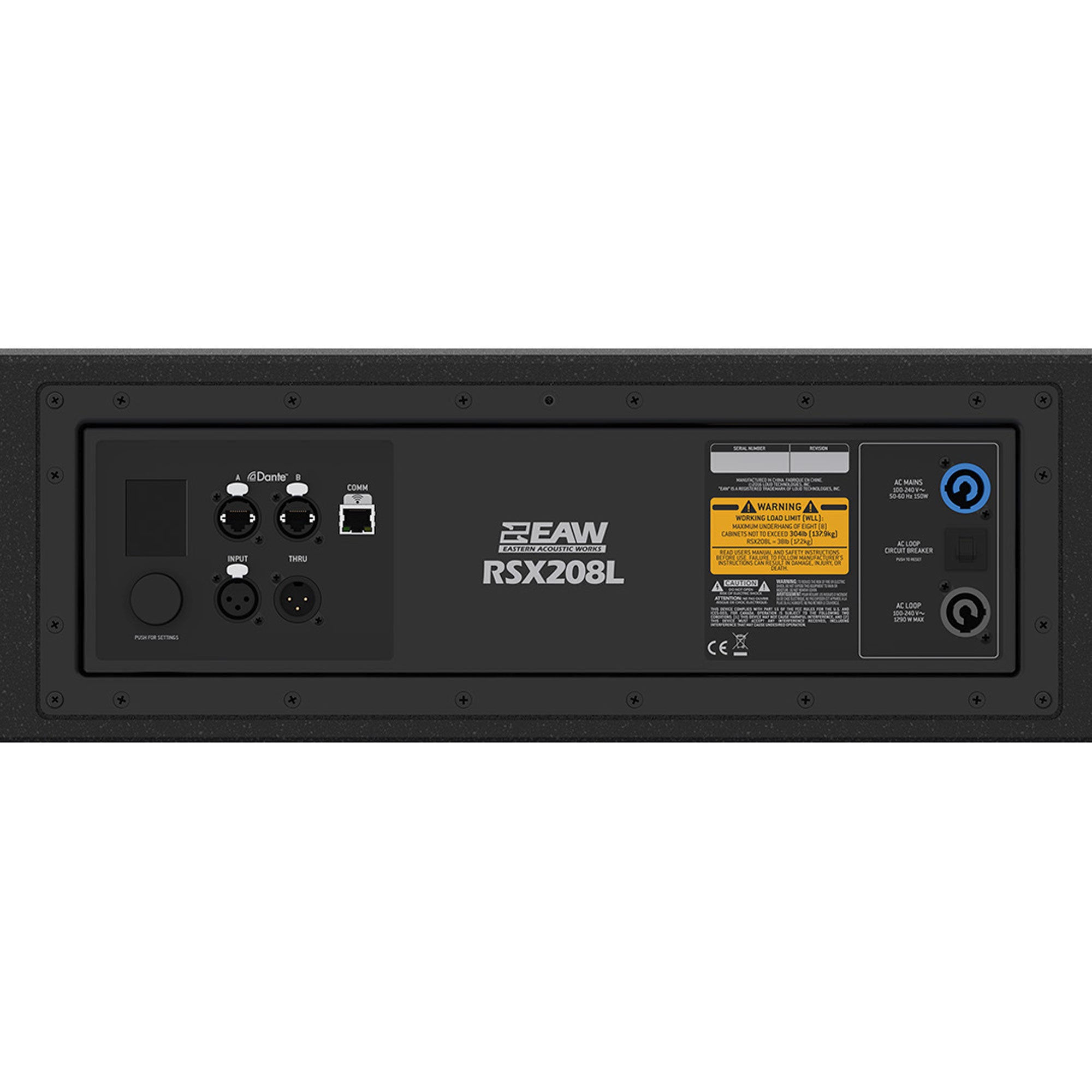

• Connections:
  Powercon AC Mains/Loop
  2x Neutrik etherCON
  RJ-45
  XLR Input/Loop
• Dimensions:
  Height: 9.80 in (248.9 mm)
  Width: 25.20 in (640.0 mm)
  Depth: 13.10 in (332.7 mm)
• Weight: 40.5 lb (18.4 kg)
