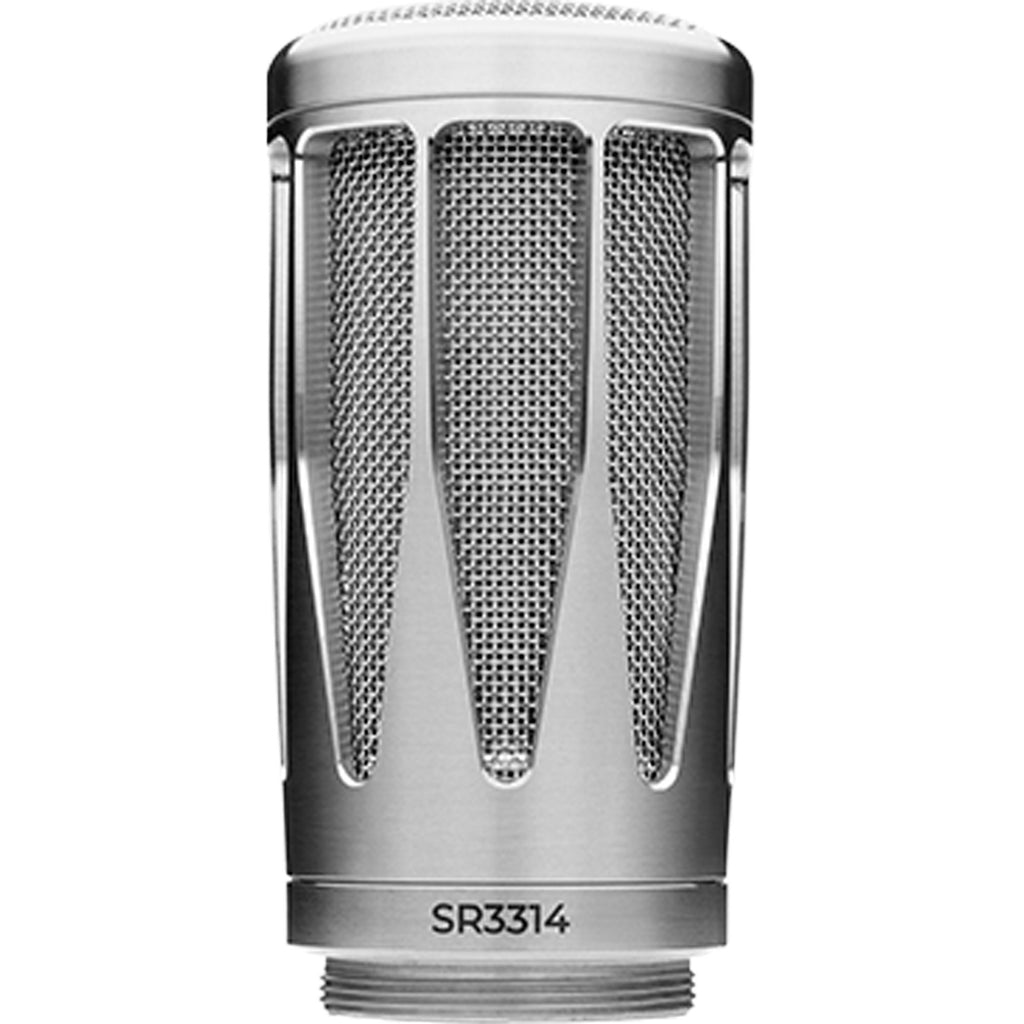

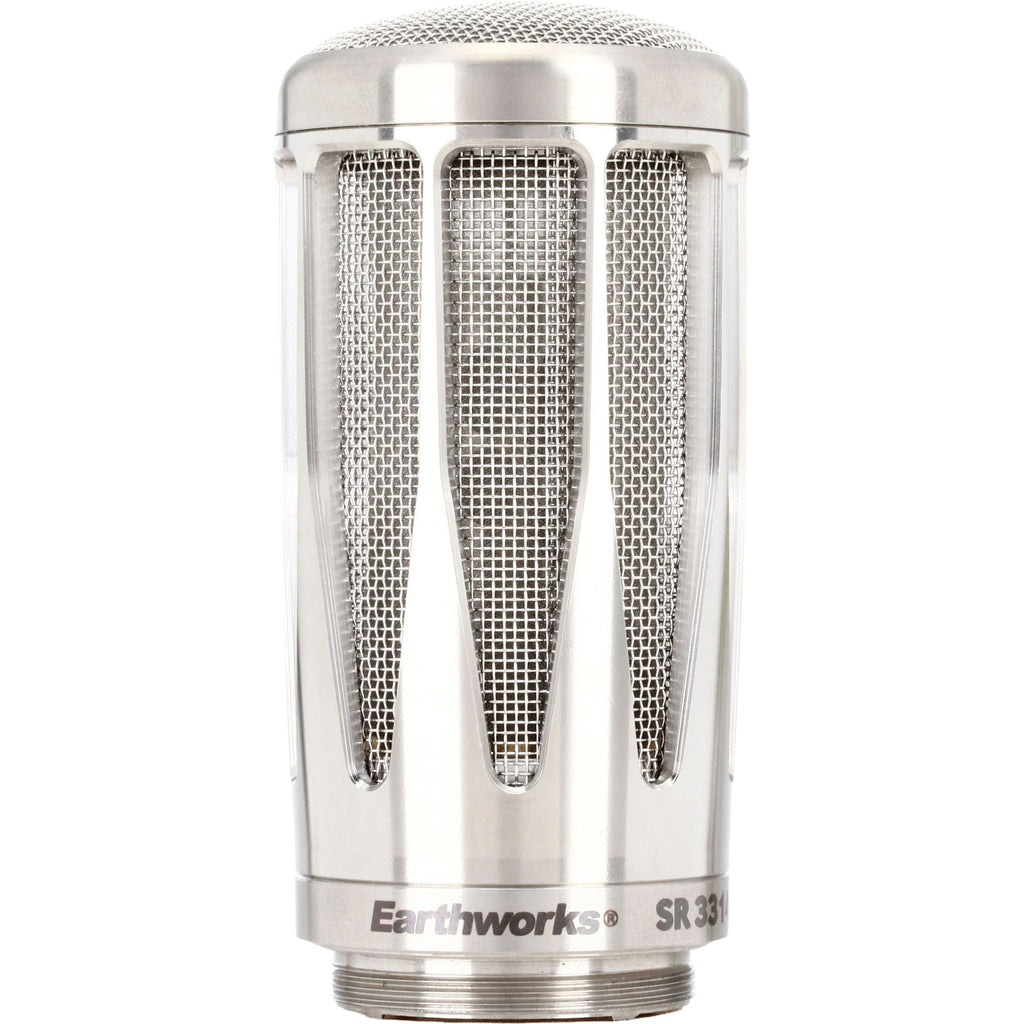

Earthworks SR3314 Wireless Microphone Capsule (Stainless Steel)

Small-diaphragm Handheld Condenser Microphone Capsule for Shure, Line 6, and Sony Wireless Microphone Transmitters - Stainless Steel

The Fastest Microphone Capsule.

Speed matters. Bring the most responsive wireless capsule to your favorite wireless platform. Formatted for use with any 3-ring wireless microphone base, the Earthworks SR3314 captures natural, open, rich-sounding vocals with minimal proximity effect.

What's your color?

Available in stainless steel, polished black with stainless mesh, and polished black.

STUDIO CONTROL ON PAGE

Mitigate bleed and feedback with unparalleled off-axis sound rejection.

WIRELESS FLEXIBILITY

Whether performing for an intimate live streaming session or for a local gig, work the stage while sounding like you're singing through a wired handheld.

FASTER SOUNDCHECKS

Clean impulse response combined with a textbook cardioid pattern equals better monitor mixes.

SPECIFICATIONS

• FREQUENCY RESPONSE: 20Hz - 30kHz
• POLAR PATTERN: Cardioid
• SENSITIVITY: 6.5 mV/Pa (-43.7 dBV/Pa)
• POWER REQUIREMENTS: 3V to 6V; 2.1 mA @ 5V
• DISTORTION: Less than 3% THD
• PEAK ACOUSTIC INPUT: 133dB SPL @ 6V
• OUTPUT: Center & outer ring on 3-ring concentric connector
• OUTPUT IMPEDANCE: 0.1 ohms
• THREADS: 1.25"/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
• SELF NOISE: 22dBA @ capsule output (A weighted)
• DIMENSIONS:
  3.3" (84mm) long
  1.6" (40.6mm) max dia.
  1.46" (37mm) min dia
• WEIGHT: 0.4 lbs. (0.18kg)

COMPATIBLE WIRELESS SYSTEMS

• SHURE
  ULX-D
  QLX-D
  SLX-D
  *Axient
  *with Shure Axient AD2 and ADX2 handheld transmitters, the SR3314 may take a little over 3 seconds to warm up, starting from the moment the transmitter is switched on. We recommend keeping the channel muted during this short warmup period to prevent distortion and/or noise being heard.
• AUDIO-TECHNICA
  3000 Series
  5000 Series
  6000 Series
• LECTROSONICS
  HH
  HHa
• LINE 6
  V75
  V55
