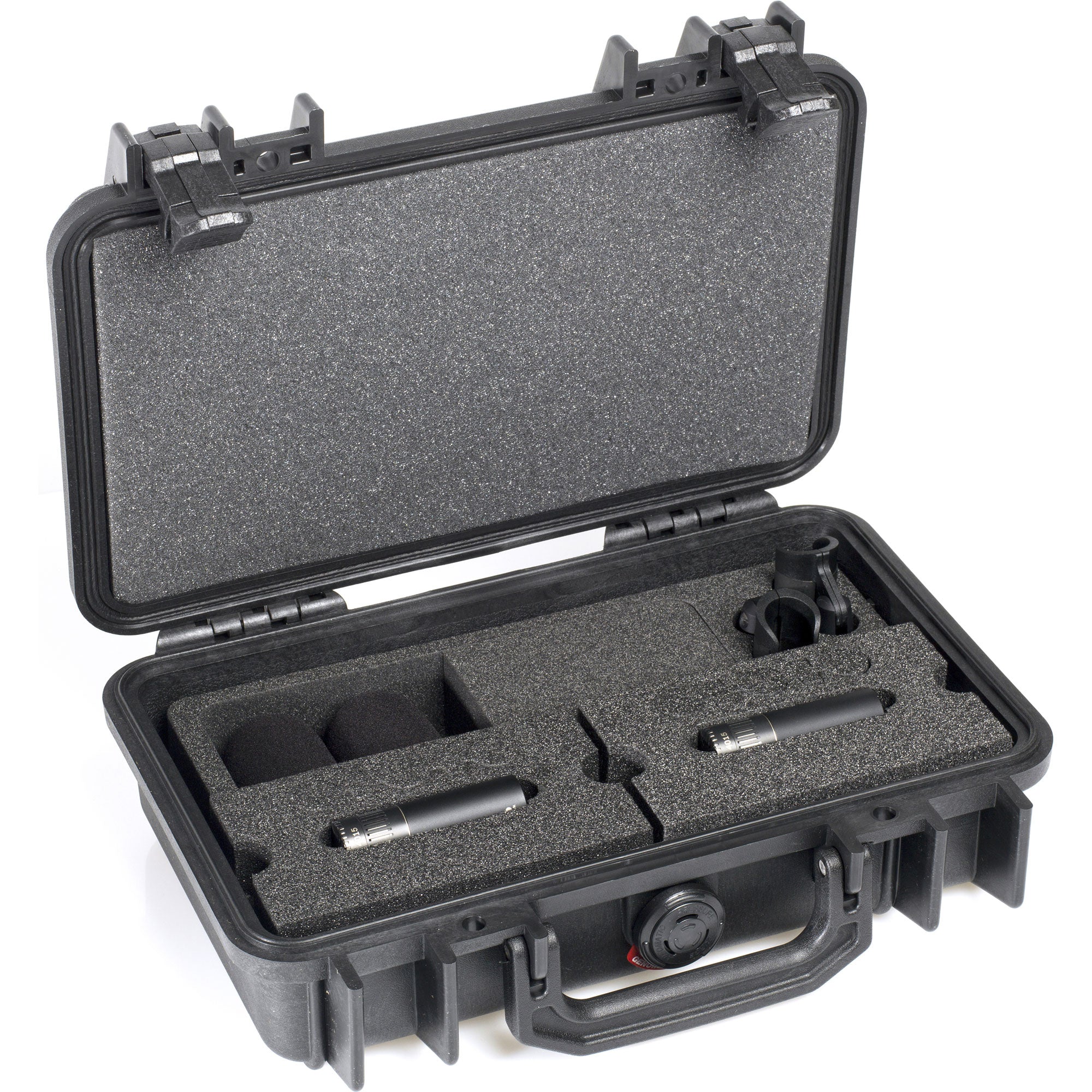

DPA ST4015C Stereo Pair 4015C Microphones with Clips and Windscreens in Peli Case

Reference Standard Stereo Microphone Kit with 2 X 4015C Mics, Clips and Windscreens in Hard Case

Visually discreet, the 4015C Wide Cardioids represent an indispensably low-profile solution for audio engineers and set designers alike. Tremendously precise and natural sounding, the compact wide cardioids will excel when used on choirs, percussion setups, grand pianos, wind instruments, and much more. Also useful as spot mics for classical recording, the 4015C blends very naturally in with the main pair.

The DPA ST4015C is a complete DPA 4015C Stereo Pair with two carefully factory-matched wide cardioid microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, a stereo match is even closer.

The specially selected DPA 4015C microphones are matched within +/-1 dB on both frequency response and sensitivity.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Included in this kit
Two carefully matched 4015C wide cardioid microphones, sturdy PeliTM case, holders, and windscreens.

Optional Accessories
You may be interested in combining the ST4015C with:

DAO4010 Cable with slim XLR connector
Cable designed for suspension or minimal visual appearance using Mogami cable and an ultra slim DPA XLR housing, adding only a few millimeters extra length to the microphone. Most of the connector will be locked and hidden in the microphone itself.

SBS0400 Modular Stereo Boom w. Shock Mounts
The lightweight SBS0400 stereo boom addresses the need for quick and flexible ways to switch between stereo principles like AB, XY and ORTF. A central base with rotary joint allows the microphones to be angled equally. SBS0400 has hooks for suspending the boom in wires. The standard length is 40 cm (1.3 ft) but the boom can be further extended. Includes two SM1500 shock mounts (also available as SB0400 without shock mounts).

UA0836 Stereo Boom
The legendary, precision handcrafted DPA stereo boom for accurate and repeatable positioning. Has distance markings in centimeters and typical angle offset markings on holder bases. Can be stand mounted or ceiling suspended. Length: 54 cm. Also available as UA0837 without holders.

SM1500 Shock Mount, Modular
The SM1500 is a modular double pole construction on an adjustable mic stand base. Use this mount to decouple vibrations to your microphone.

TIP: Combined with the MB4000 Magnet Base, the SM1500 and 4015C make a good solution for on-frame mounting inside the piano with closed lid or on short stick for high isolation.

Features:

• Natural reproduction
• Carefully matched within +/-1 dB
• Low profile - wide pickup area
• PeliTM Case transportation and protection

Specifications:

• Directional pattern: Wide cardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, +/- 2 dB, at 60 cm: 40 Hz - 20 kHz
• Sensitivity, nominal, +/- 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 Pa (max. 20 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
• Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
• Dynamic range: Typ. 121 dB
• Max. SPL, peak before clipping: 152 dB
• Output impedance: < 200 ohm
• Minimum load impedance: 2 kohm
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common Mode Rejection Ratio (CMRR): > 50 dB
• Power supply (for full specifications): 48 V Phantom power (+/- 4 V)
• Current consumption: 2.8 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color: Matte black
• Weight: 58 g (2 oz)
• Microphone diameter: 19 mm (0.75 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 64 mm (2.5 in)
• Output voltage, RMS: > 4 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40 C to 45 C (-40 F to 113 F)
• Relative Humidity (RH): Up to 90%
• Matching tolerance: +/- 1 dB
• Phase deviation for kit: < 10
