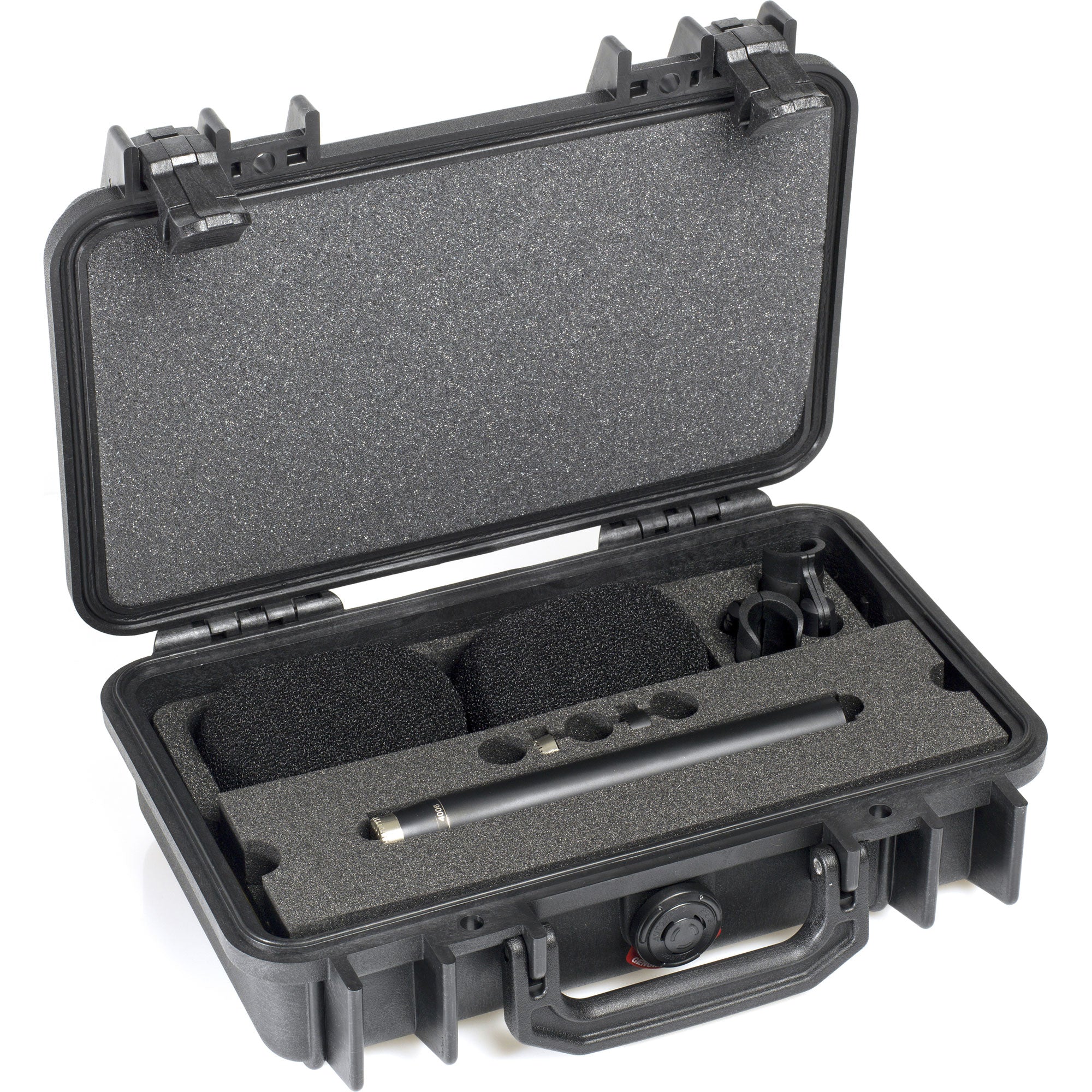

DPA ST4006A Stereo Pair 4006A Microphones with Clips and Windscreens in Peli Case

Reference Standard Stereo Microphone Kit with 2 X 4006A Mics, Clips and Windscreens in Hard Case

The DPA ST4006A is a complete DPA 4006A Stereo Pair with two carefully factory-matched omni microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, a stereo match is even closer.

The specially selected DPA 4006A microphones are matched within +/-0.5 dB on both frequency response and sensitivity. The maximum phase response difference is 5.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (+/-2 dB) of the microphone pair makes the ST4006A the perfect choice for all AB Stereo recordings. The design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory foam inlays.

Included in this kit
Two carefully matched 4006A omni microphones, sturdy PeliTM case, holders, grids and windscreens.

Optional Accessories
You may be interested in combining the ST4006A with:

SBS0400 Modular Stereo Boom w. Shock Mounts
The lightweight SBS0400 stereo boom addresses the need for quick and flexible ways to switch between stereo principles like AB, XY and ORTF. A central base with rotary joint allows the microphones to be angled equally. SBS0400 has hooks for suspending the boom in wires. The standard length is 40 cm (1.3 ft) but the boom can be further extended. Includes two SM1500 shock mounts (also available as SB0400 without shock mounts).

UA0836 Stereo Boom
The legendary, precision handcrafted DPA stereo boom for accurate and repeatable positioning. Has distance markings in centimeters and typical angle offset markings on holder bases. Can be stand mounted or ceiling suspended. Length: 54 cm. Also available as UA0837 without holders.

D3 Decca Tree and S5 Surround Mount
The D3 Decca Tree and S5 Surround Mount are highly versatile and stylish microphone mounts. They provide extreme flexibility due to their unique building block design. The mounts allow for numerous configurations while providing visual elegance for fixed installations and easy transportation for location recordings.

Microphone grids
Three different grids are supplied with the 4006A. An optional fourth one, the UA0777 Nose Cone, makes the 4006A perfectly omnidirectional at all angles.

SM1500 Shock Mount, Modular
The SM1500 is a modular double pole construction on an adjustable mic stand base. Use this mount to decouple vibrations to your microphone.

TIP: Combined with the MB4000 Magnet Base, the SM1500 and 4006A make a good solution for on-frame mounting inside the piano with closed lid or on short stick for high isolation.

Features:

• carefully matched microphones
• high sensitivity, low noise-floor and extremely linear frequency
• PeliTM case transportation and protection

Specifications:

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency range: 10 Hz - 20 kHz
• Frequency range, +/- 2 dB: 10 Hz - 20 kHz
• Sensitivity, nominal, +/- 2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 Pa (max. 17 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
• Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
• Dynamic range: Typ. 124 dB
• Max. SPL, peak before clipping: 147 dB
• Switchable attenuator: 0 dB / -20 dB
• Output impedance: < 200 ohm
• Minimum load impedance: 2 kohm
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common Mode Rejection Ratio (CMRR): > 60 dB
• Power supply (for full specifications): 48 V Phantom power (+/- 4 V)
• Current consumption: 2.8 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color: Matte black
• Weight: 163 g (5.7 oz)
• Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)
• Capsule diameter: 16 mm (0.6 in)
• Microphone length: 170 mm (6.7 in)
• Output voltage, RMS: > 5 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40 C to 50 C (-40 F to 122 F)
• Relative Humidity (RH): Up to 90%
• Classification: Conforms to IEC 61672 Class I (with Near-field Grid DD0251)
• Matching tolerance: +/- 0.5 dB
• Phase deviation for kit: < 5
