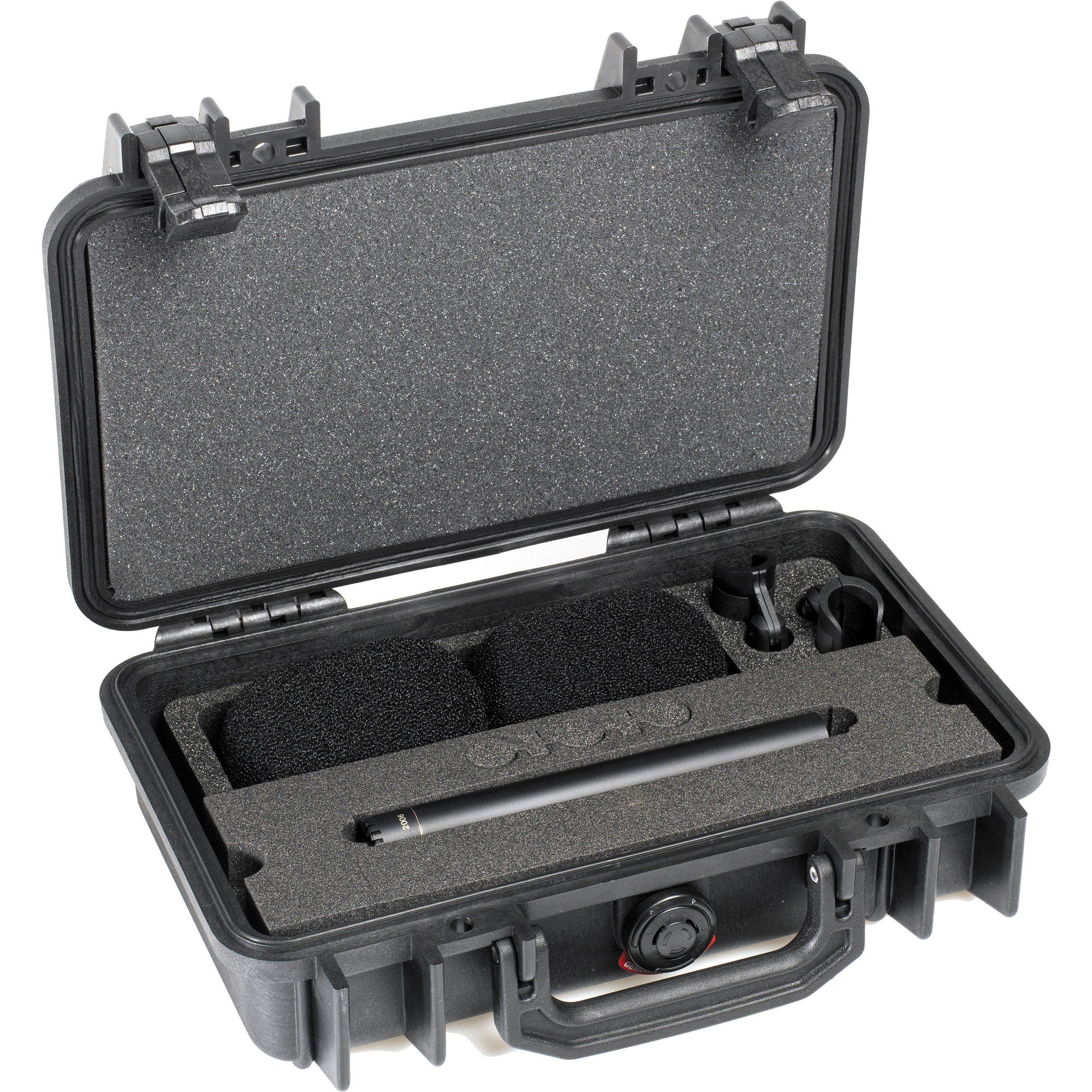

DPA ST2006A Stereo Pair 2006A Microphones with Clips and Windscreens in Peli Case

Reference Standard Stereo Microphone Kit with 2 X 2006A Mics, Clips and Windscreens in Hard Case

The DPA ST2006A is a complete DPA 2006A Stereo Pair with two handpicked omni microphones, selected on sensitivity within +/-1.5 dB.

As main AB stereo pair the 2006As deliver precise acoustic fingerprint and true tone. Orchestra, acoustic piano, guitar, wind instruments and choirs are among the most evident applications for this high-value-for-money pair.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone and accessory inlays.

Included in this kit
Two carefully matched 2006A omni microphones, sturdy PeliTM case, holders, and windscreens.

Optional Accessories
You may be interested in combining the ST4006A with:

SBS0400 Modular Stereo Boom w. Shock Mounts
The lightweight SBS0400 stereo boom addresses the need for quick and flexible ways to switch between stereo principles like AB, XY and ORTF. A central base with rotary joint allows the microphones to be angled equally. SBS0400 has hooks for suspending the boom in wires. The standard length is 40 cm (1.3 ft) but the boom can be further extended. Includes two SM1500 shock mounts (also available as SB0400 without shock mounts).

UA0836 Stereo Boom
The legendary, precision handcrafted DPA stereo boom for accurate and repeatable positioning. Has distance markings in centimeters and typical angle offset markings on holder bases. Can be stand mounted or ceiling suspended. Length: 54 cm. Also available as UA0837 without holders.

D3 Decca Tree and S5 Surround Mount
The D3 Decca Tree and S5 Surround Mount are highly versatile and stylish microphone mounts. They provide extreme flexibility due to their unique building block design. The mounts allow for numerous configurations while providing visual elegance for fixed installations and easy transportation for location recordings.

SM1500 Shock Mount, Modular
The SM1500 is a modular double pole construction on an adjustable mic stand base. Use this mount to decouple vibrations to your microphone.

TIP: Combined with the MB4000 Magnet Base, the SM1500 and 2006A make a good solution for on-frame mounting inside the piano with closed lid or on short stick for high isolation.

Features:

• Sensitivity selected pair
• Acoustic authenticity
• Linear in a large frequency bandwidth
• PeliTM Case transportation and protection

Specifications:

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
• Frequency range: 20 Hz - 20 kHz
• Frequency range, +/- 2 dB: 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
• Sensitivity, nominal, +/- 2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 Pa (max. 18 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
• Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 130 dB SPL peak
• Dynamic range: Typ. 114 dB
• Max. SPL, peak before clipping: 141 dB
• Switchable attenuator: 0 dB / -20 dB
• Output impedance: < 200 ohm
• Minimum load impedance: 2 kohm
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common Mode Rejection Ratio (CMRR): > 60 dB
• Power supply (for full specifications): 48 V Phantom power (+/- 4 V)
• Current consumption: 2.8 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color: Matte black
• Weight: 160 g (5.6 oz)
• Microphone diameter: 19 mm (0.75 in)
• Length: 164 mm (6.5 in)
• Output voltage, RMS: > 5 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40 C to 45 C (-40 F to 113 F)
• Relative Humidity (RH): Up to 90%
• Sensitivity selection tolerance (at 1 kHz): +/- 1.5 dB
