DPA d:dicate 4018ES Supercardioid Microphone with Side Cable

d:dicate Supercardioid Microphone with Side Exit Active Cable

d:dicate 4018E Supercardioid Microphone, Active Cable

4018ER Supercardioid Microphone, Rear cable

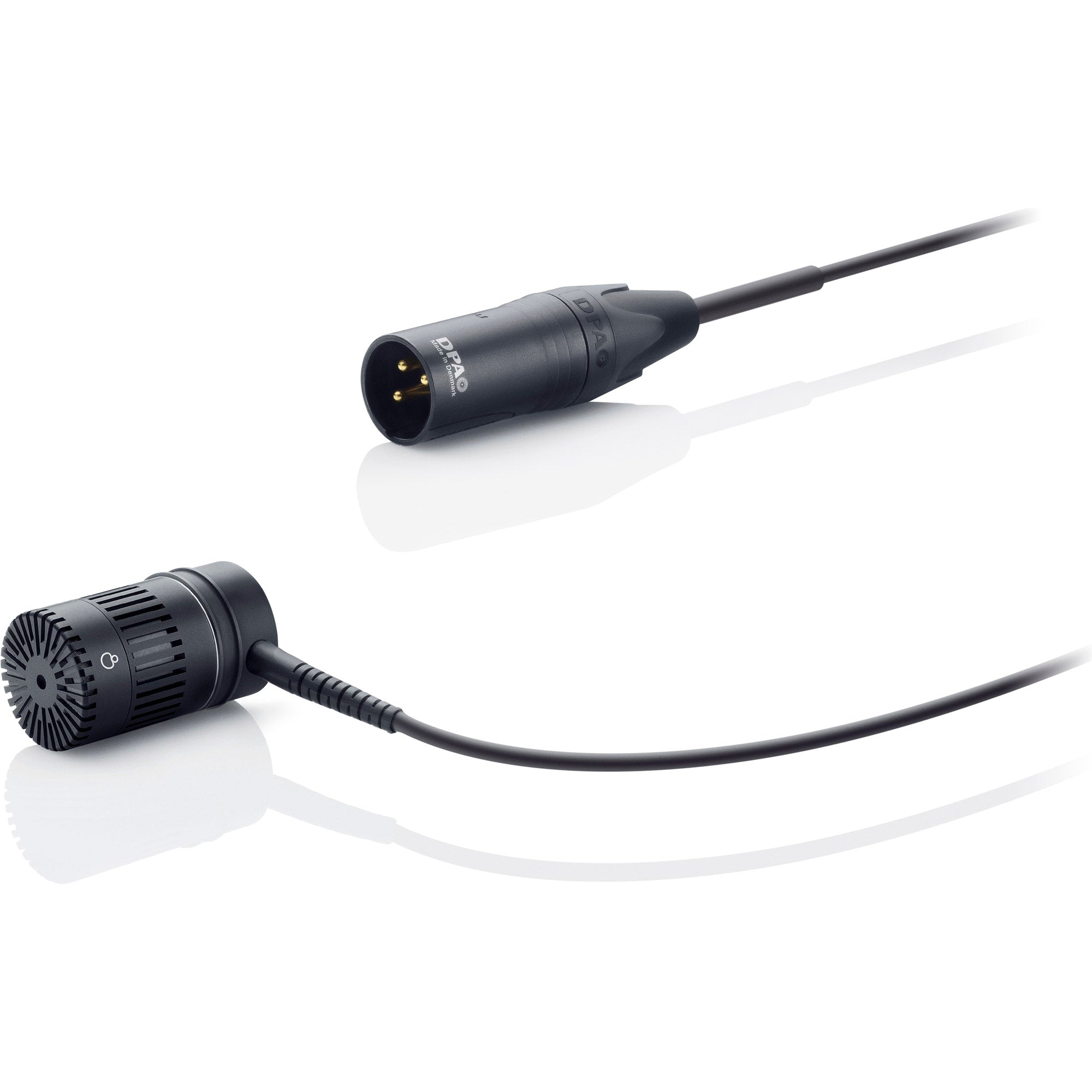

4018ES Supercardioid Microphone, Side cable

Ideal for unobtrusive or distant miking such as desktop or hanging use, the 4018E is an ultra-compact supercardioid microphone from the modular DPA d:dicate Recording Microphones series.

With a length of only 3,5 cm, the low-key appearance of the 4018E is as unique as the highly directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018E making it much more isolated without sudden frequency dependent peaks and dips.

Designed for a broad range of broadcast/ENG/film long-distance miking applications, such as various dialogue capturing, interview and table or podium use, the modular 4018 capsule offers superb flexibility through modular accessories. The 4018E is also ideal for use as spot or hanging mic for orchestra recording situations with the SM4000-C suspension mount, which is included in the package. This allows the 4018E to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere.

At any time and with no tools necessary it is possible to transform the basic 4018E microphone into a new configuration by combining it with another DPA microphone capsule or preamp.

Features:

• Ultra-compact table or hanging mic
• Frequency consistent polar pattern
• Highly directional
• Low-key appearance

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ± 2 dB, at 30 cm: 40 Hz - 18 kHz
• Sensitivity, nominal, ± 2 dB at 1 kHz: 12 mV/Pa; -38.4 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB)
• Equivalent noise level, ITU-R BS.468-4: -
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
• Total Harmonic Distortion (THD): < 1 % up to 137 dB SPL peak
• Dynamic range: Typ. 121 dB
• Max. SPL, peak before clipping: 142 dB
• Output impedance: 100 Ω
• Minimum load impedance: 2 kΩ
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing
• Common Mode Rejection Ratio (CMRR): > 40 dB
• Power supply (for full specifications): 48 V Phantom power (± 4 V)
• Current consumption: 3.5 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color: Matte black
• Weight: 109 g (3.8 oz)
• Microphone diameter: 19 mm (0.75 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 35 mm (1.38 in)
• Output voltage, RMS: 2.2 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
• Relative Humidity (RH): Up to 90%
• Matching tolerance: ± 1 dB
• Phase deviation for kit: < 10°
