Custom Cables 8-Channel Audio Snake Made from Canare MS202 & Pro Connectors (RCA to 1/4" TS)

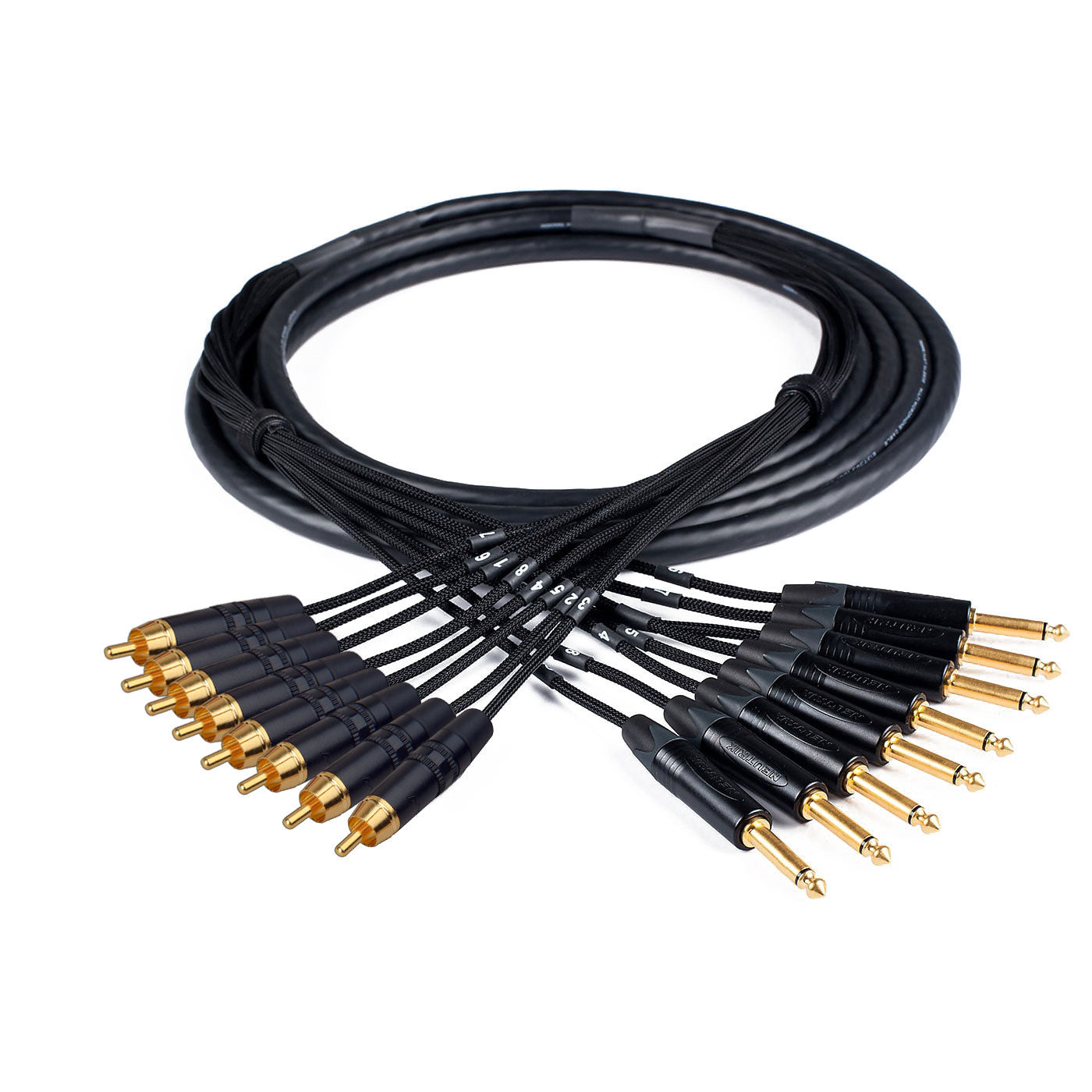

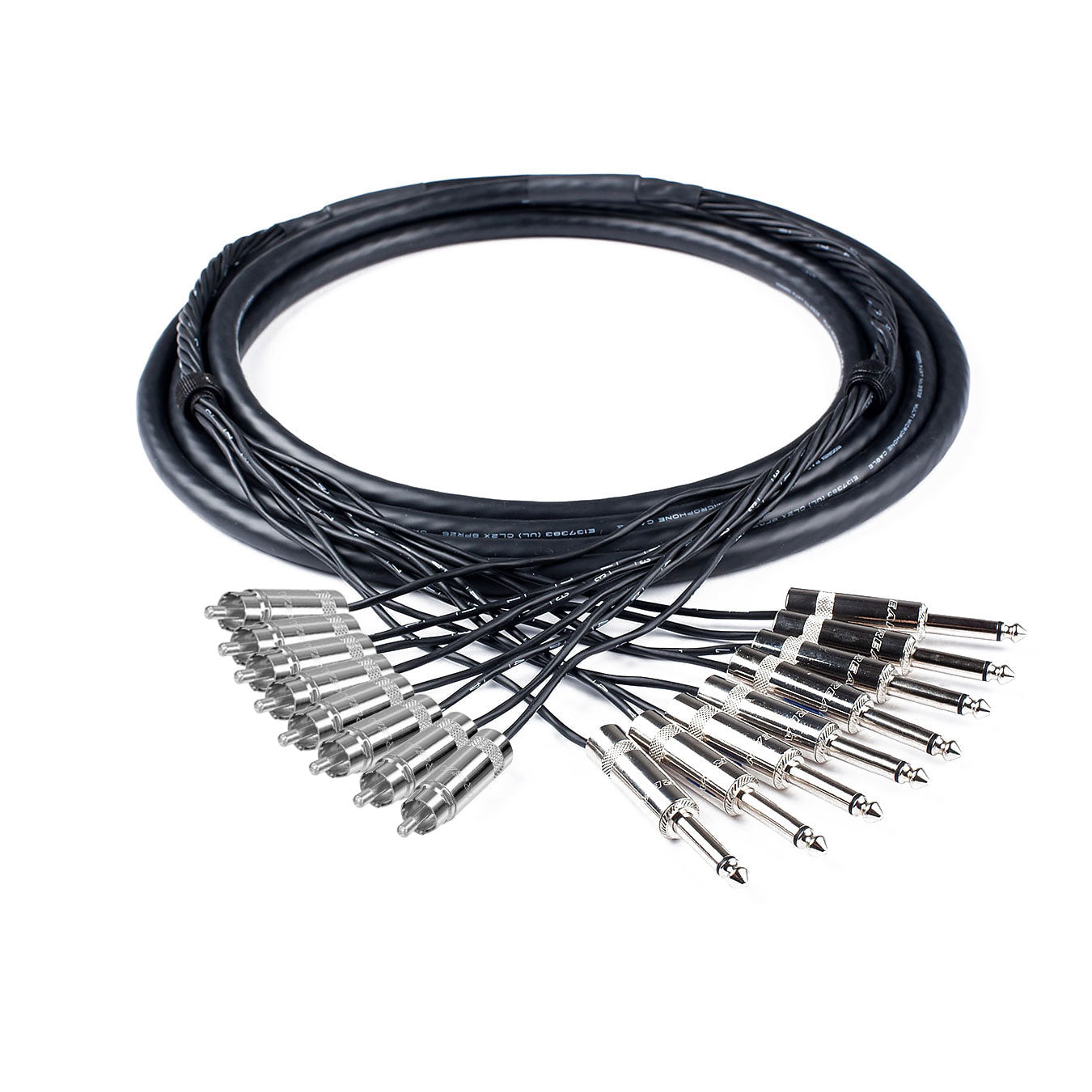

Custom 8-Channel RCA-to-TS Audio Snake with Canare MS202-8P

Keep eight unbalanced analog audio connections organized between compatible RCA and 1/4-inch TS equipment. Performance Audio custom builds this snake using Canare MS202-8P cable and professional connectors, with length, labeling, and finishing options to suit your studio, rack, or playback setup.

Built for Your Connections

• Canare MS202-8P 8-channel audio snake cable.
• RCA connections at one end and 1/4-inch TS connections at the other, using the professional connector options available for this build.
• Eight separate unbalanced mono audio paths.
• Custom labeling and finishing options.
• Custom-built finished assembly, not unterminated bulk cable.
• Lifetime warranty.

Eight Mono Channels or Four Stereo Pairs

Each channel provides one independent mono connection. A stereo connection normally uses two channels, one for left and one for right, so this snake can connect four stereo pairs when the equipment has separate compatible left and right ports.

The channels remain separate: this assembly does not mix signals, split an output, or combine outputs. Connect each source output to the appropriate destination input. The RCA-to-TS designation describes the connector arrangement, not an active signal converter; either end can connect to the source when the equipment and signal requirements are compatible.

Confirm Analog Audio and Signal Levels

Use this configuration for compatible unbalanced analog audio connections. Check each port's function and operating level rather than relying on connector fit. RCA sockets can carry line-level analog audio, phono-level signals, coaxial S/PDIF digital audio, or video; those formats are not interchangeable.

This snake does not provide phono preamplification or RIAA equalization, convert coaxial digital audio or video to analog audio, or change consumer and professional operating levels. A turntable requiring a phono preamp still needs the appropriate preamp and any required grounding arrangement.

A 1/4-inch socket may carry unbalanced mono audio, balanced audio, stereo headphones, an insert send/return, a speaker-level signal, or a control function. Confirm that the intended port accepts the TS connection and that the source level suits the destination. This is not a stereo-headphone adapter or an insert breakout.

If connecting a balanced output to an unbalanced input, follow the equipment manufacturer's wiring guidance and confirm the appropriate build with our custom cable specialists. Some balanced outputs require specific treatment of the unused signal conductor; do not assume a TS plug is suitable for every TRS output. This passive assembly does not balance signals, provide transformer isolation, match impedances, or provide line-to-mic attenuation.

Do not use this snake for amplifier-to-passive-speaker connections or phantom-power feeds. Passive instruments and other high-impedance sources may need a suitable direct box or buffer rather than a long snake run.

Plan Length for Unbalanced Connections

Keep unbalanced runs as short as practical and route them away from power supplies, dimmers, and other interference sources. Suitable length depends on the source impedance, destination, signal level, and installation environment. This assembly does not provide the noise-rejection benefits of a balanced connection.

Measure the complete route with room for service slack, gentle bends, and equipment access while avoiding unnecessary excess cable. At both ends, measure from the breakout point to the farthest socket and allow enough individual-channel reach to patch without pulling on connectors. Discuss special breakout lengths or staggered reaches before ordering.

Check clearance around recessed or closely spaced RCA and 1/4-inch sockets, including space for the selected connector bodies. Confirm your channel map before the build is finalized, especially when signals travel in different directions within the same assembly.

Channel Identification and Finishing

Use custom labels to identify channel numbers, sources, destinations, and stereo-pair assignments. Keep identification consistent from end to end so left/right pairs remain easy to trace. Discuss color coding by channel and available finishing options to simplify setup and troubleshooting.

Handling and Testing

Support the main cable and breakouts so equipment sockets do not carry the snake's weight. Avoid sharp bends, crushing, and tension where individual channels leave the main jacket. Disconnect by the connector body rather than pulling on the cable.

Test all eight channels with the intended equipment before installation or a show. Confirm channel mapping, left/right assignments, appropriate levels, and clean audio without hum, noise, or intermittent connections. If noise occurs, check the full system's grounding, routing, and equipment compatibility rather than assuming the cable provides isolation. Never join two active outputs together.

Customization Help

If the available website options do not cover your needs, call or email Performance Audio's custom cable specialists. Provide your equipment models, port functions and signal levels, main cable length, breakout reach at both ends, channel map, and labeling or finishing requests so we can confirm the build details. Confirm pricing and the build timeline before ordering if you have a deadline.
