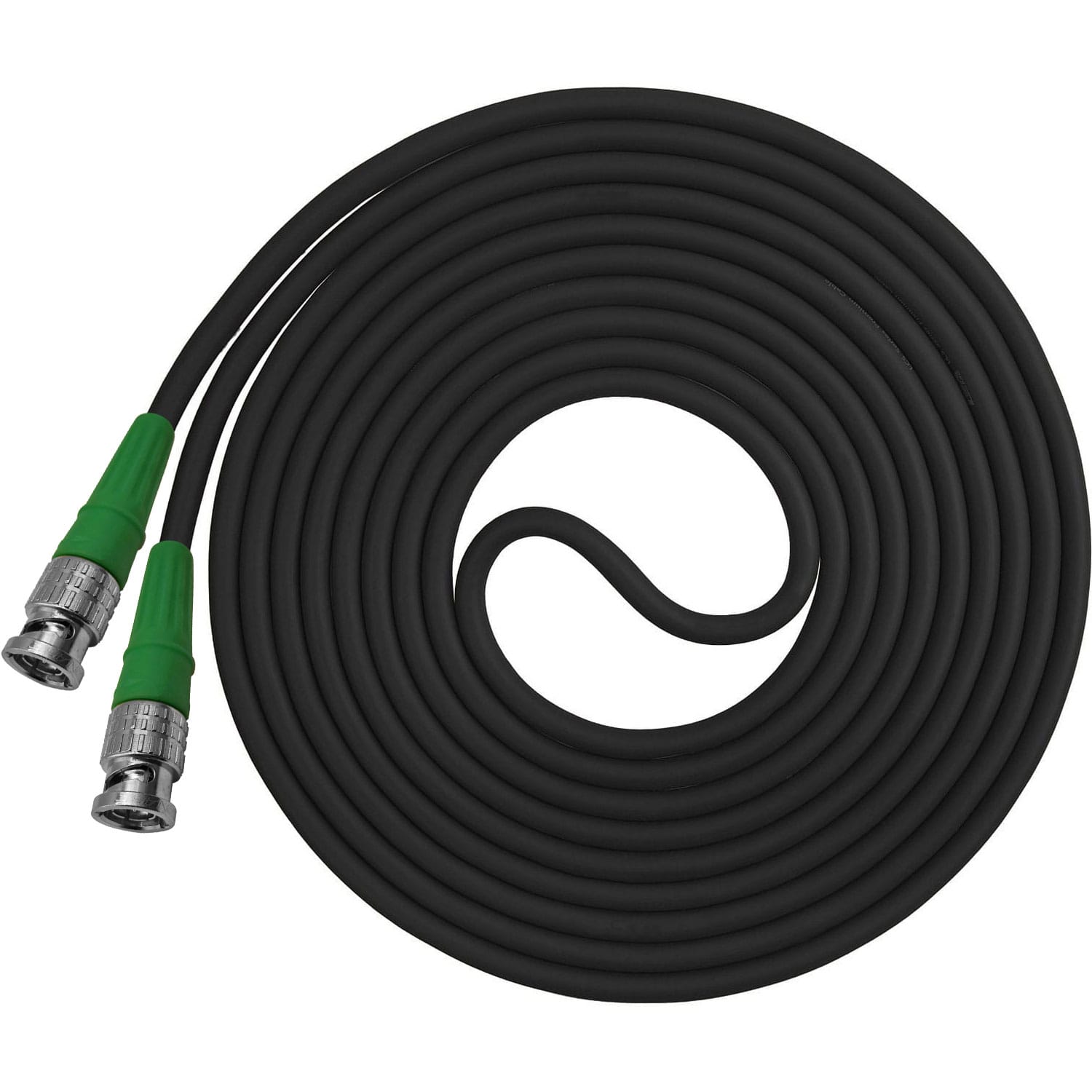

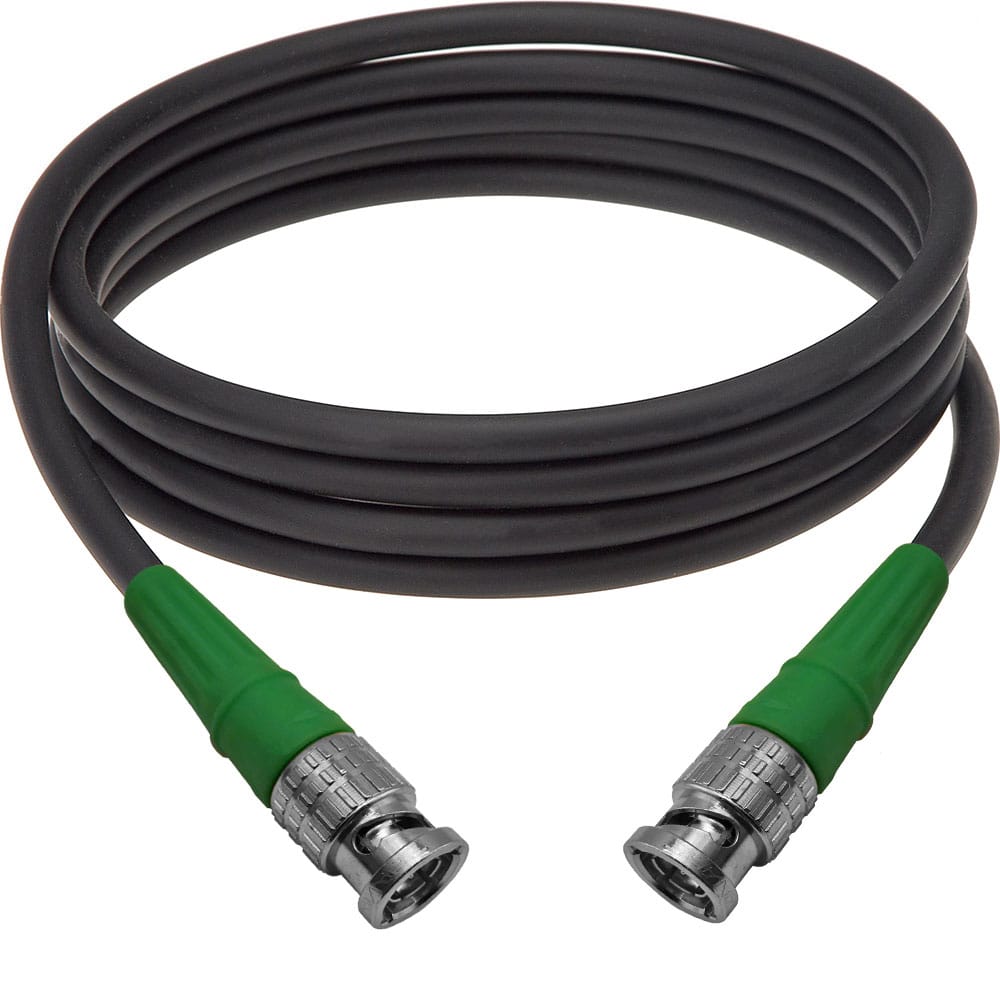

Custom Cables 75 Ohm RG-59 Digital Coax Video Cable Made from Canare L-4CFB & Canare Connectors

Custom Cables SKU: CUS DIGVIDL4CFB
MPN: CUSTOM DIGITAL VIDEO L-4CFB

Price:
Sale price$10.00
Stock:
Custom Made to Order

Key Features

  • Canare L-4CFB 75 Ohm Coaxial Cable
  • Genuine Canare BNC & F-Type Connectors
  • Lifetime Warranty
  • Available in 4 Colors
  • Custom Labeling Available
  • Finishing Options
  • Custom Made to Order

Description

Custom 75-Ohm Digital Video Cable with Canare L-4CFB

Keep your video connections organized with a coaxial cable built for your equipment and routing needs. Performance Audio custom builds this assembly using Canare L-4CFB 75-ohm RG-59 digital video coaxial cable and genuine Canare connectors. Select the available connector arrangement and length to suit your compatible video setup.

Built for Your Connections

  • Canare L-4CFB 75-ohm RG-59 coaxial cable.
  • Genuine Canare BNC and F-type connector options.
  • Custom-built finished assembly, not unterminated bulk coax.
  • Available in four cable colors through the listing's configuration options.
  • Custom labeling and finishing options.
  • Lifetime warranty.

Match Connectors and Signal Format

Check the connector type and gender required at both ends. Choose from the BNC and F-type options available for this build, and confirm that the complete connection meets your equipment's 75-ohm cabling requirements.

Connector fit alone does not establish signal compatibility. An SDI video connection, an RF connection, and a clock connection can have different requirements even when they use similar connectors. This cable does not convert between those formats or provide HDMI-to-SDI conversion, amplification, or reclocking. A BNC-to-F-type arrangement changes the physical connection, not the signal format.

This is a 75-ohm coaxial assembly, not a replacement for equipment requiring a 50-ohm antenna cable. Confirm the intended application with our custom cable specialists if you are unsure which construction or connector arrangement to select.

Plan SDI Rate and Run Length Together

For an SDI application, identify the required SDI data rate and measure the full cable route before choosing a length. Resolution alone does not establish the cable requirement; frame rate and the equipment's output format also matter. Do not assume universal support for HD, 3G, 6G, or 12G-SDI at every length from the 75-ohm designation or BNC connector.

The usable run depends on the cable, data rate, source and receiver capabilities, and every adapter, patch point, or coupler in the path. Ask our custom cable specialists to confirm the appropriate cable and length for your equipment and format rather than relying on a universal maximum distance. Longer or higher-data-rate runs may require a different cable construction or signal-distribution solution.

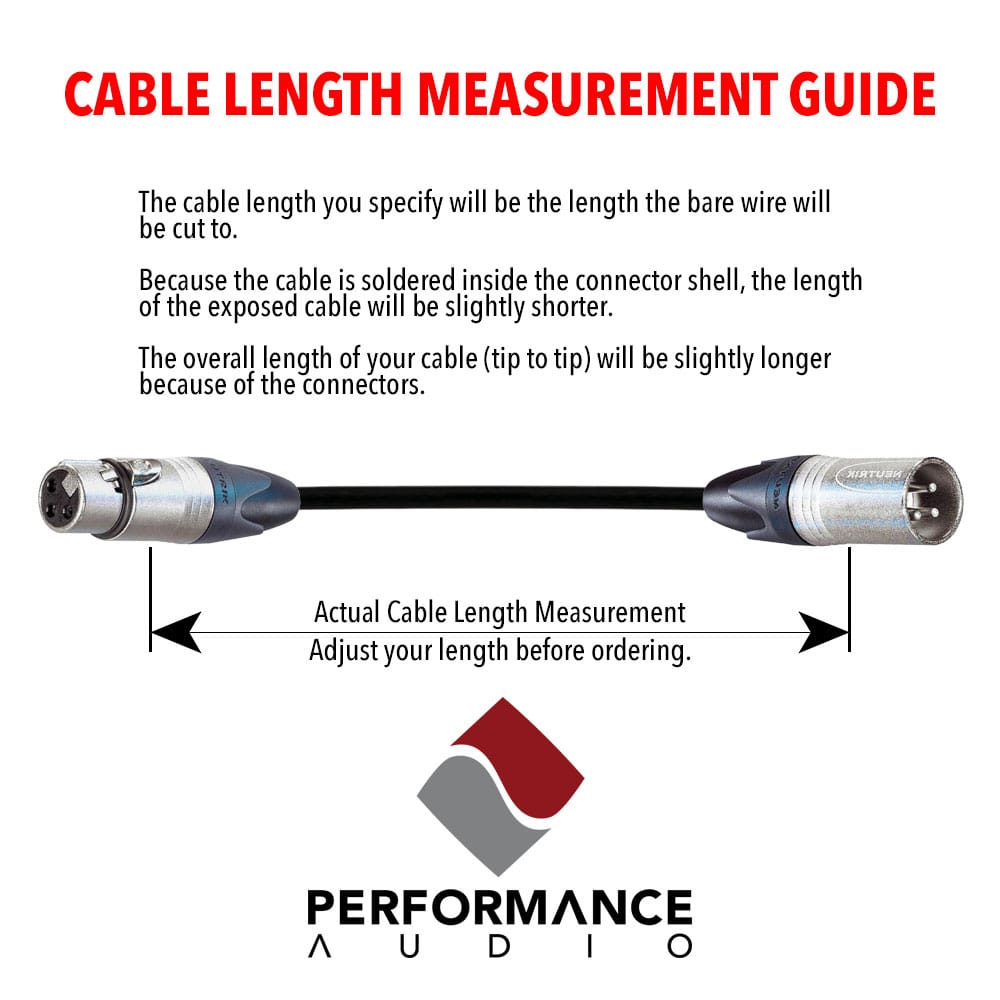

Choose Length and Connector Clearance

Measure the complete routing path with room for bends, service slack, and equipment access while avoiding unnecessary excess cable. Check clearance around recessed or closely spaced sockets and leave access to engage and release BNC locking connections or secure F-type connectors as appropriate.

Confirm any special connector arrangement, orientation, installation requirements, or finishing requests before the build. Do not assume that the finished assembly is weatherproof or suitable for permanent outdoor installation without confirming the installation conditions.

Colors, Labels, and Finishing

Use cable color and custom labels to identify sources, destinations, camera positions, or patch assignments. Ask about the four available colors and finishing options, and provide your preferred label text when discussing the configuration.

Installation and Testing

Support the cable so equipment sockets do not carry its weight. Avoid sharp bends, crushing, pinching, and tension at connectors, and follow the cable manufacturer's bend-radius requirements. Release or unscrew connectors as appropriate and disconnect by the connector body rather than pulling on the cable.

Test the complete installed path at the intended signal format and data rate, including adapters, patch points, and couplers. Confirm stable operation before putting the system into service rather than testing only at a lower-bandwidth format.

Customization Help

If the website's options do not cover your needs, call or email Performance Audio's custom cable specialists. Provide your equipment models, signal format and SDI data rate where applicable, connector requirements at each end, cable length, installation conditions, color, and labeling or finishing requests so we can confirm the build details. Confirm pricing and the build timeline before ordering if you have a deadline.

Details
  • Manufacturer:  Custom Cables
  • MPN: CUSTOM DIGITAL VIDEO L-4CFB
  • Model Number: Custom Canare L-4CFB Digital Video Cable
