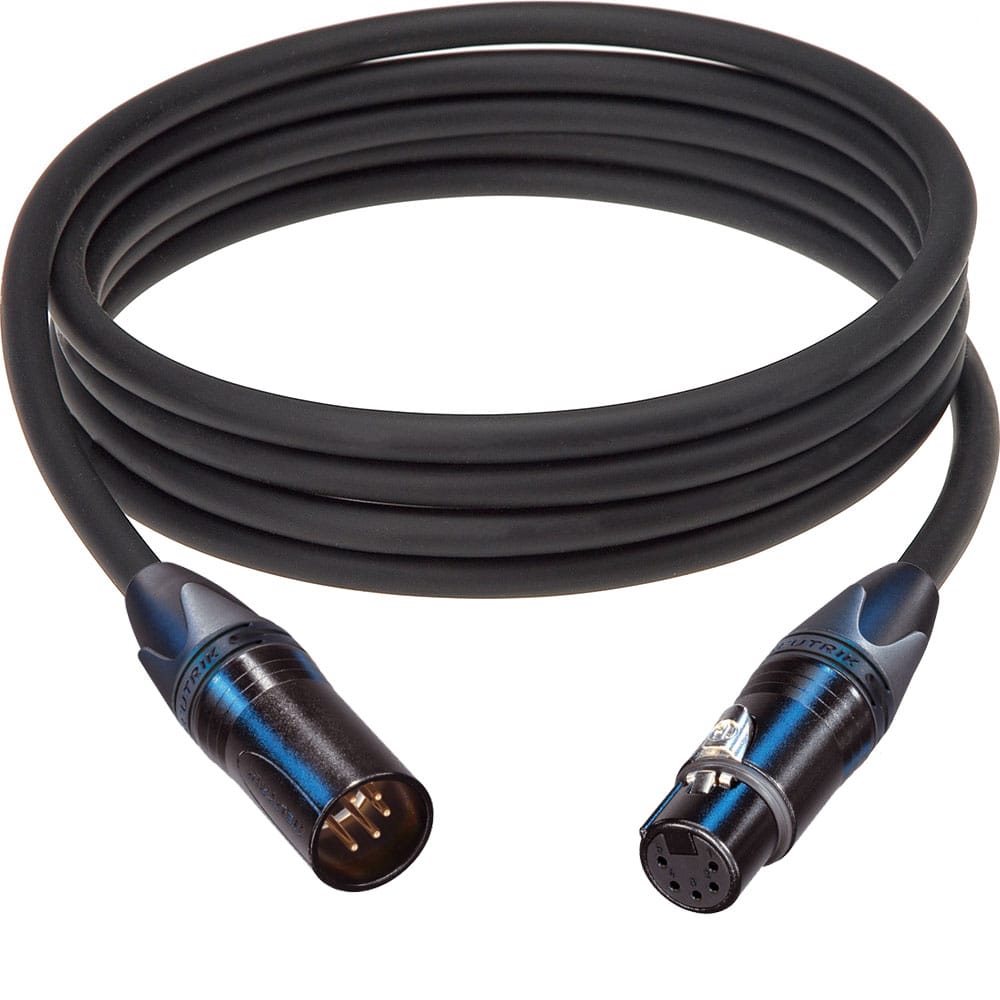

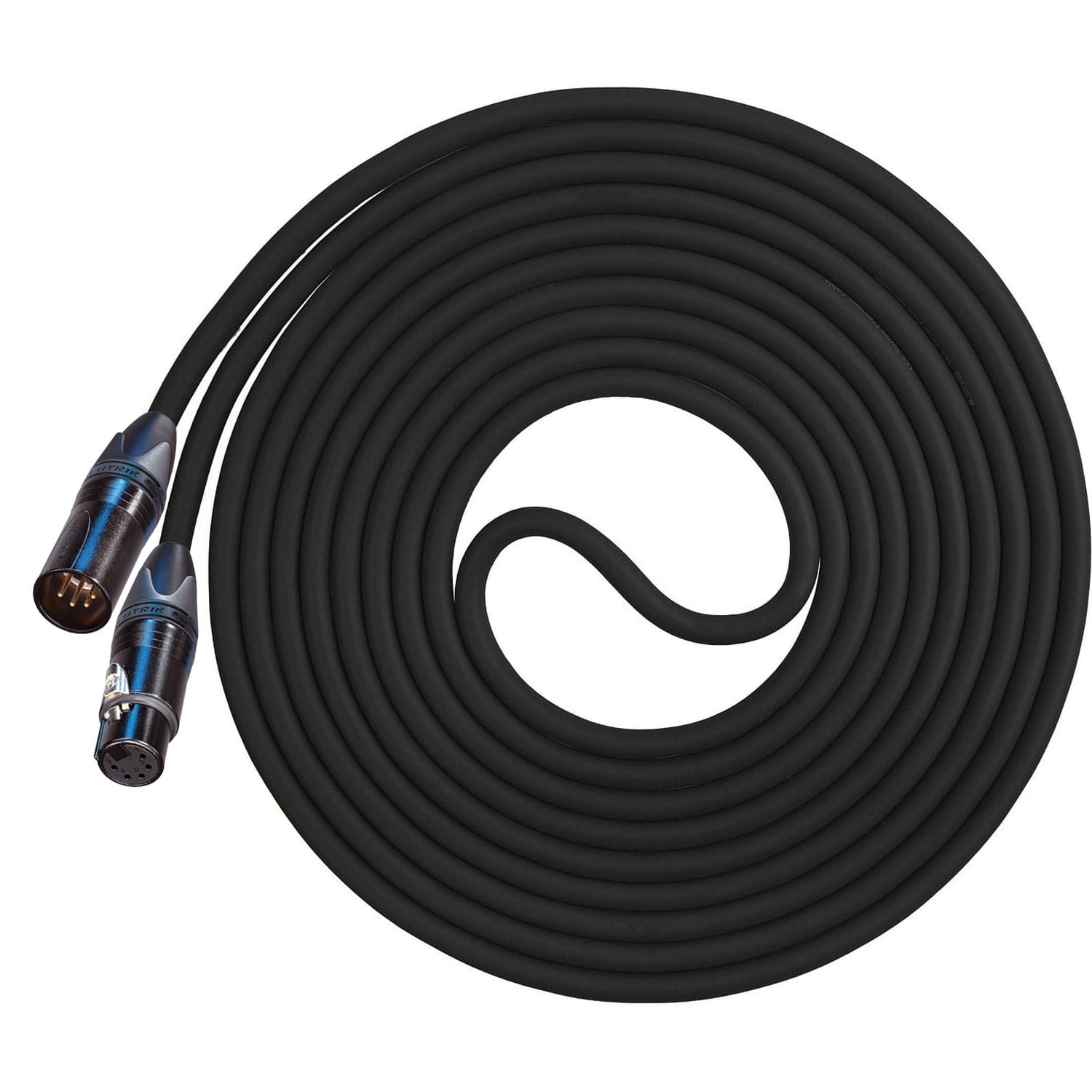

Custom 5-Pin DMX Lighting Cable with CBI BW-DMX5 and Neutrik Connectors

Keep your lighting-control connections organized with a cable built for your routing needs. Performance Audio custom builds this 5-pin DMX cable using CBI BW-DMX5 cable and genuine Neutrik connectors for connections between compatible DMX controllers, lighting fixtures, and distribution equipment.

Built for Your Lighting Setup

• CBI BW-DMX5 DMX cable.
• Genuine Neutrik 5-pin XLR connectors.
• Custom-built finished assembly, not unterminated bulk cable.
• Available in black only.
• Custom labeling and finishing options.
• Lifetime warranty.

Confirm Connector and Equipment Compatibility

This listing is for a 5-pin DMX assembly. Check the connector type and gender required at both ends, including the controller's output and each fixture's input and through connection. Equipment with 3-pin DMX connections requires an appropriately wired adapter or a different cable configuration; the connectors are not directly interchangeable.

A 5-pin XLR connector does not establish compatibility by itself. Confirm that both devices use compatible DMX connections and wiring. Do not assume that all five pins are used by every fixture, or that this assembly supports a manufacturer's auxiliary signals without confirming the required wiring. It is not a microphone, headphone, speaker-power, or mains-power cable.

Plan the DMX Signal Path

Follow the equipment manufacturer's guidance for connecting the controller to fixtures in a daisy chain and terminating the end of the DMX line. A cable does not replace the required terminator. For multiple branches, use an appropriate active DMX splitter rather than a passive Y-cable.

The cable carries the control connection; it does not assign fixture addresses, select operating modes, or convert between lighting-control protocols. Confirm addressing and channel-mode settings as part of system setup. Check equipment guidance for total run length, device count, and distribution requirements rather than assuming a universal maximum from the connector type.

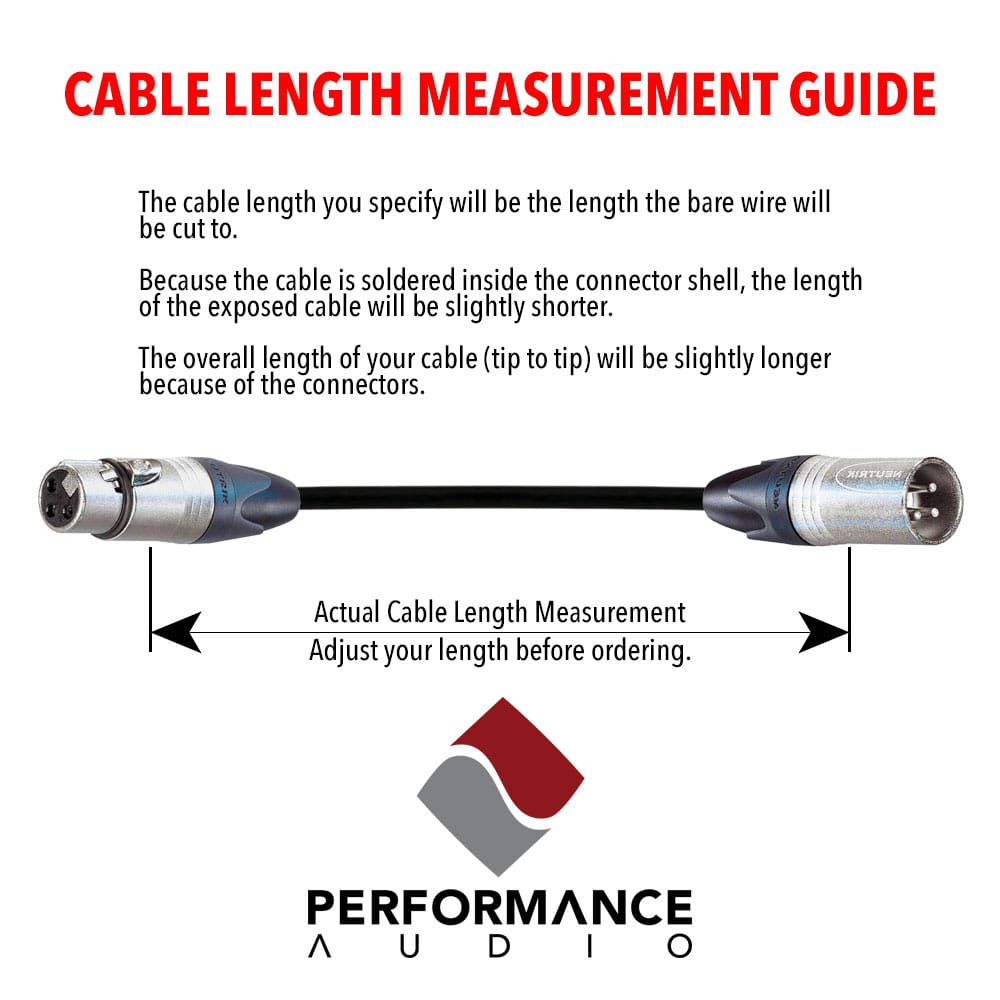

Choose the Right Length and Routing

Measure the complete cable path with room for bends, service slack, and access to connections. Allow adequate movement clearance around moving-head fixtures without letting the cable snag or pull on sockets. Support the run independently of equipment connectors and protect it from pinching, crushing, and sharp bends.

Check clearance around recessed sockets and release latches. Discuss any special connector orientation, wiring, or routing requirements with our custom cable specialists before ordering.

Labels and Finishing

Ask about custom labels to identify cable length, fixture position, universe, or destination, along with the available finishing options. Clear identification helps keep setup and troubleshooting straightforward when several control runs share a rack, truss, or stage.

Installation and Testing

Follow the equipment manufacturer's connection procedures, release XLR latches where fitted, and disconnect by the connector body rather than pulling on the cable. Test the complete DMX chain, including adapters, splitters, termination, fixture addresses, and operating modes, before the show or installation goes into service.

Customization Help

If the website's configuration options do not cover your needs, call or email Performance Audio's custom cable specialists. Provide your controller and fixture models, required connector genders, cable length, any special wiring requirements, and labeling or finishing requests so we can confirm the build details. Confirm pricing and the build timeline before ordering if you have a deadline.
